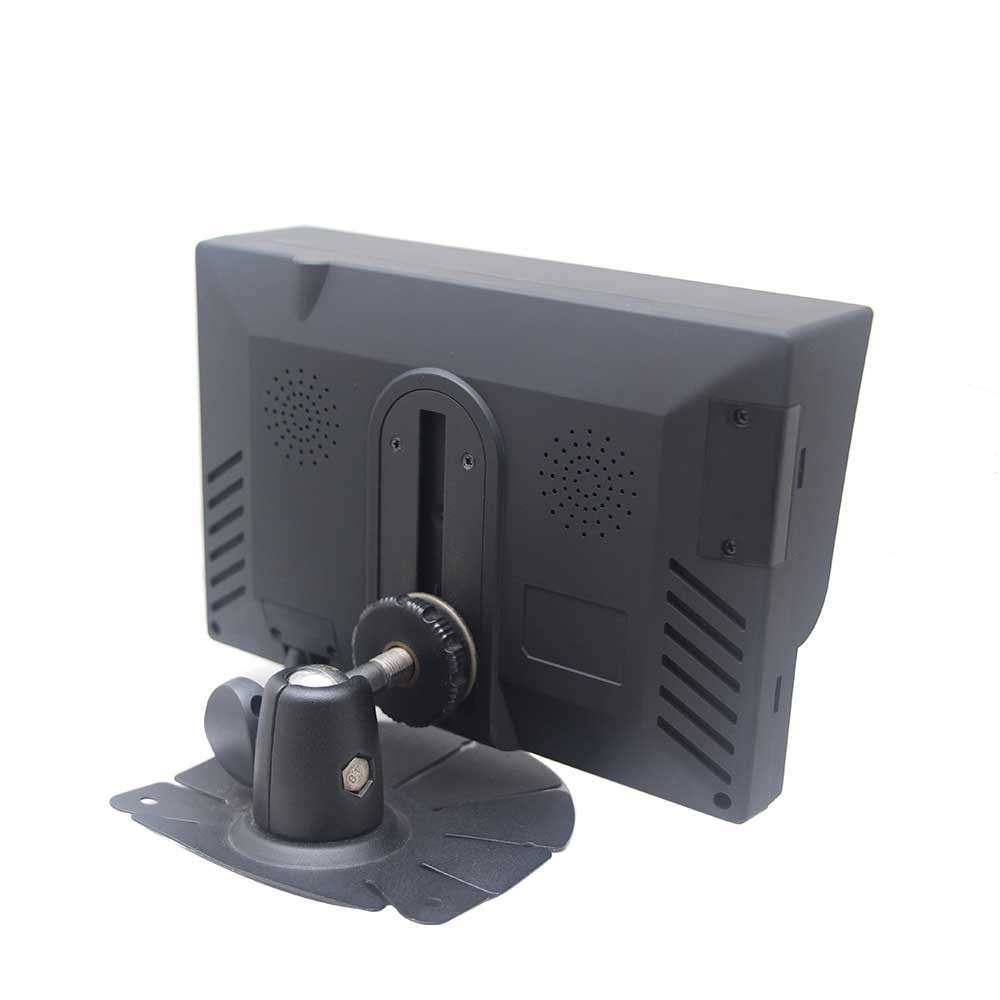

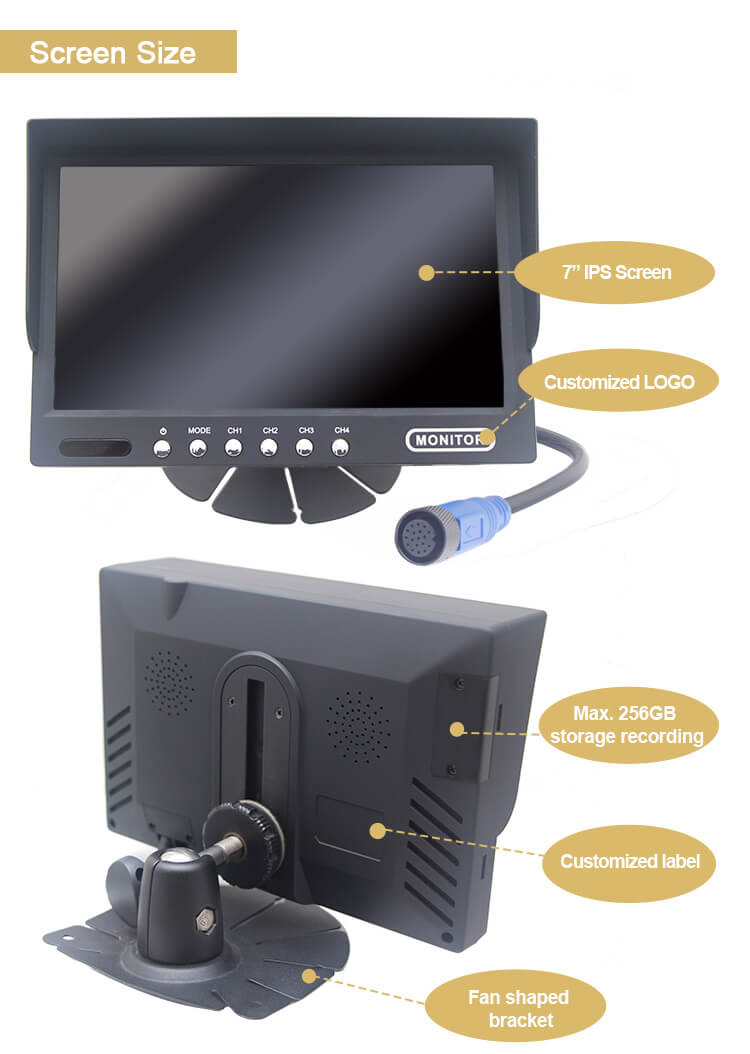

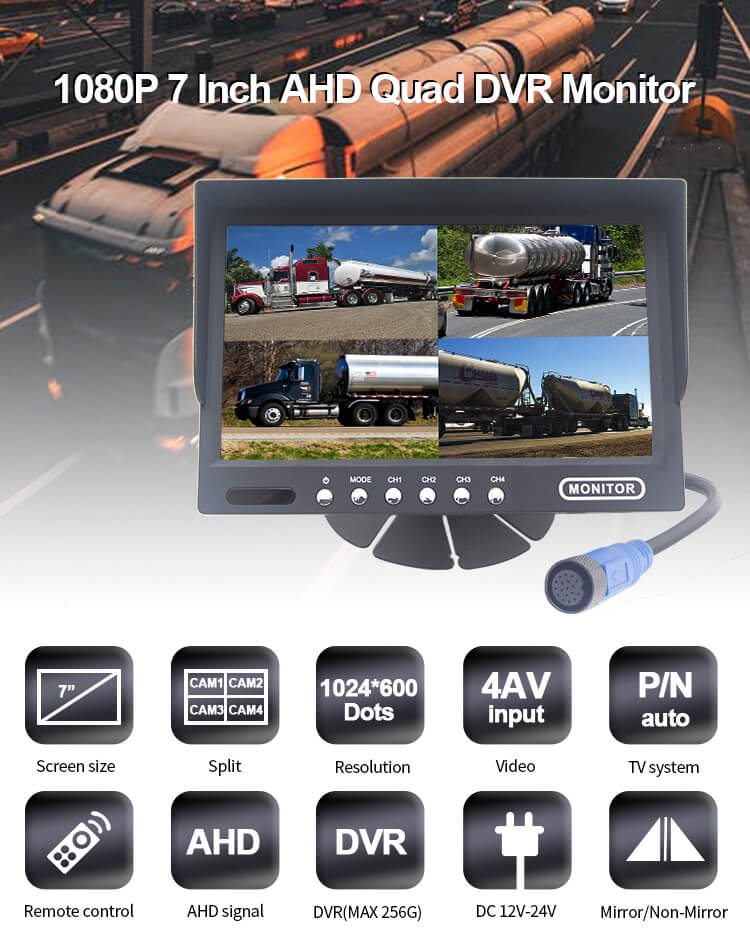

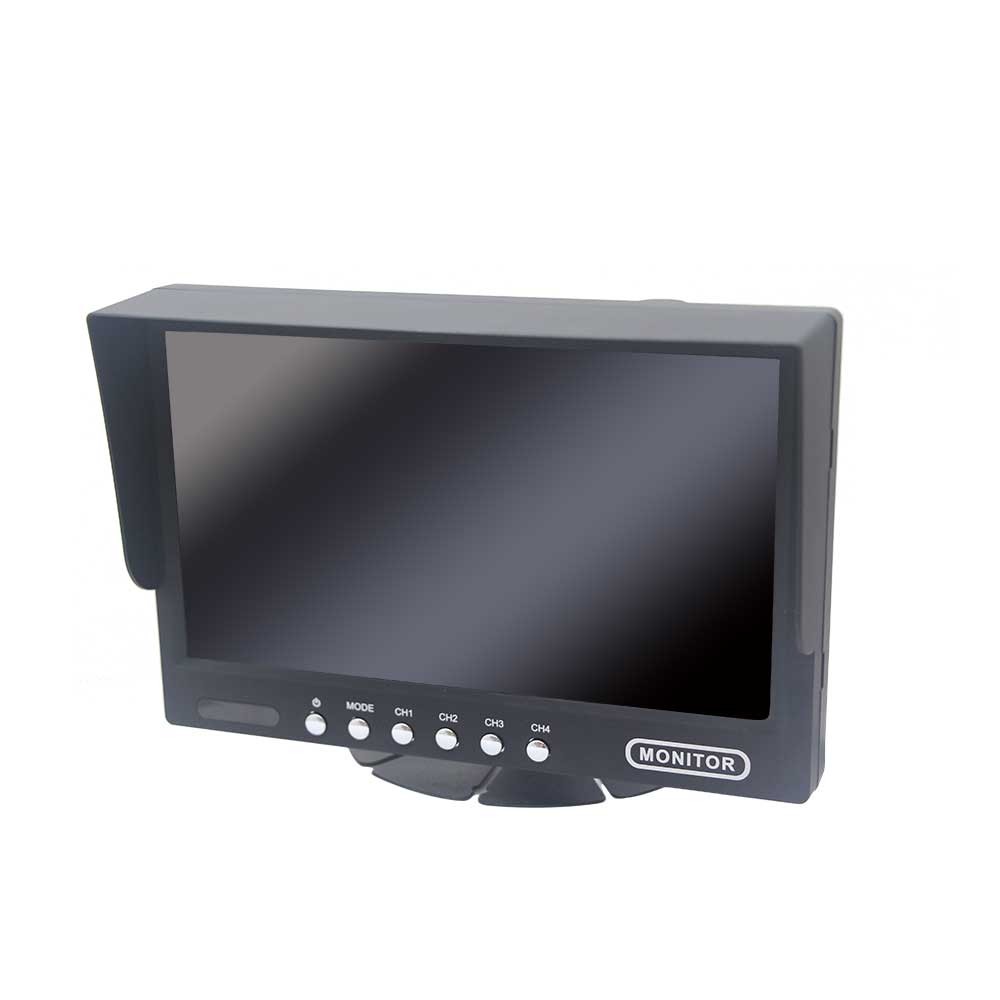

● Sunshade cover & fan bracket
● 1024*RGB*600 HD resolution (IPS LCD screen)
● 4CH x cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

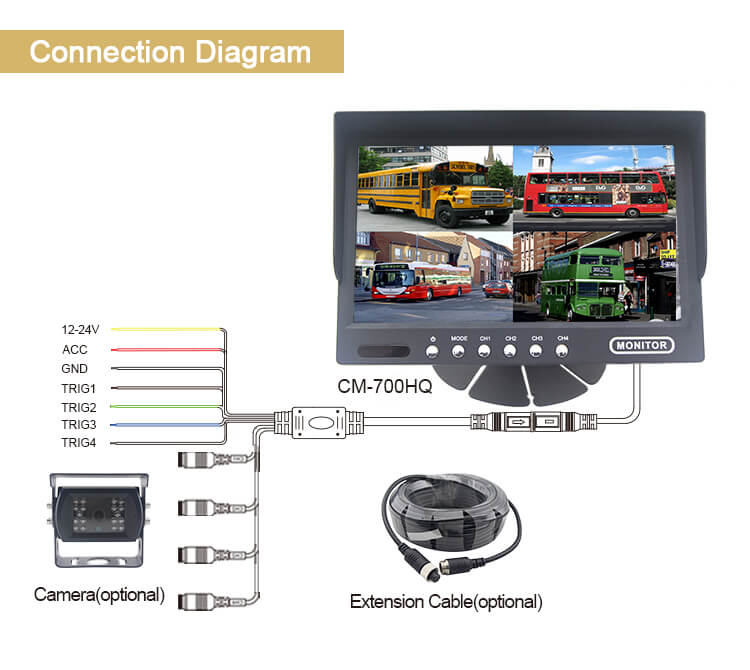

● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;
● 1CH audio signal input (high quality speaker)

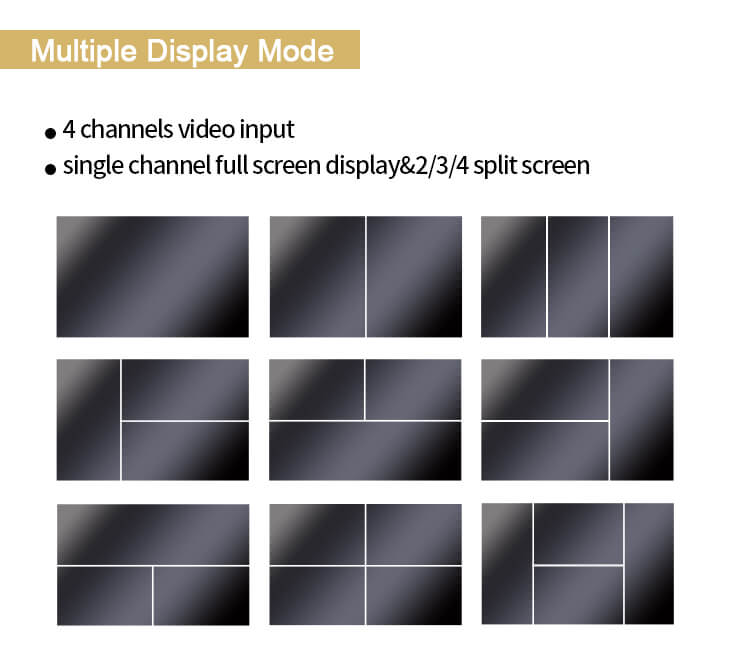

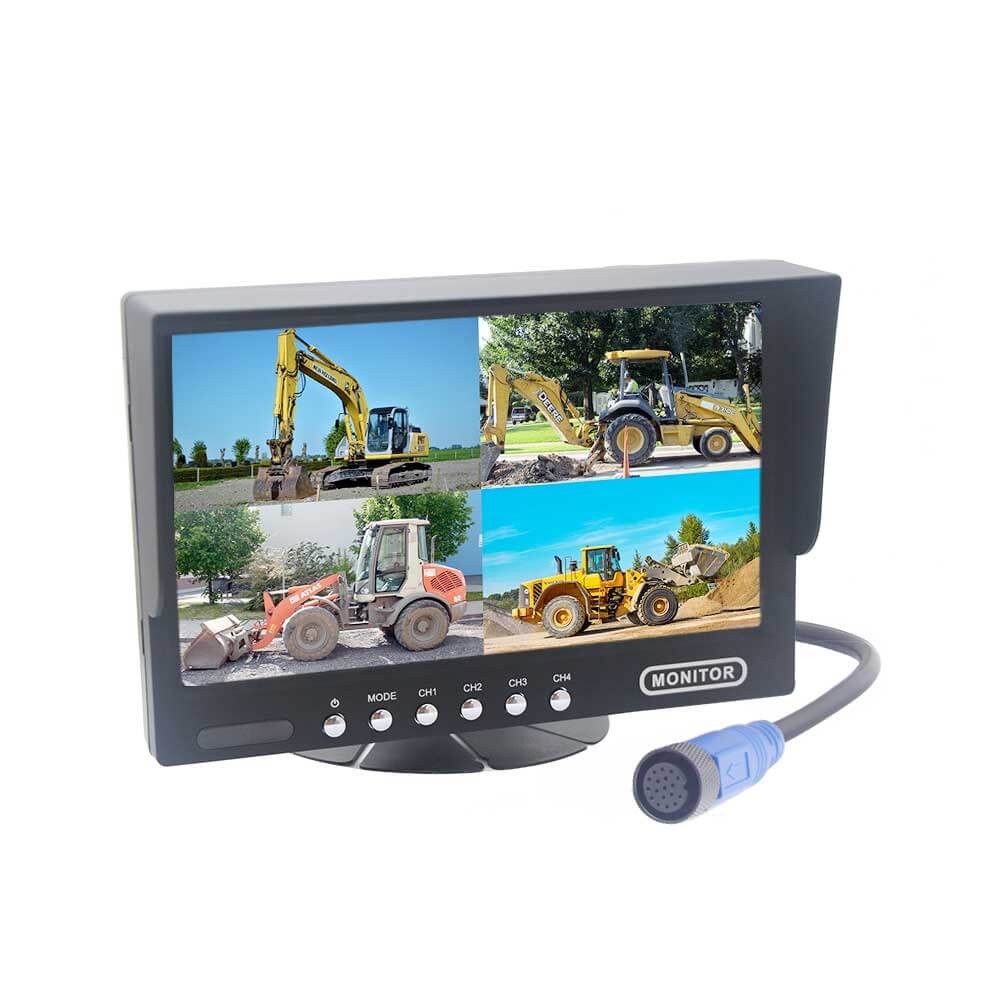

● Full display & dual/triples/quad split view mode
● Built-in 256GB memory card (4CH DVR HD loop recorder)

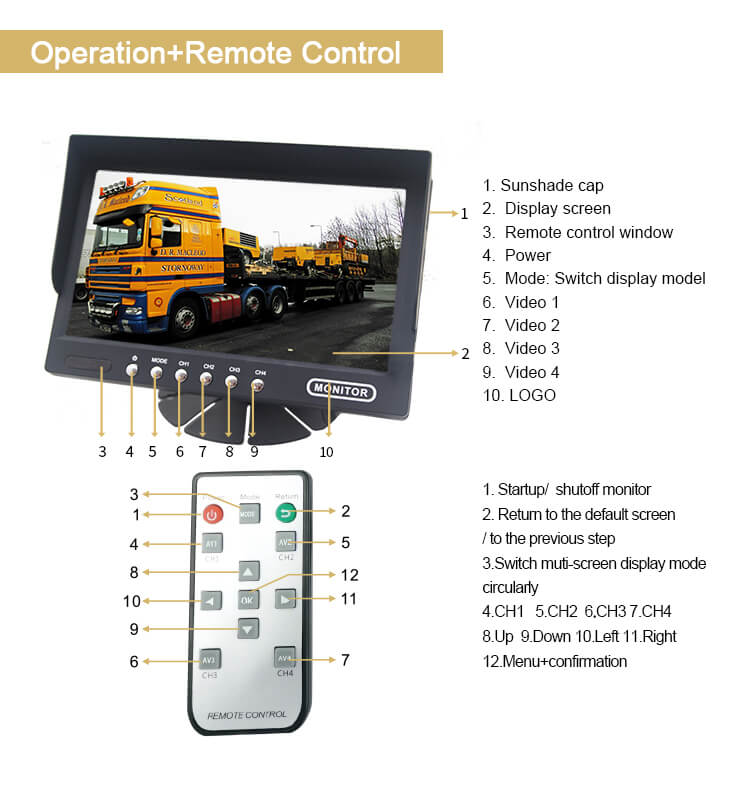

● Full-function remote control
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
● AUTO adaption PAL / NTSC TV system
PRODUCT FEATURES

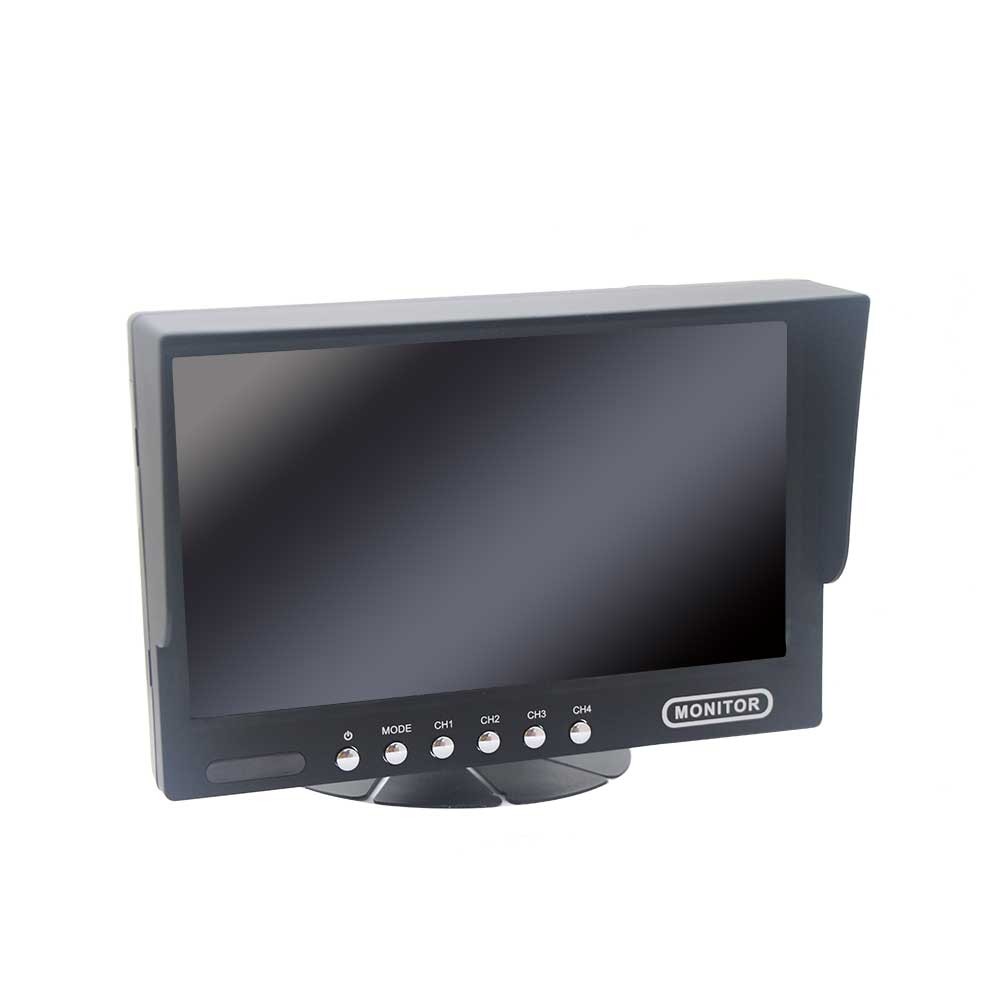

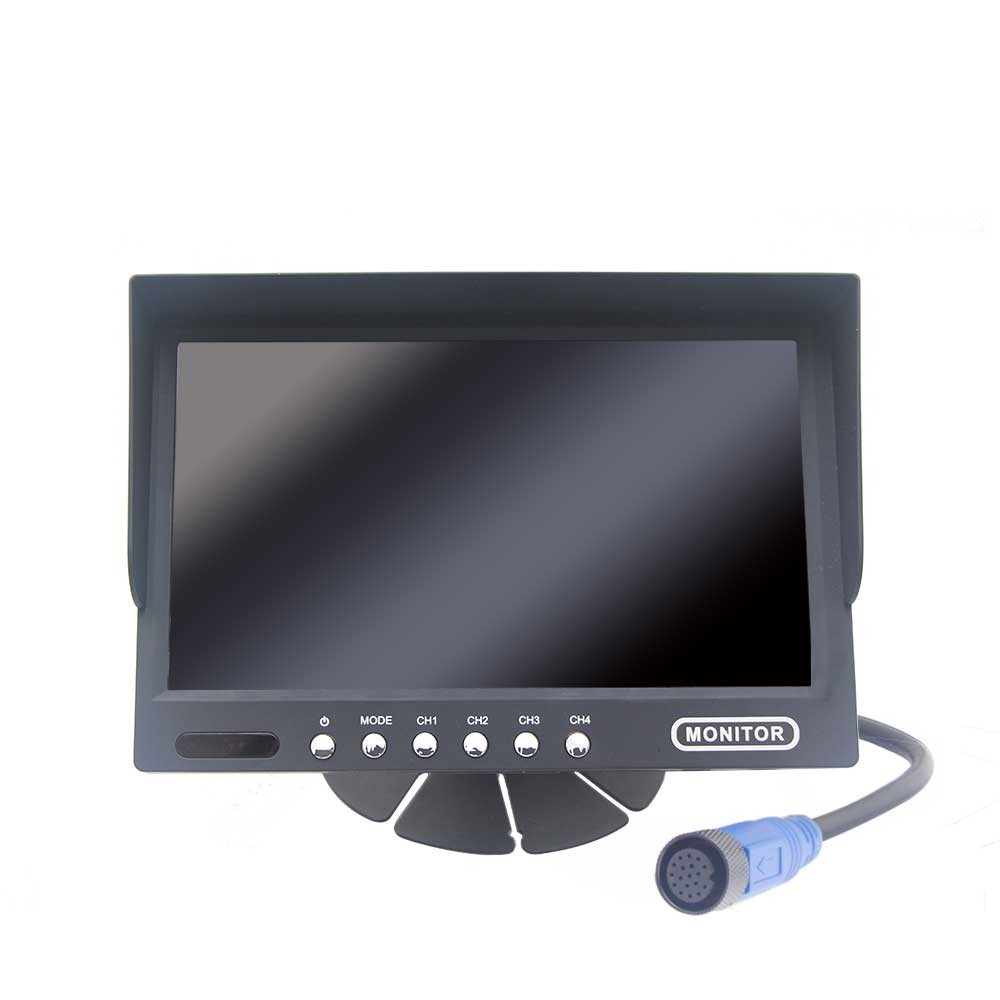

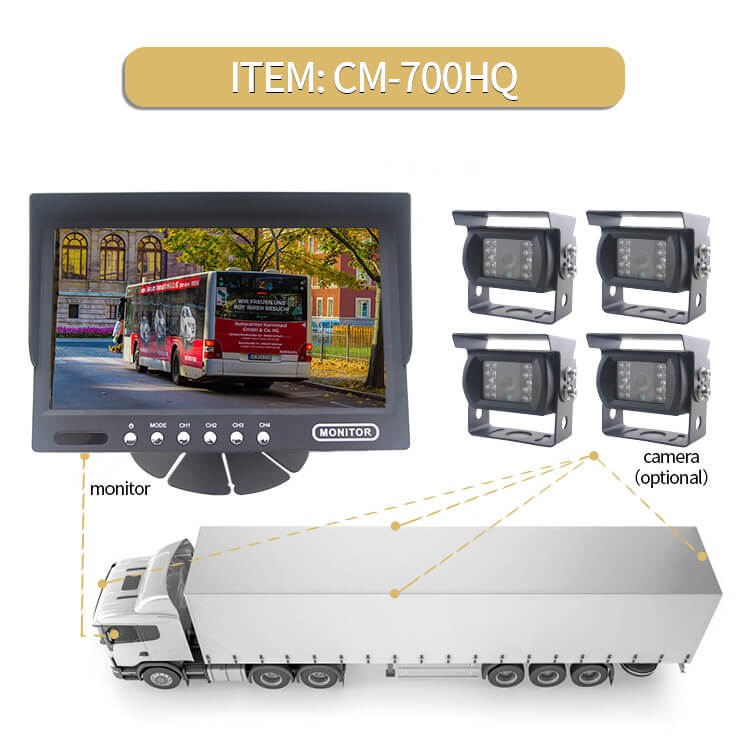

AOTOP 7 inch commercial vehicle HD quad view monitor supports 4CH AHD video signal input, allowing
connect 4CH cameras, helping the driver to grasp the situation around the vehicle at any time, eliminating
blind spots and reducing the risk of collision accidents. No external DVR built-in 256GB memory card can
provide key video evidence in the event of an accident and improve the safety operation efficiency of the
fleet. If you are looking for a reliable car monitor manufacturer & supplier in China, please contact us at
sales@aotop.com!

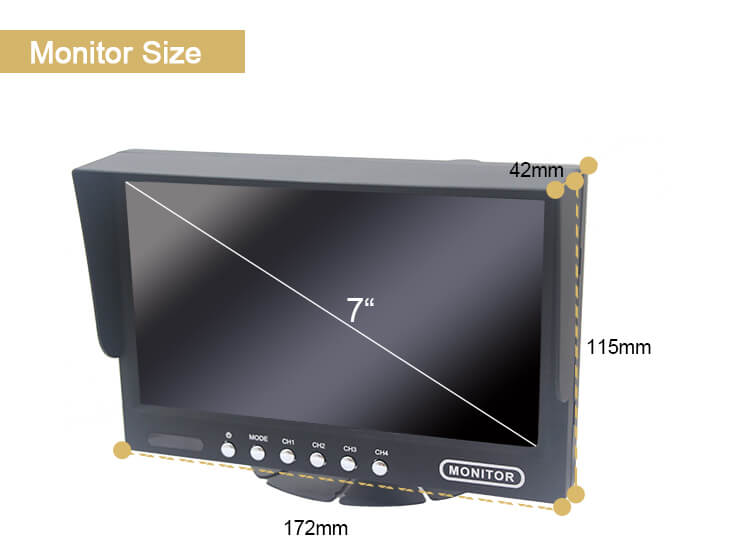

| Screen Type & Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left , Right-85° |
| Video Input | Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Inpu |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu | Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Recording Settings, Parking Guide Line On/Off, Reset |
| DVR Function | Built-in 256GB Memory Card 4CH Camera Image HD Recording |
| Recording Replay | Support Single Image Real Time Replay (No Audio When Playback) |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Split View Mode | Single/Double/Triple/Quad View Image Display |
| Trigger | 4CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating Power | 13.2W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |

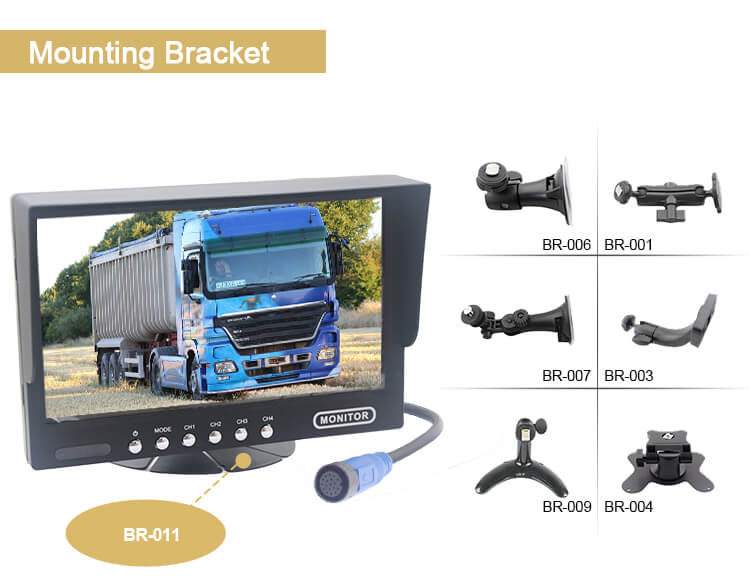

| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
