● 1024*RGB*600 Resolution (IPS LCD Screen)
● 800cd/㎡ High Brightness Screen

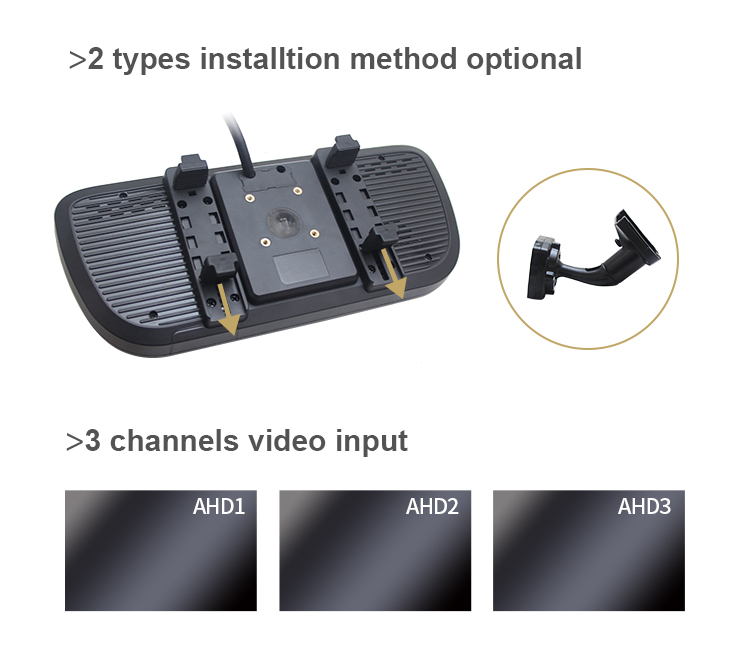

● 3CH x Cameras Video Signal Input
● Multiple Video Formats Available To Cameras: 720P / 1080P / AHD / Compatibility CVBS / PAL / NTSC

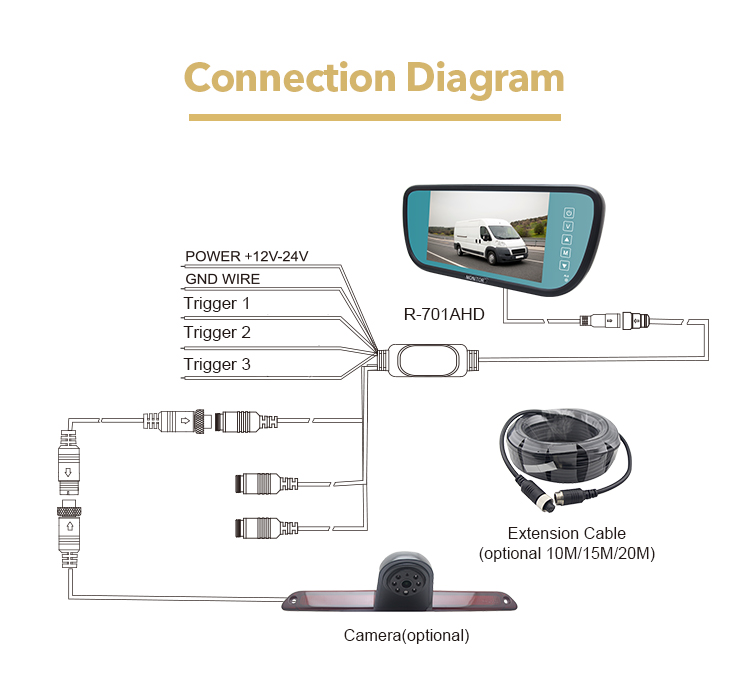

● 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
● 1CH Audio Signal Input (High Quality Speaker)

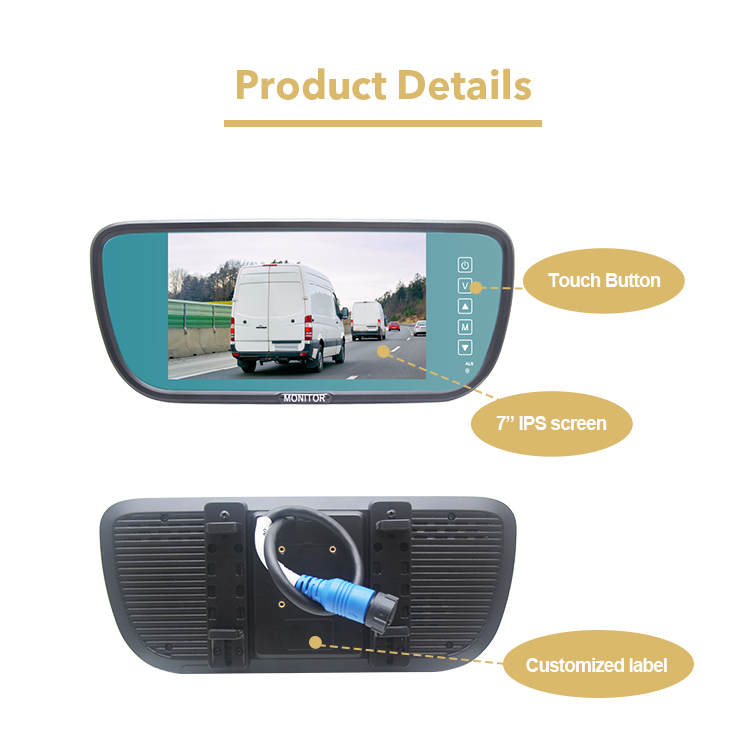

● Touch Button Easy To Operation

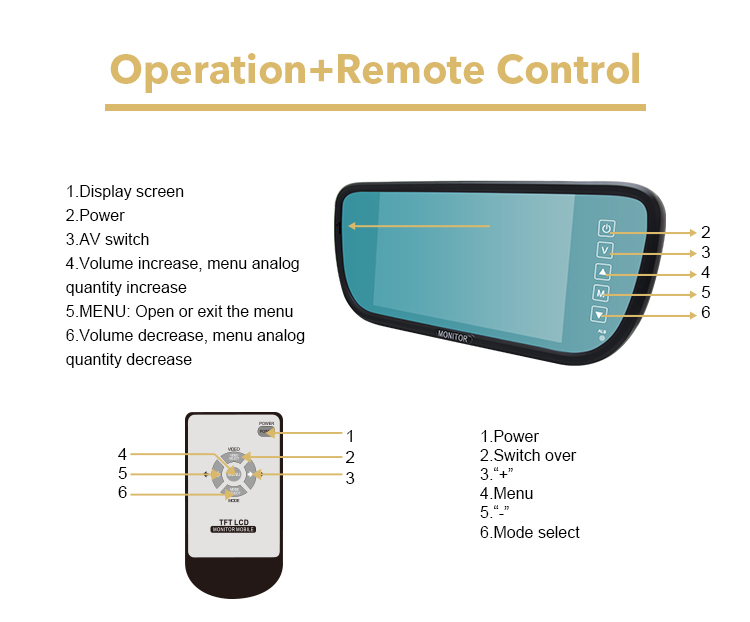

● Full-Function Remote Control
● Multi-Language Settings
● Horizontal Mirror Image Switching; Image Flip;
● DC 12-24V Wide Voltage
● AUTO Adaptation PAL / NTSC System
PRODUCT FEATURES

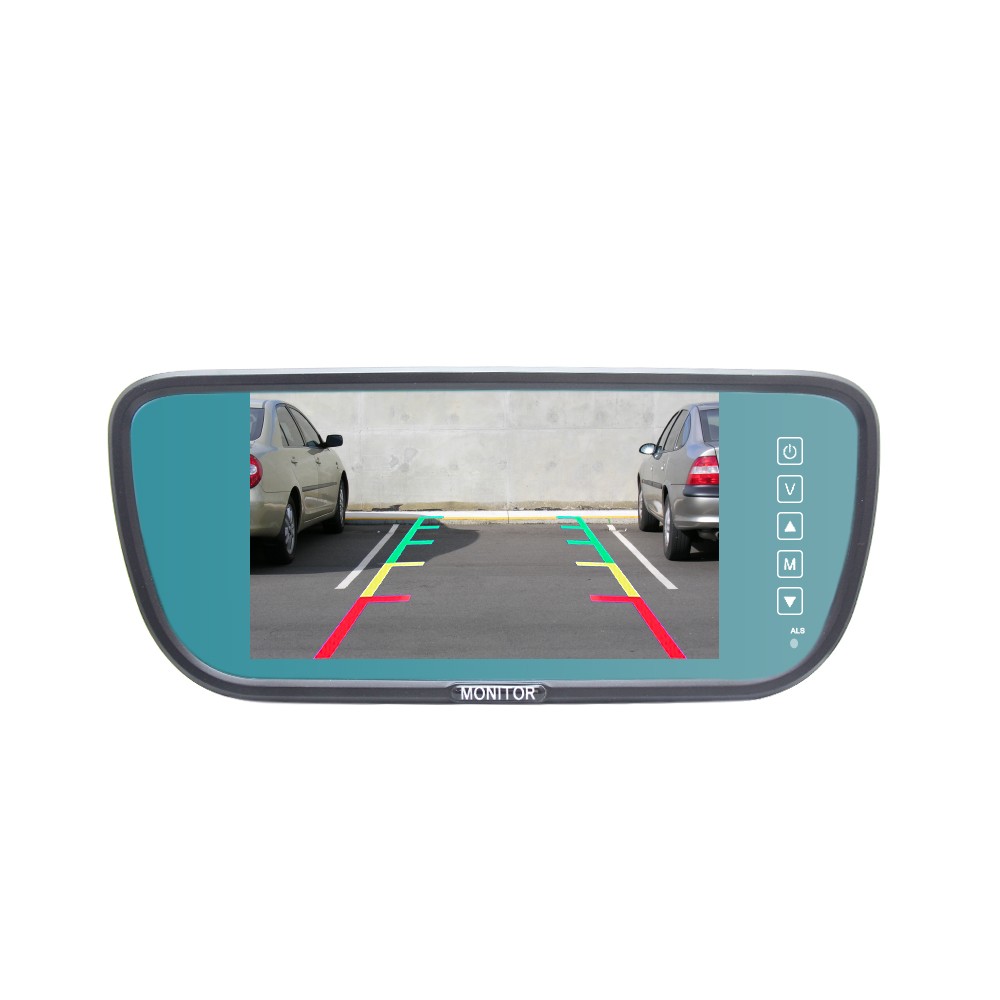

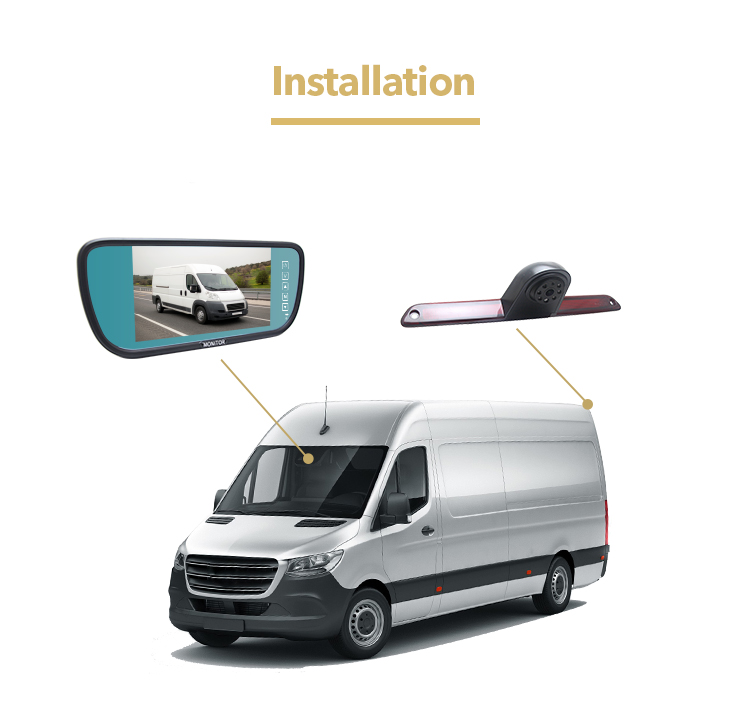

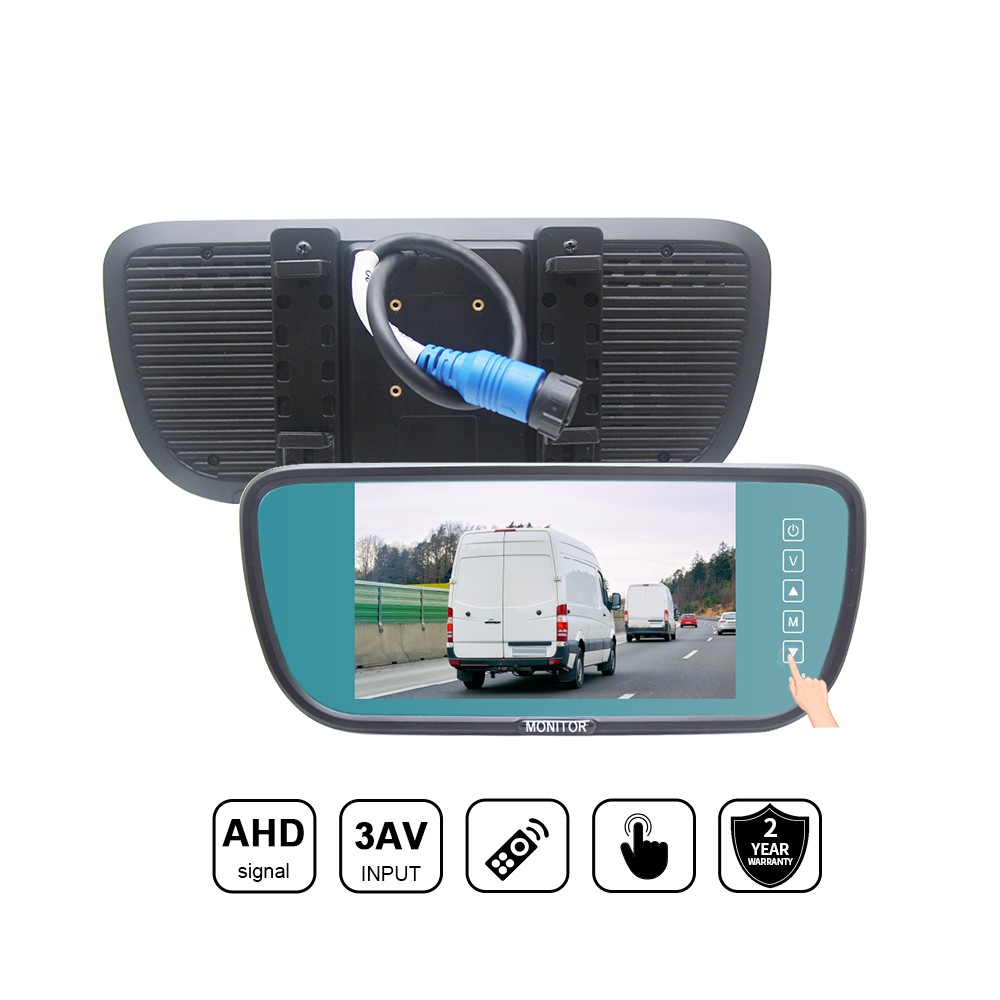

R-700AHD 7 inch rear view AHD mirror monitor supports 3CH AHD video signal input, connects to 3 high definition
car cameras, allowing the driver to view vehicle surround environment in anytime, reduces the risk of collision or
scratches caused by blind spots. This mirror monitor design to replace the original mirror, can meet the user's image
needs for high quality vehicle rear view monitoring. If you are considering purchasing vehicle mirror monitor in bulk,
please contact sales@aotop.com!
| Screen ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Backlight luminance | LED, Luminance 800 cd/㎡ |
| Contrast | 800:1 |
| Frame rate | 1080P@25fps,1080P@30fps |
| Viewing angle | IPS, Up/down/left/right more than170° |
| Working temperature | -20~+70 ºC |
| Working humidity | 85%RH |
| Storage temperature | -30~+85 ºC |
| Power supply | DC12-24V |
| Bootup time | 2S |
| Current consumption | TYPE: DC12V/550mA |
| OSD control | Image setting, general setting, System setting, Volume |
| Parking guide line | Each channel is controlled separately |
| Mirror/ Normal image | Each channel is controlled separately |
| Reversing delay | Each channel is controlled separately |
| Signal input/Image display | 3 channels 1080P/720P/ CVBS video input; Compatible with mixed input of CVBS and AHD; Compatible with mixed input of PAL and NTSC; |
| Trigger control | 3CH trigger control |
| Monitor display | 1CH single image display |
| System | PAL/NTSC automatically |
| Shockproof level | 4G |
