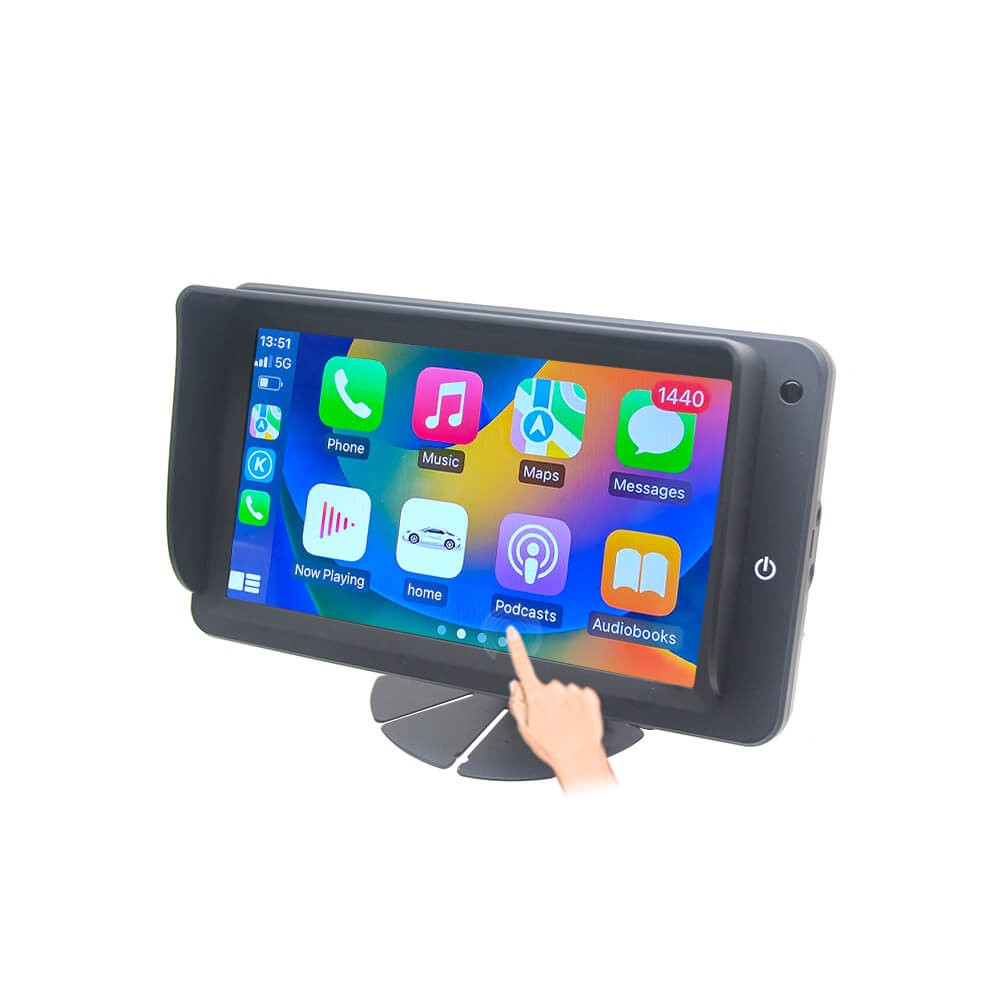

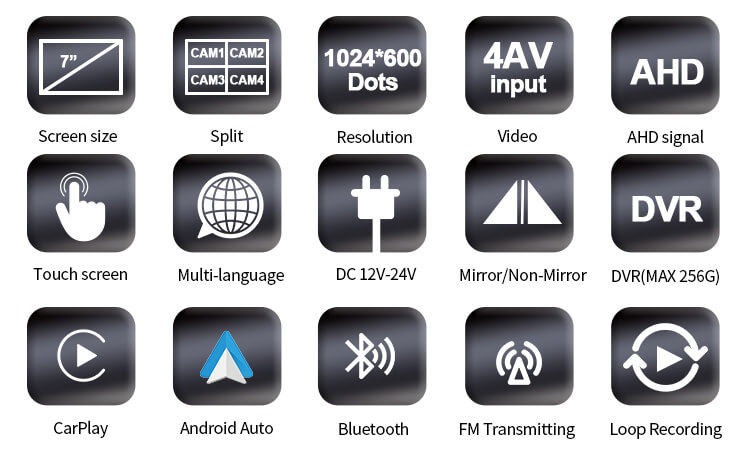

● Wireless CarPlay & Android Automotive connection
● FM radio; Phone bluetooth & WI-FI wireless connection;

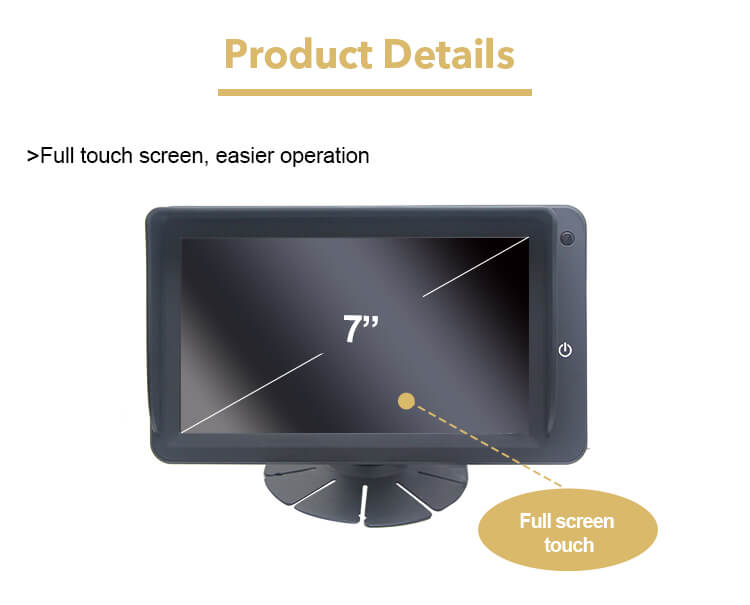

● 1024*RGB*600 IPS LCD digital screen (full touch)
● 4CH x cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC

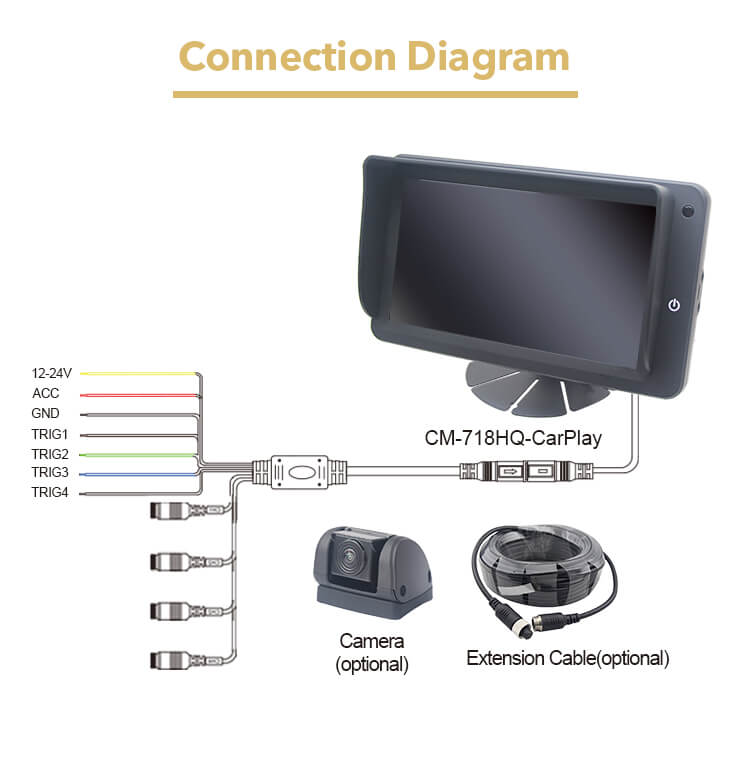

● 4 trigger lines input, trigger line definition, image signal trigger delay & priority can be adjusted freely;

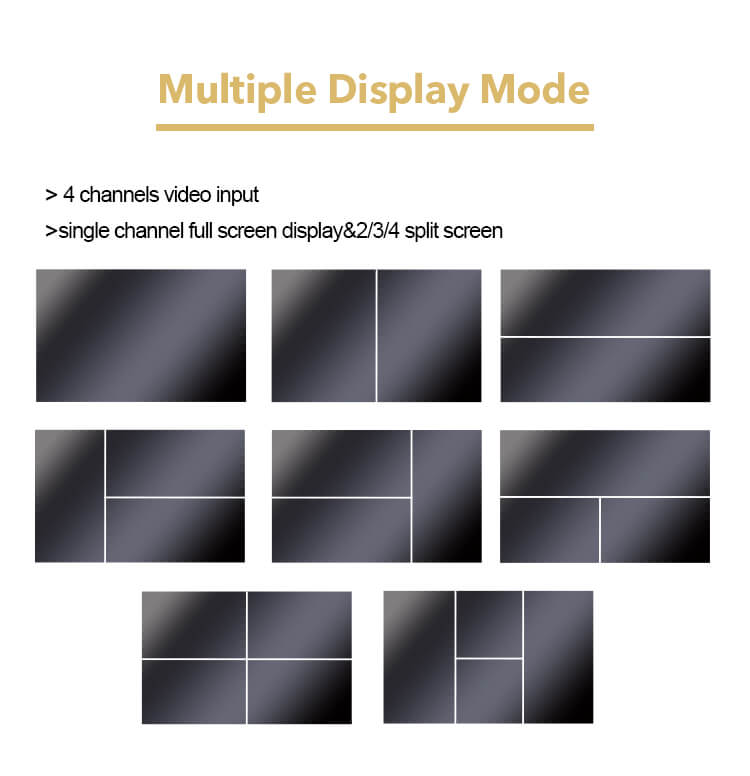

● Full display & dual/triples、quad split view mode

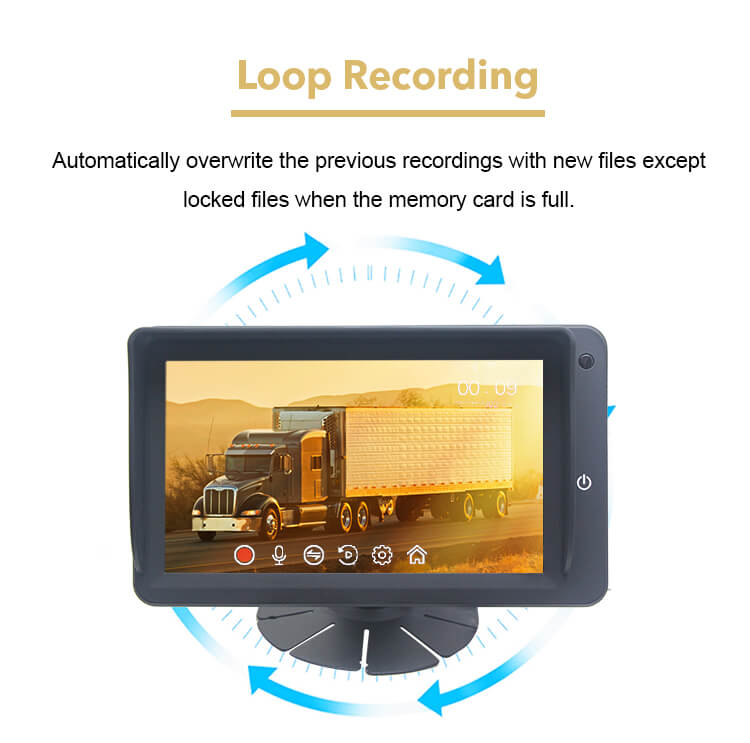

● Max. 256GB memory card (4CH DVR HD loop recorder)
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
PRODUCT FEATURES

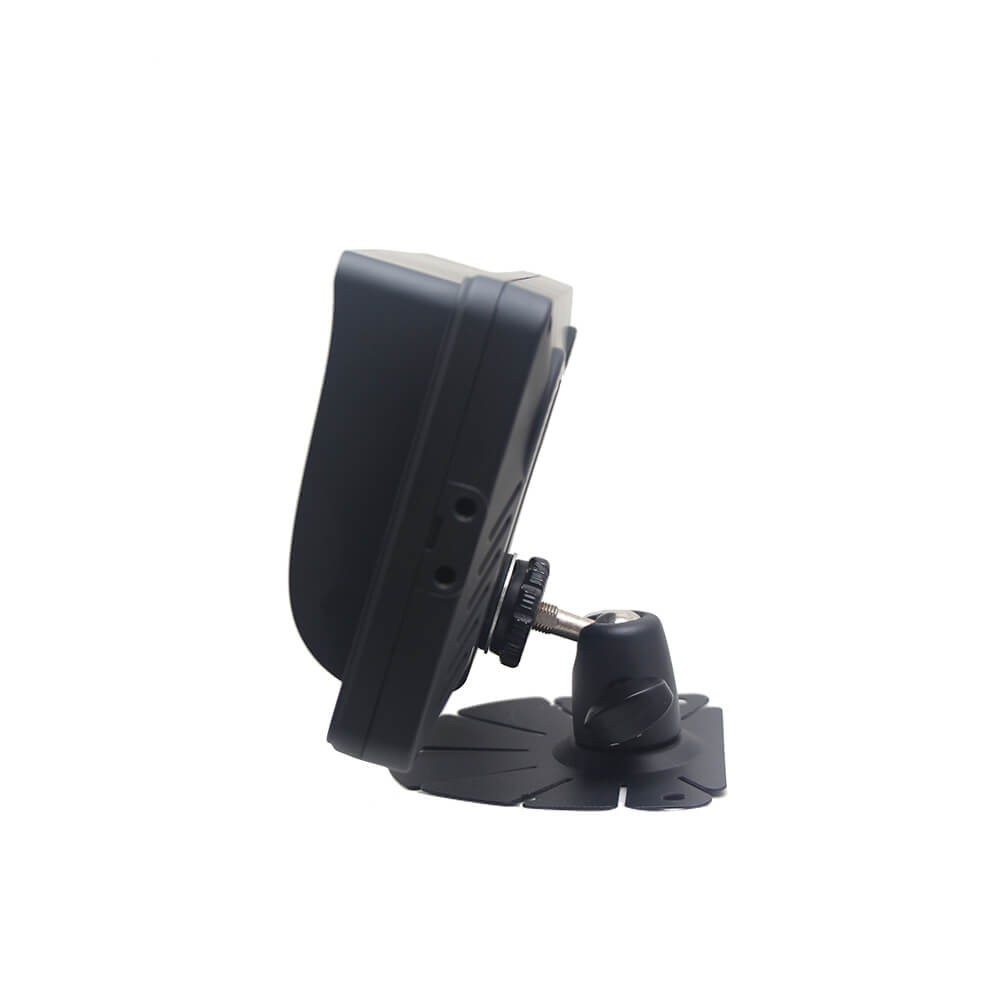

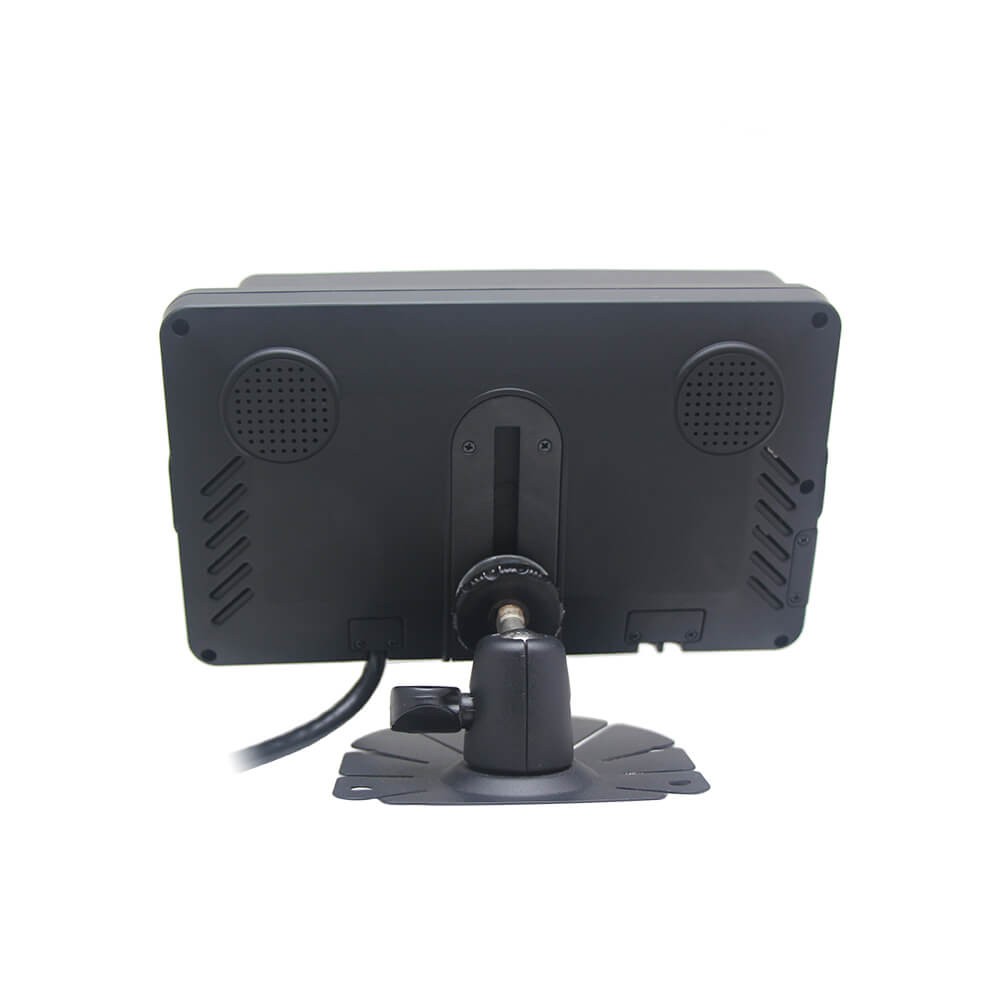

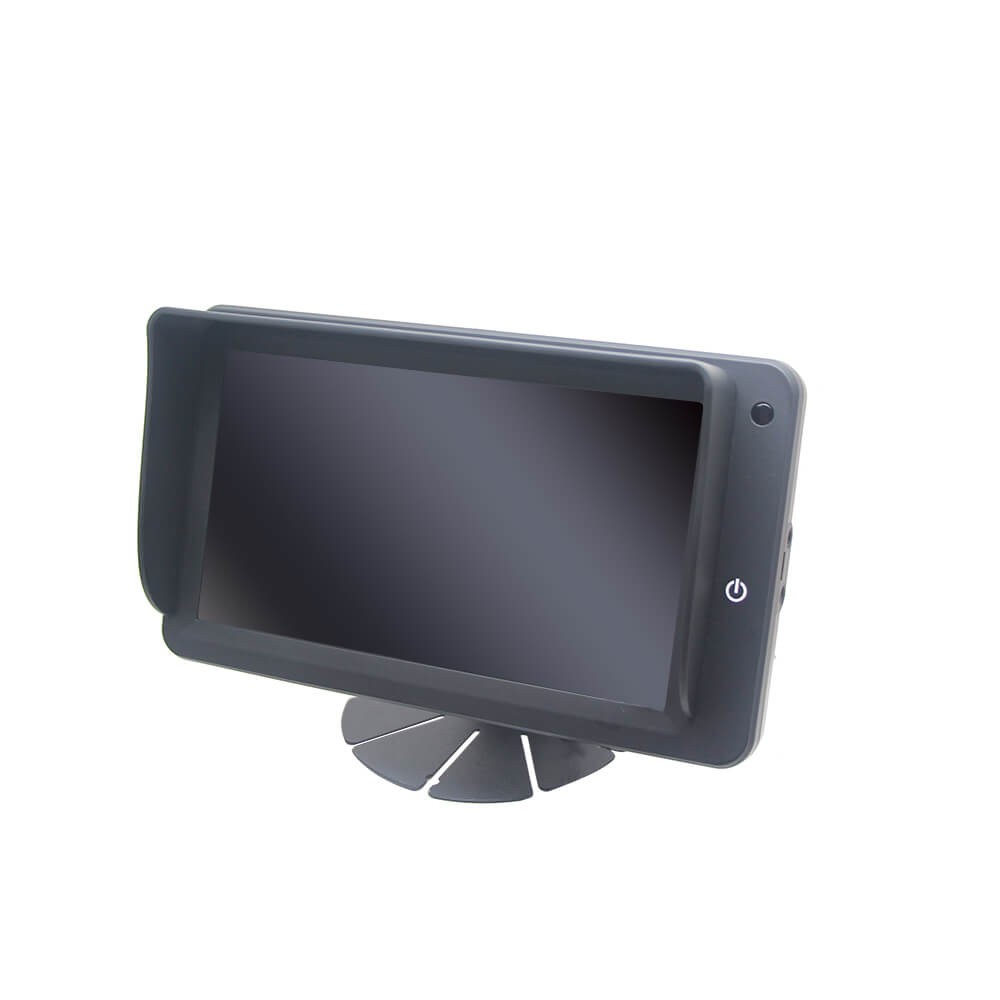

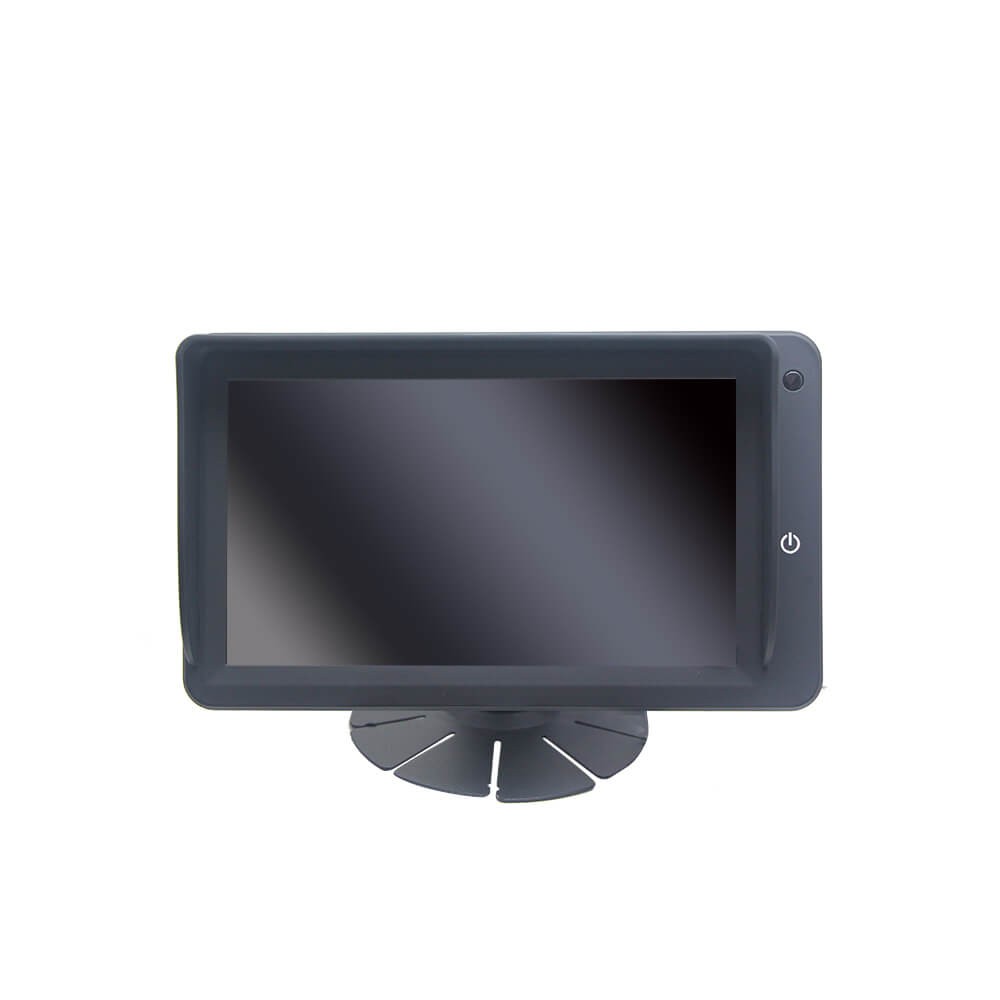

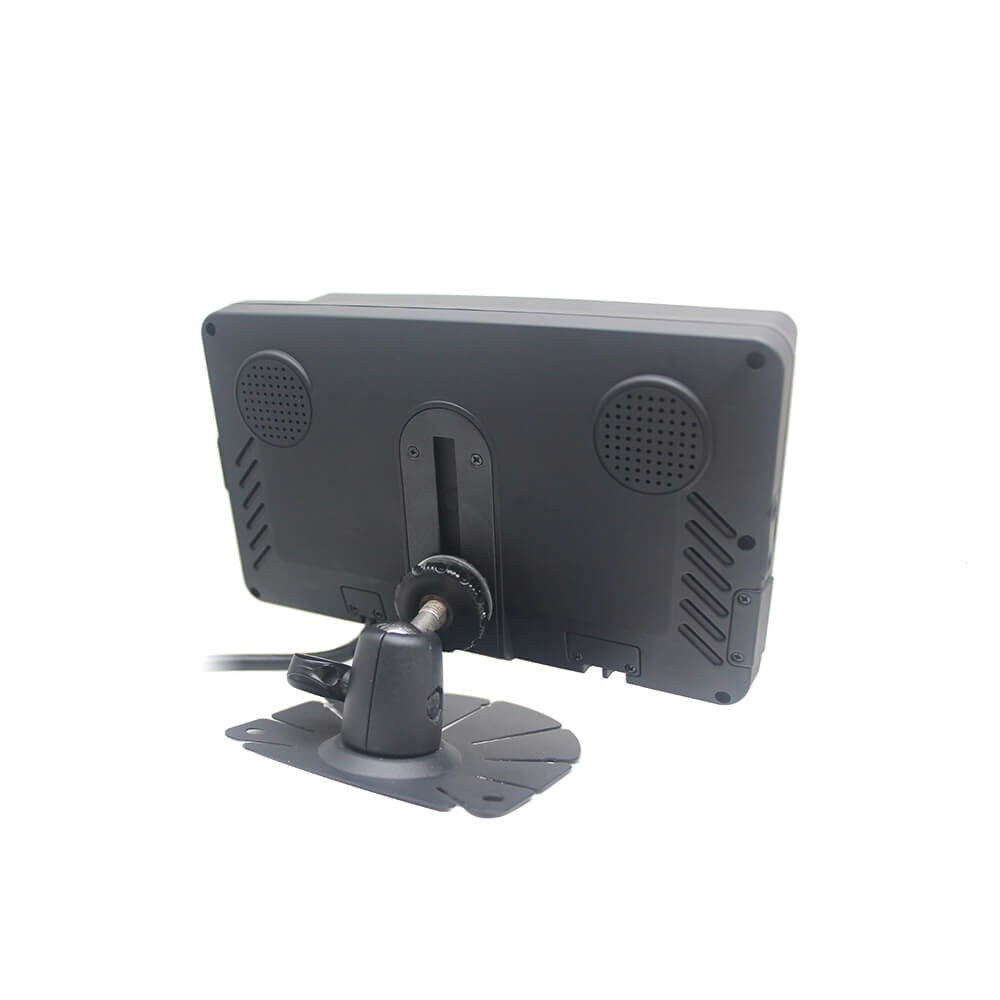

AOTOP [CM-718HQ-CarPlay] 7 inch rear view AHD LCD IPS touch screen monitor, support 4CH AHD video signal input, allowing

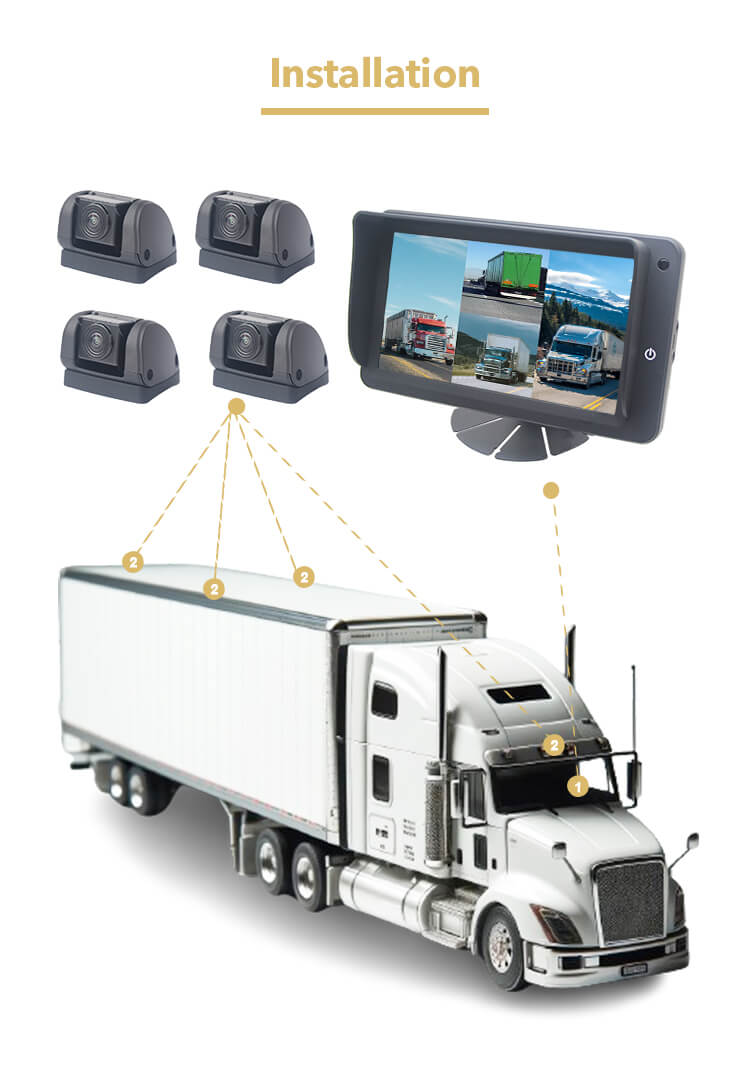

connection 4CH vehicle cameras. Quad split view effectively monitoring blind spots around the vehicle, reducing the risk of
accidents and providing an efficient monitoring solution for large vehicles. It also supports wireless CarPlay and Android Auto
connectivity, enabling navigation, phone calls, and music control directly on the display. If you're looking reliable CarPlay
monitor manufacturer in China, please contact us sales@aotop.com.
| Screen ratio | 16:9 |
| Screen resolution | 1024*R.G.B*600 BOE |
| Backlight | LED, brightness 400 cd/m2 |
| Contrast | 500:1 |
| Viewing angle | UP—85°, DOWN—85°, LEFT—85°, RIGHT—85° |
| Operating method | Full touch screen |
| OSD control | DVR, carplay, FM emission, settings, Bluetooth, brightness, volume |
| Signal input | 4CH AHD 720PAL / 720NTSC / 1080PAL / 1080NTSC |
| Recording | Support SD card recording |
| SD card | Support 32G-256G, Class 10 and above |
| Video compression format | H.264 |
| Recording resolution | 720P |

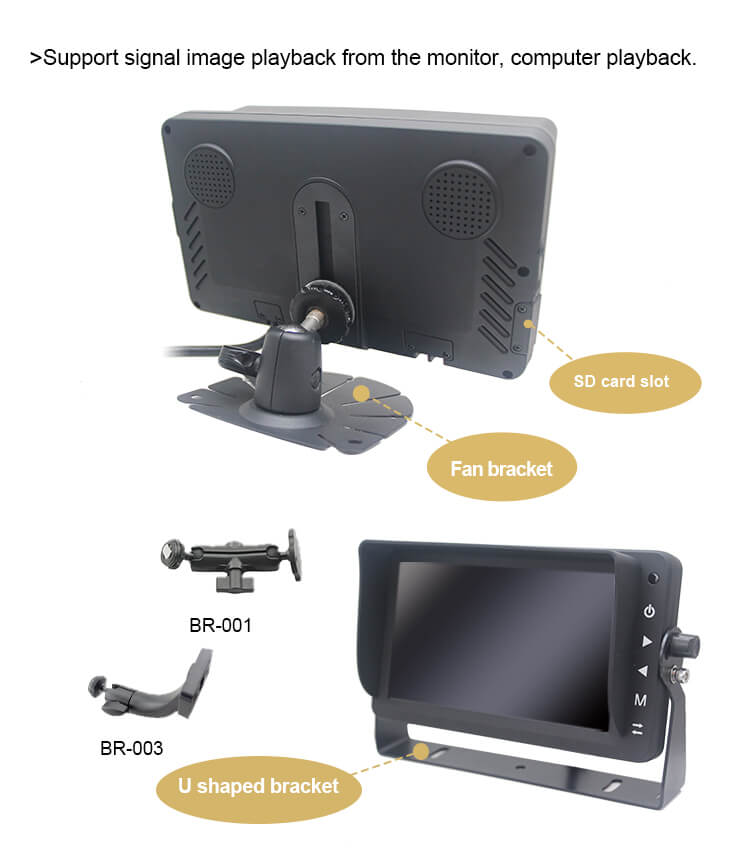

| Reccording playback | Signal image playback from the monitor, computer playback |
| File format | TS |
| File size | 720P (1 minute) ≈ 31MB 1 minute, 3 minutes or 5 minutes optional |
| System language | English, Japanese, Korean, Russian, German, French, Thai, Czech, Portuguese, Polish, Dutch, Turkis |
| Image display | Support quad image display,1/2/3/4 images display adjustable |
| Parking line | Support customzied size and position for parking line |
| Mobile interconnection | Supports IOS 12 and above systems, but not iPhone 6 and below. Support Android Auto Overseas Edition |
| Channel image setting | Support flip and mirror setting for each channel |
| Shockproof | 4G |
| Audio | Built in high sensitivity MIC, supporting high fidelity speakers for calls and carplay sound playing |
| Working temperature | -20℃~+70 ºC |
| Storage temperature | -30℃~+80 ºC |
| Working humidity | 85%RH |
| Power supply | 12-24V |
| Power | DC12V≈5W not including LCD, camera |
| Current consumption | DC12V≈400MA , without cameras |
| Booting time | 4s |
