● Wireless CarPlay & Android Automotive connection; Bluetooth connection;
● 1024*RGB*600 IPS LCD screen (full touch)

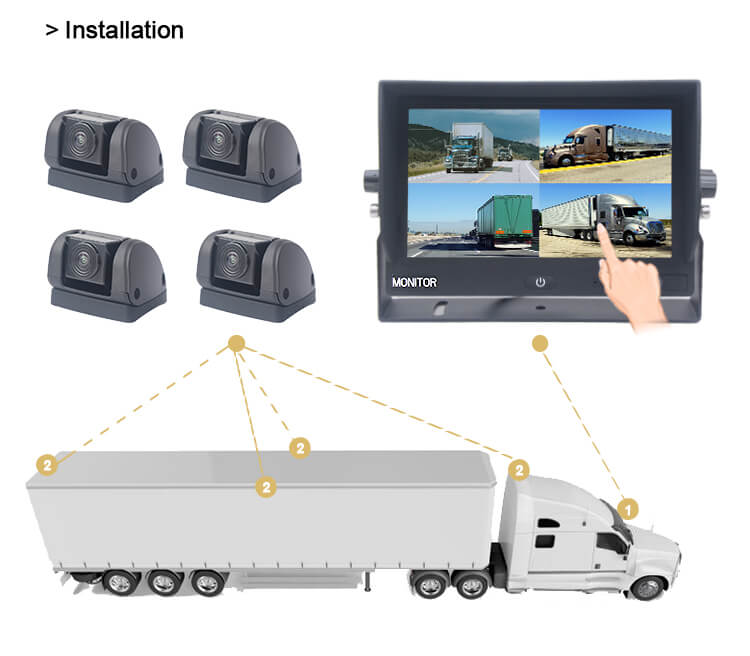

● 4CH x cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC

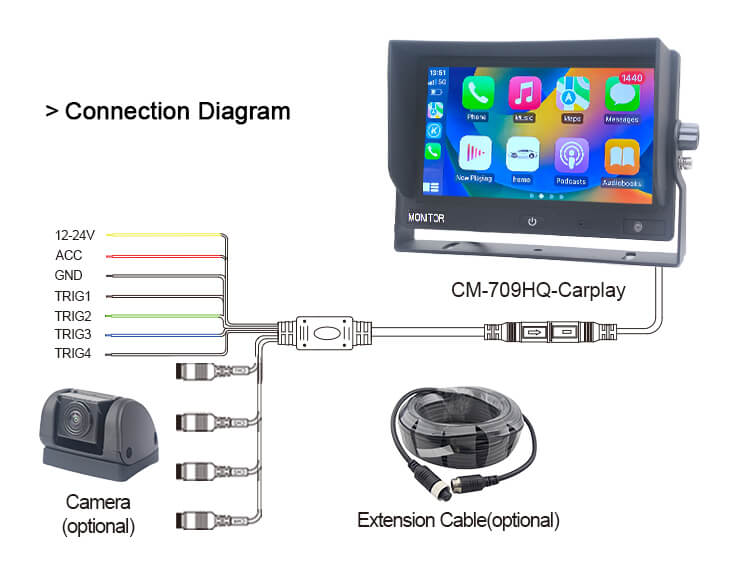

● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;

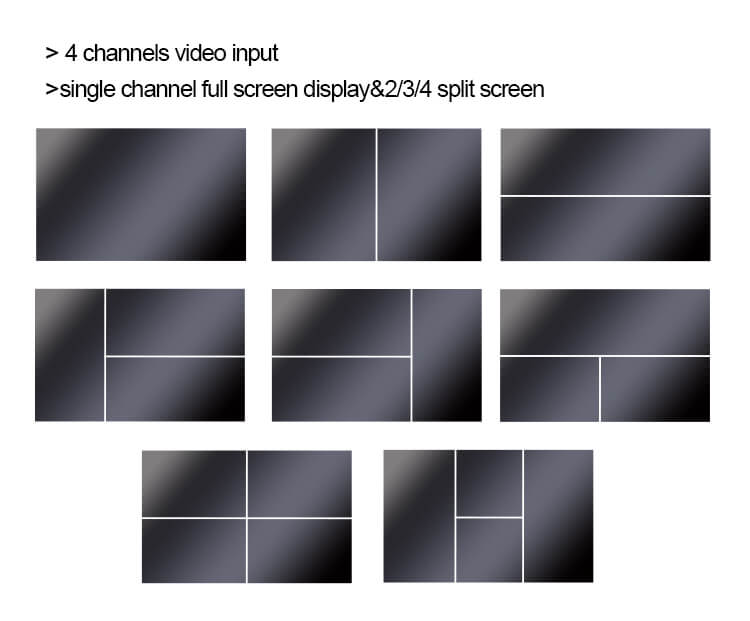

● Full display & dual/triples/quad split view mode
● Max. 256GB memory card (4CH DVR HD loop recorder)
● Multi-language settings
● Horizontal mirror image switching
PRODUCT FEATURES

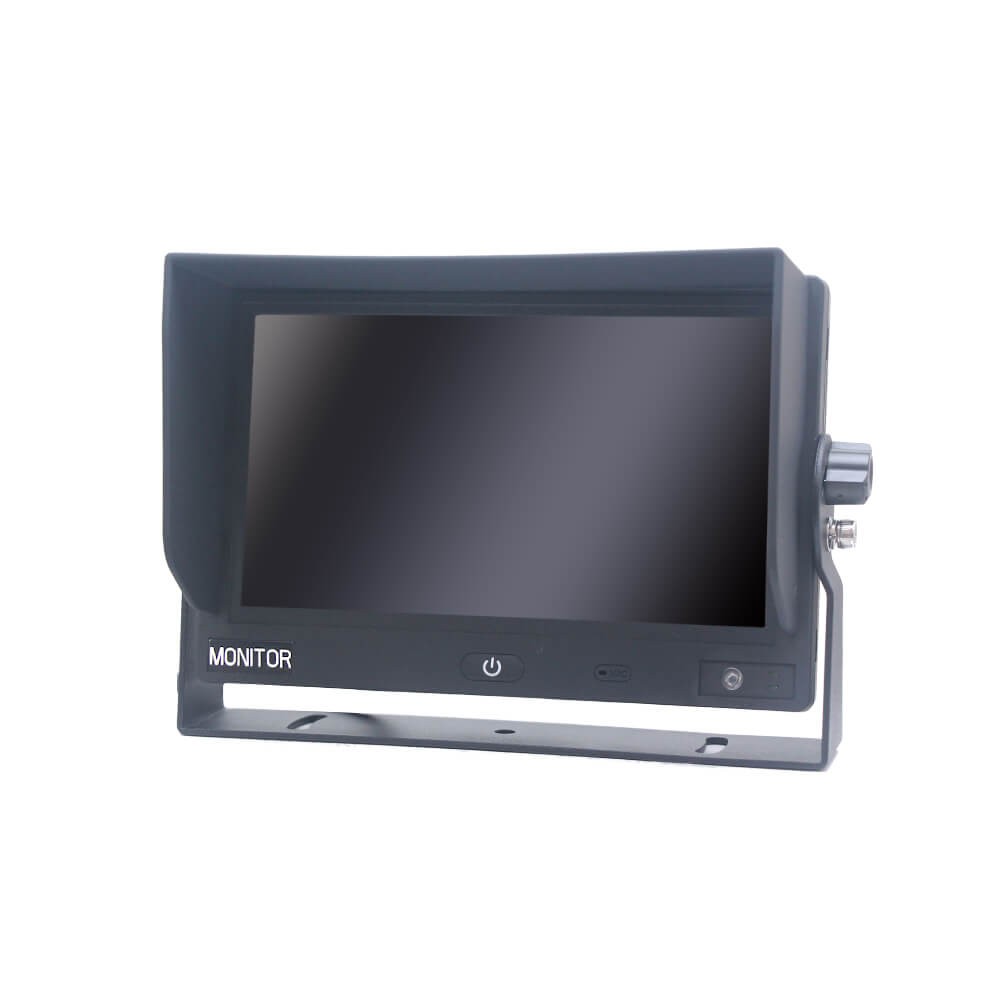

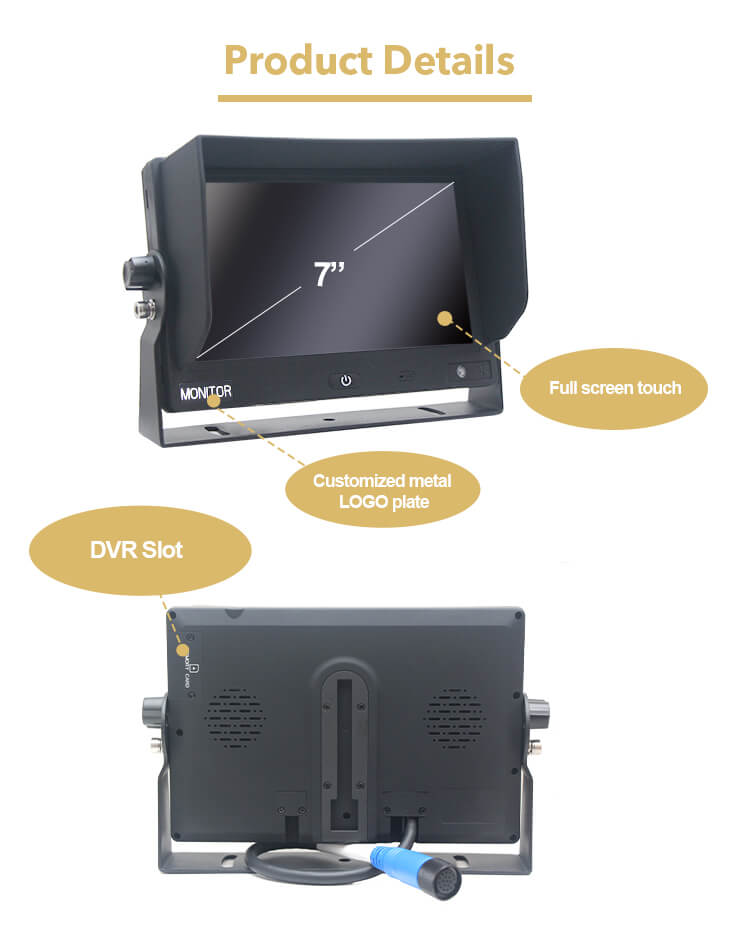

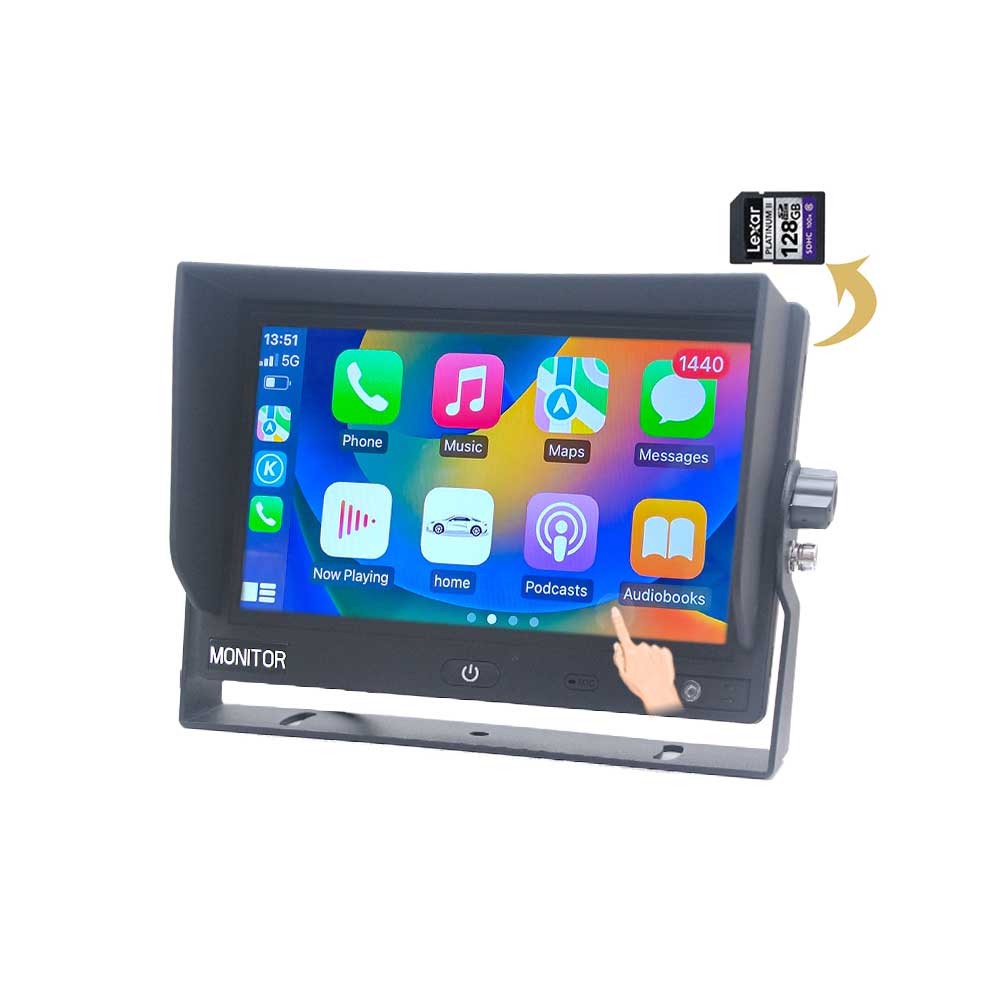

AOTOP [CM-709HQ-CarPlay] 7 inch full touch IPS LCD quad monitor supports 4CH AHD AV signal input, allowing you to
connect 4 vehicle cameras for complete monitoring of your vehicle's surroundings, helping reduce the likelihood of accidents

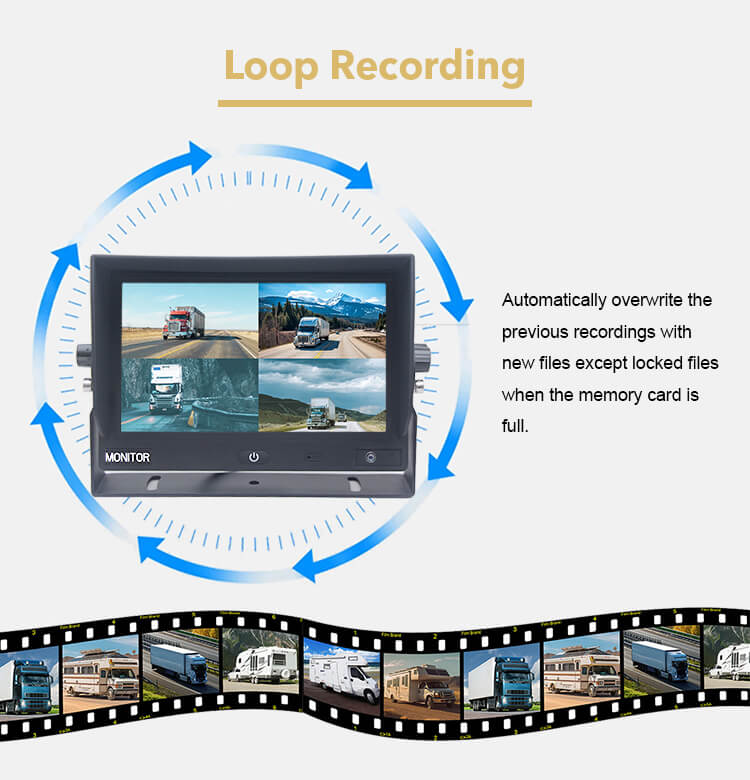

like scrapes. It comes with a built-in 256GB storage card for continuous loop recording, eliminating the need for an external
DVR. Support wireless CarPlay & Android AUTO connectivity, enabling you to access music, navigation, and phone calls
directly on the monitor. If you are looking for reliable CarPlay monitor manufacturer in China, please reach out to us at
sales@aotop.com.
| Screen ratio | 16:9 |
| Screen resolution | 1024*R.G.B*600 BOE |
| Backlight | LED, brightness 400 cd/m2 |
| Contrast | 500:1 |
| Viewing angle | UP—85°, DOWN—85°, LEFT—85°, RIGHT—85° |
| Operating method | Full touch screen |
| OSD control | DVR, carplay, FM emission, settings, Bluetooth, brightness, volume |
| Signal input | 4CH AHD 720P/720N/1080P/1080N |
| Recording | Support SD card recording |
| SD card | Support 32G-256G, Class 10 and above |
| Video compression format | H.264 |
| Recording resolution | 720P\1080P |
| Reccording playback | Signal image playback from the monitor, computer playback |
| File format | TS |
| File size | 720P (1 minute) ≈ 31MB 1080P(1 minute) ≈ 50MB 1 minute, 3 minutes or 5 minutes optiona |
| System language | English, Japanese, Korean, Russian, German, French, Thai, Czech, Portuguese, Polish, Dutch, Turkish |
| Image display | Support quad image display,1/2/3/4 images display adjustable |
| Parking line | Support customzied size and position for parking line |
| Mobile interconnection | Supports IOS 12 and above systems, but not iPhone 6 and below. Support Android Auto Overseas Edition |
| Channel image setting | Support flip and mirror setting for each channel |
| Shockproof | 4G |
| Audio | Built in high sensitivity MIC, supporting high fidelity speakers for calls and carplay sound playing |
| Working temperature | -20℃~+70 ºC |
| Storage temperature | -30℃~+80 ºC |
| Working humidity | 85%RH |
| Power supply | 9-36V |
| Power | DC12V≈5W not including LCD, camera |
| Current consumption | DC12V≈400MA , without cameras |
| Booting time | 4s |
| Speaker | 8Ω2W*1 |
