● A powerful LED work light and backup camera, all in one convenient fixture.
● Durable camera features a 1280x960 pixel (700 TVL) resolution.

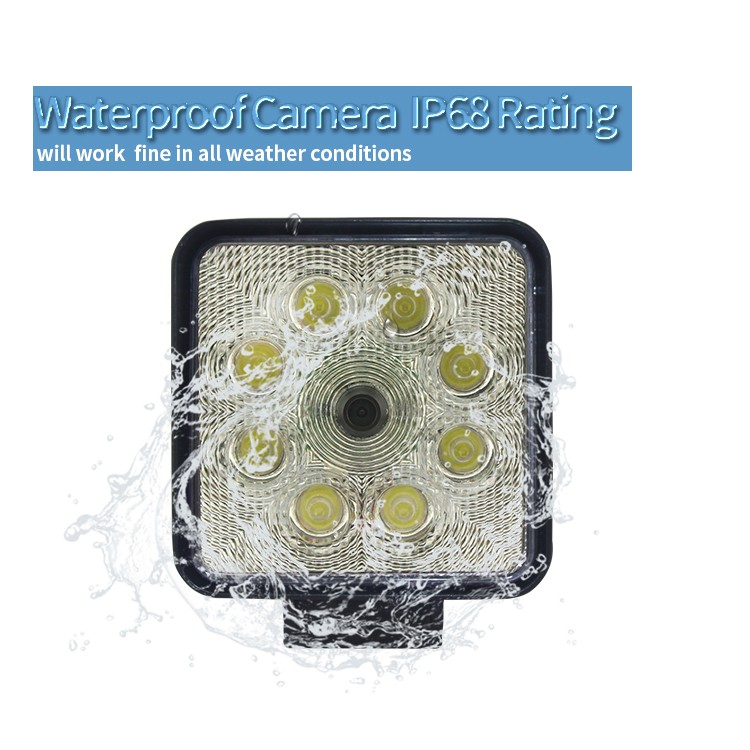

● IP68 waterproof / night vision capabilities and a wide 140° viewing angle to help capture everything going on even in low visibility situations.
● Available with a round or square.
PRODUCT FEATURES

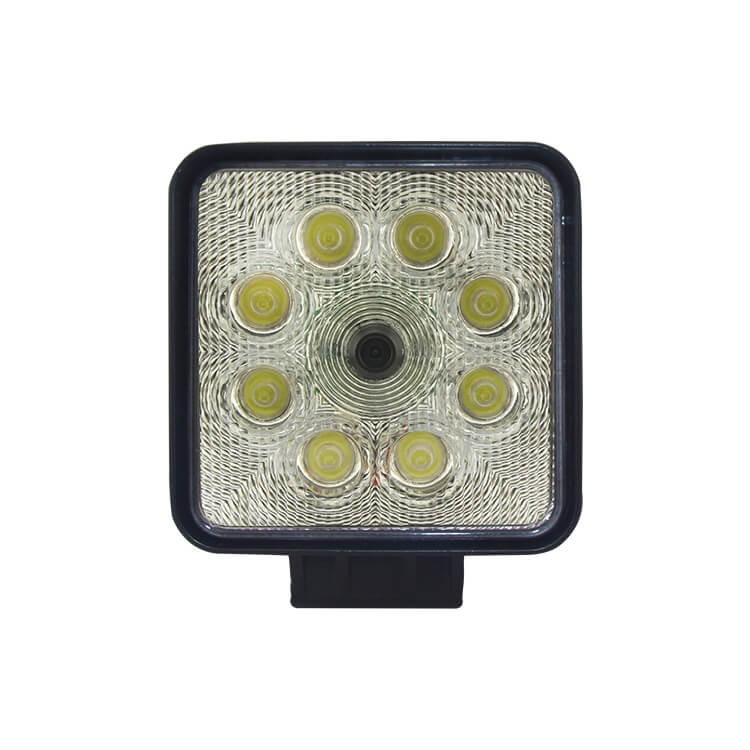

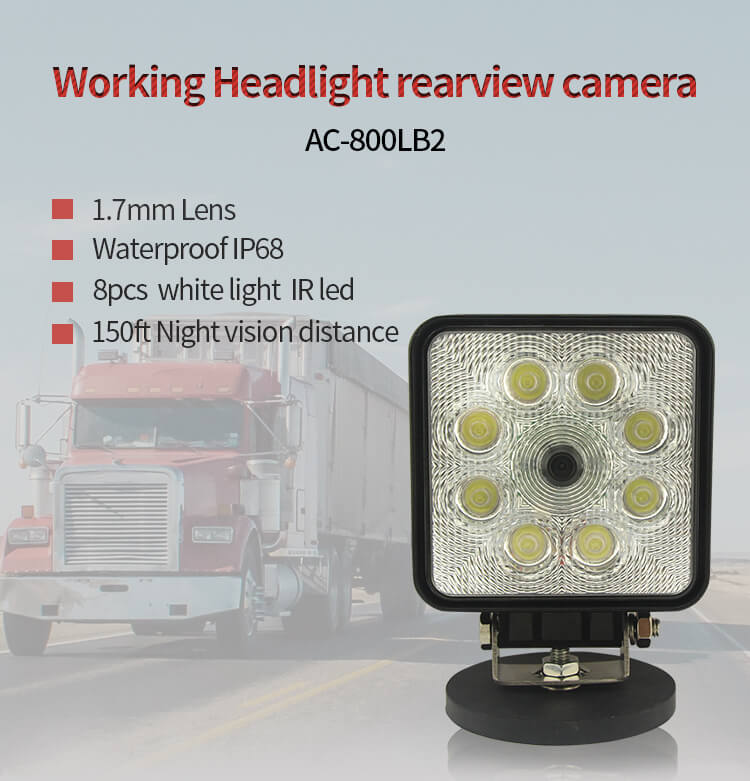

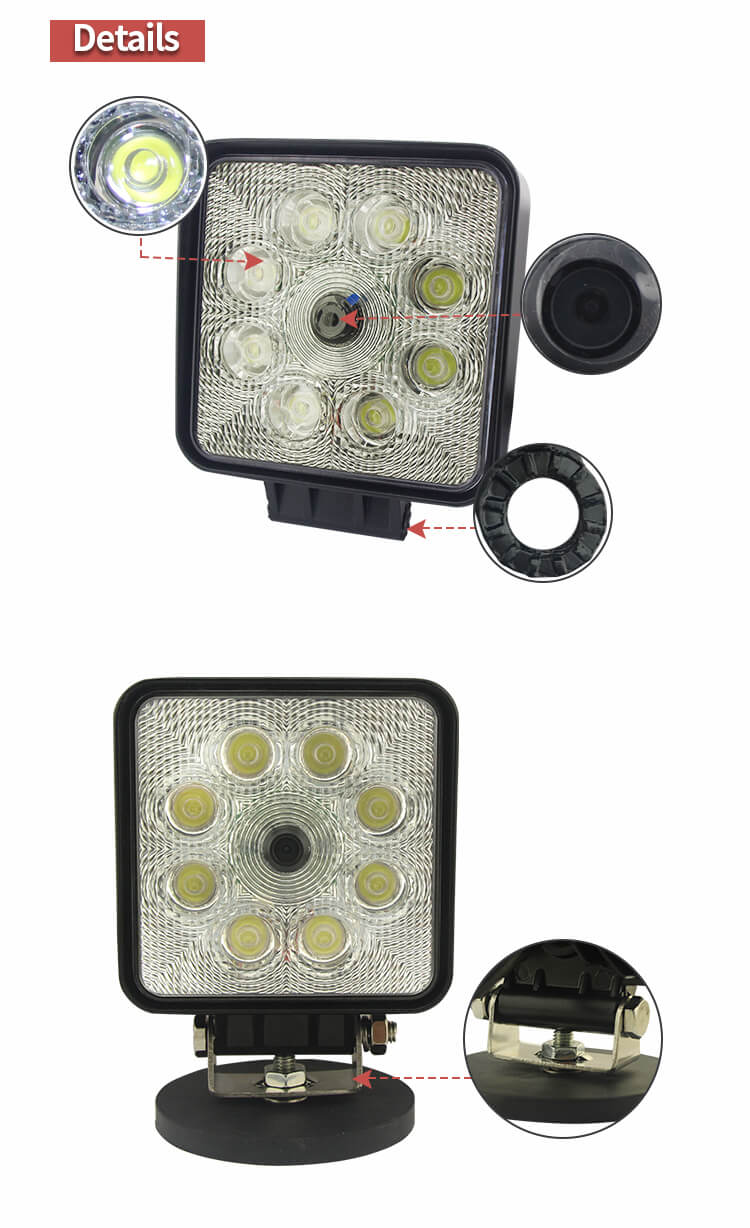

AOTOP [AC-800LB2] combination LED work light camera equipped with 8 powerful white LEDs and Full HD backup
camera. The work light night vision distances up to 150ft. The camera lens has 1280x960 pixel resolution (700 TVL),

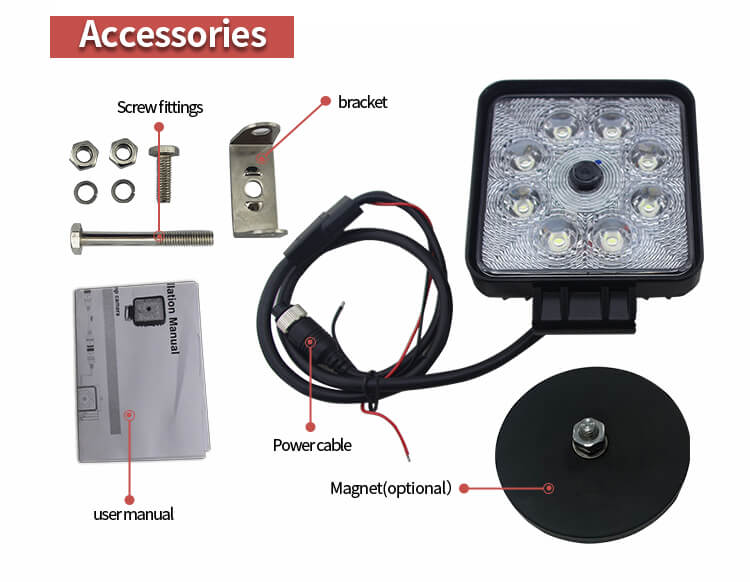

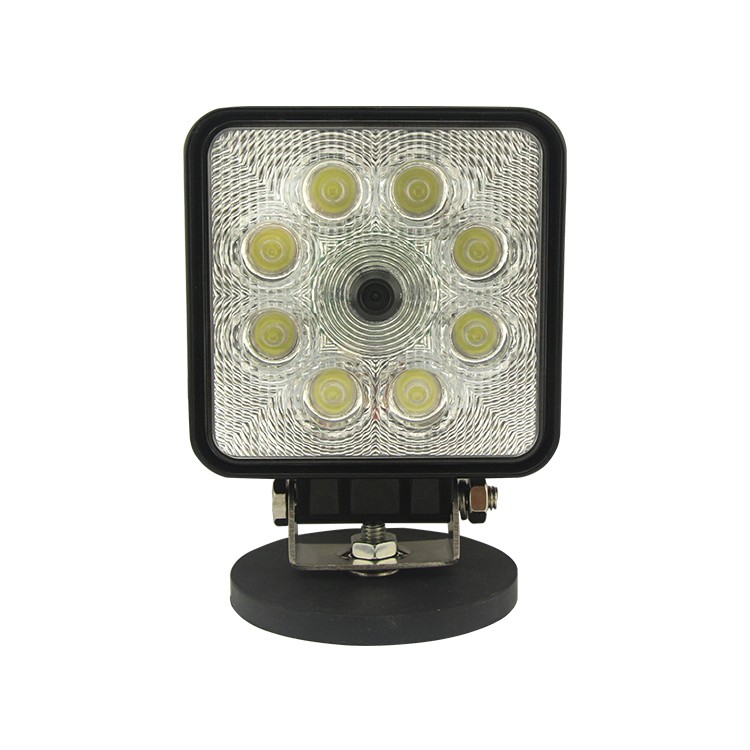

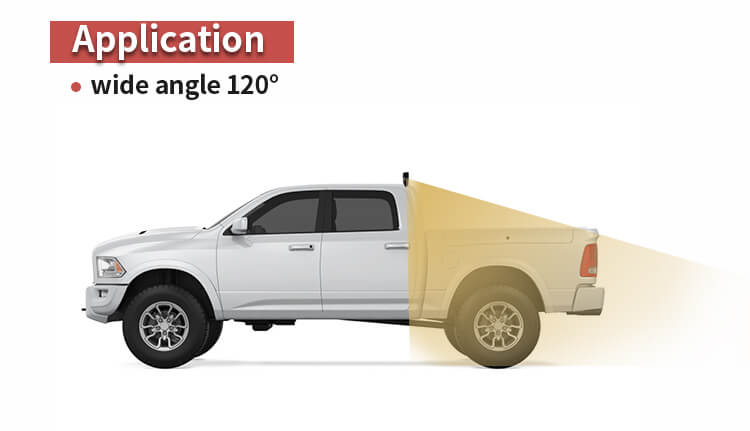

140° viewing angle to help capture everything going on around it. Optional bracket magnet, easy mounting on
agricultural or construction vehicles such as bulldozers, tractors, harvesters and more. For more information please
contact sales@aotop.com!
| Image Sensor | 1/3 AR013 |
| TV System | NTSC/PAL |
| Effective Pixels | 1280 (H)ⅹ960 (V) |
| Waterproof | IP68 |
| Sensing Area | 3.75μm |
| Sync. System | Internal |
| Resolution | 130W |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | white light*8PCS |
| Light type | 60° floodlight |
| Night vision distance | 30-50m |
| Microphone | NO |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Lens | 1.7mm |
| Lens Angle | 140° |
| LED lamp plate voltage | DC12-24V |
| LED lamp board power | 24W |
| Luminous flux / lumen | 1154/lm |
| Color temperature | 6000K |
| Lens material | PC |
| Power Supply | DC12V |
| Current Drain | 70±5mA (day)/2.33±5A(night vision) |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
