● CVBS & 720P 1080P AHD resolution optional
● SONY CCD image sensor

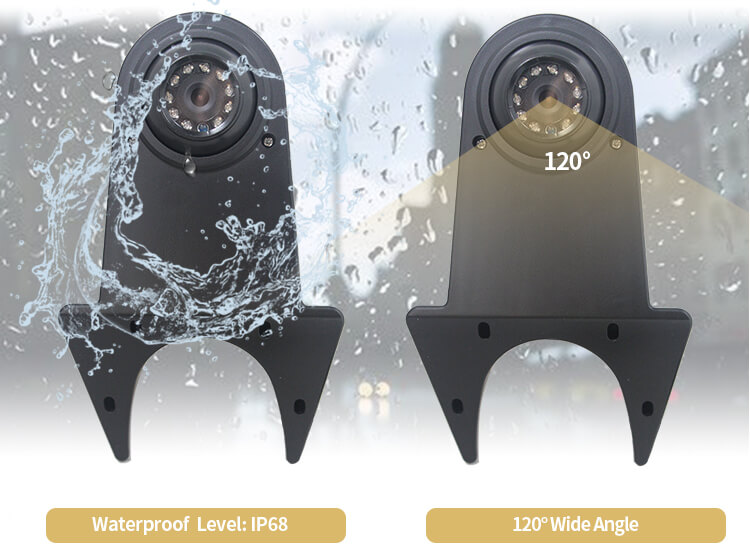

● IP68 waterproof level
● 120° wide angle (customisable)

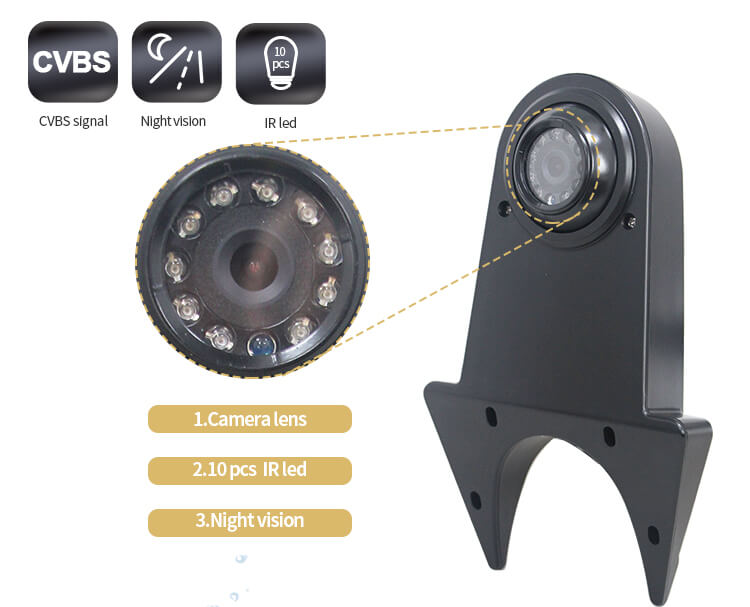

● 10pcs IR LED night lights (AUTO-ON/OFF)
● PAL & NTSC TV system

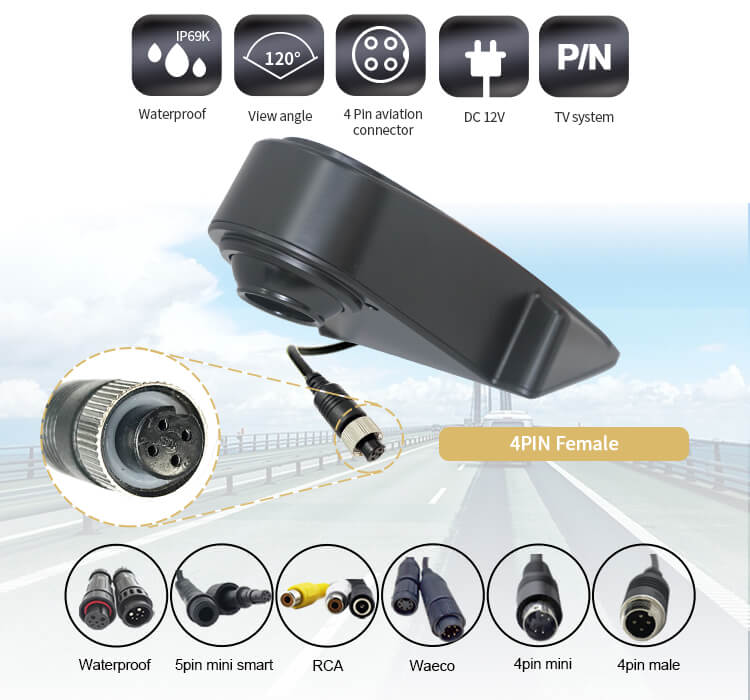

● Aviation 4PIN female / RCA connector
● Microphone audio function optional
PRODUCT FEATURES

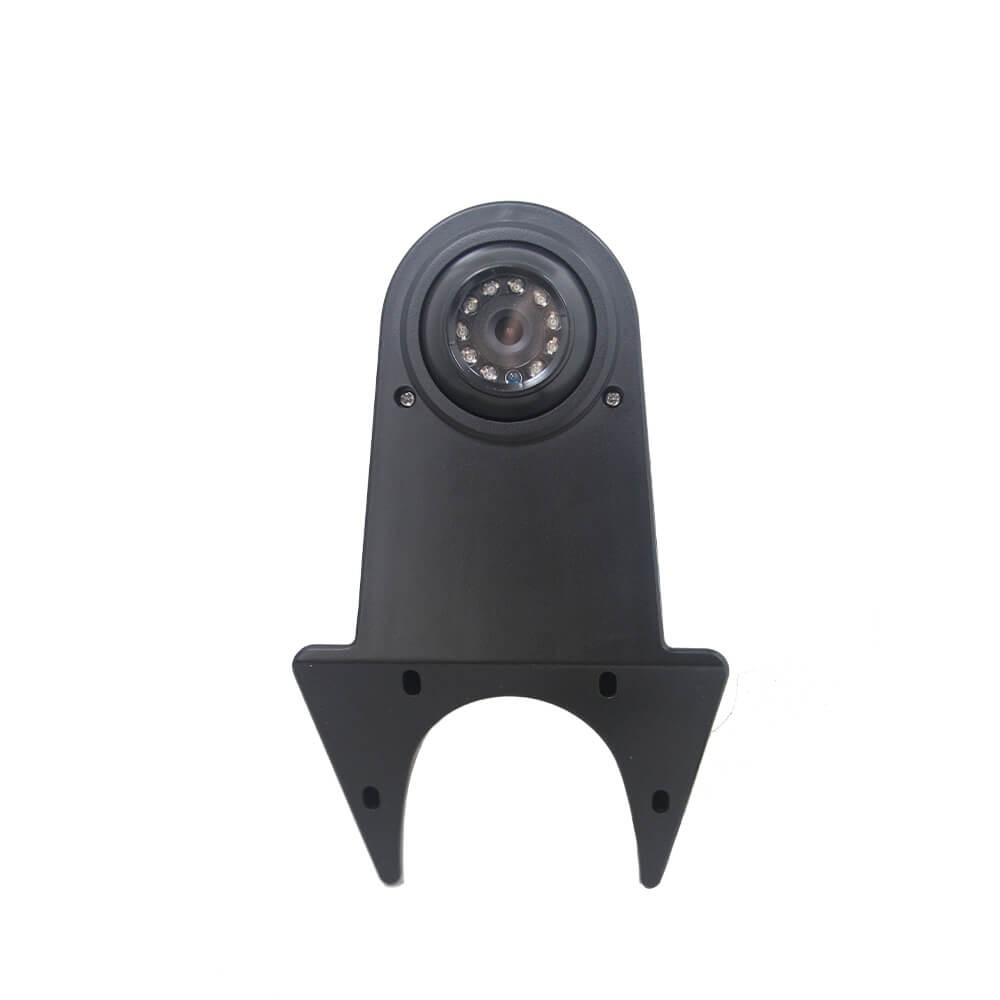

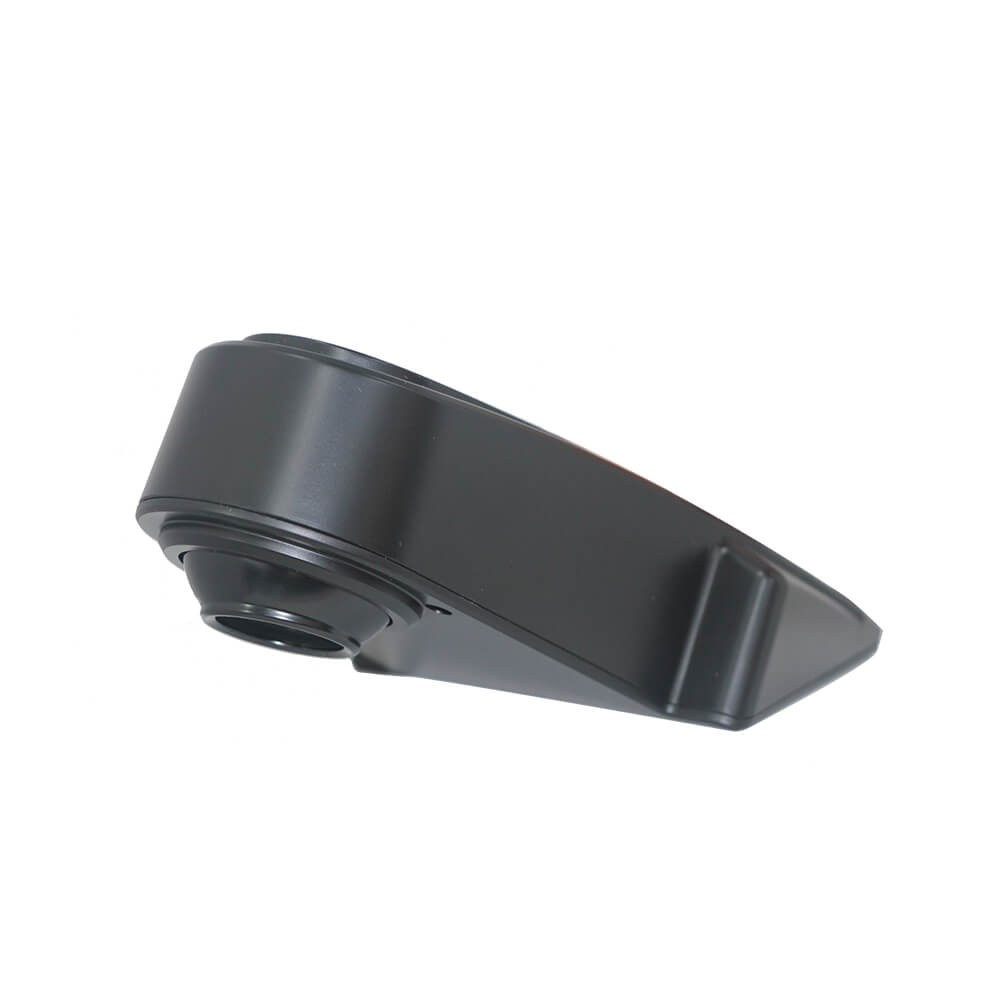

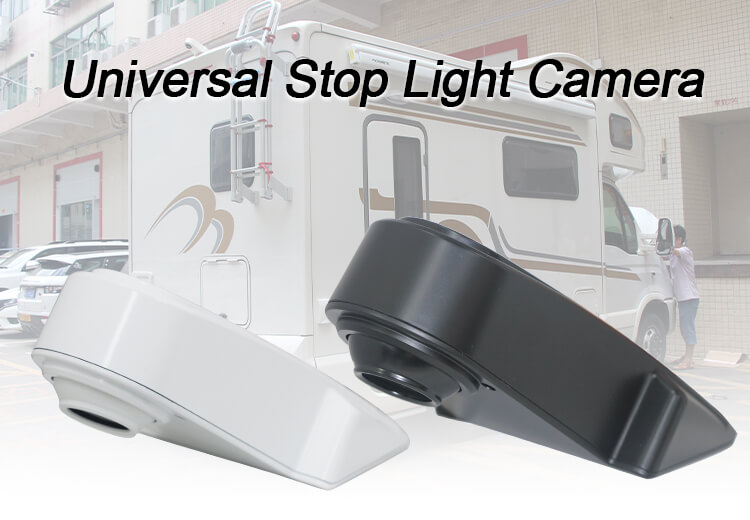

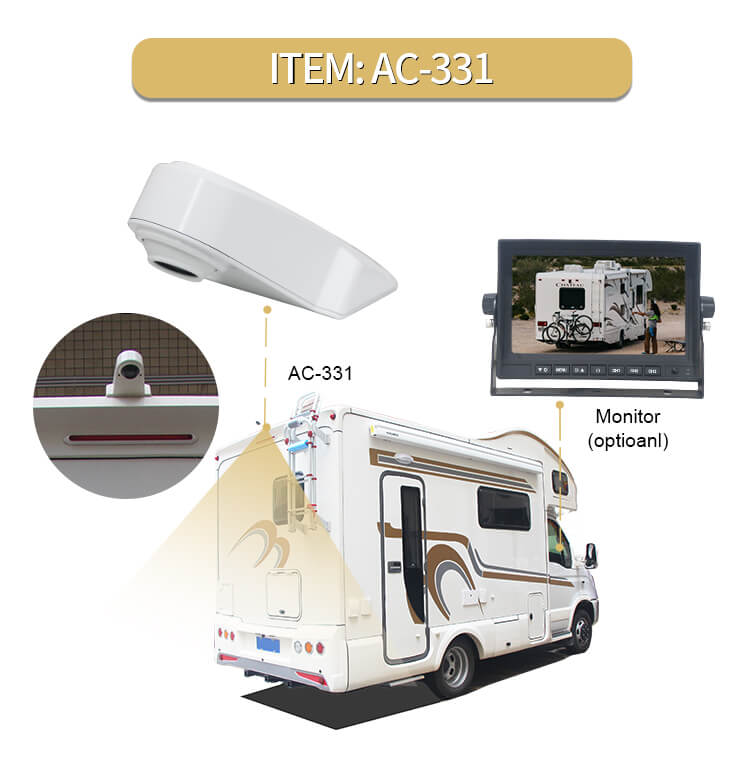

AOTOP provides the best RVs rear view camera, adopts SONY CCD image sensor, can output high quality images,
can meet RVs drivers requirements for high quality vehicle rear view monitoring! Featuring IP68 waterproof, built-in
light sensor automatic night vision. 120° wide angle lens with wide monitoring range. If you are looking for RV wide
angle rear view camera, please contact sales@aotop.com!
| Image Sensor | SONY CCD |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V |
| Resolution | 720P / 1080P |
| Night Vision | HD Night Vision Built-in 10pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 120° |
| Waterproof Level | IP68 |
| Shockproof level | 4G |
| Housing Material | ABS + Plastic |
| Connection Plug(Connector) | Locking Aviation 4PIN Female & RCA |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Microphone | Optional |

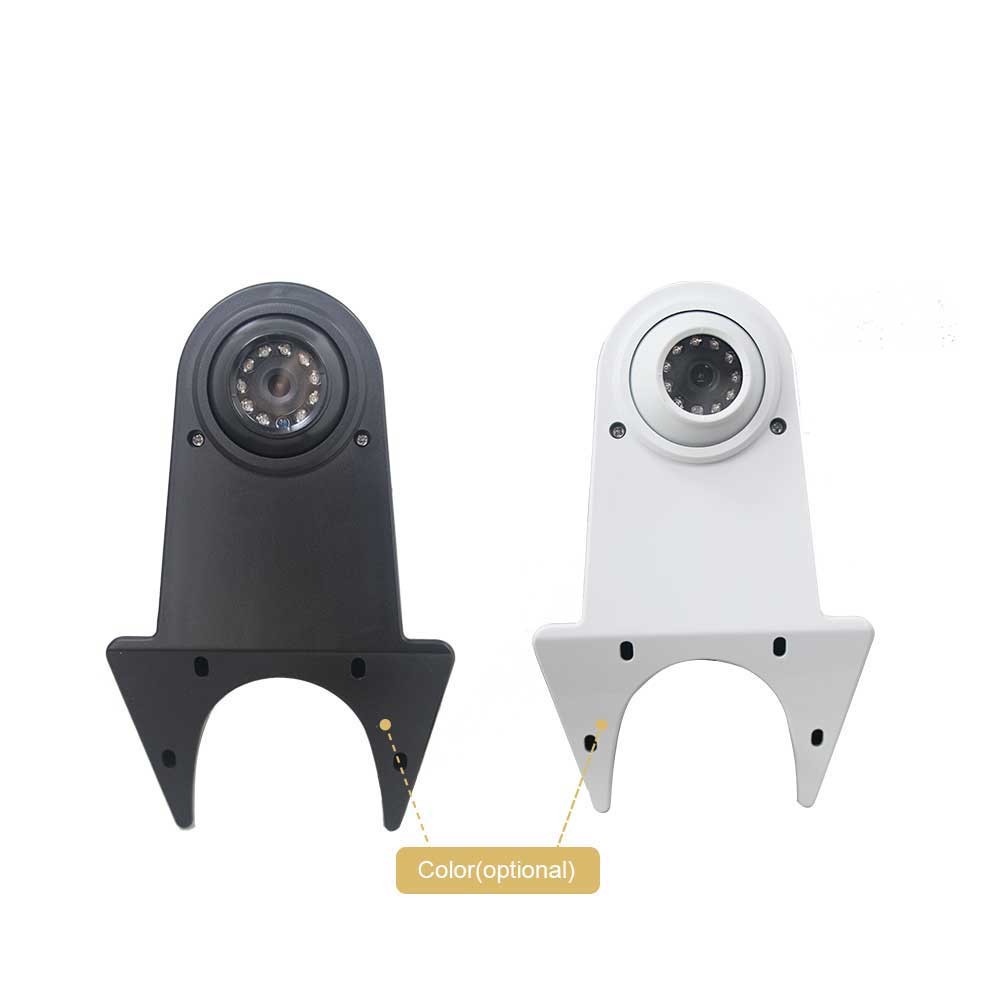

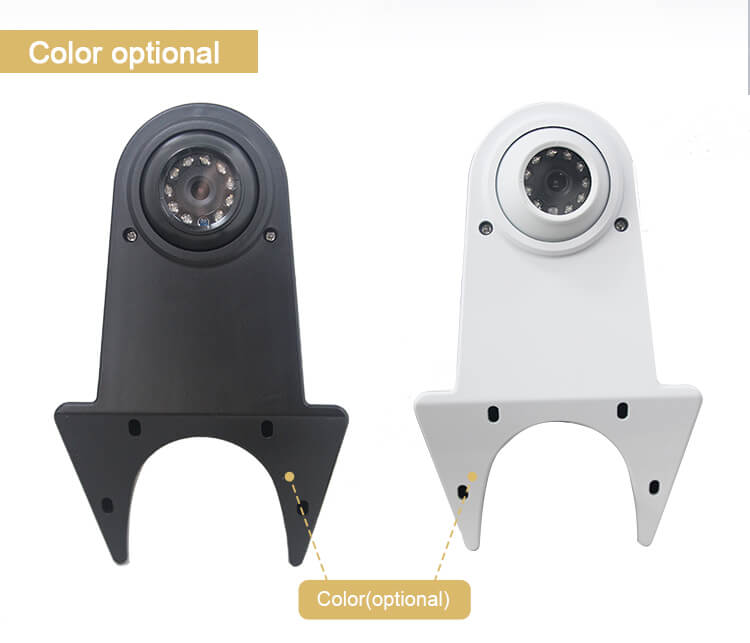

| Customisable | Color/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
