● 720P / 1080P AHD resolution
● IP68 waterproof level
● CMOS image sensor

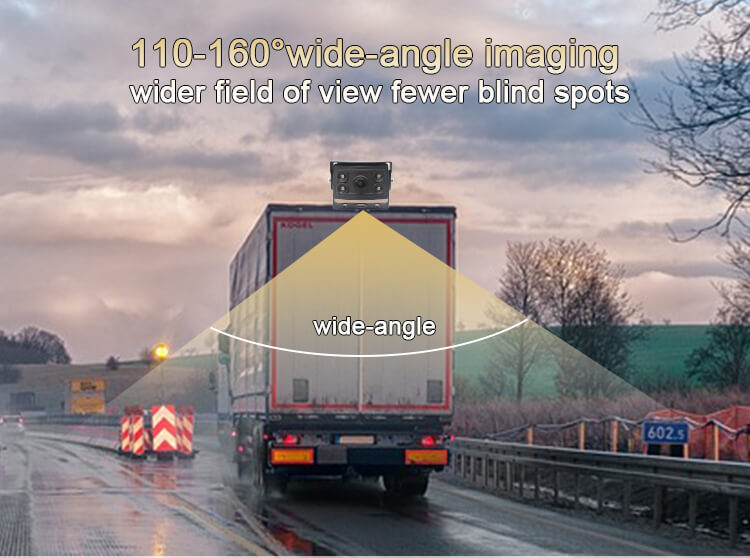

● 120° wide angle (customisable)

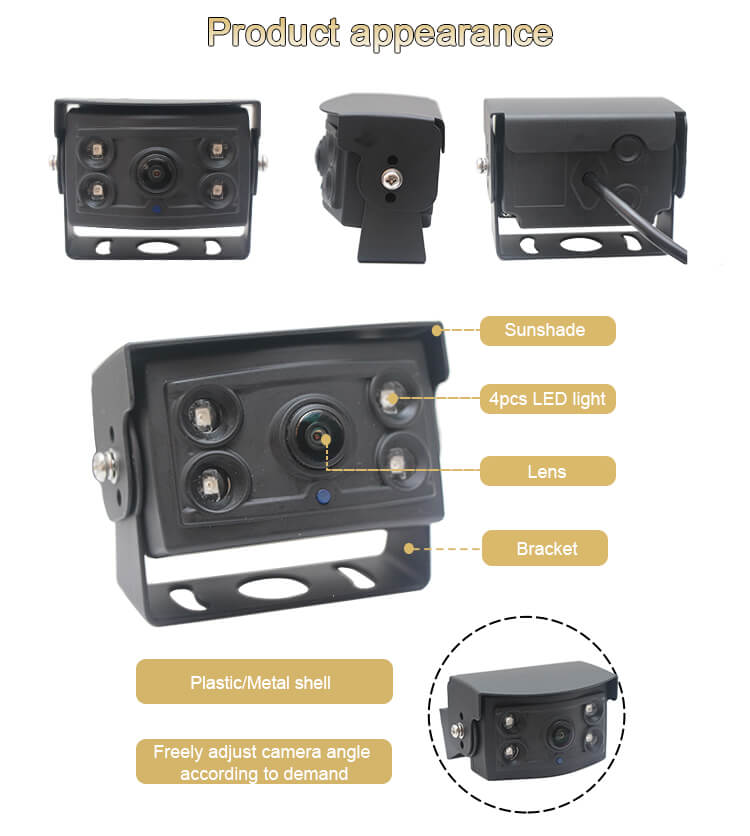

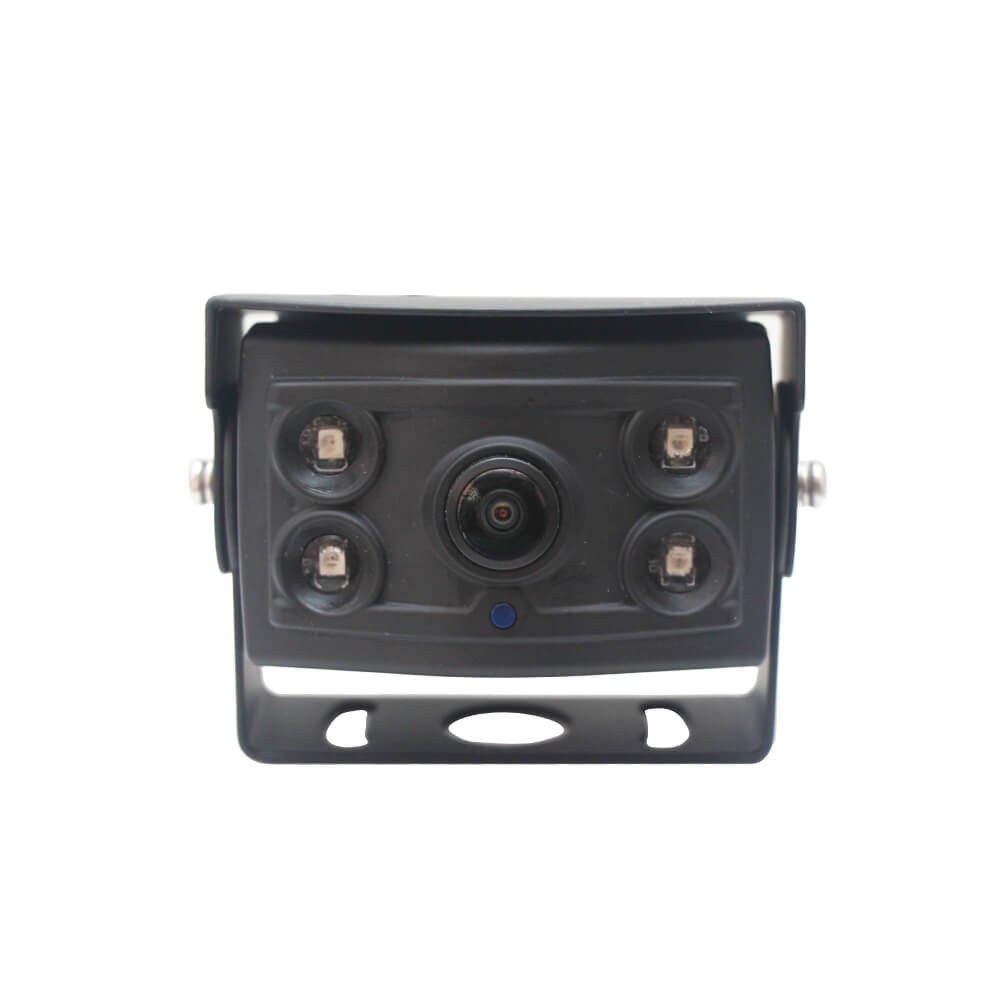

● 4pcs unique LED night lights (AUTO-ON)
● PAL & NTSC TV system

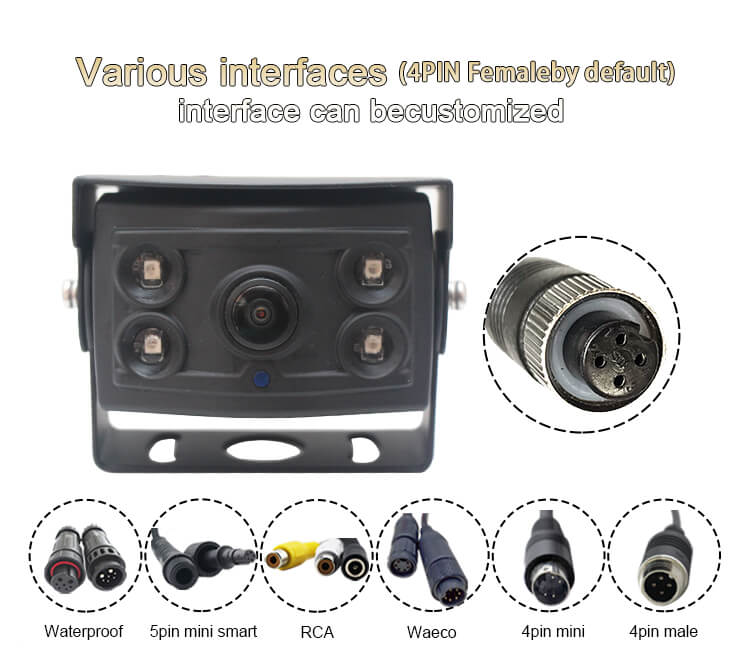

● Aviation 4PIN female connector
PRODUCT FEATURES

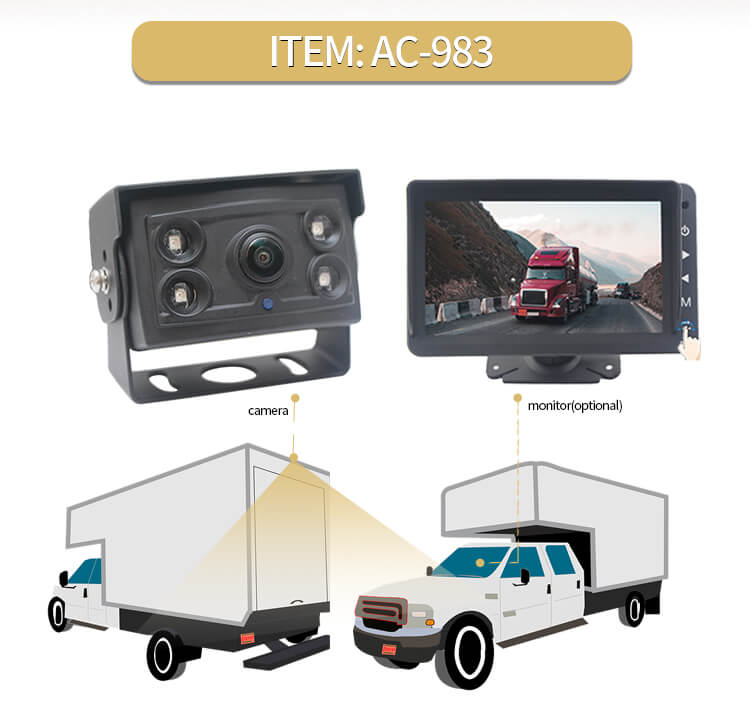

AOTOP is a leading commercial vehicle rear view cameras supplier & manufacturer in China, we provide a wide range
of high quality reverse camera solutions. Our HD 1080P AC-983 camera supports high definition night vision built-in
4pcs unique infrared LED night vision lights. 120° wide angle lens has a wide monitoring range and supports IP68
waterproof, making it an ideal solution to enhance the reversing safety for commercial vehicles! If you are looking
for a high-quality rear view reversing camera for your fleet, please contact sales@aotop.com!
| Image Sensor | CMOS |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V) |
| Resolution | 720P/1080P |
| Night Vision | Top Starlight Night Vision |
| Night Vision Distance | 8-10M |
| Angle View | 120°In Horizontal |

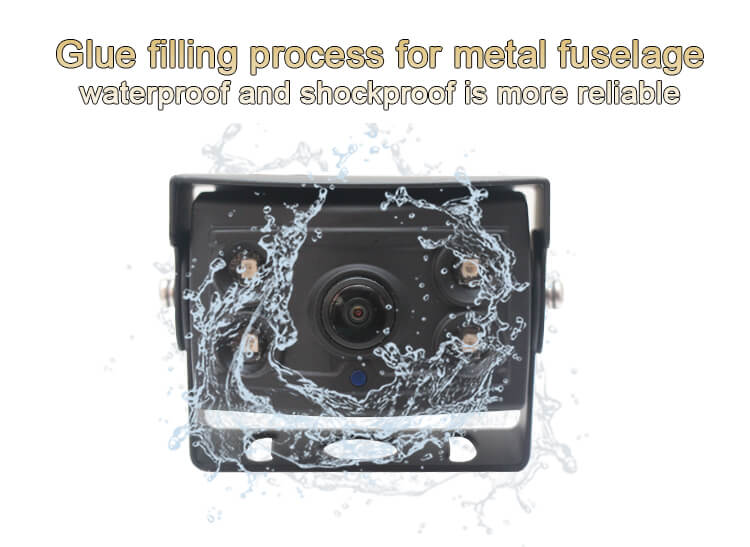

| Waterproof Level | IP68 |
| Shockproof level | 4G |
| Housing Material | Aluminium Alloy |
| Connection Plug(Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default"PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Microphone | Optional |
| Customisable | Bracket/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <300mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
