● 1080P AHD resolution

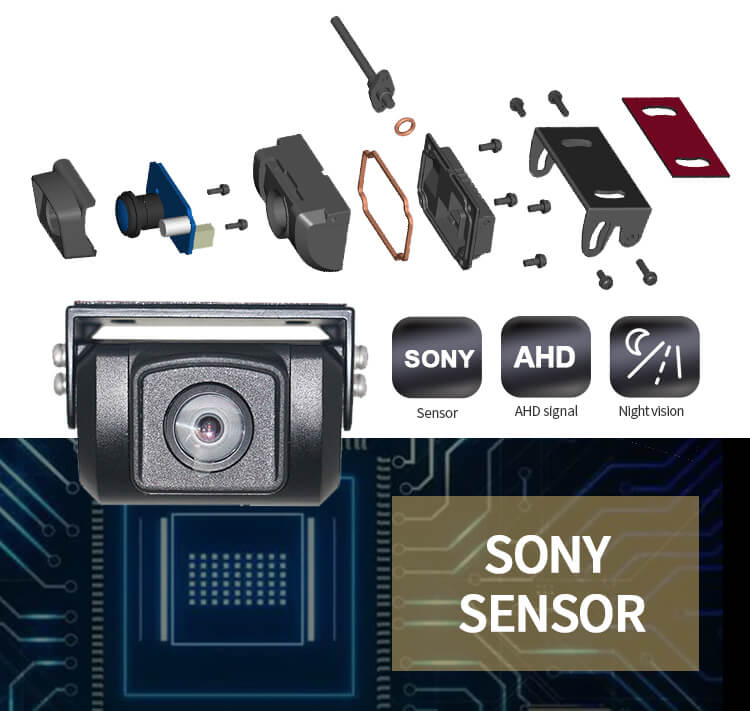

● SONY CCD / CMOS image sensor

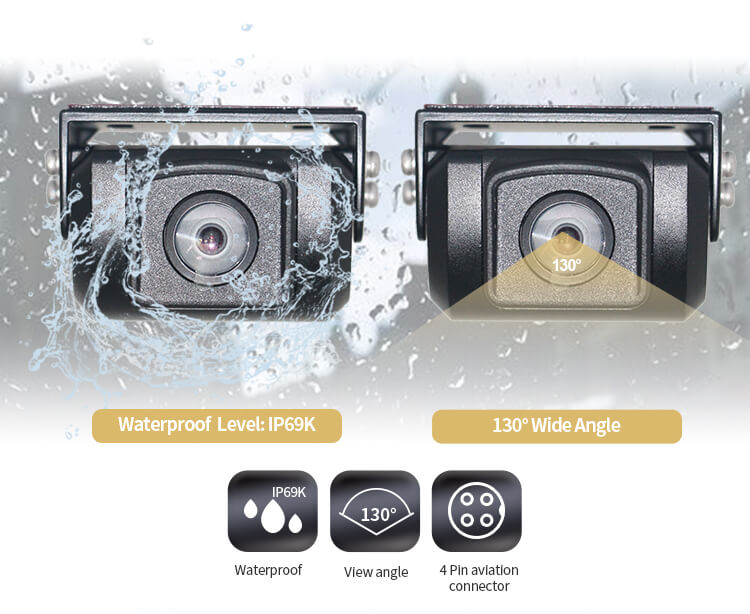

● IP69K waterproof ratio
● 130° wide angle
● Built-in light sensor (AUTO night vision)

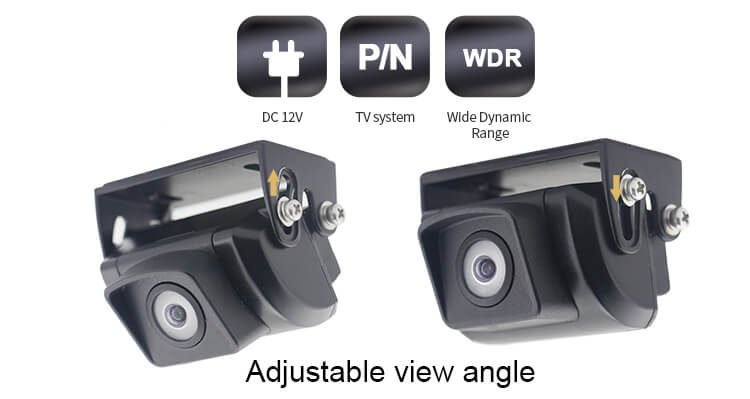

● Optional PAL & NTSC TV system

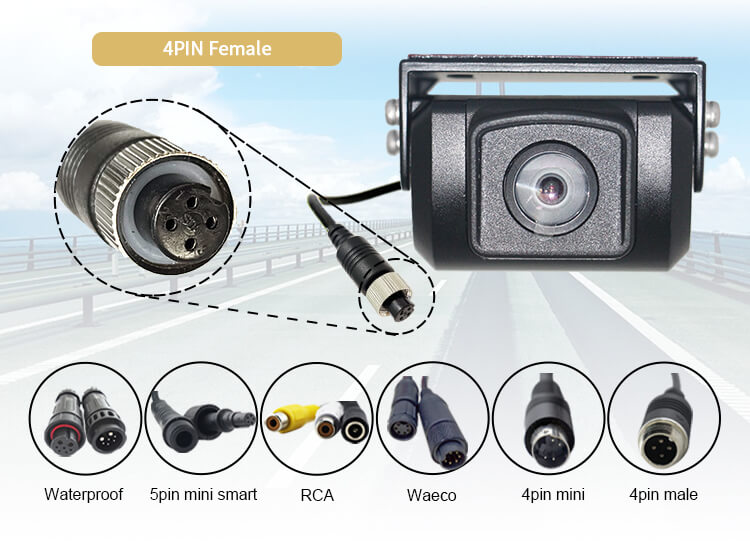

● Aviation 4PIN female connector

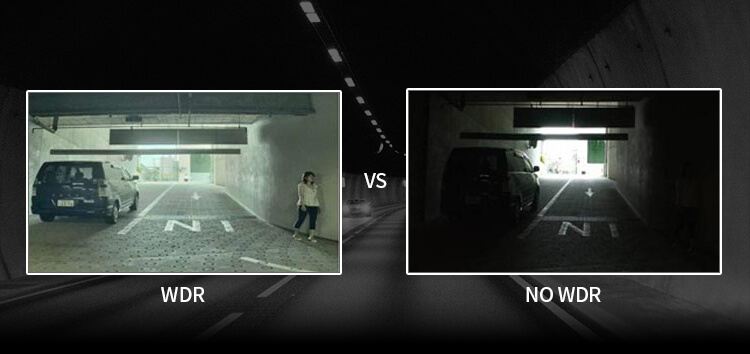

● Wide dynamic range technology
PRODUCT FEATURES

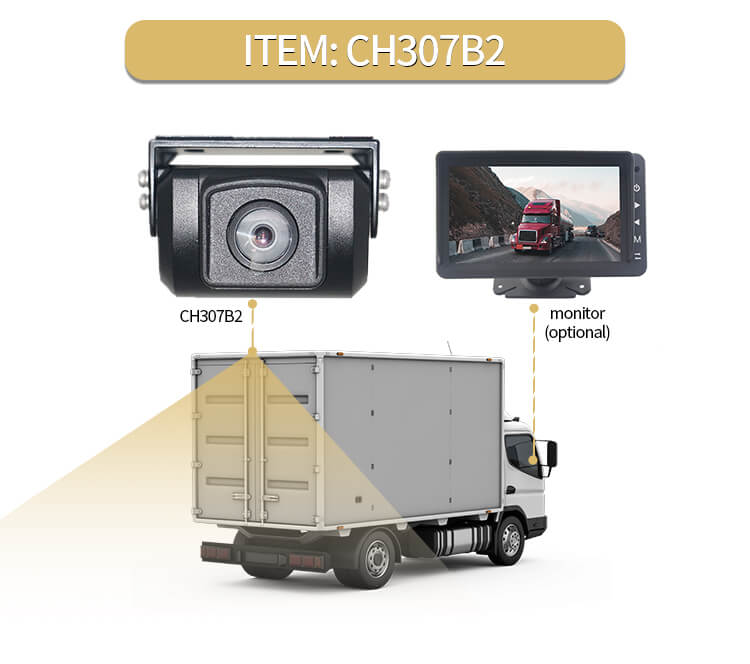

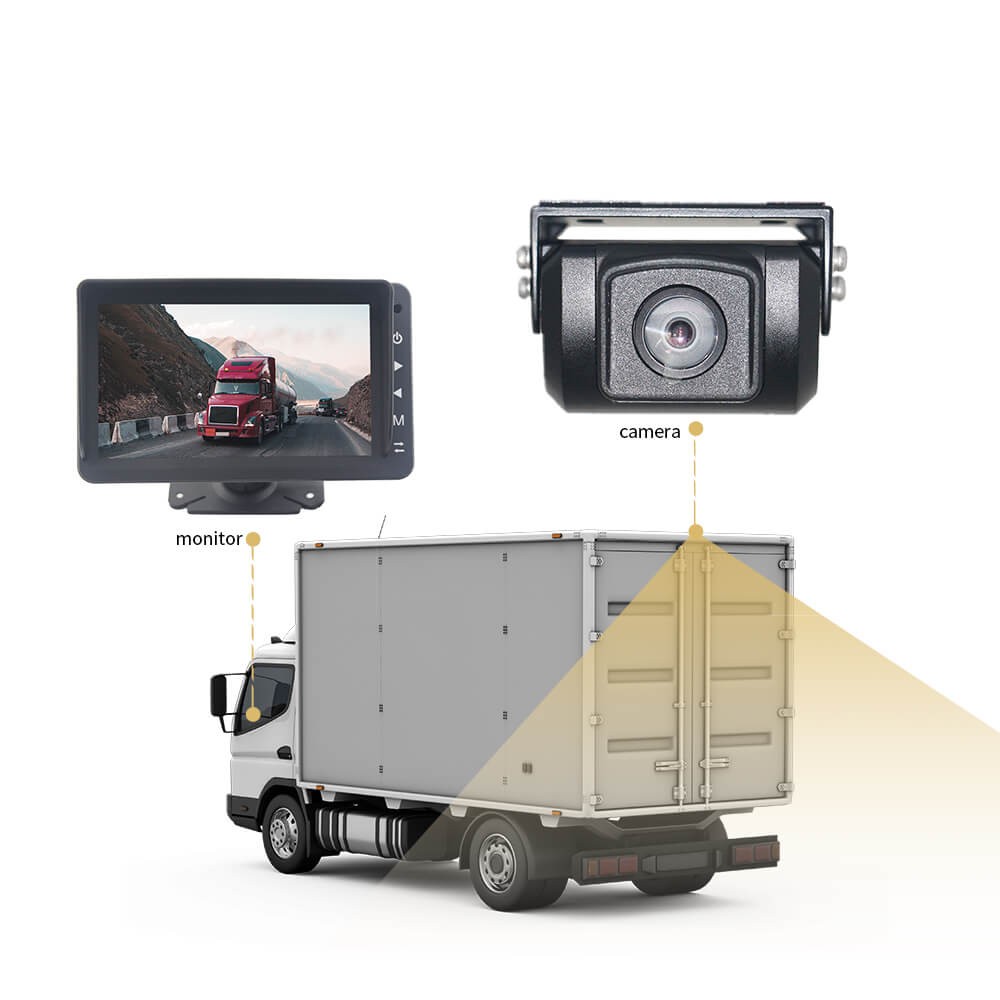

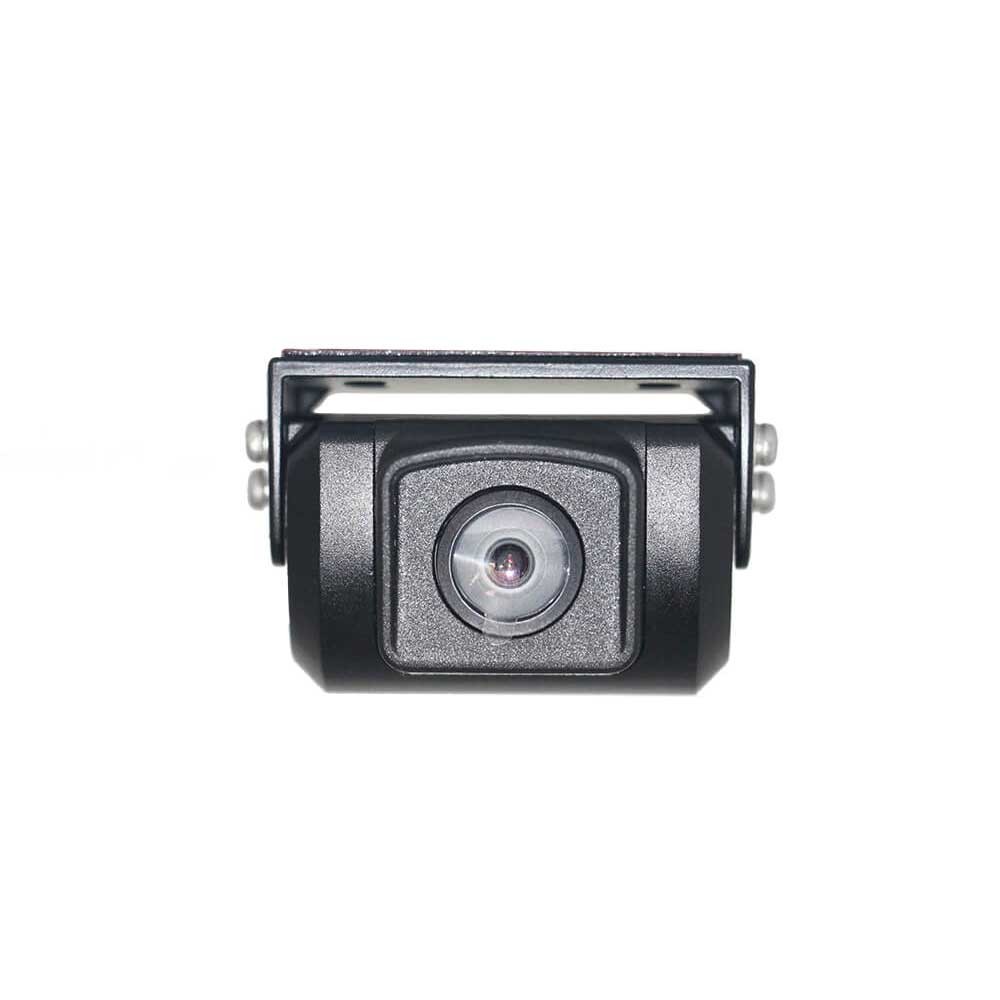

AOTOP is a leading rear view camera manufacturer & supplier in China, offering high-quality durable backup
camera solutions. Our CH307B2 backup camera featuring 1080P HD video output, built-in light sensor automatic
night vision. Supports IP69K waterproof, locking aviation 4PIN connector, optional PAL/NTSC systems. It is an
ideal choice for improving the reversing safety of trucks and other large vehicles. For more information, please
contact sales@aotop.com!
| Image Sensor | SONY CCD |
| Effective Pixels | 1920(H) * 1080(V) |
| Resolution | 1080P |
| Night Vision | Built-in Light Sensor, AUTO HD Night Vision |
| Night Vision Distance | 8-10M |
| Viewing Angle | 130° |
| Waterproof Level | IP69K |
| Shockproof level | 4G |
| Housing Material | Aluminum Alloy |
| Connector | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "PAL") |
| Microphone | Optional |
| Customisable | Connector/Angle° |
| Power Supply | 12V |
| Maximum Current | ≤100mA |
| Power Consumption | ≤1W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
