● SCREEN: Touch screen 8.88 inch full screen display
● RESOLUTION: 1920*480
● BRIGHTNESS: High brightness 800cd/m2
● VIDEO INPUT: 2 ways 1080p video signal input, front and back view
● FRONT/REAR VIEW CAMERA: 1920*1080, 27.5fps/60fps, HDR
● POWER SUPPLY: 9~12V, from power supply box
● STORAGE: Max 128GB TF card

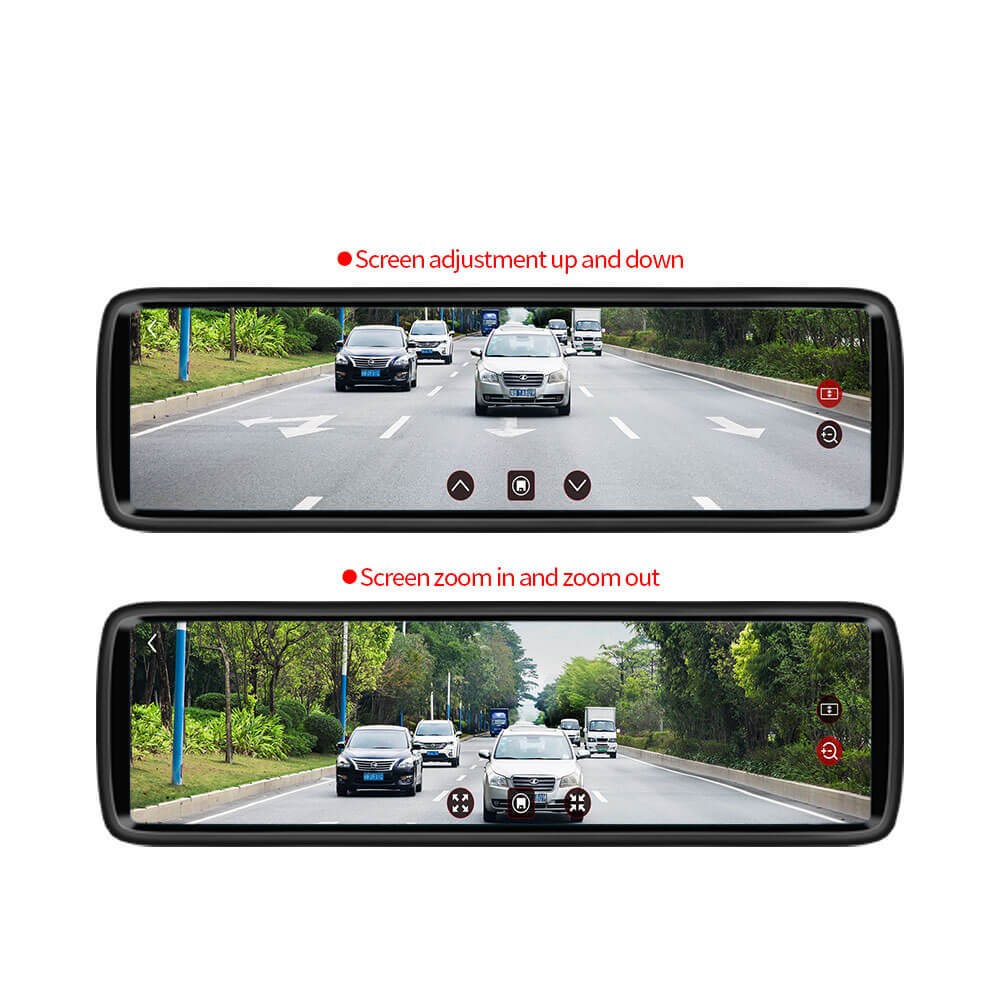

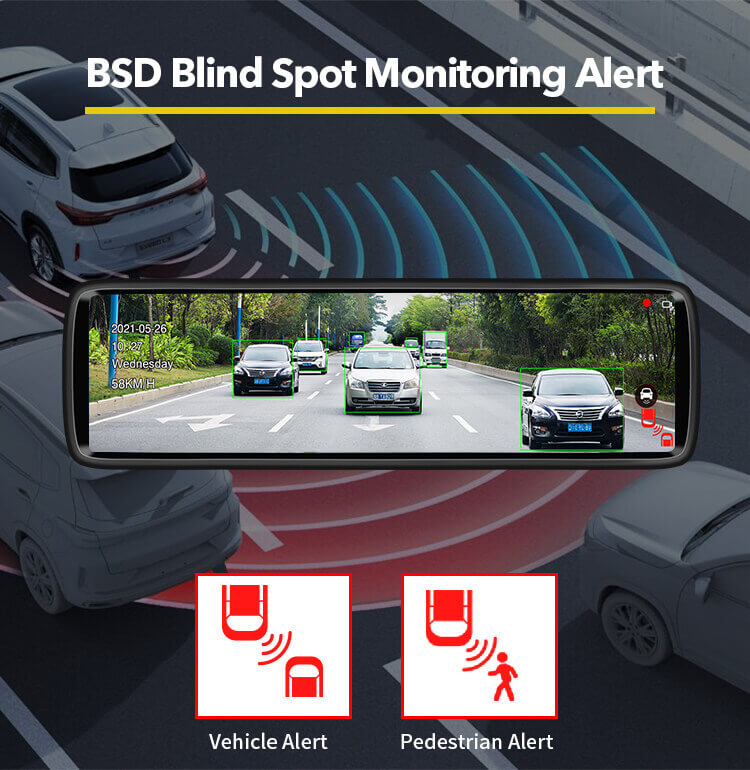

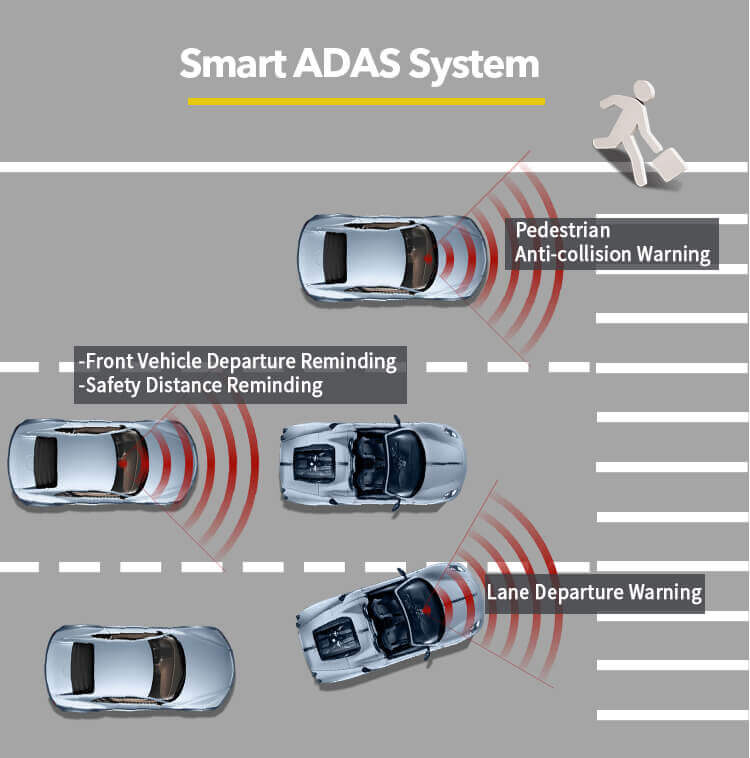

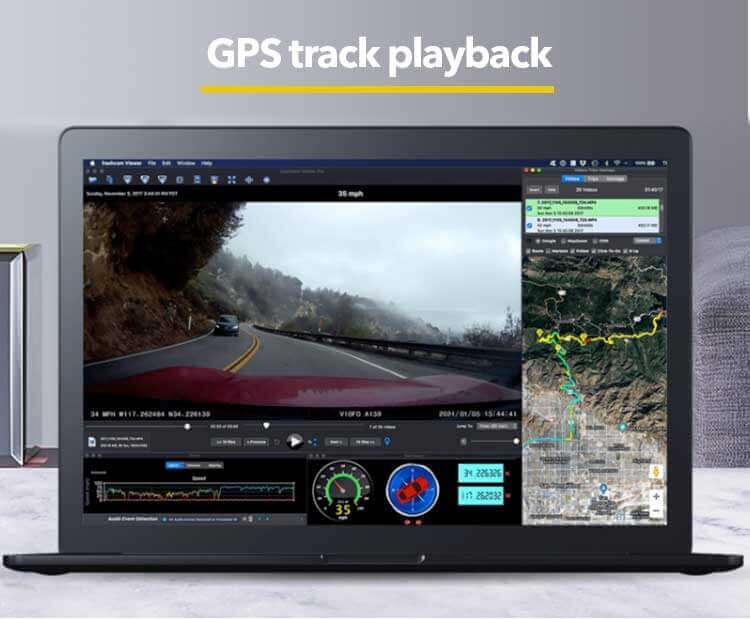

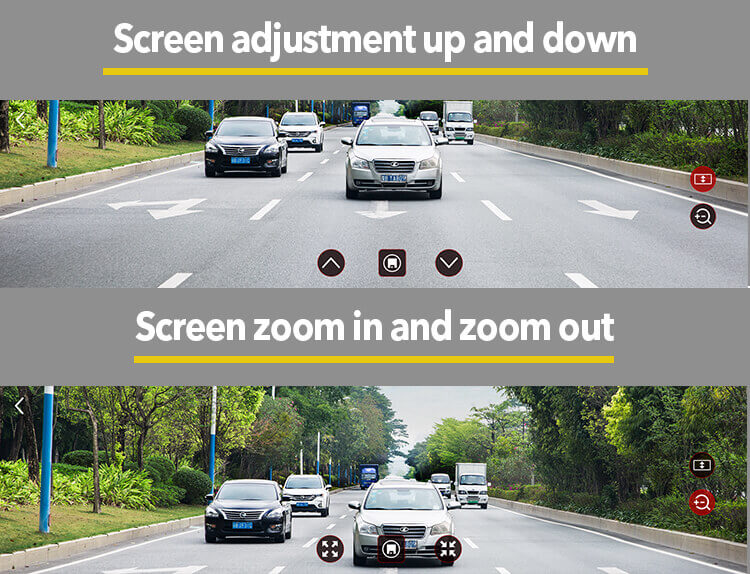

● FEATURE: Smart ADAS system / BSD blind spot monitoring alert / GPS track playback / screen adjustment / dual DVR recording
PRODUCT FEATURES

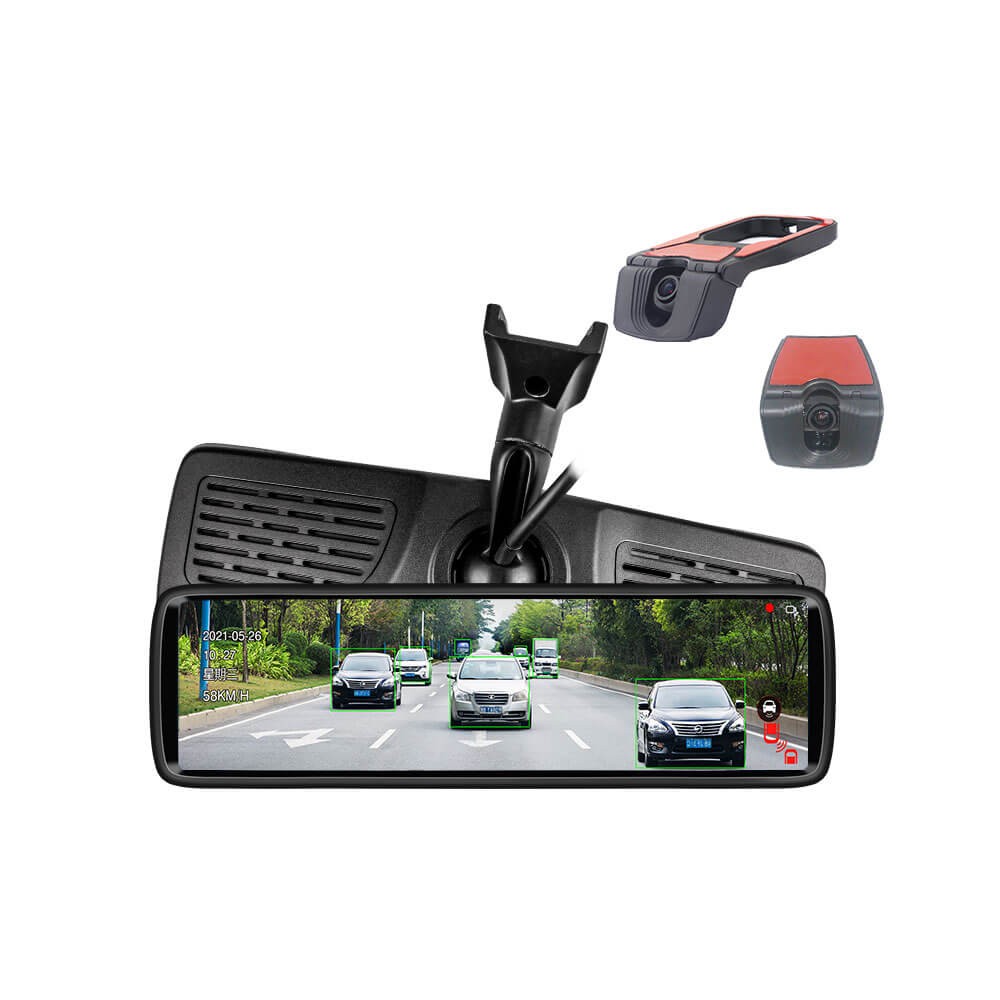

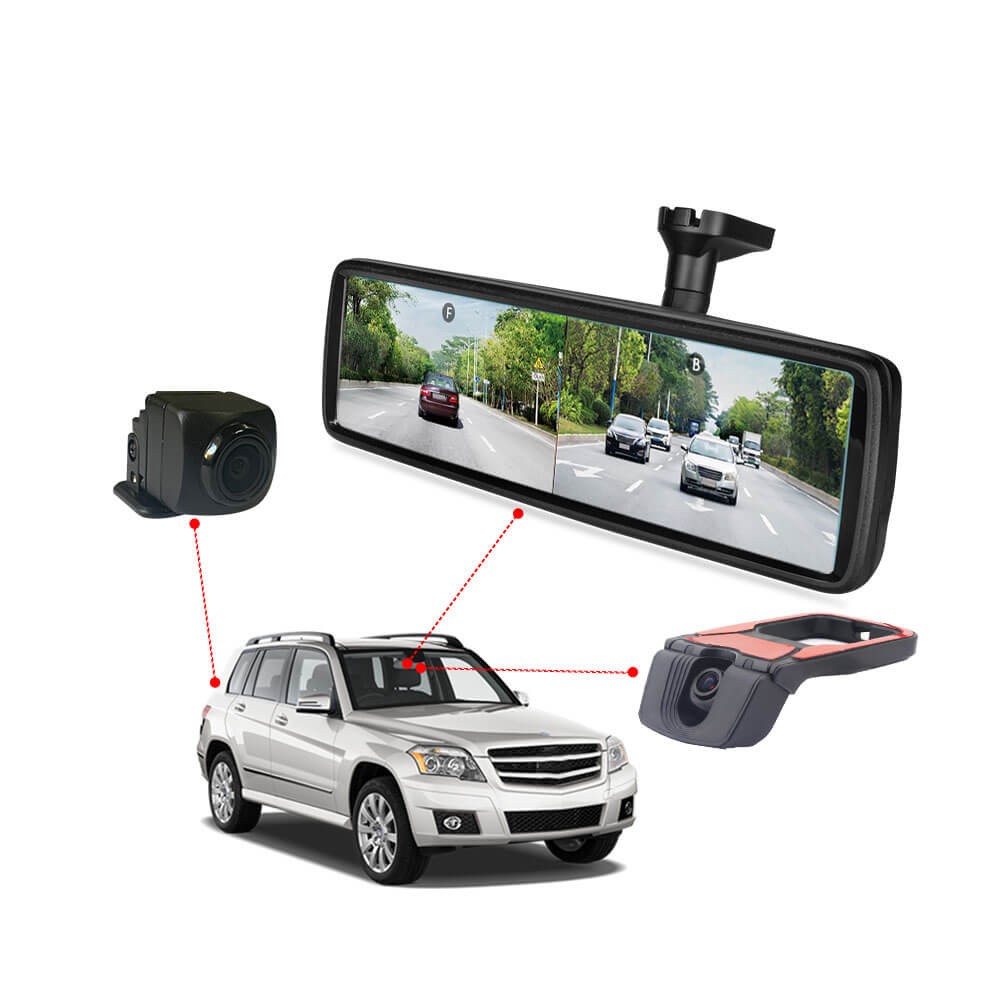

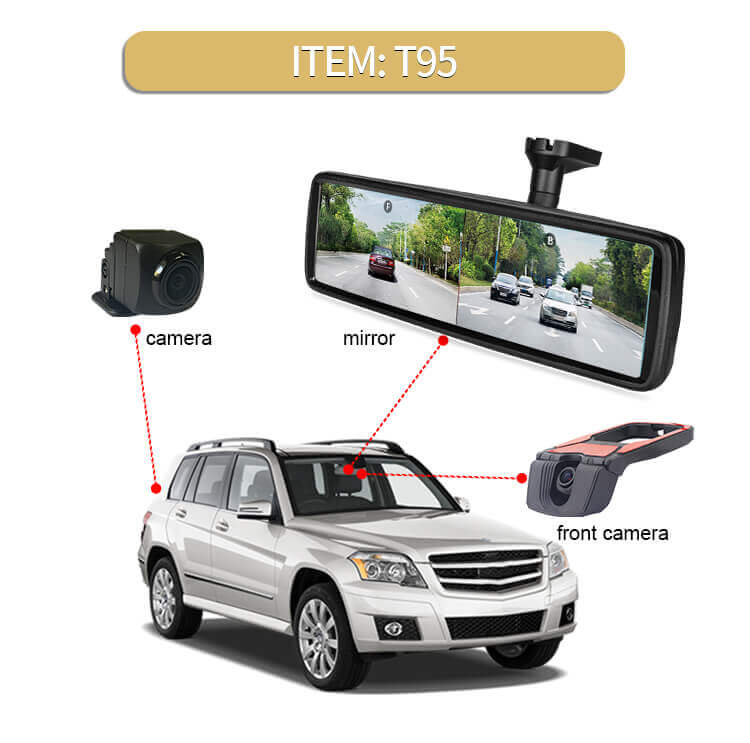

AOTOP's 8.88 inch IPS digital rearview monitoring system integrates ADAS (Advanced Driver Assistance System)
and BSD (Blind Spot Detection), providing drivers with intelligent and secure driving support. It features full-touch
control, dual-screen display for front and rear views, and records both front and rear driving footage. For more
information about our smart rearview mirror systems, please contact us at sales@aotop.com!
| Main Chipset | Eeasy. Tech (SA226) |
| RAM | 512M |
| System | EOS |
| G-Sensor | Triaxial G-sensor |
| MCU | Power supply management, communication &control |
| Screen | 8.8 Inch 1920*480IPS LCD, Up/down/left/right more than 170 |
| Brightness | ≥800nits |
| Touch screen | Capacitive touch screen |
| Working Voltage | 9~36V, from power supply box |
| Max. current | ≤1.0A |
| Standby current | ≤5mA |
| Max.Power Consumption | ≤10W |
| Camera video output | TVI /AHD |
| Camera lens | Full glass |

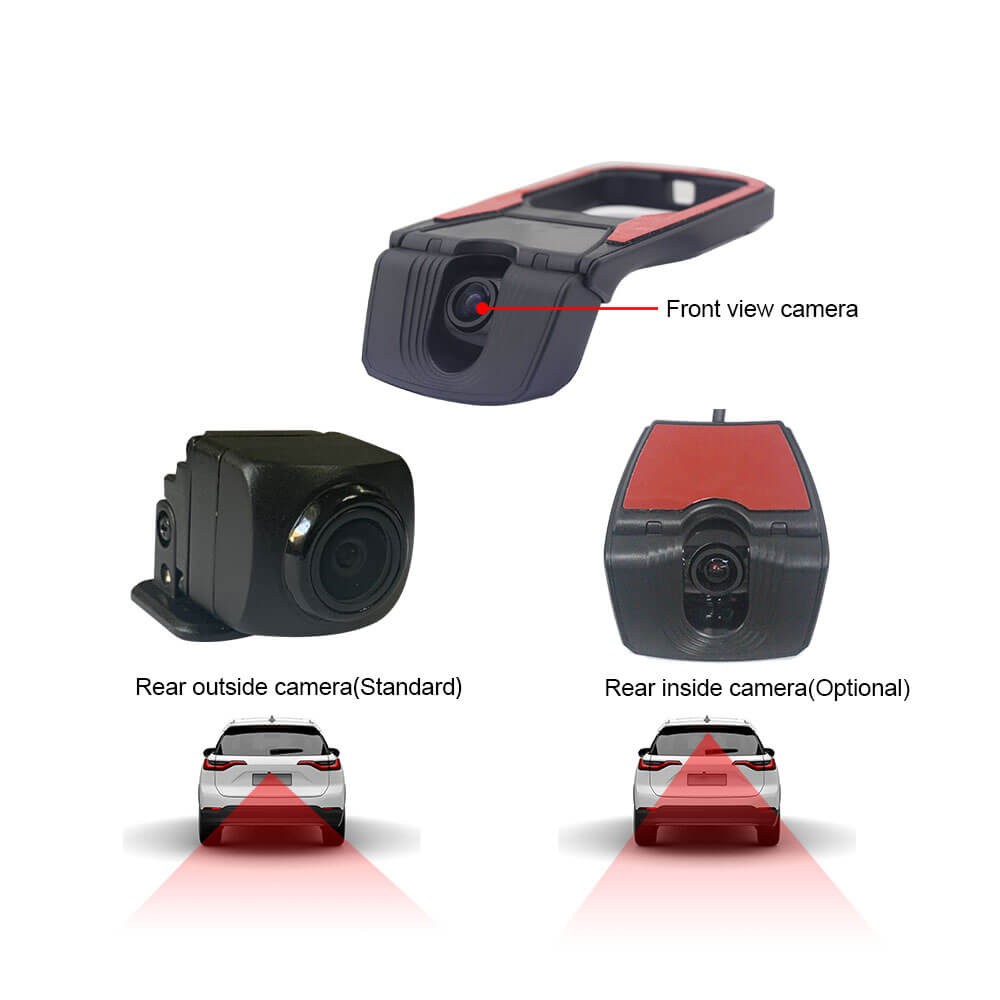

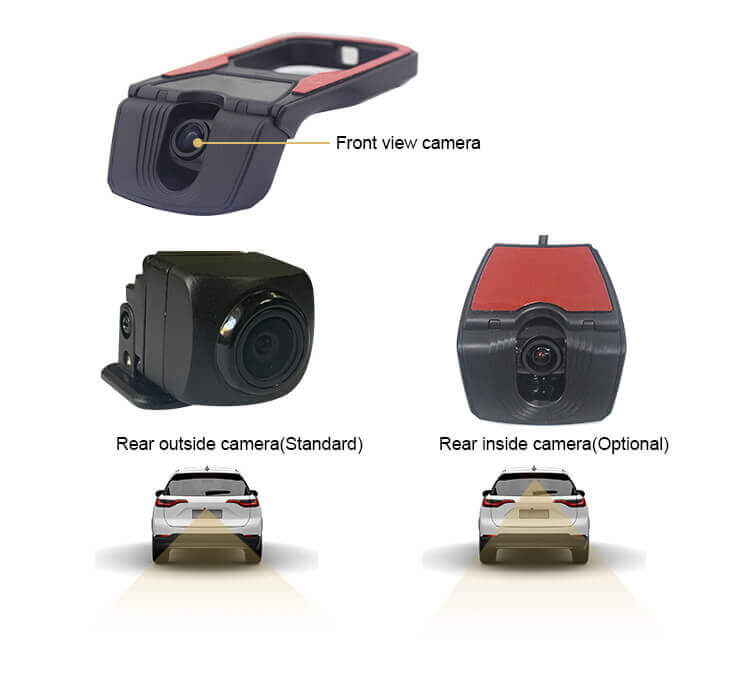

| Front view camera | 1920*1080，27.5fps，HDR |
| Rear view camera | 1920*1080，60fps，HDR |
| Video format | 1080P, TS |
| Picture format | JPEG |
| GPS | Exterior GPS module, Beidou&GPS double module |
| Speaker | 1 * speaker，4Ω 2W |
| Microphone | 1 * electrets microphone |

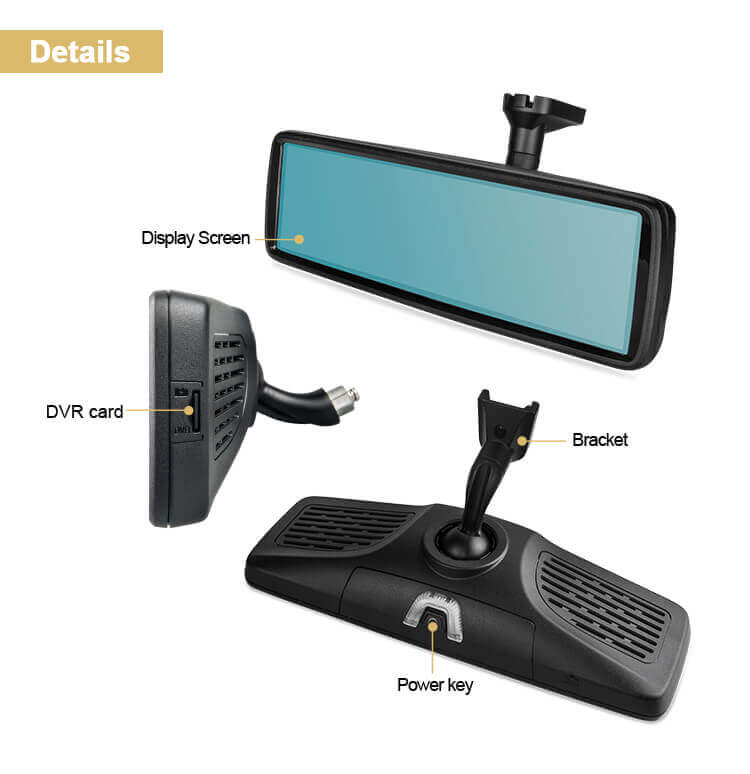

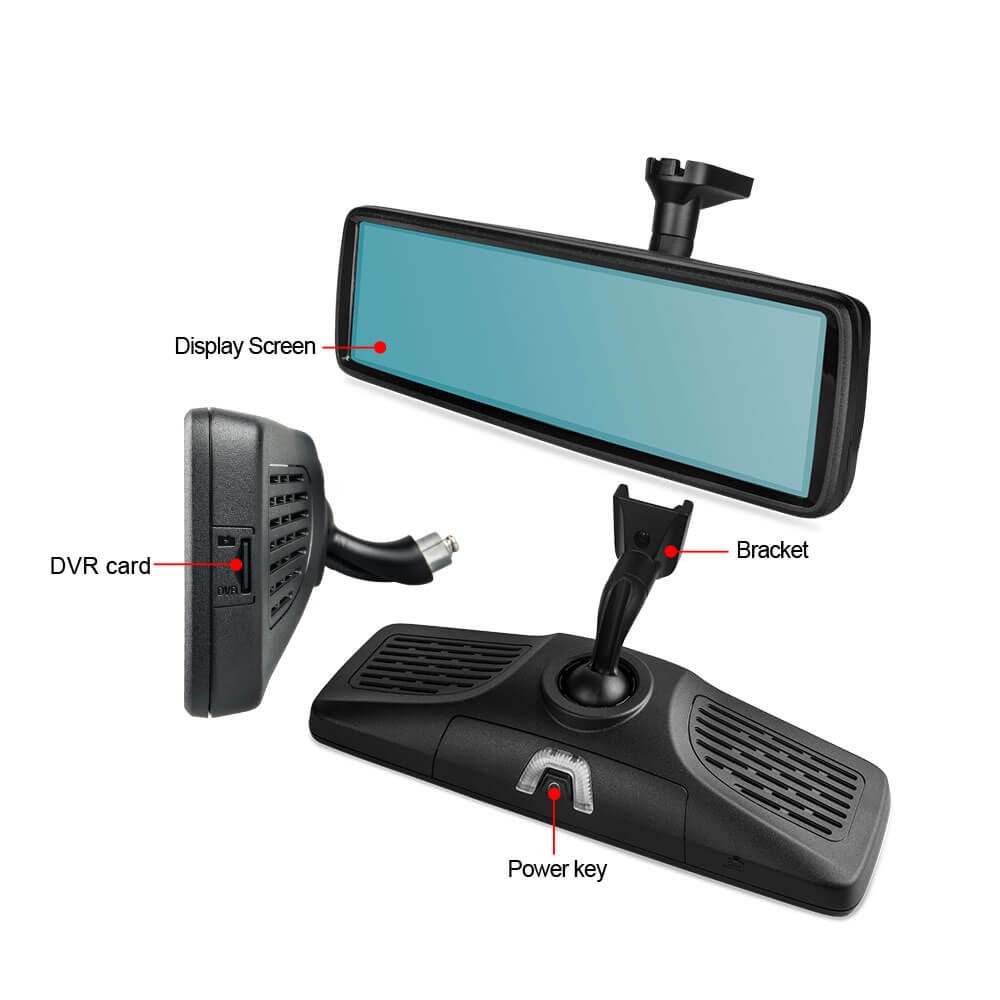

| Key | 1 * key，power key |
| TF slot | Support Micro SD card，Max. 256 GB，U1/C10 |
| Mirror housing material | PC+ABS，plastic injection, Anti-flaming UL94 |
| Mirror Adjust Torque | 1.2~1.7(N·m)，Single ball, adjust manually |

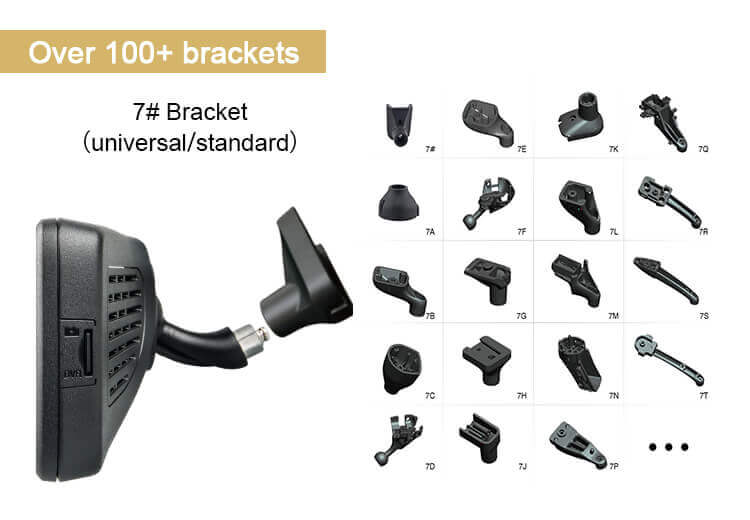

| Bracket material | alloy, all in on pressure casting |
| Mirror | Flat mirror, radius of curvature ∞， Mirror reflectivity 41%~45 |
| Circuit Protection | Overvoltage/Overcurrent protection, Reverse voltage protection |
| Working Temp. | -30℃~+70℃ |
| Storage Temp. | -40℃~+85℃ |
| Storage Humidity | 0%~90% |
