● SCREEN: Touch Screen 10.88 inch Full Screen Display
● RESOLUTION: 1920*480
● BRIGHTNESS: High Brightness 800cd/m2
● VIDEO INPUT: 2 Ways Signal, Front and back view
● FRONT/REAR VIEW CAMERA: 1920*1080，27.5fps/60fps， HDR
● POWER SUPPLY: 9~12V, from power supply box
● STORAGE: Max 128GB TF Card

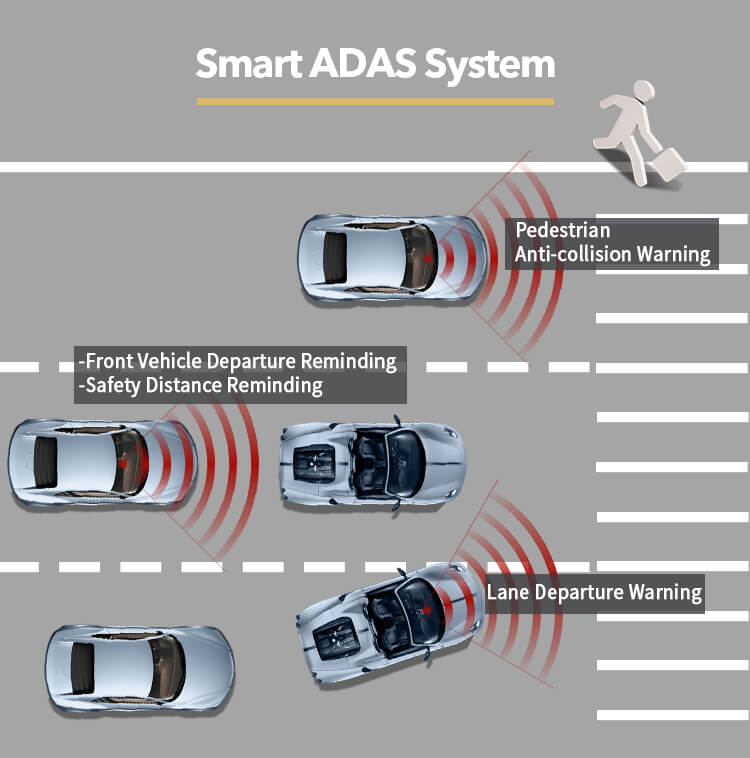

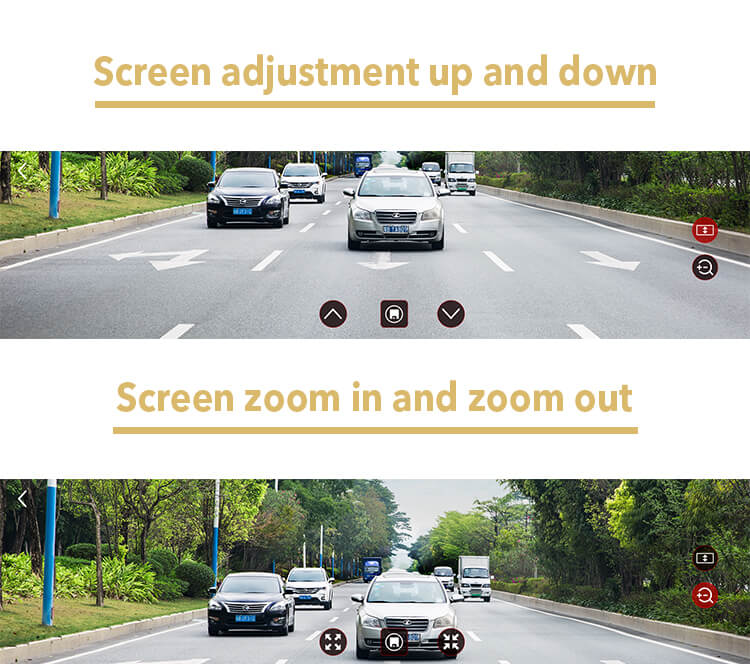

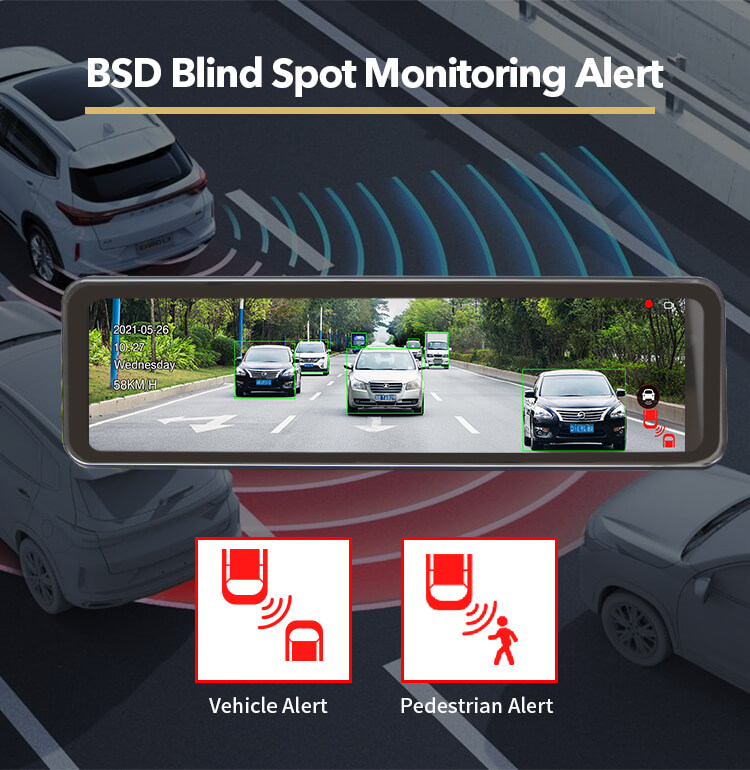

● FEATURE: Smart ADAS System/BSD Blind Spot Monitoring Alert/Screen adjustment/Dual DVR recording
PRODUCT FEATURES

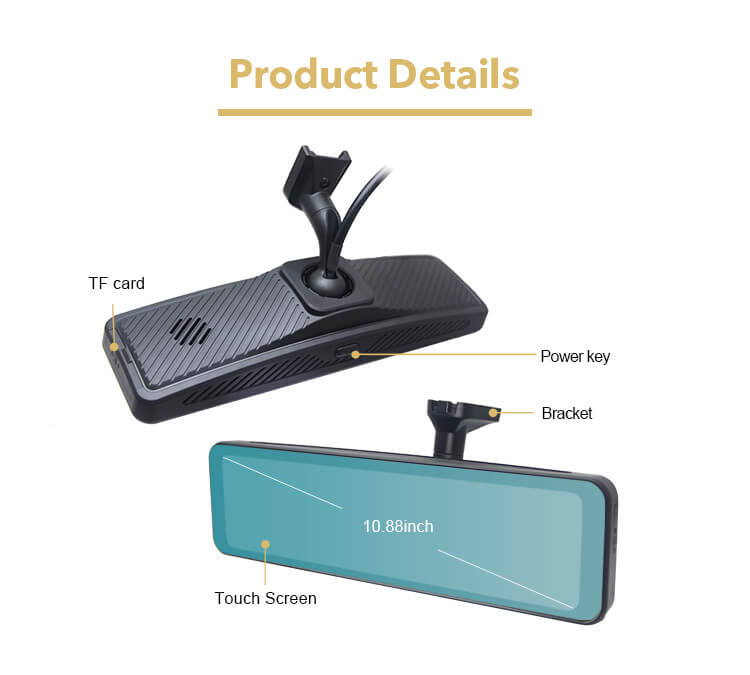

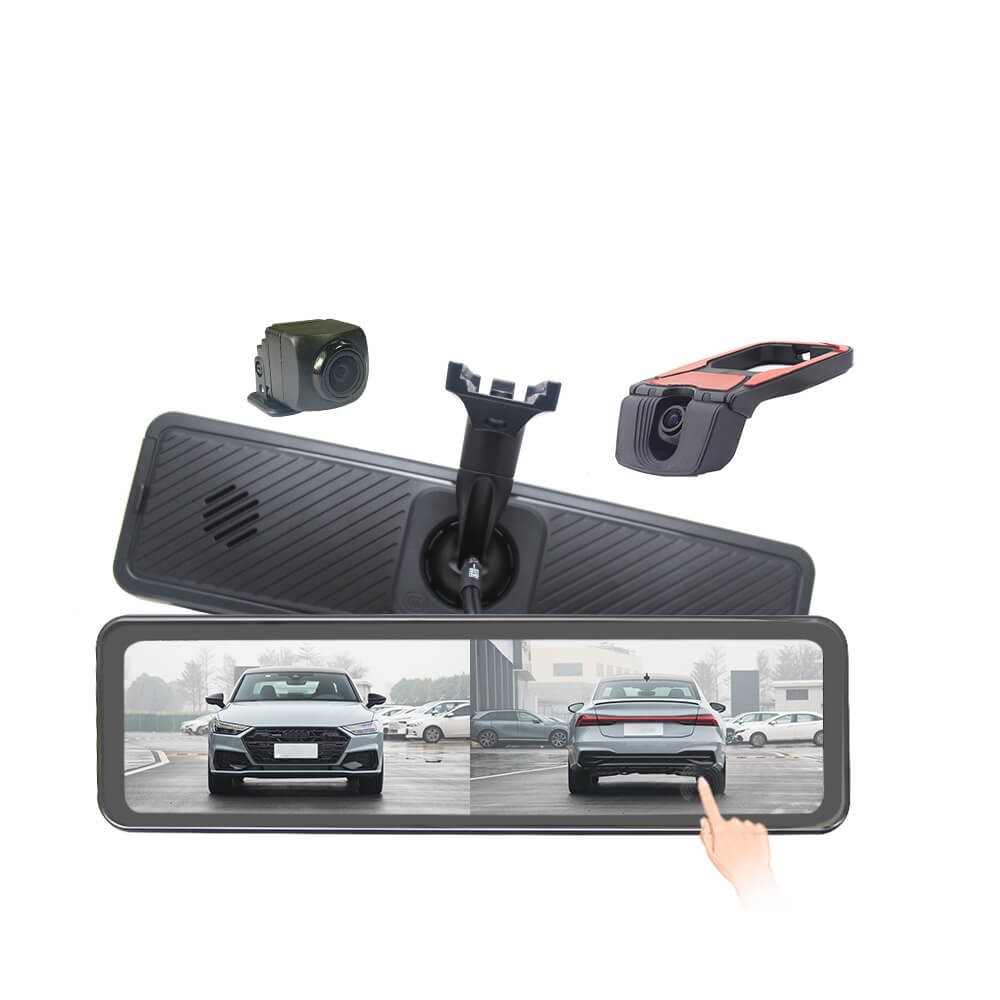

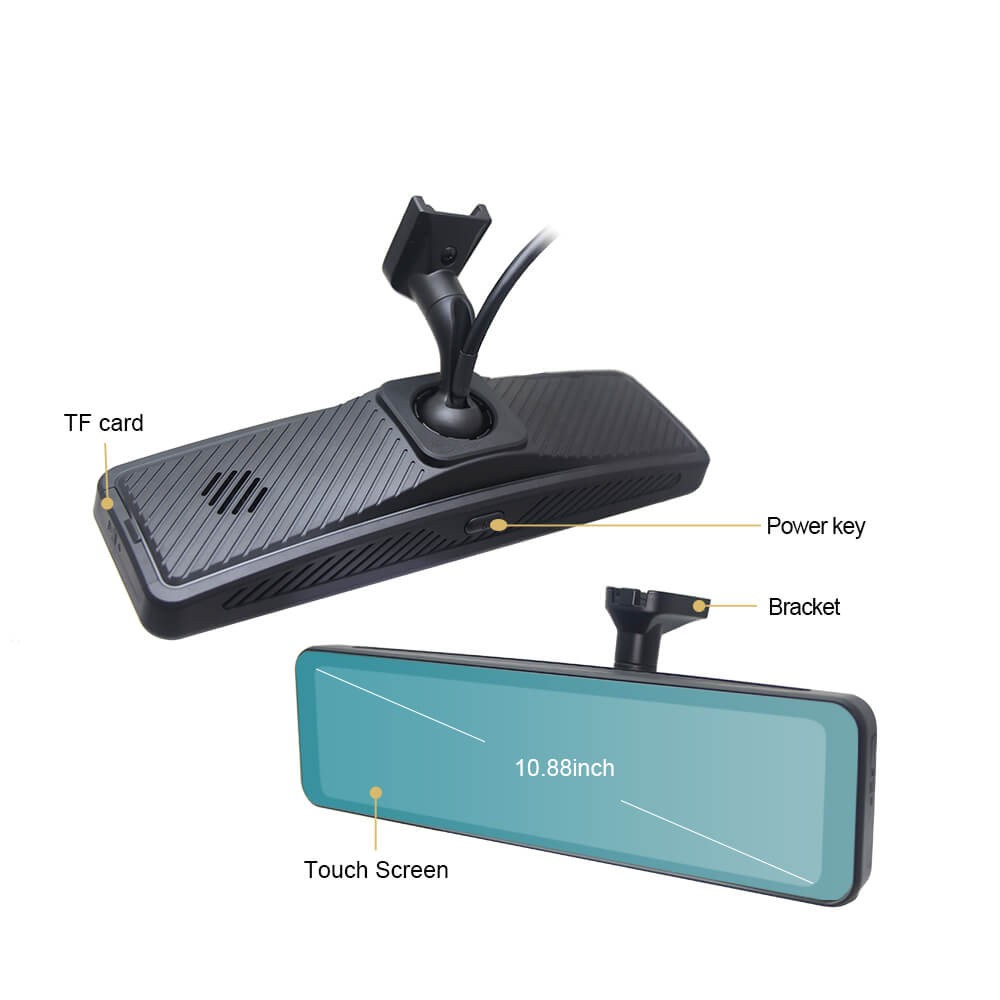

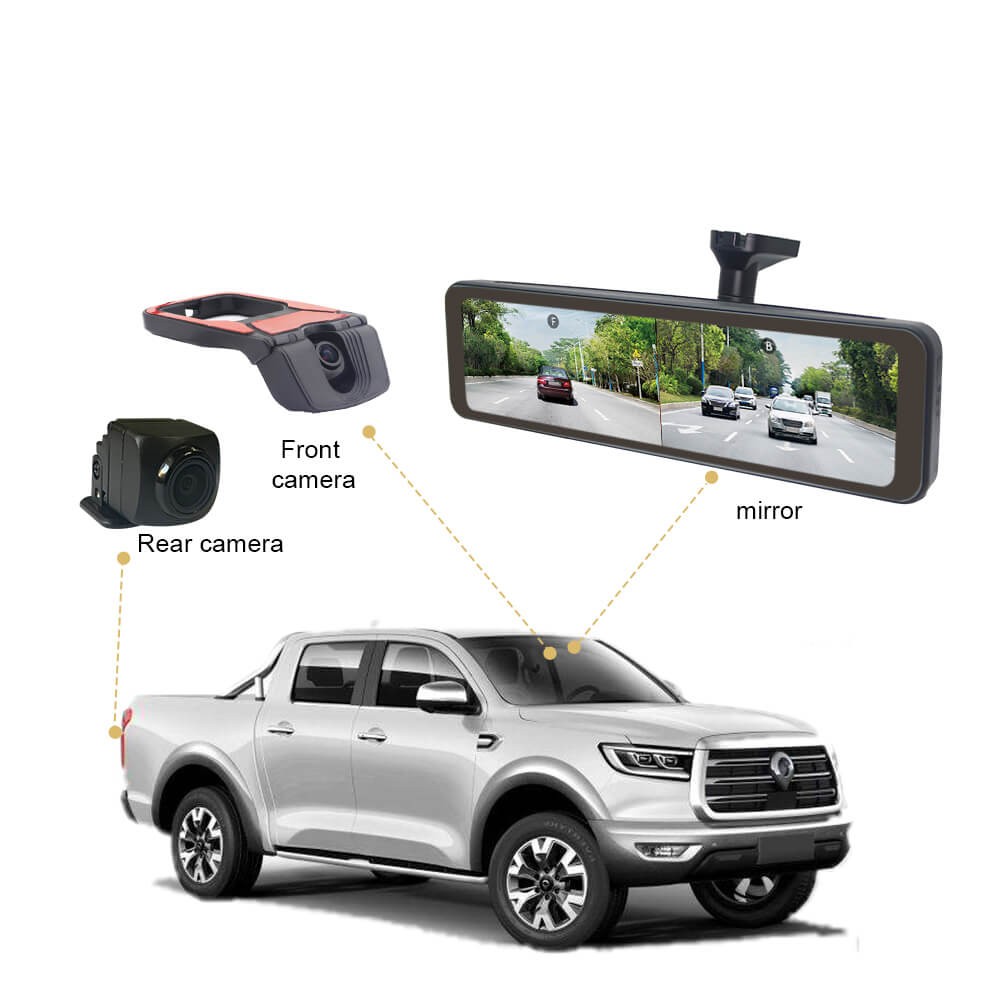

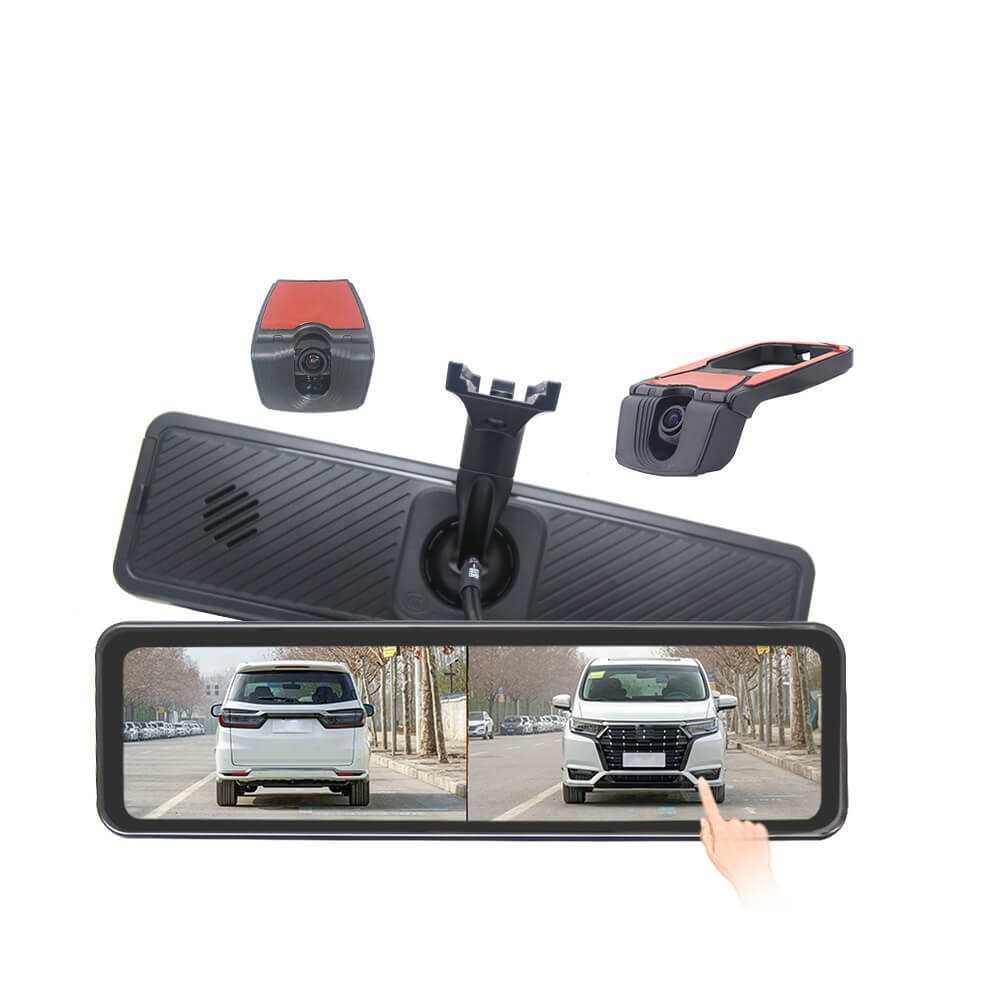

AOTOP 10.88 inch HD rearview mirror monitor dual cameras system integrates ADAS (Advanced Driver Assistance System)

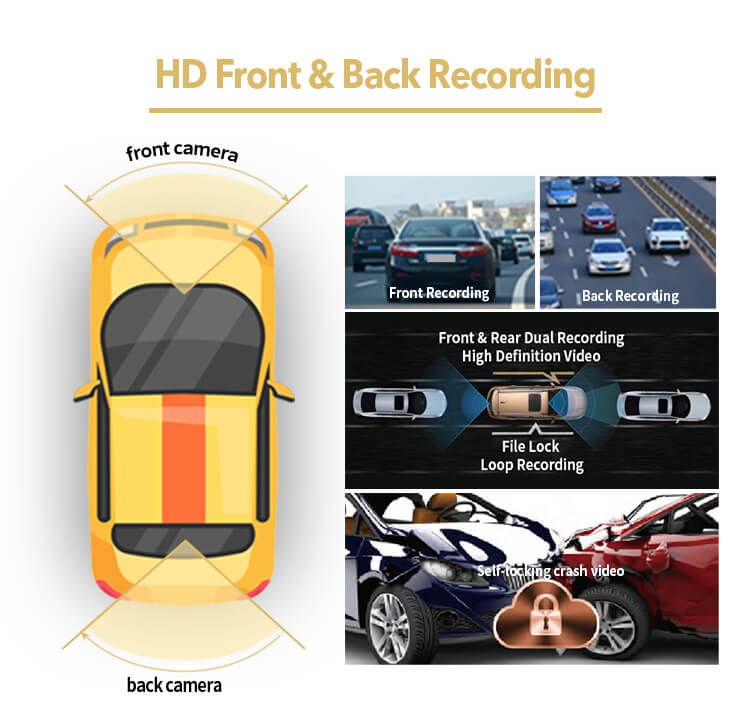

and BSD (Blind Spot Detection) features, full screen touchable. Mirror monitor supports 2CH 1080P HD video input, front and
rear camera DVR recording, dual split view display, HD night vision, and GPS driving track recording. It’s an ideal solution to
improve vehicle safety. If you're looking for a high quality rearview mirror monitor camera system, feel free to contact us at
sales@aotop.com!
| RAM | 512M*2 |
| System | EOS |
| G-Sensor | 3-axis gravity sensing |
| MCU | Power management, communication & control with master serial port |
| Display | 10.88 inch IPS HD LCD screen, 1920*480 resolution, screen viewing angle vertical up and down and horizontal left and right are more than 170 ° |
| Screen Brightness | ≥1000nits |
| Touch Screen | Full mirror capacitive touch screen |
| Operating Voltage | Support 9~36V range, power box power supply |
| Maximum Working Current | ≤1.0A |
| Standby Current | ≤5mA |
| Maximum Operating Power Consumption | ≤10W |
| Camera Video Output Format | TVI |
| Camera Lens | Full Glass Lens |
| Front Camera | 1920*1080, 27.5fps, support HDR |
| Rear camera | 1920*1080, 60fps, support HDR |
| Video format | 1080P, TS |
| Picture Format | JPEG |
| Positioning | Built-in GPS positioning module |
| Speaker | 1 * speaker, 4Ω 2W |
| Microphone | 1 * electret microphone |
| Pushbuttons | 1 * key, power button |
| TF Card Holder | Support Micro SD card, maximum support 256 GB, support U1/C10 card speed |
| Mirror Case Material | PC+ABS, plastic injection moulding, flame retardant UL94 |

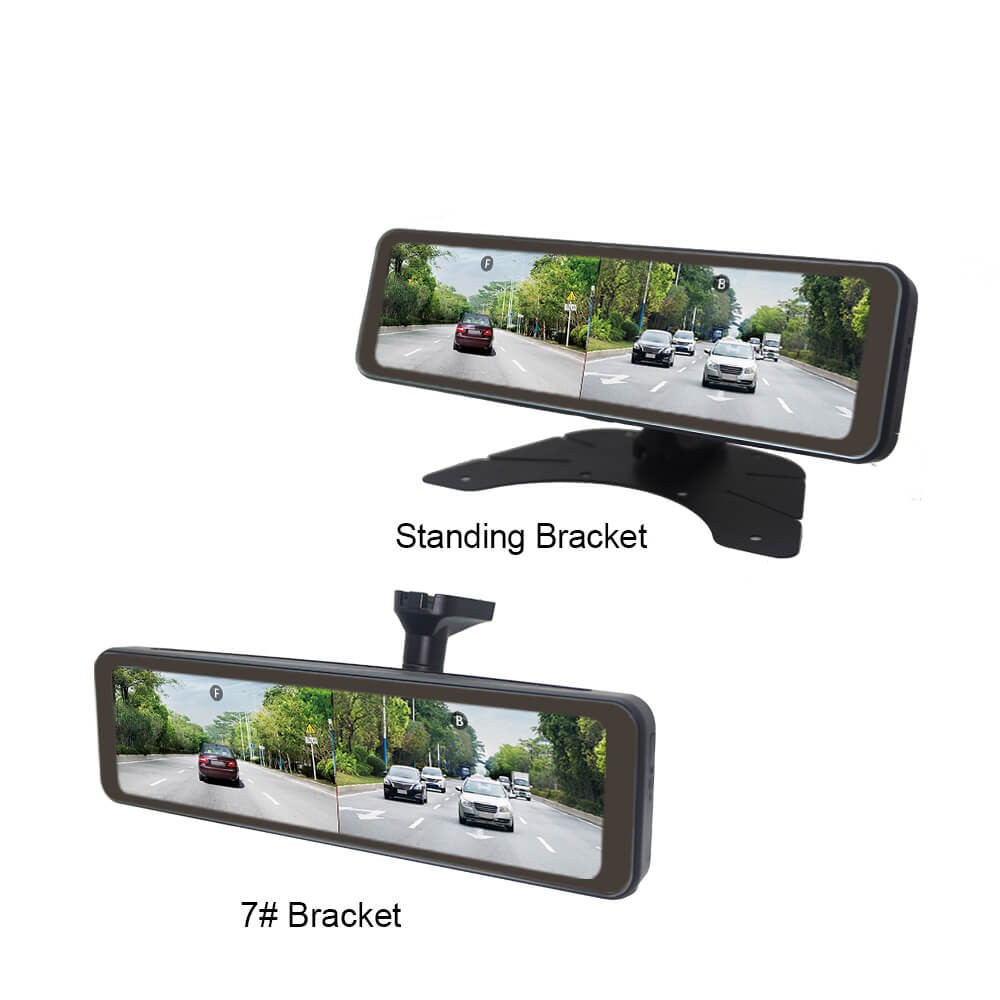

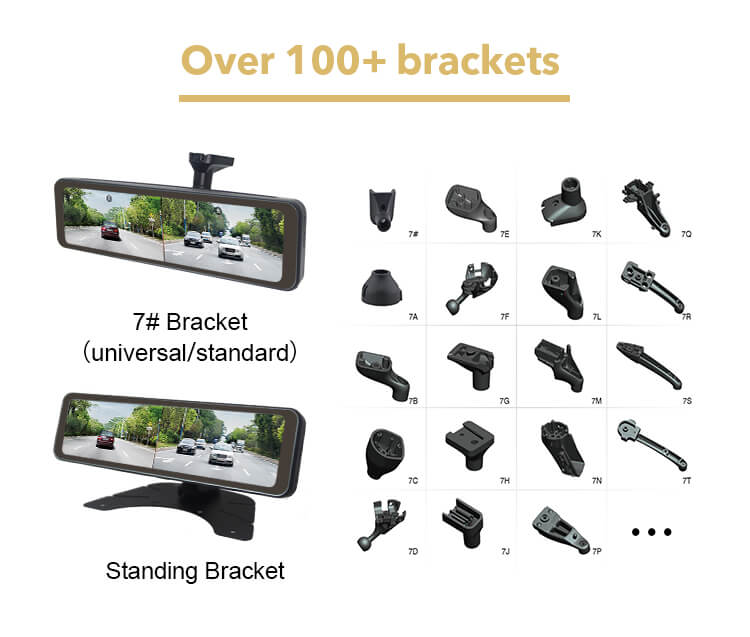

| Mirror Body Adjustment Torque | 1.2~1.7(N•m), single ball head, manual adjustment |
| Ball/Bracket Material | Alloy material one-piece die-casting moulding |
| Mirror surface | Plane mirror, mirror radius of curvature ∞, mirror reflectivity 41%~45 |
| Circuit Protection | Over-voltage and over-current protection, reverse voltage protection |
| Operating Temperature | -30℃~+70℃ |
| Storage Temperature | -40℃~+85℃ |
| Storage Humidity | 0%~90% |
