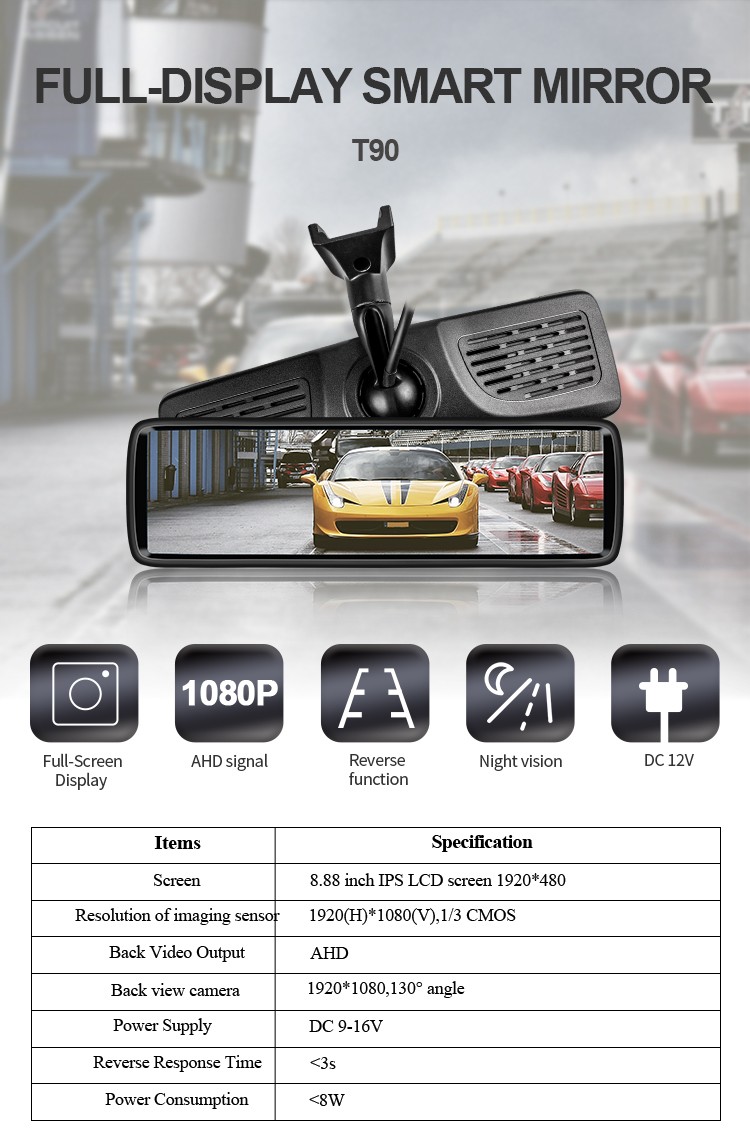

Full Display Mirror System

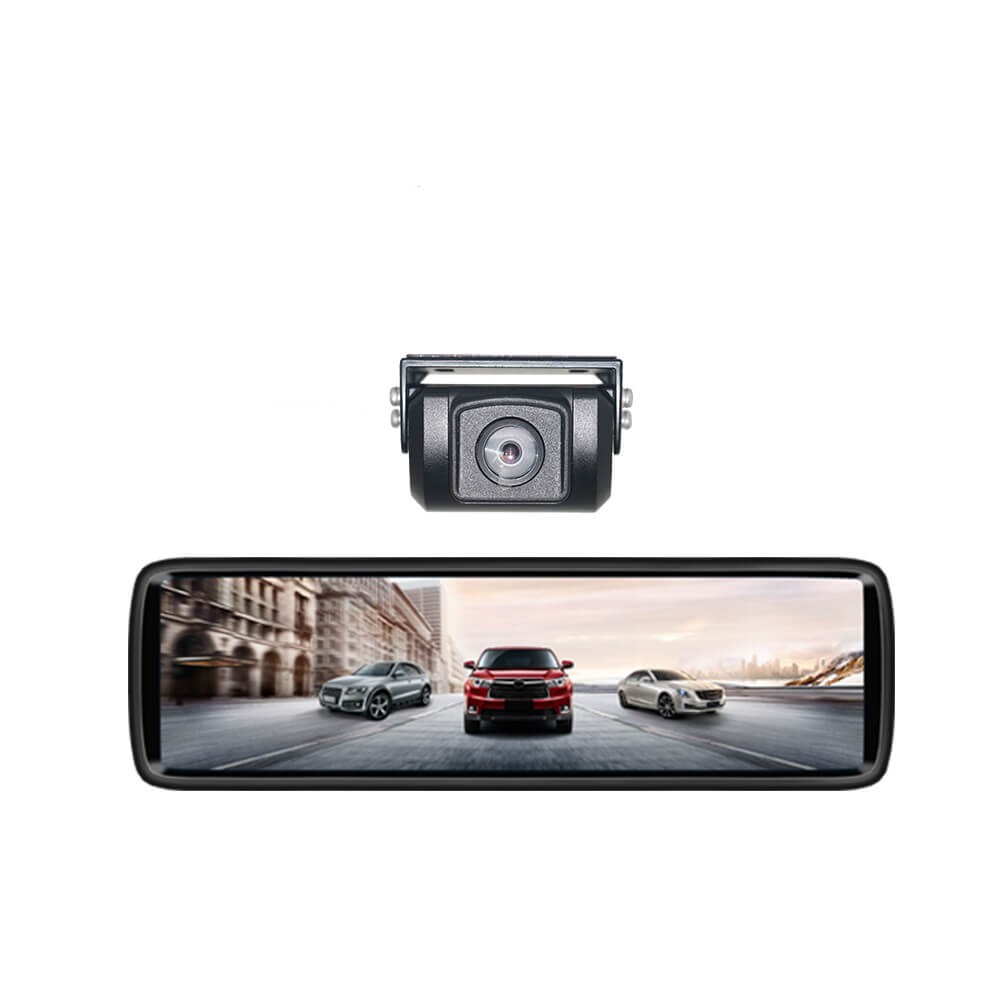

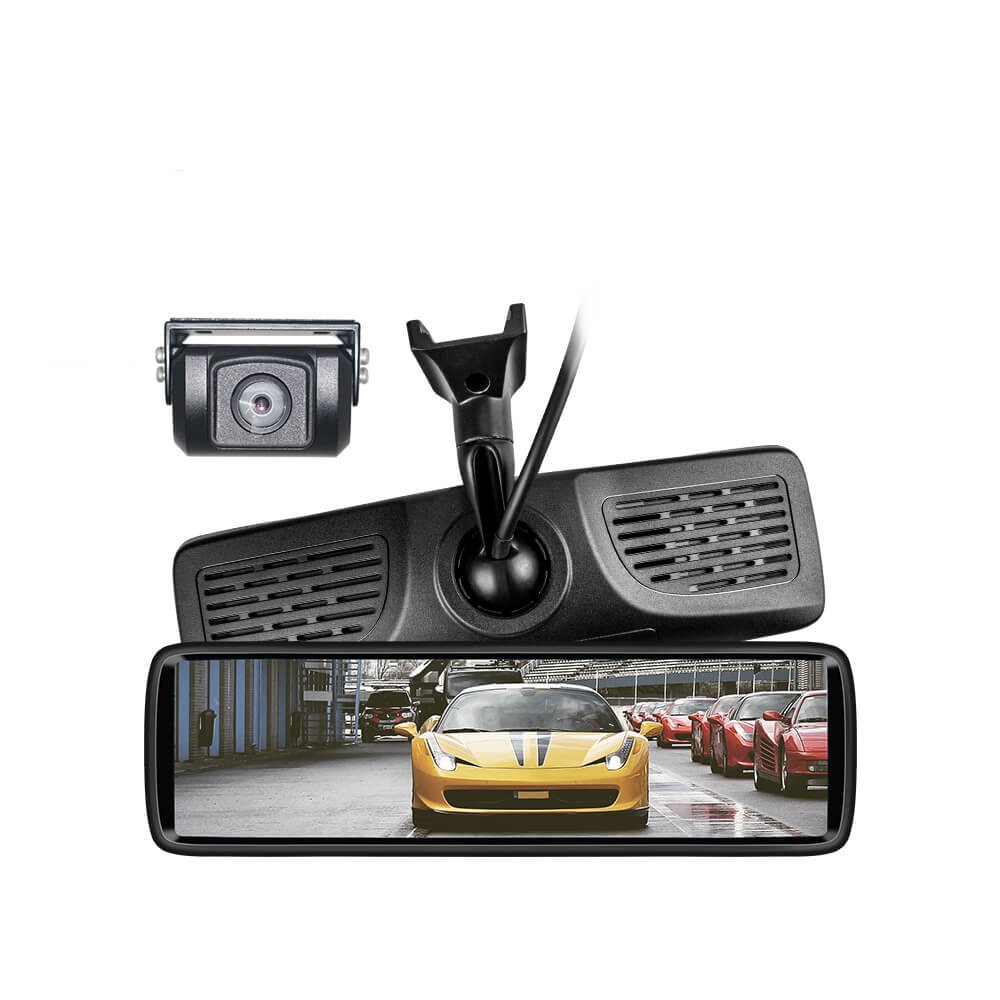

HD 1080P Digital Reversing Rearview Mirror Camera System

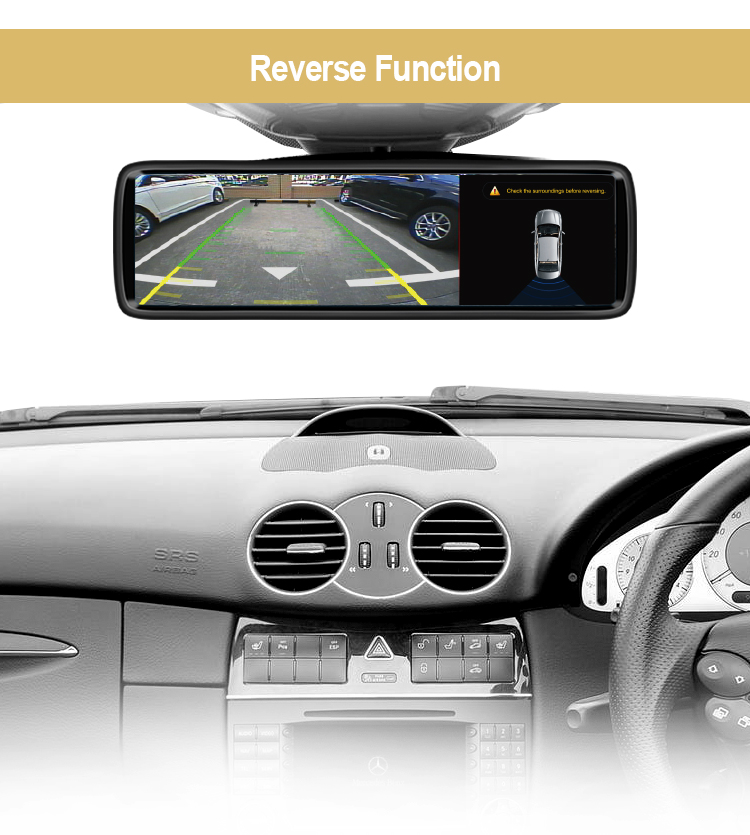

AOTOP HD 1080P digital reversing rearview mirror camera system include of an 8.88 inch electronic mirror display and 1080P reversing camera. Can assist the driver to reverse operation, to ensure the safety of the reverse! For more information, contact sales@aotop.com.

PRODUCT FEATURES

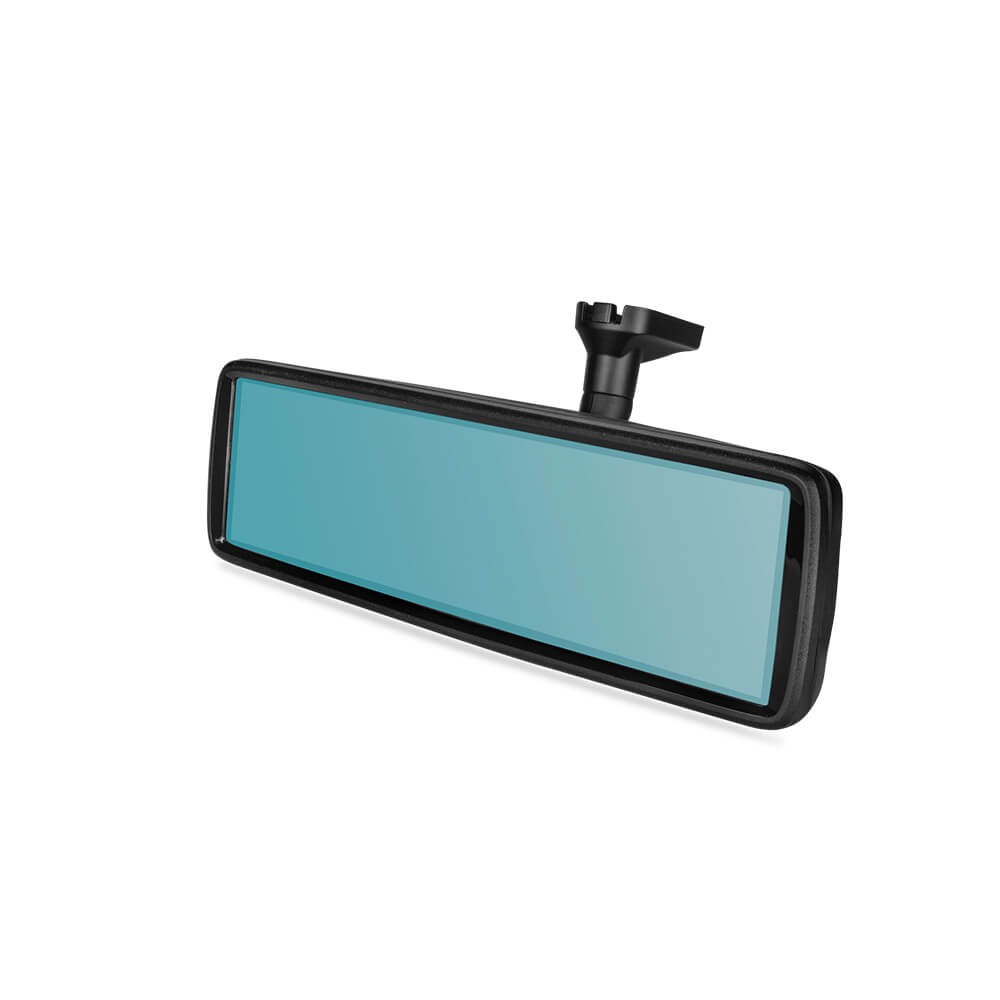

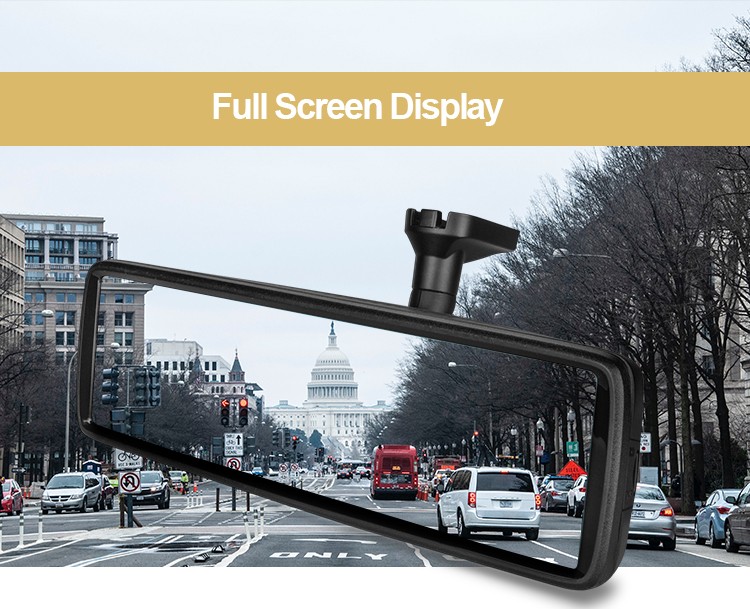

Full Screen Display(Mirror):
3 times of view range than traditional mirrors, no blind spot area.
● Super penetration; anti-rain &anti-fog, dust and rain proof, no water drop stay.
● Support WDR/HDR imaging technology,Enhance image quality, color correction, can display the
back of vehicle clearly even with strong light or big exposure.
● Support a synchronous transmission rear view image, no delay.

High Definition Night Vision(Camera):
● Support HD color night vision, automatic exposure, eliminate flicker, low image noise, WDR, no image distortion.
● View distance at night 1500~200 meters.
● Can recognize 780~1500nm near-infrared light(Visible light for human being' s eyes is 380nm~780nm, the
recognizable range for night vision module is wider than human's eyes).
● Make the night seem bright like in the day, soft picture, anti strong light and back light.


Working temperature-20℃~+70℃
Storage Temperature-40℃~+85℃
Storage Humidity0%~90%
Product Certificate

National CCC

Mirror Housing materialPC+ABS,plastic injection, Anti-flaming UL94

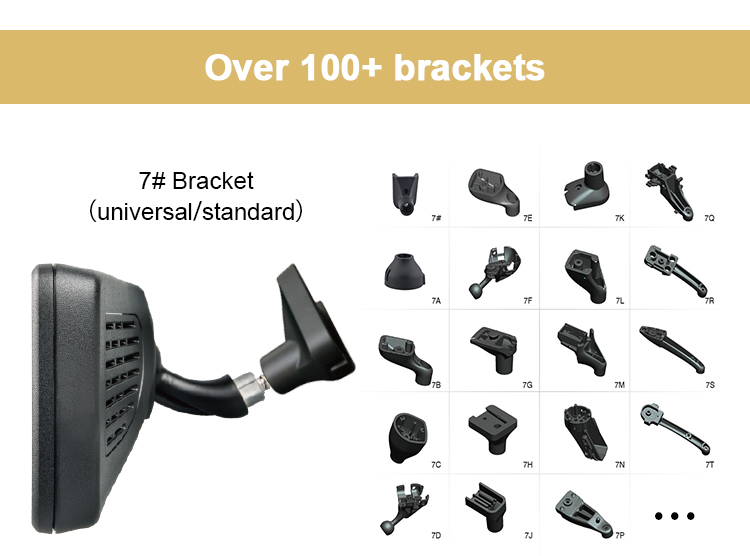

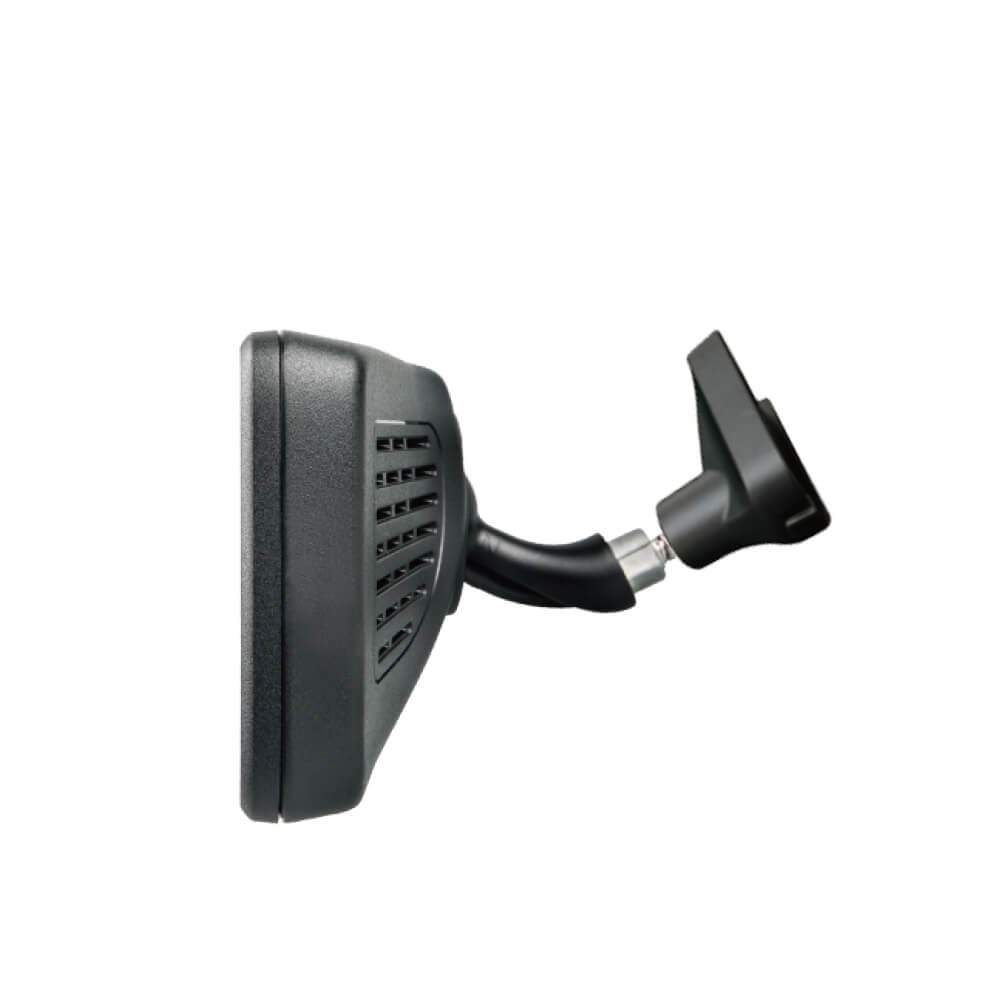

Bracket materialalloy, pressure casting
Mirror Adjust Torque1.2~1.7(N·m),Single ball, adjust manually
Mirror MaterialMonox, titanium oxide coated mirror glass
Mirror TypeFlat mirror
Mirror radius of curvature
Mirror reflectivity41%~45%
Mirror anti-glareAnt-glare blue mirror

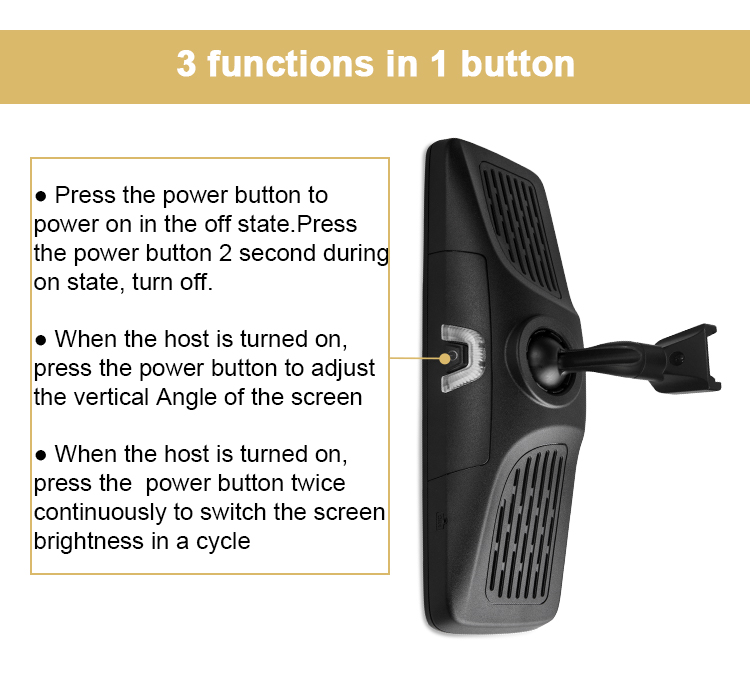

Keyboard1 piece of Mechanical keys

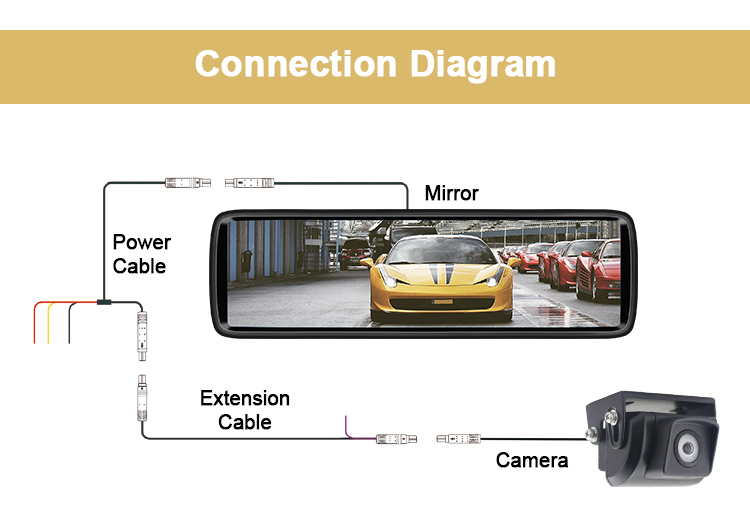

Power supplyGet power from car power supply (fuse box)
Working voltageSupport 9~16V
Max. working current<1.0A
Stand by current<5mA
Power consumption<7W
Overvoltage/Overcurrent protectionSupport
Reverse voltage protectionSupport
Main ChipCPU-Cortex A7

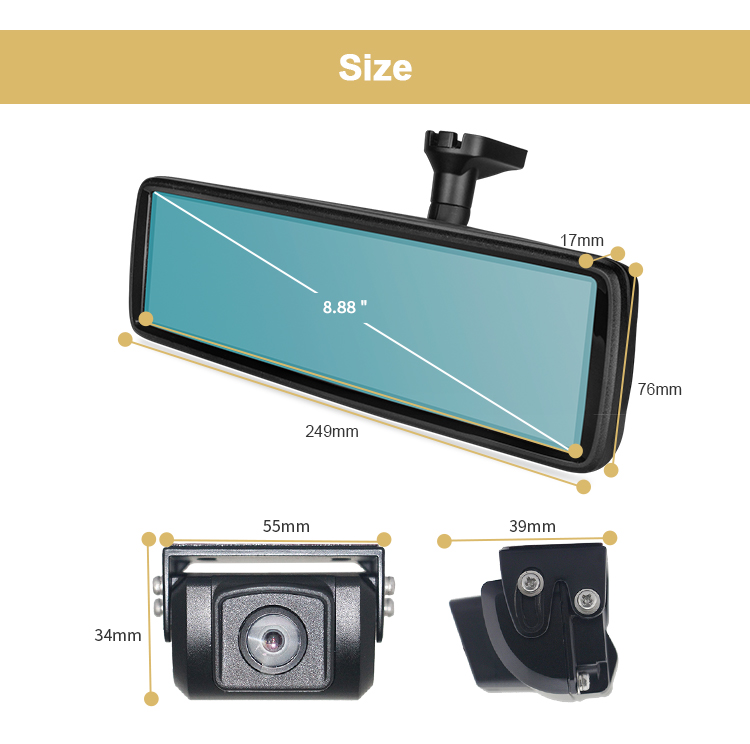

Screen size8.88 Inch
Screen Resolution1920*480
View angleUp/down/left/right more than170°

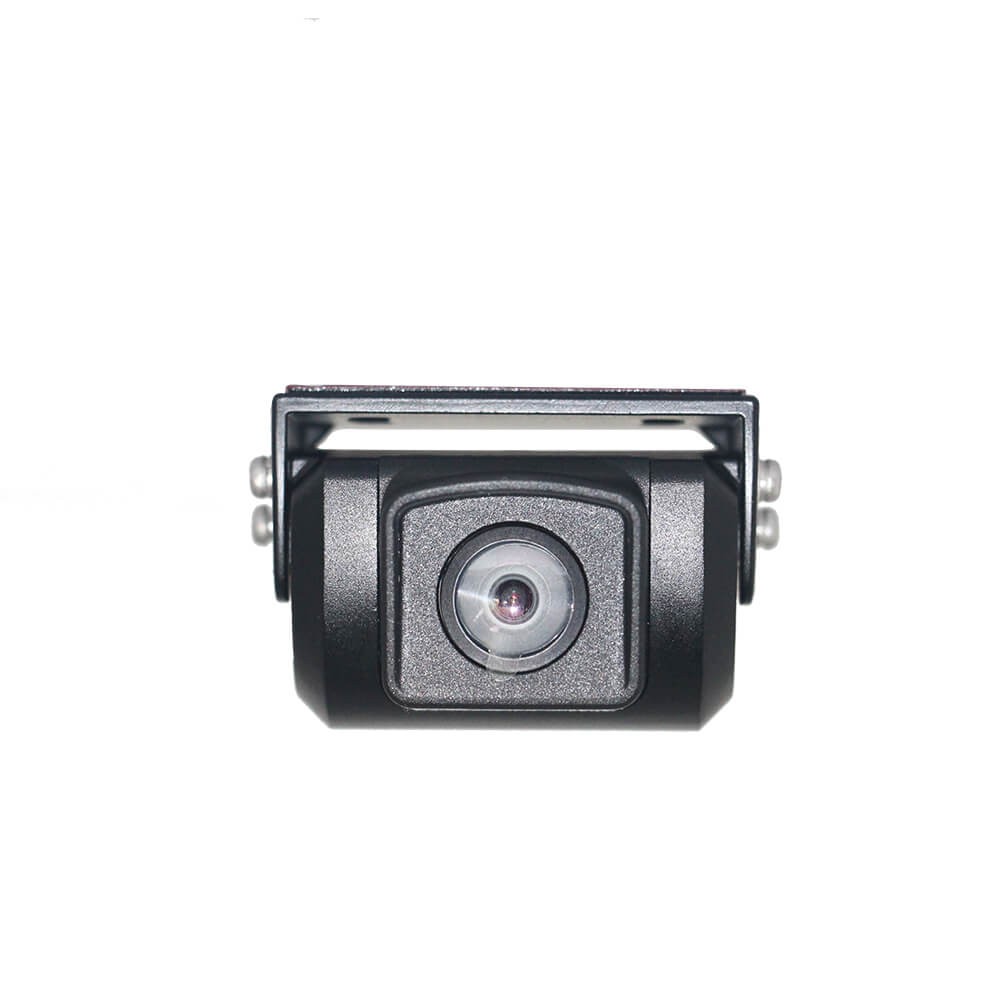

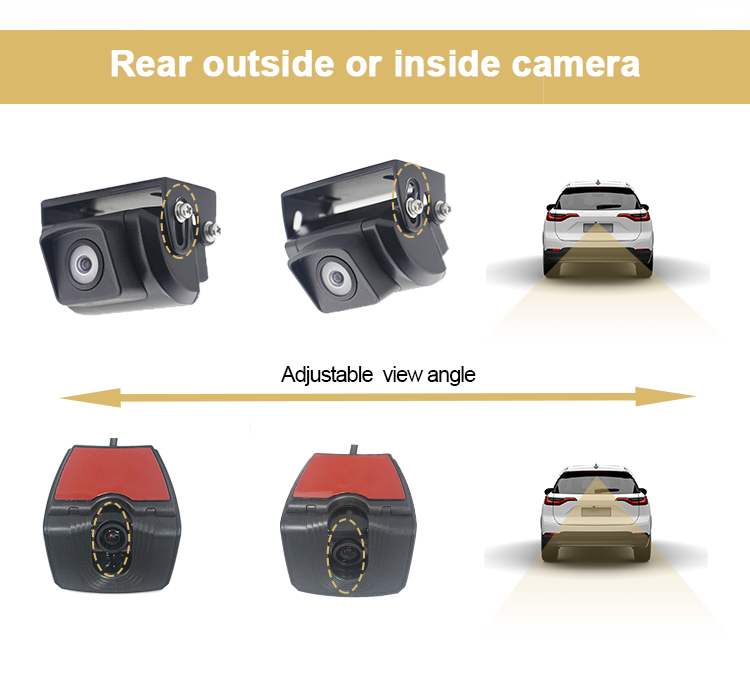

Rear view camera1920*1080,6 glass lens, angle130°
Image sensor1/3 CMOS
Resolution1920(H)* 1080(V)
Image process system ISPWDR/HDR,support image distortion correction
WDR2 frames long and short frames image compose
Rear view camera video outputAHD
Reversing response time<3s
