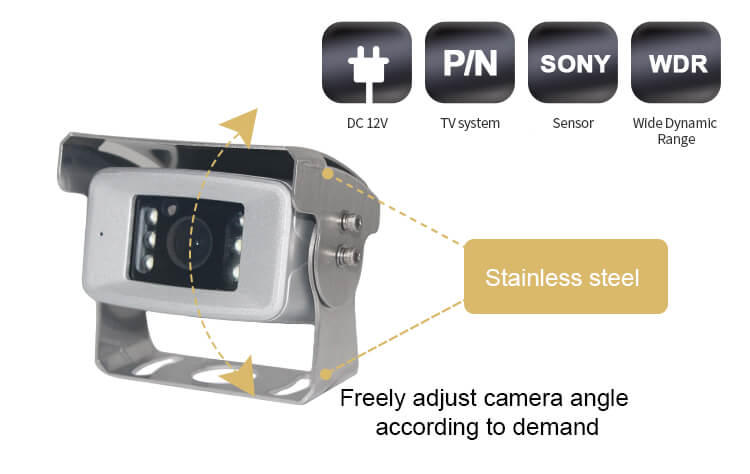

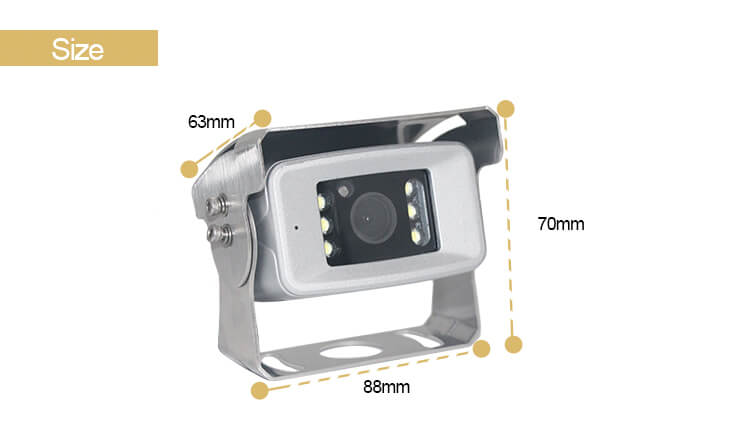

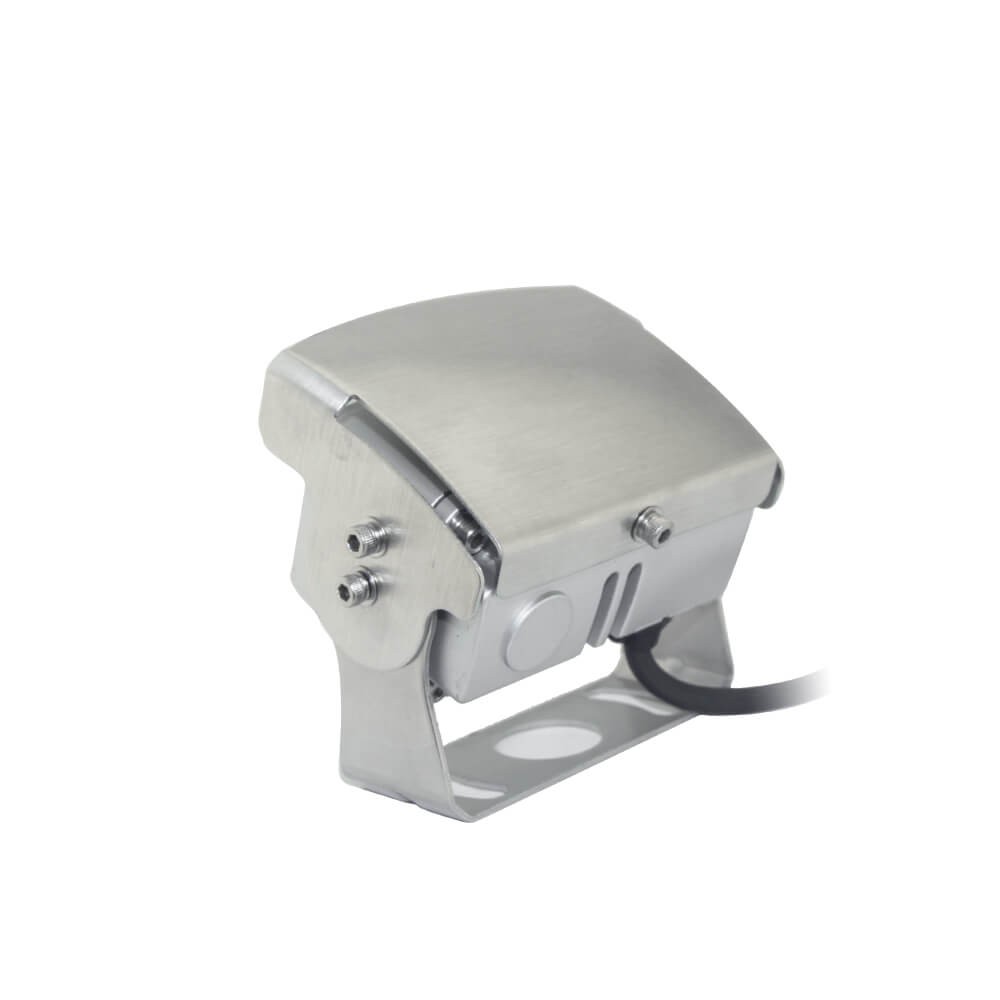

● Stainless steel bracket
● 720P 1080P AHD resolution
● SONY CCD image sensor

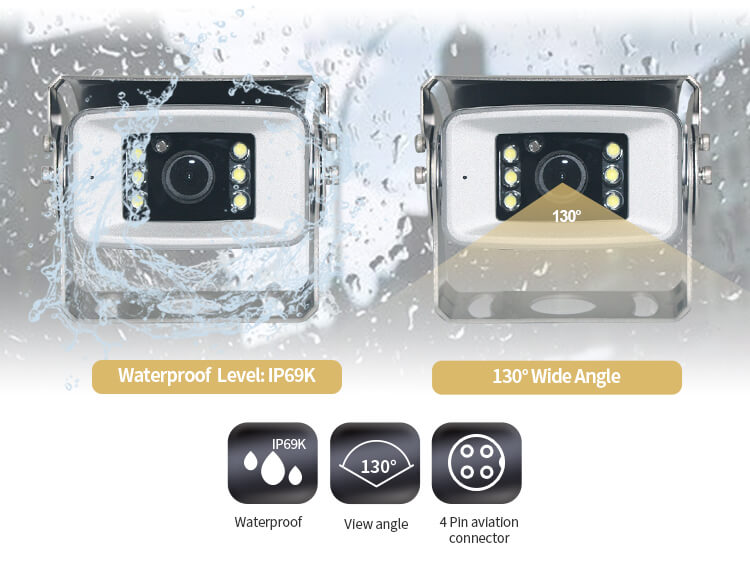

● IP69K waterproof ratio
● 130° wide angle (customisable)

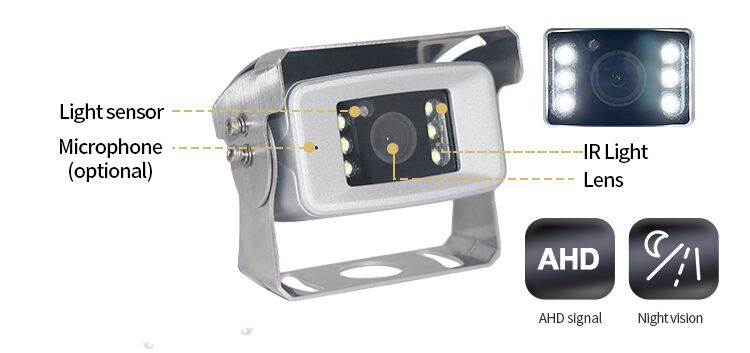

● 6pcs IR LED lights (AUTO night vision)

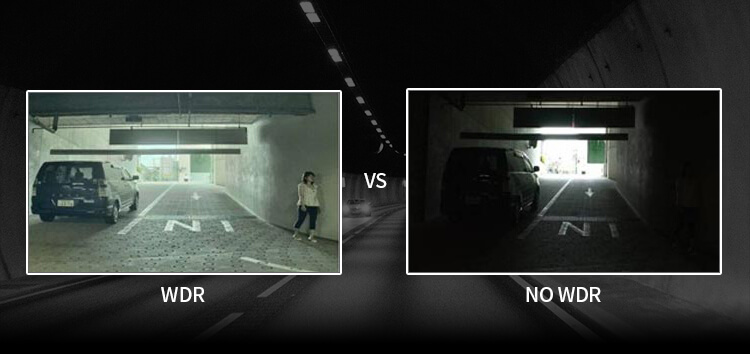

● Wide dynamic range technology
● Optional PAL / NTSC TV system

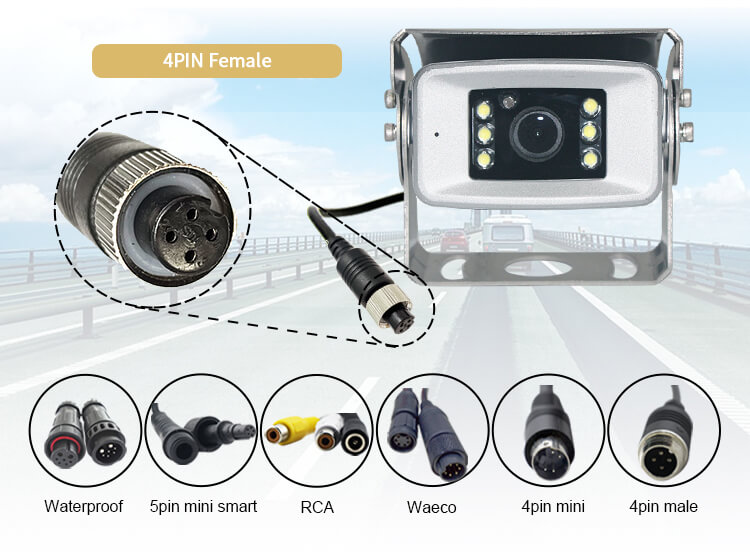

● Aviation 4PIN female connector
PRODUCT FEATURES
AOTOP offer the best in-vehicle rear view reversing camera, provide 2 years warranty, with 20 years' rich experience and
great R&D, support ODM & ODM service! Our AC-972 HD camera is good for trucks, supports AUTO night vision, built-in
6pcs infrared LED lights. 130° wide-angle view covers rear blind spots, ensuring a broad monitoring range. It an ideal
choice for improving the safety of reversing large vehicles. For more information, please contact sales@aotop.com!
| Image Sensor | SONY CCD |
| Effective Pixels | 1920(H) * 720(V) |
| Resolution | 720P/1080P |
| Night Vision | Top Starlight Night Vision Built-in 6pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 130°In Diagonal |
| Waterproof Level | IP69K |
| Shockproof level | 4G |
| Housing Material | Aluminium Alloy |
| Connection Plug(Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Microphone | Optional |
| Heating Function | Optional |
| Customisable | Bracket/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
