● CVBS & 720P 1080P AHD resolution optional
● SONY CCD / CMOS image sensor

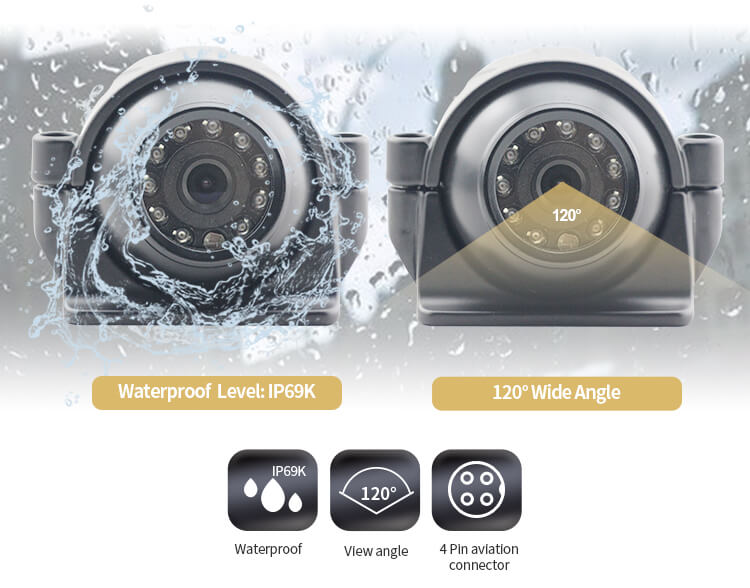

● IP69K waterproof dustproof
● 120° wide angle (customisable)

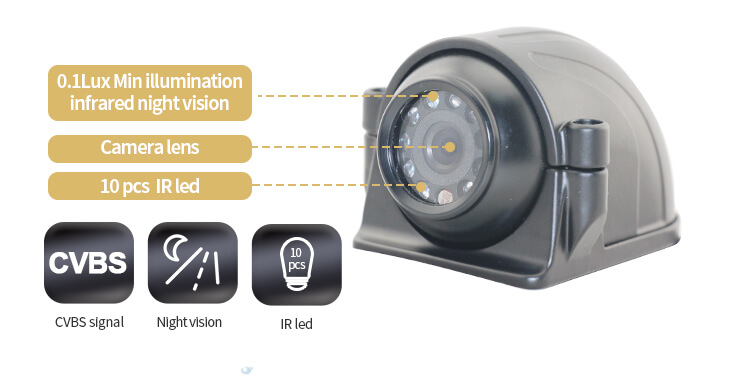

● 10pcs IR LED night lights (AUTO ON/OFF)
● Optional PAL & NTSC TV system
● Aviation 4PIN female connector
● Microphone audio function optional
● Horizontal mirror image switching
PRODUCT FEATURES

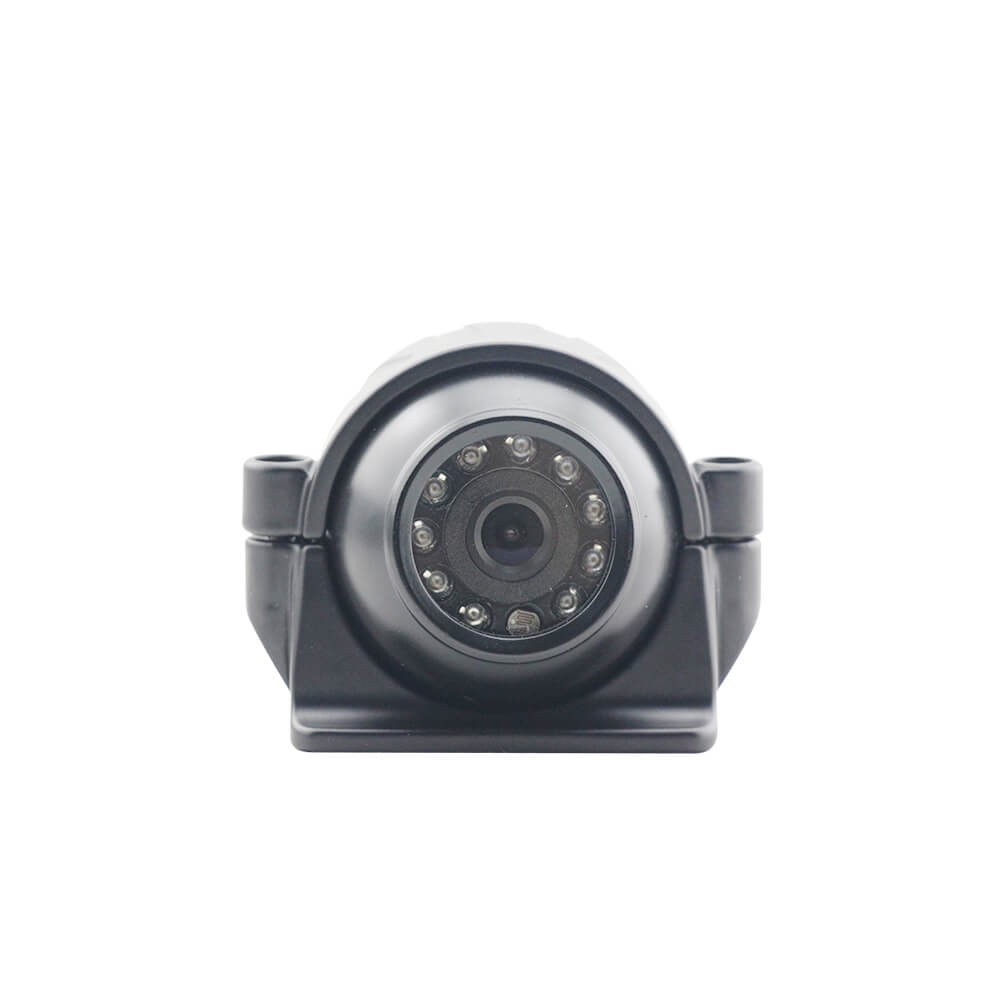

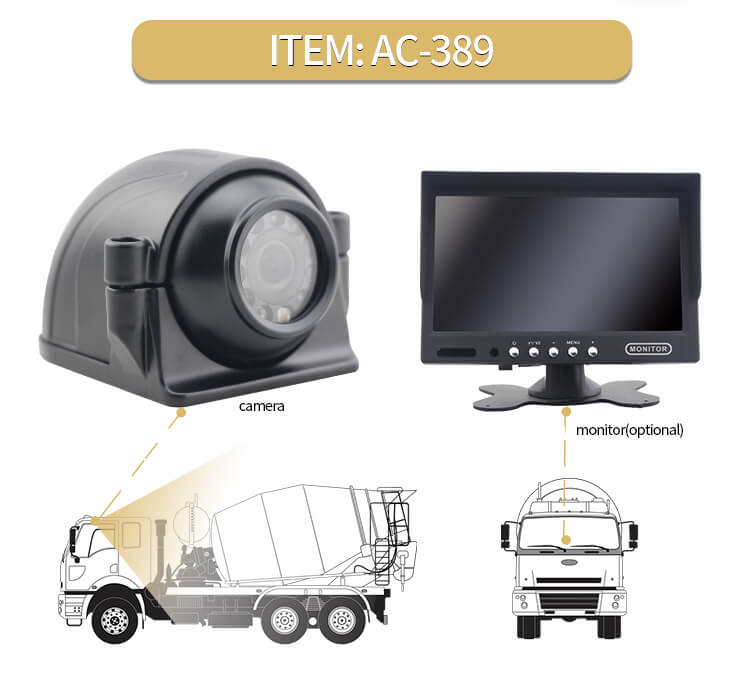

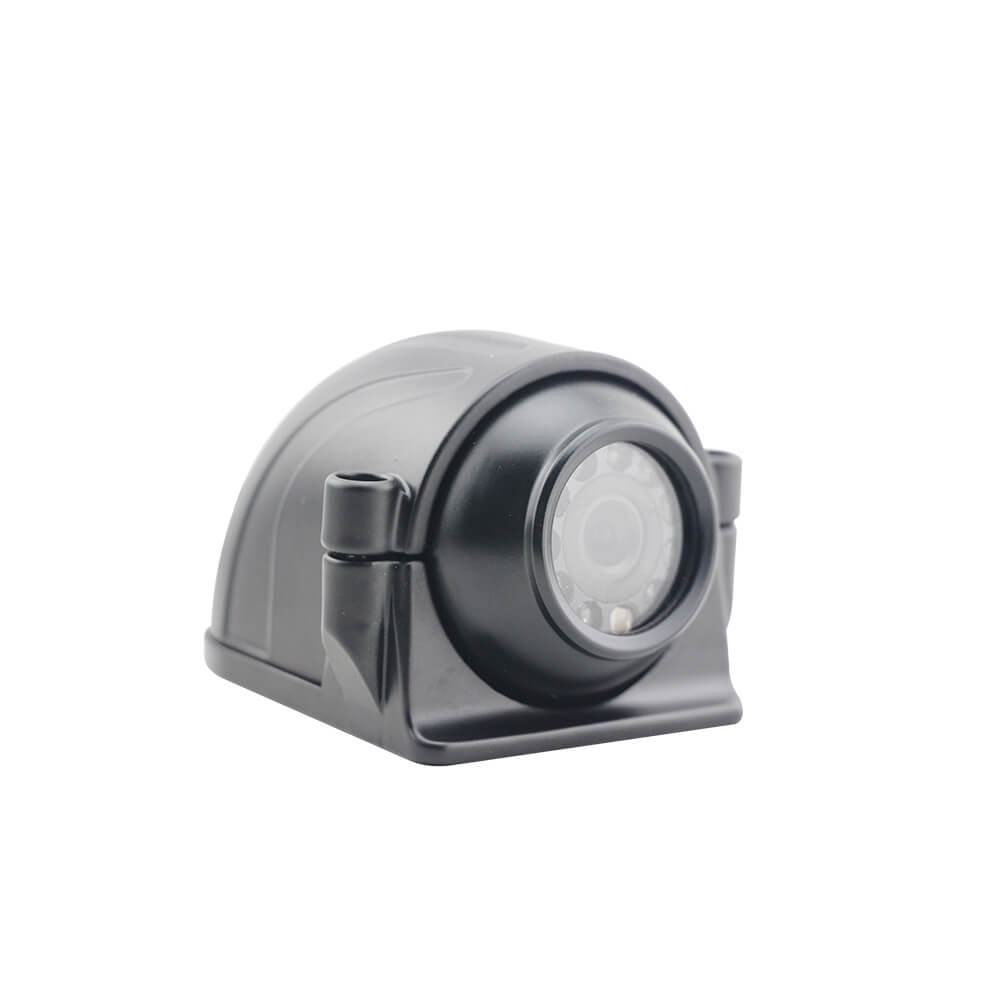

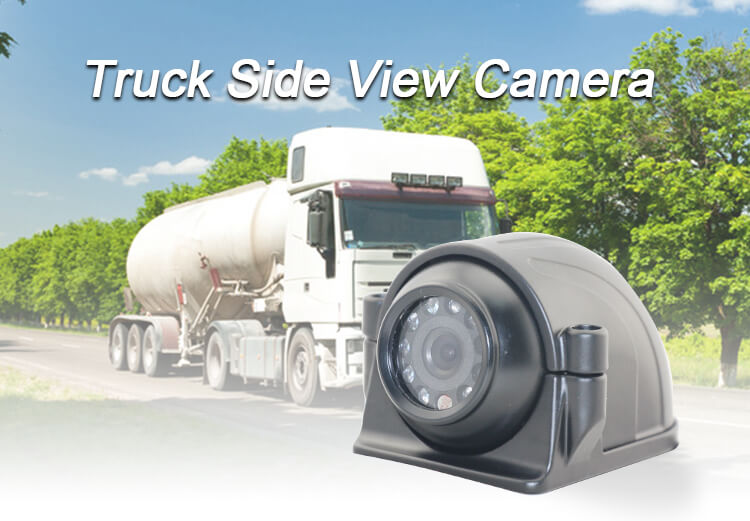

AOTOP is a leading side view vehicle camera manufacturer & supplier in China, we provide a series of the best side
view camera solutions. Our AC-389 camera uses SONY CCD image sensor, can output high-quality images. 120° wide
angle lens, support IP69K waterproof. Built-in 10pcs min brightness infrared LED night vision lights, 35ft high-definition
night vision distance. If you are looking for a wide angle side view camera solution for your fleet, please contact
sales@aotop.com!
| Image Sensor | SONY CCD / CMOS |
| Effective Pixels | 1920(H) * 720(V) |
| Resolution | 720P/1080P |
| Night Vision | HD Night Vision, Built-in 10pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 120° |
| Waterproof Level | IP69K |
| Shockproof level | 4G |

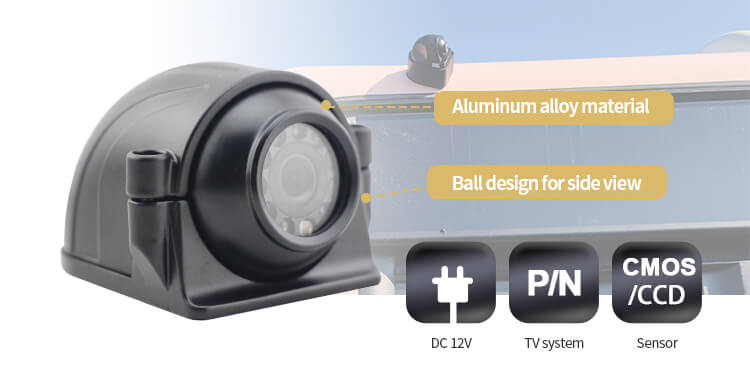

| Housing Material | Aluminium Alloy |

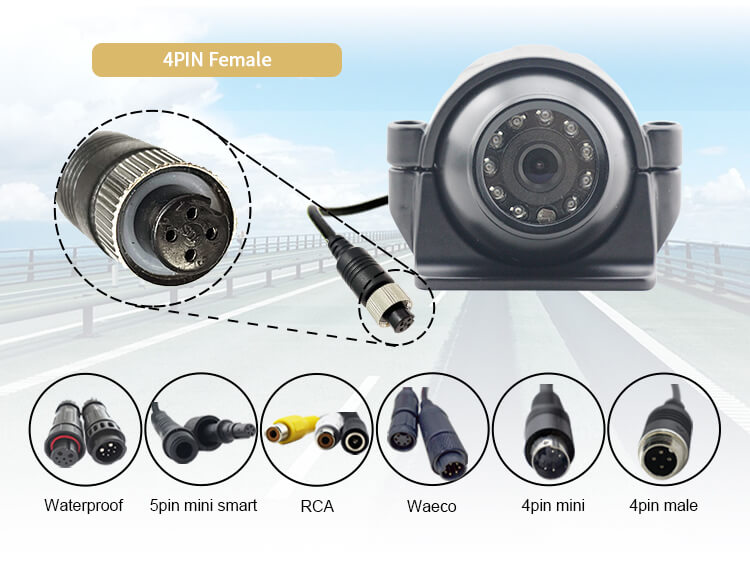

| Connection Plug(Connector) | Locking Aviation 4PIN Female & RCA |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Microphone | Optional |
| Heating Function | Optional |
| Customisable | Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
