RV Side Cameras
IP69K
Support mirror switch
Support ICR switching
Infrared distance is 10 meters
Support analog HD video 700 TVL
With Star Night Vision function

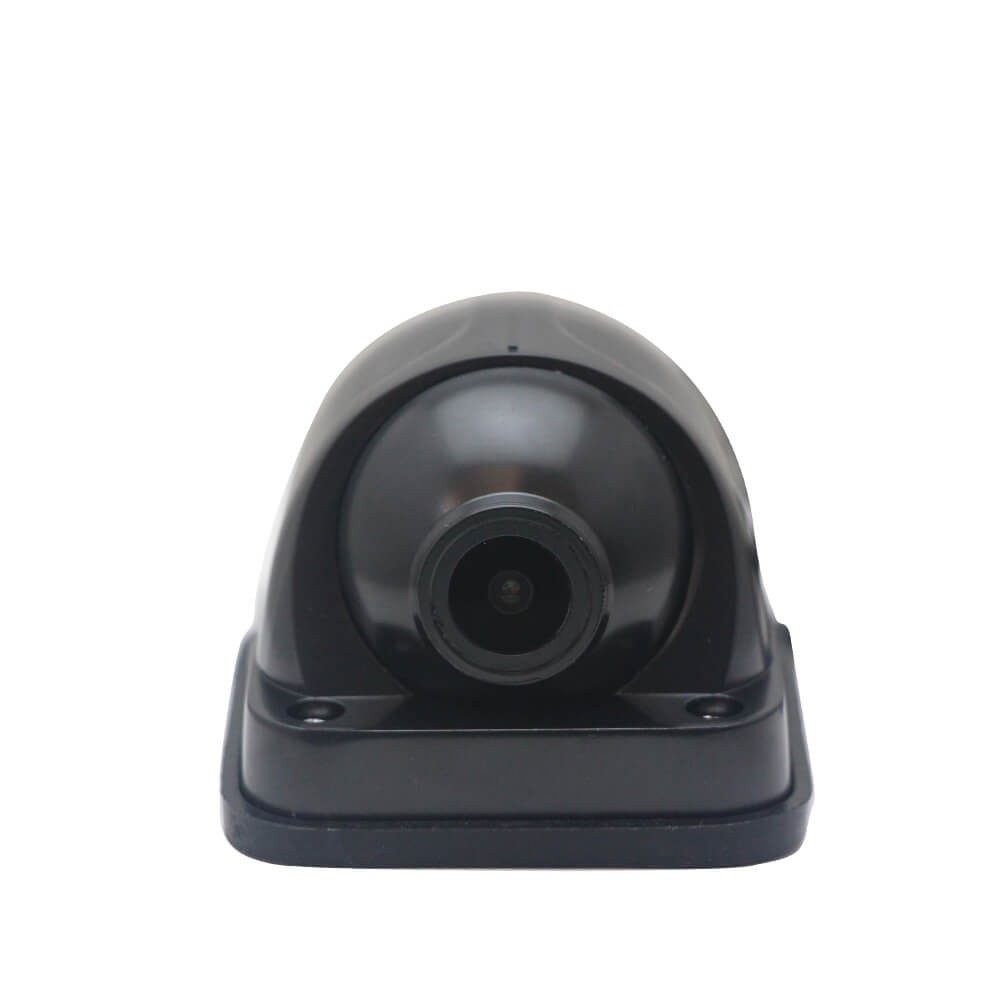

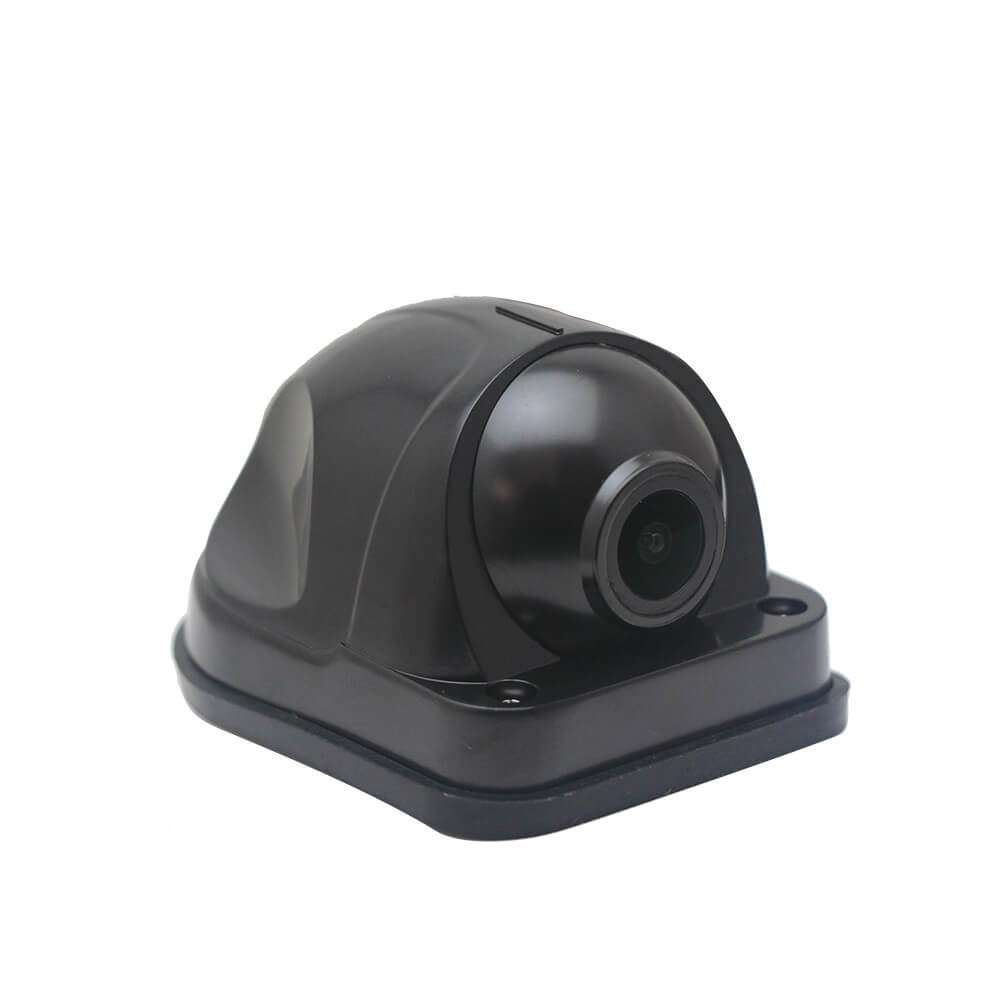

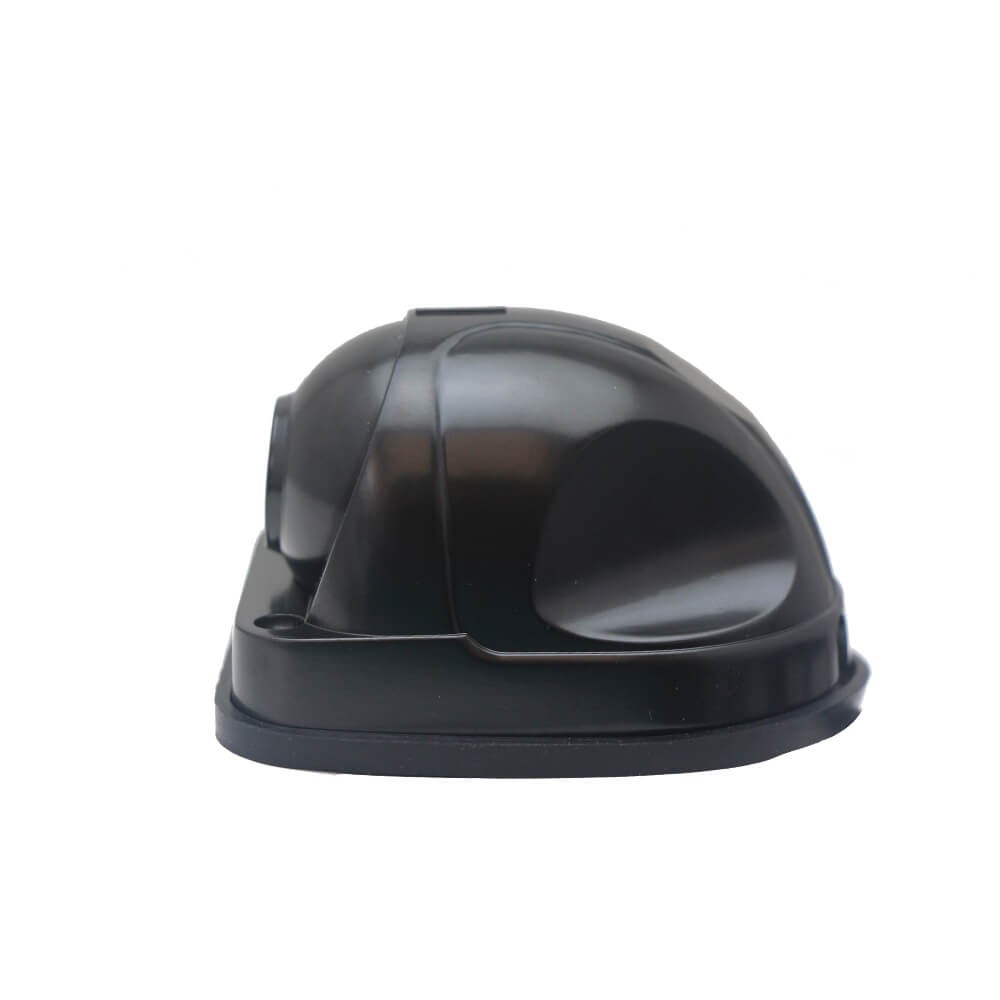

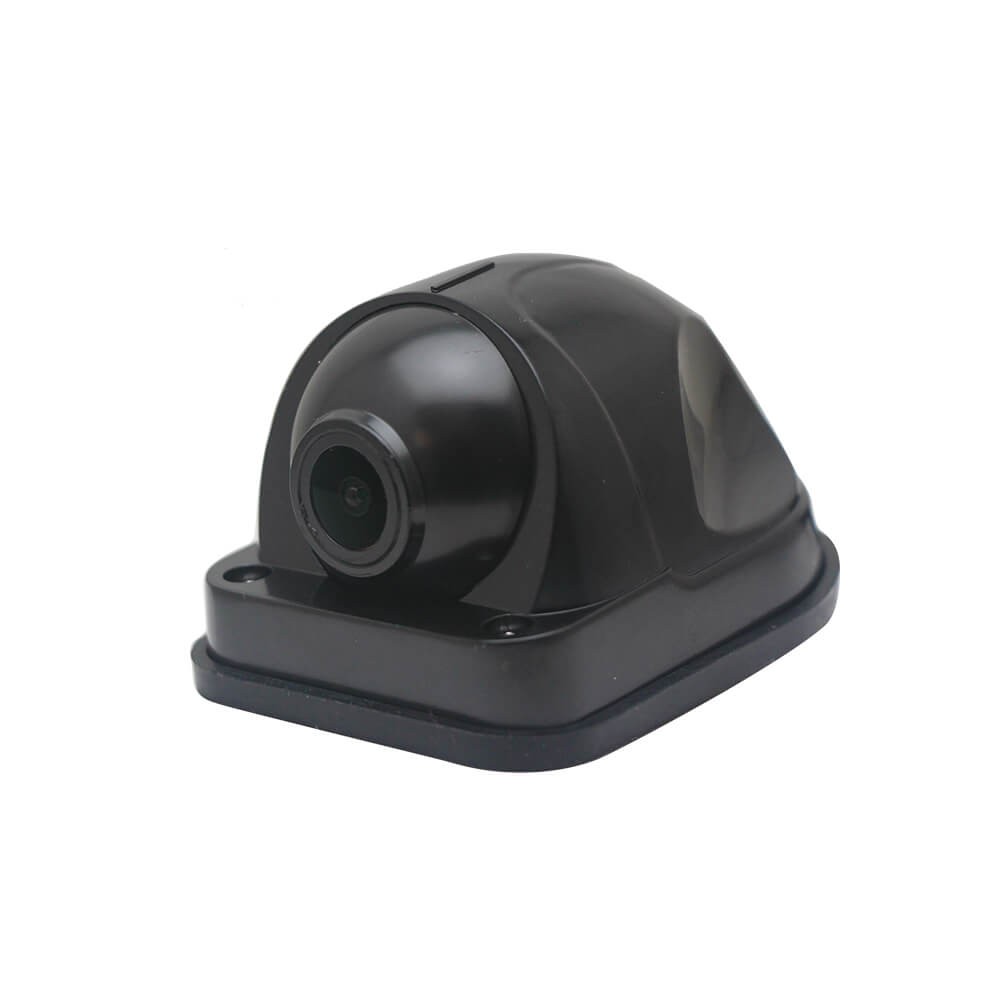

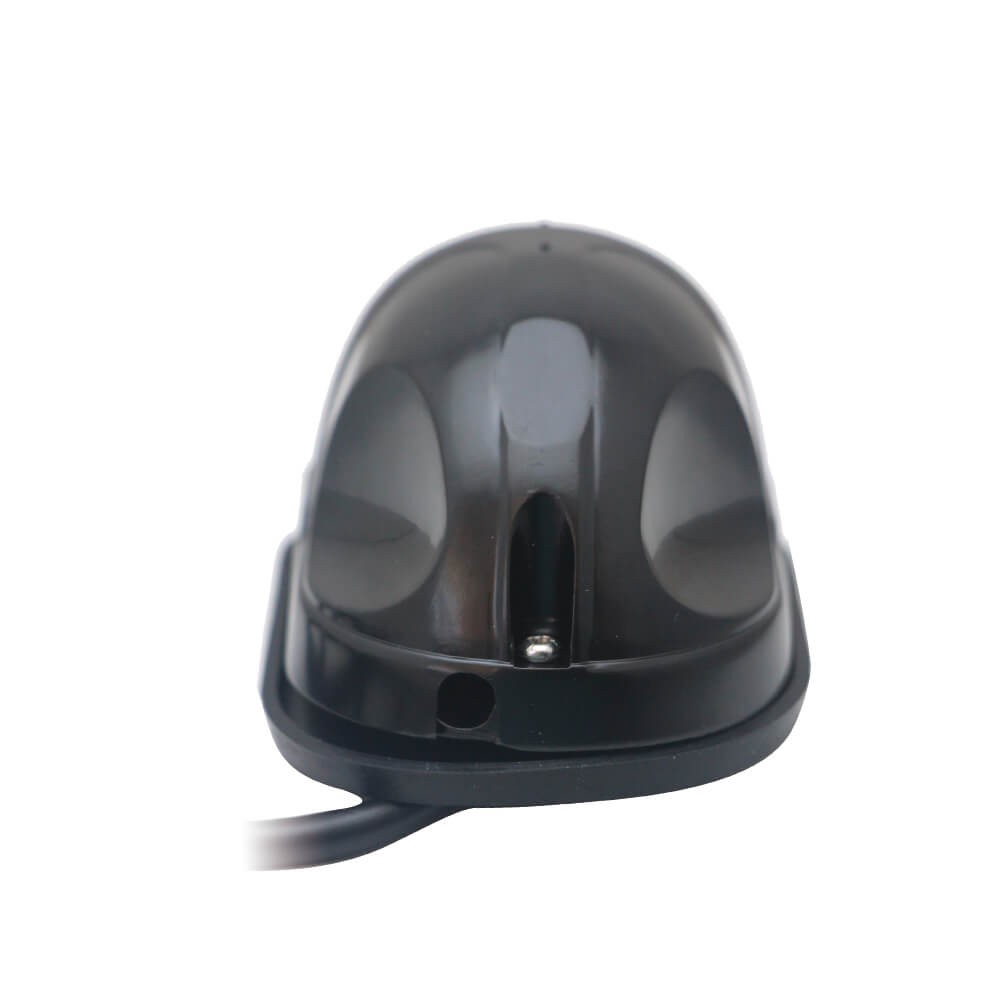

AC-985 RV Side Camera
SENSOR | 1/3"Super CMOS | 1/4"SHARP CCD | 1/2.7" CMOS 1080P AHD |
RESOLUTION | 980(H)*590(V) | 976(H)x582(V) | 1920(H)*1080(V) |
TV LINES | 700 TV Lines | 600 TV Lines | 1000 TV Lines |
LENS | 1.9mm | 2.1mm | 1.7mm |
VIEWING ANGLE | 150° | 130° | 155° |
TV SYSTEM | NTSC/PAL | ||
IR LED | 6pcs | ||
MINIMUM ILLUMINATION | 0.1 Lux(day),0 Lux(with IR) | ||
NIGHT VISION DISTANCE | 35FT | ||
WATERPROOF RATING | IP68 | ||
s/N RATIO | >48dB | ||
VIDEO OUTPUT | IVp-p75Ω | ||
POWER CONSUMPTION | <50MA | ||
POWER VOLTAGE | DC12V | ||
OPERATION TEMP. | -30℃-70℃ | ||
GUIDELINE | Optional | ||
MICROPHONE | Optional | ||
CERTICATES | CE/E-MARK/FCC/ROHS/UKCA | ||
