● CVBS & 720P 1080P AHD resolution optional
● SONY CCD / CMOS image sensor

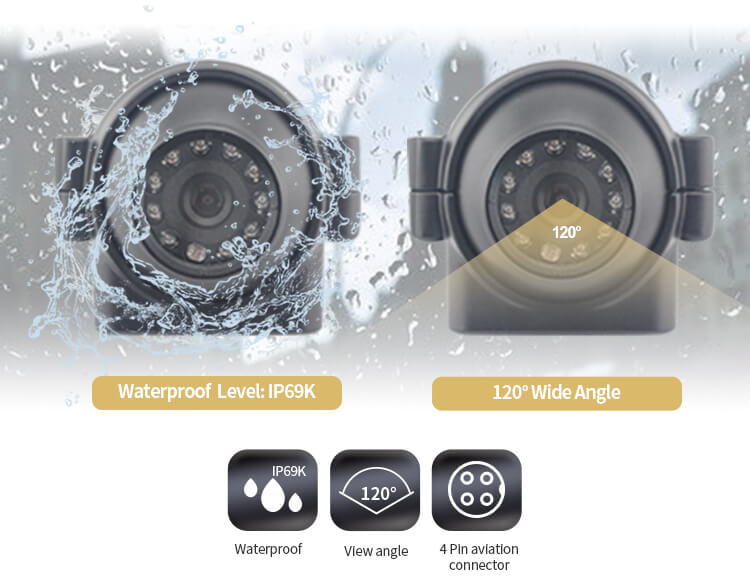

● IP69K waterproof dustproof
● 120° wide angle (customisable)

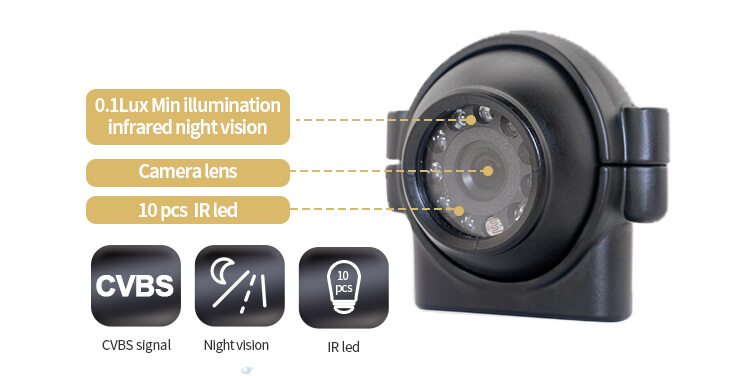

● 10pcs IR LED lights (AUTO night vision)
● Optional PAL & NTSC TV system

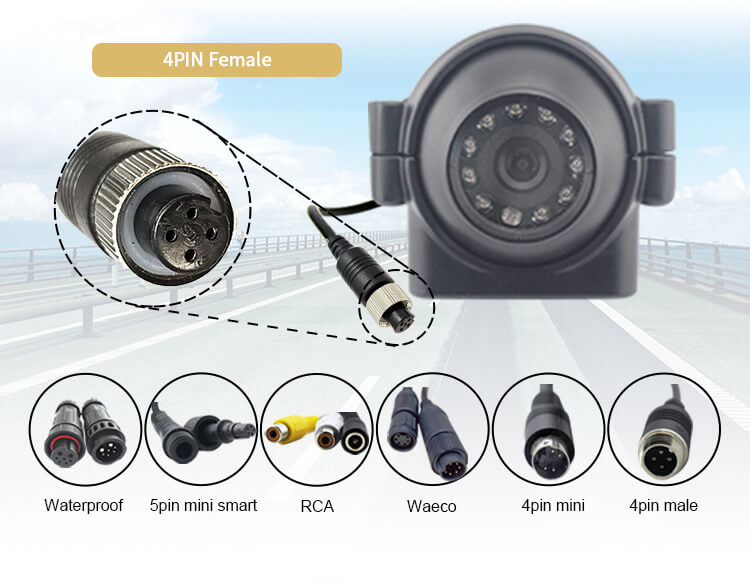

● Aviation 4PIN female connector
● Horizontal mirror image switching
PRODUCT FEATURES

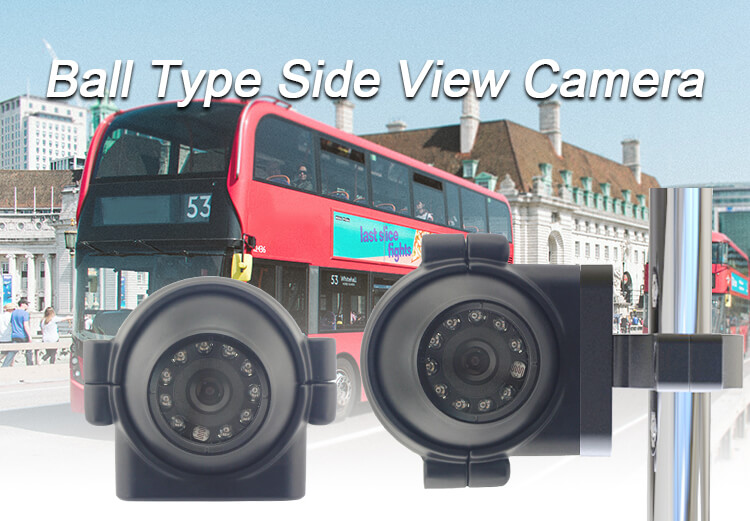

Aotop is a leading commercial vehicle side view cameras supplier & manufacturer in China. We provide a variety of high

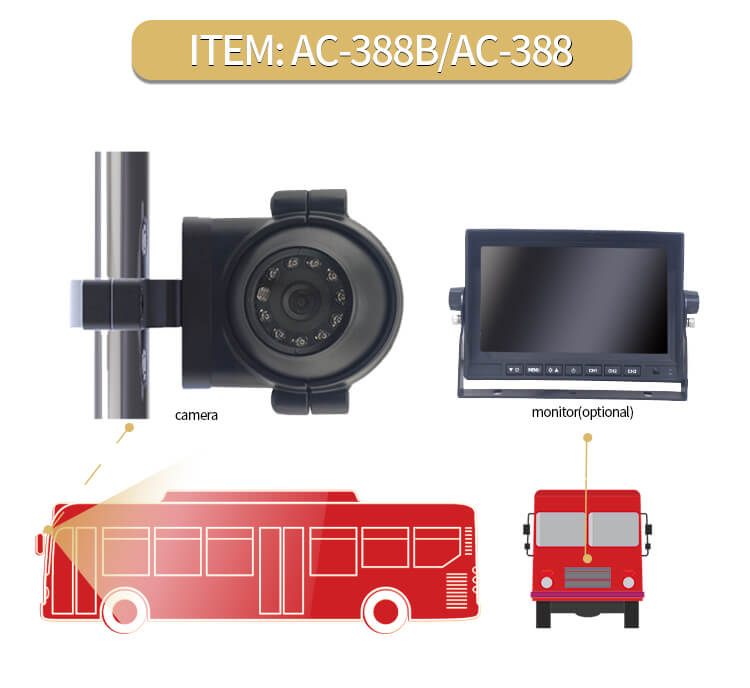

quality side view camera monitoring solutions. Our AC-388 side view camera optional CVBS & 1080P, built-in SONY CCD
image sensor, which can meet customers' high-quality required for vehicle side rear view monitoring. Aluminum alloy
shell is durable and supports IP69K waterproof. It is easy to install without drilling holes, and can be quickly fixed on the
mirror arm. The wide-angle lens can expand the field of view on both sides and improve driving safety. If you are looking
for an easy-to-install vehicle side view camera, please contact sales@aotop.com!
| Image Sensor | SONY CCD / CMOS |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V) |
| Resolution | 720P / 1080P |
| Night Vision | HD Night Vision, Built-in 10pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 120° |
| Waterproof Level | IP69K |
| Shockproof level | 4G |

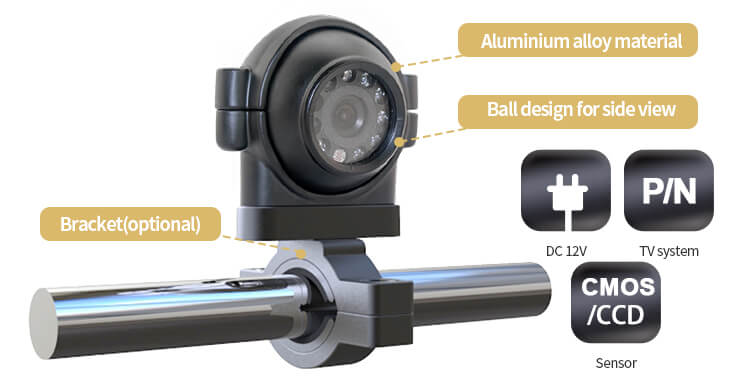

| Housing Material | Aluminium Alloy |
| Connection Plug(Connector) | Locking Aviation 4PIN Female & RCA |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Mounting Bracket | Optional |
| Microphone | Optional |
| Heating Function | Optional |
| Customisable | Color/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
