● Sensor: SONY CCD
● Resolution: N:582x510 pixels P: 510x492pixels
● TV line 420 (600TVL, 700TVL Optional)
● Lens: 2.8mm
● Min illumination:0Lux (LED ON)
● IR led: 10pcs
● Night Vision distance: 35ft
● Waterproof: IP69K
● View angle: 120°
● Power voltage: 12V
● Operation Temp: -20°C~+70°C
● Mirror/Normal (Optional)
PRODUCT FEATURES

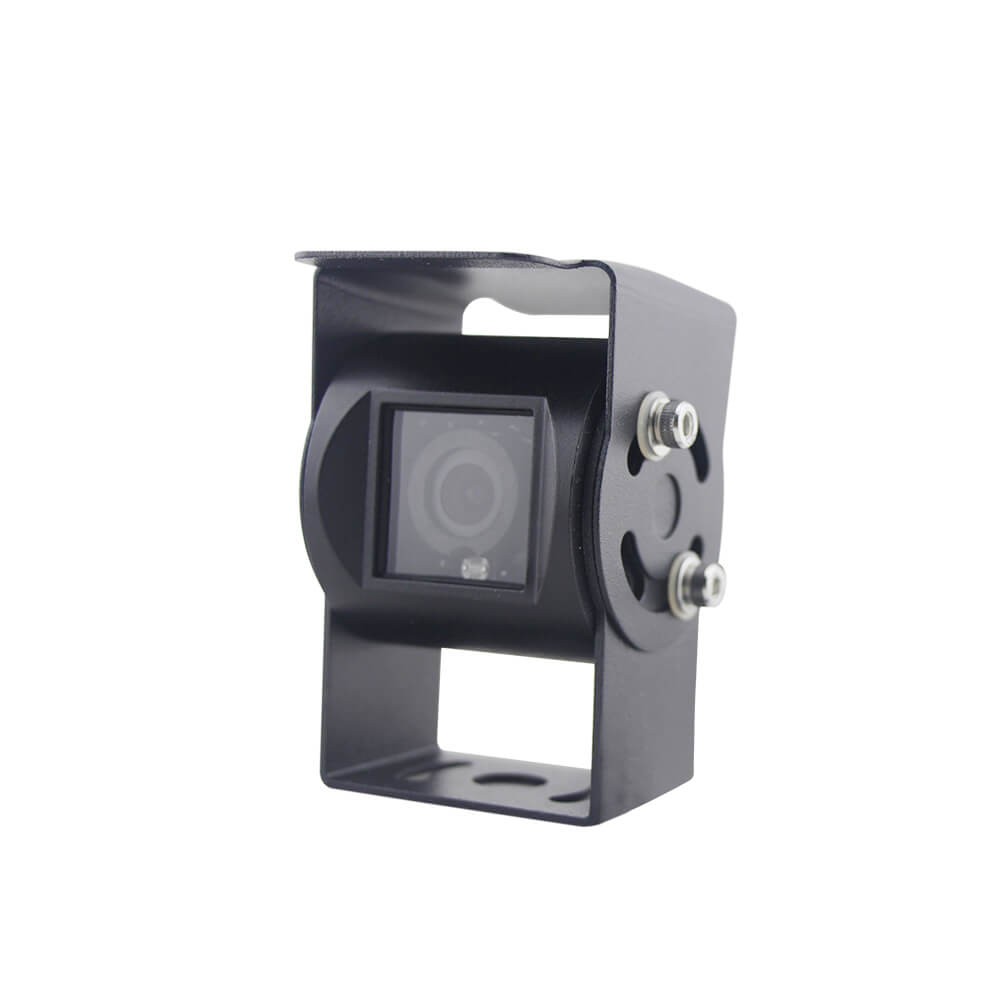

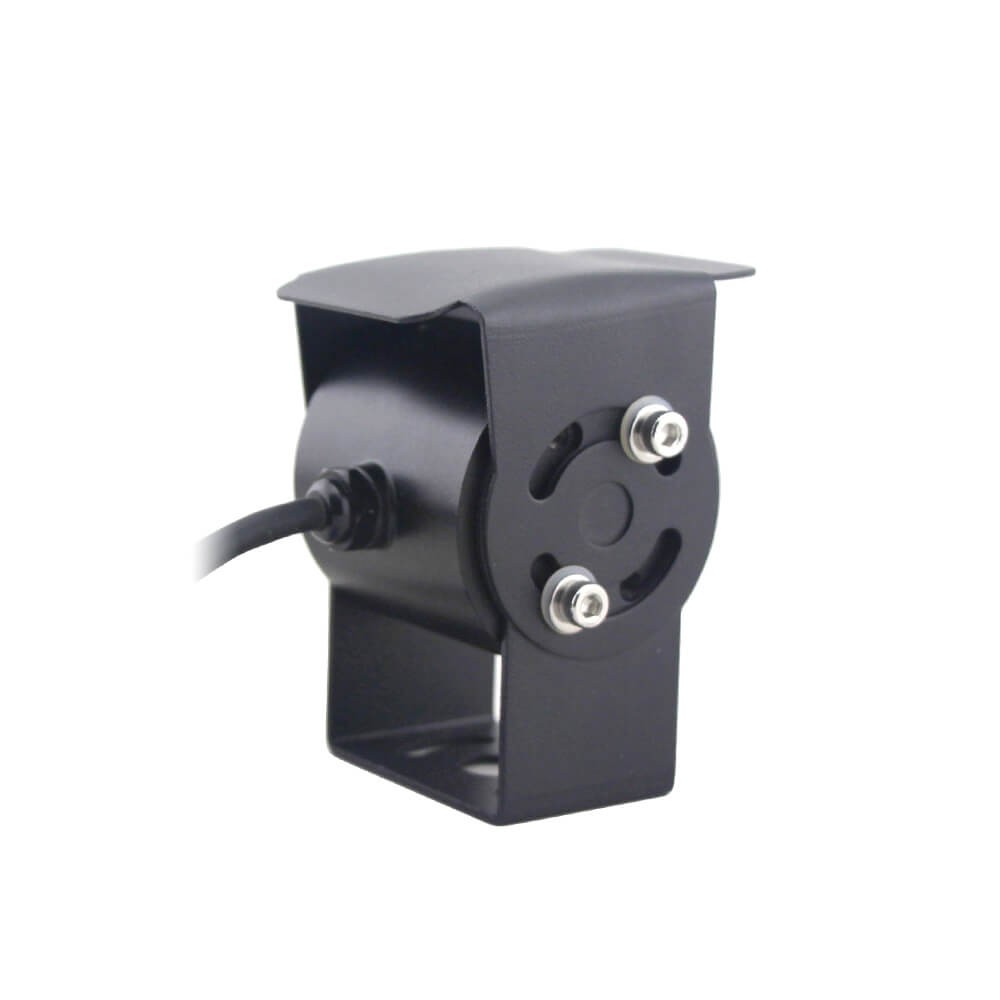

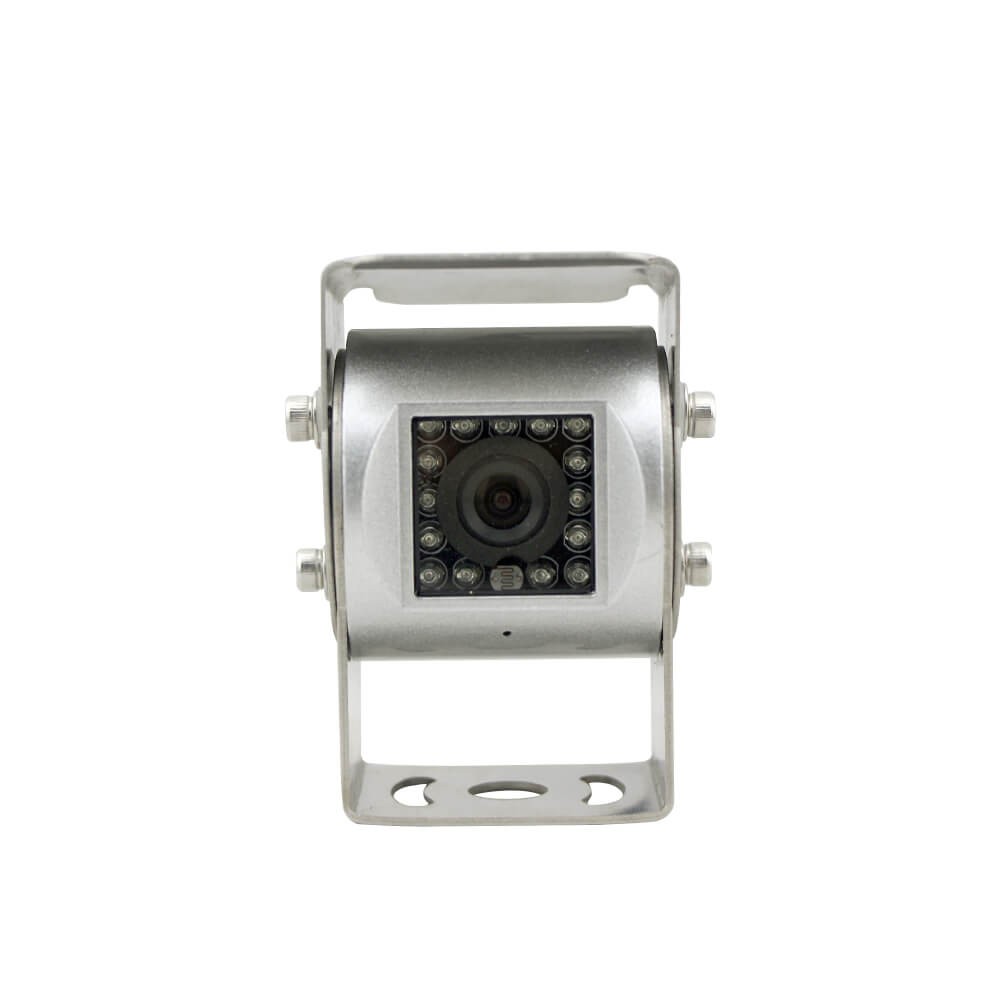

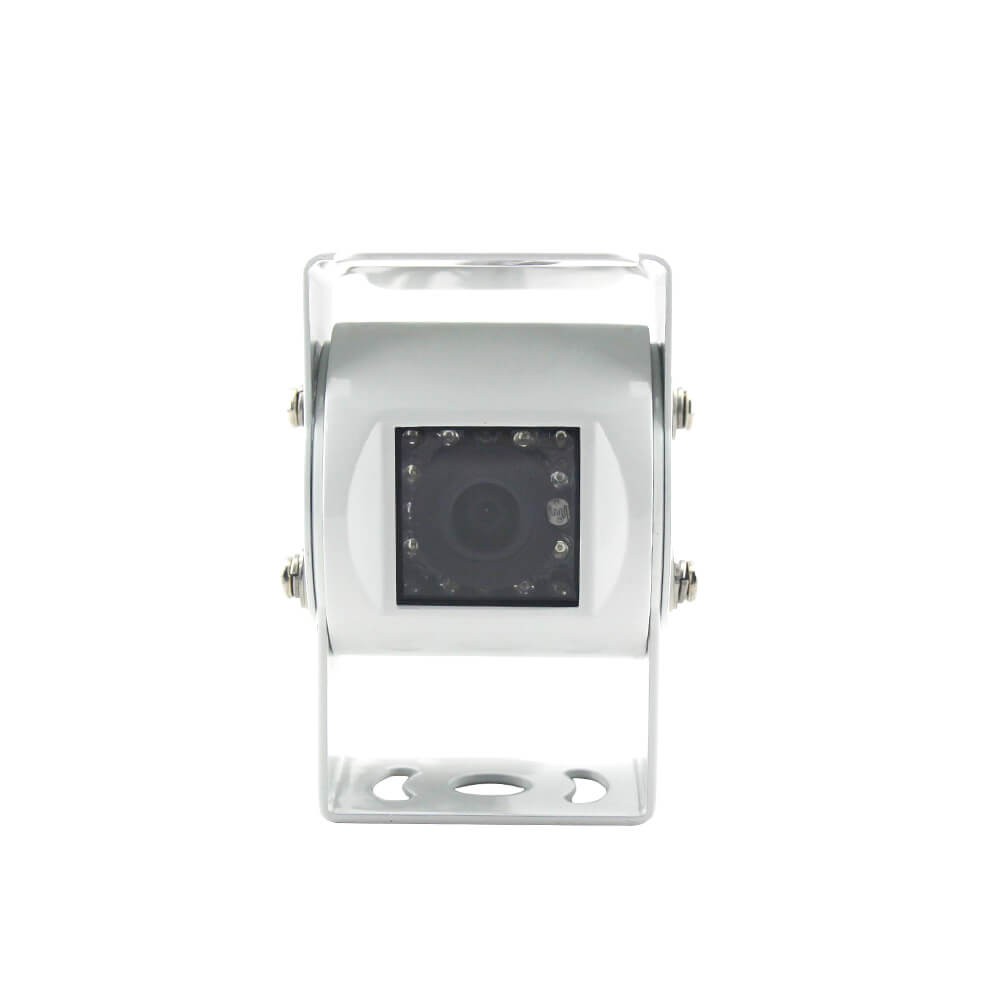

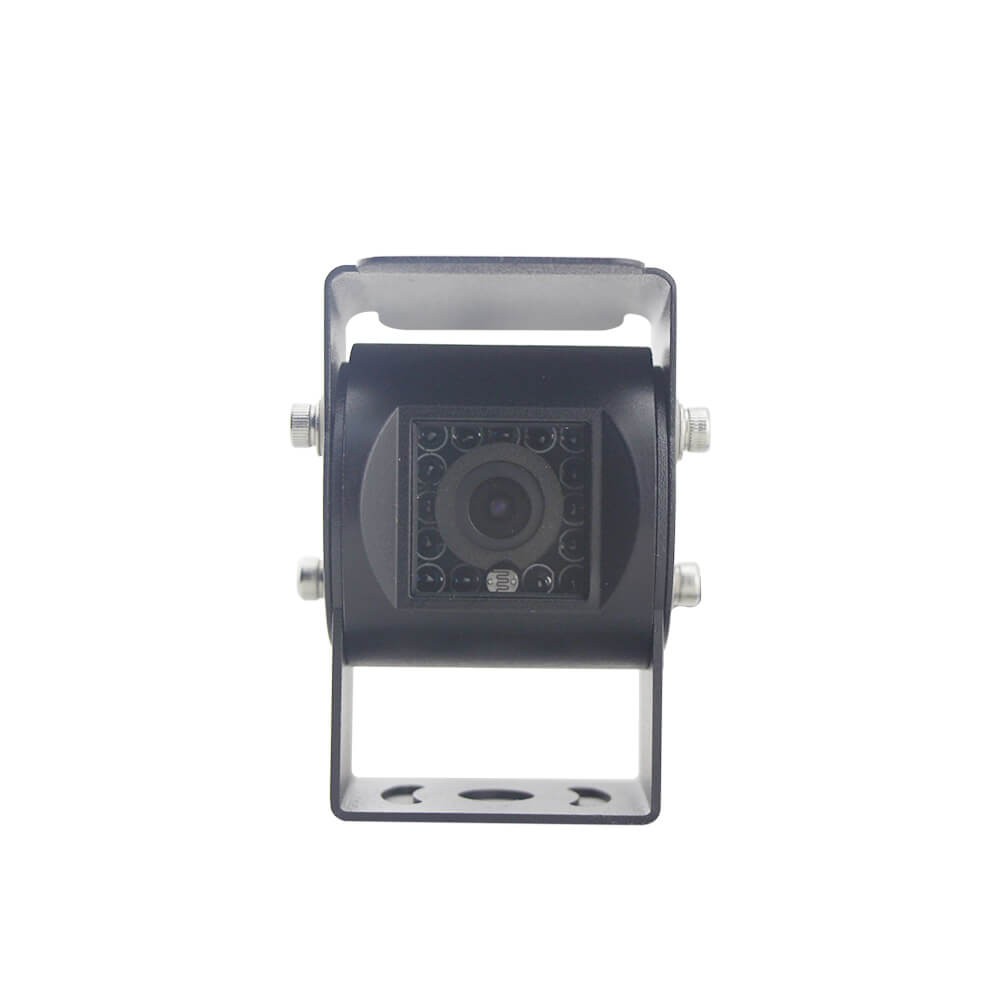

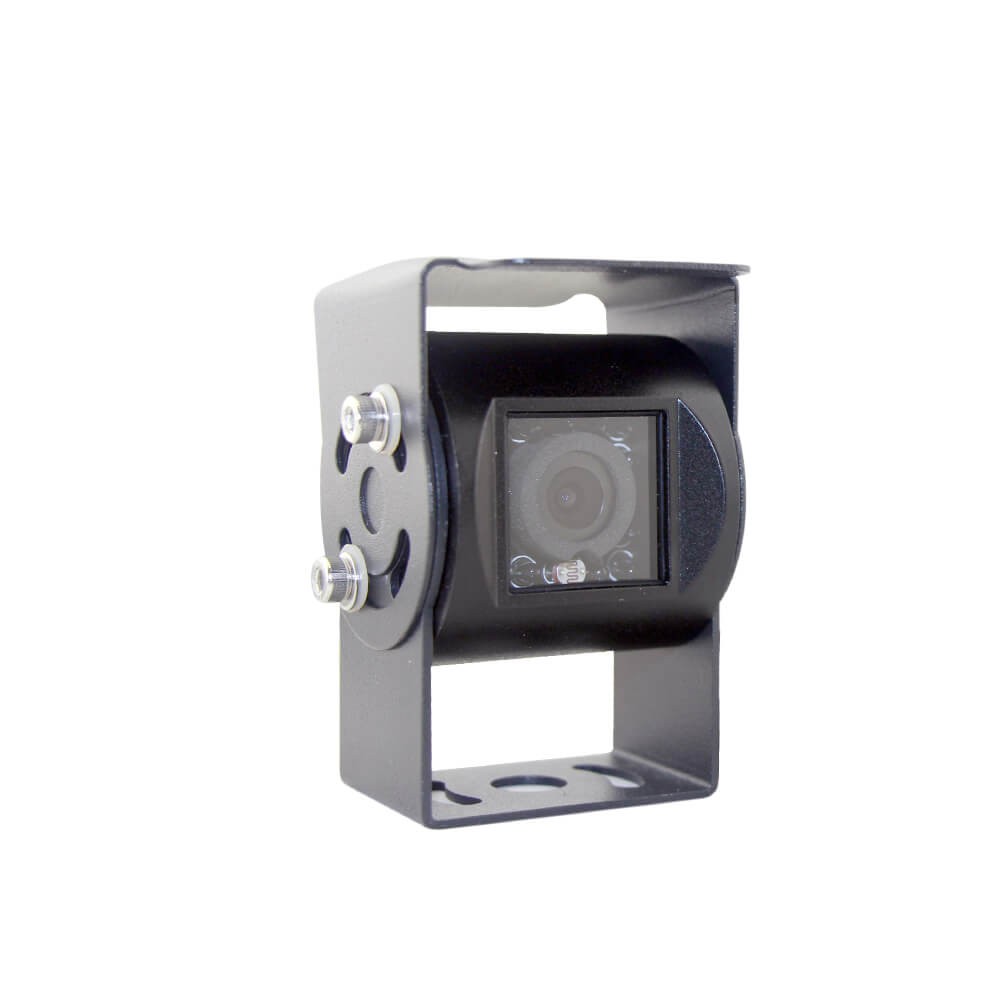

AOTOP is a leading commercial vehicle rear view cameras supplier & manufacturer in China, we provide a wide range of
high quality reverse camera solutions. Our HD AC-330S camera supports high definition night vision built-in 15pcs infrared
LED night vision lights. 120° wide angle lens has a wide monitoring range and supports IP69K waterproof, making it an
ideal solution to enhance the reversing safety for heavy duty vehicles! If you are looking for a high-quality rear view
reversing camera for your fleet, please contact sales@aotop.com!
| Image Sensor | CMOS |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V) |
| Resolution | 720P/1080P |
| Night Vision | Top Starlight Night Vision |
| Night Vision Distance | 8-10M |
| Angle View | 120°In Horizontal |
| Waterproof Level | IP69K |
| Shockproof level | 4G |
| Housing Material | Aluminium Alloy |

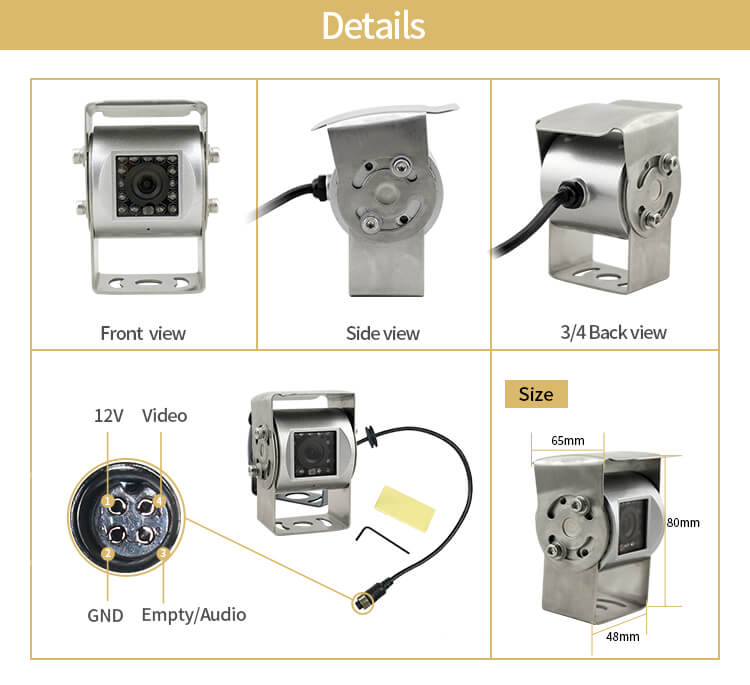

| Connection Plug(Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default"PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Microphone | Optional |
| Customisable | Bracket/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <300mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
Contact：Mr.Tom
Phone：+86 13924650100
E-mail：sales@aotop.com
Add：FL8,4 Bldg,Honghui Industrial Park,Liuxian 3 Rd,68 Zone,Bao'an,Shenzhen, China
