● CVBS & 720P 1080P AHD resolution optional
● SONY CCD / Sharp CCD image sensor
● IP69K waterproof dustproof
● 120° wide angle (customisable)

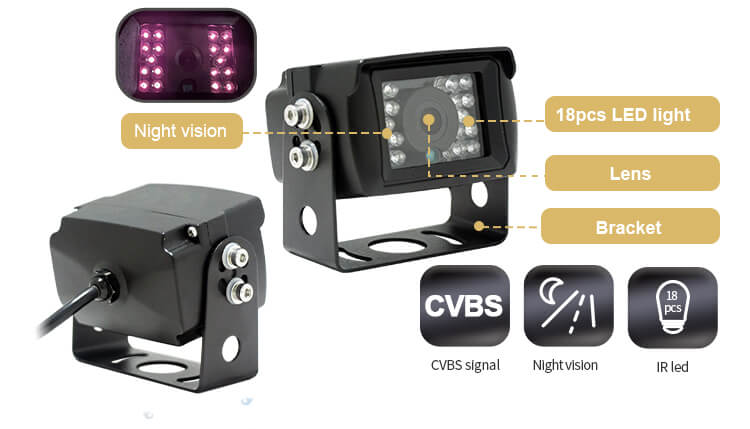

● 18pcs IR LED night lights (AUTO)
● PAL & NTSC TV system
● Aviation 4PIN female connector
● Microphone audio function optional
PRODUCT FEATURES
AOTOP is leading Chinese manufacturer & supplier of vehicle rearview cameras. We provide high-quality heavy duty

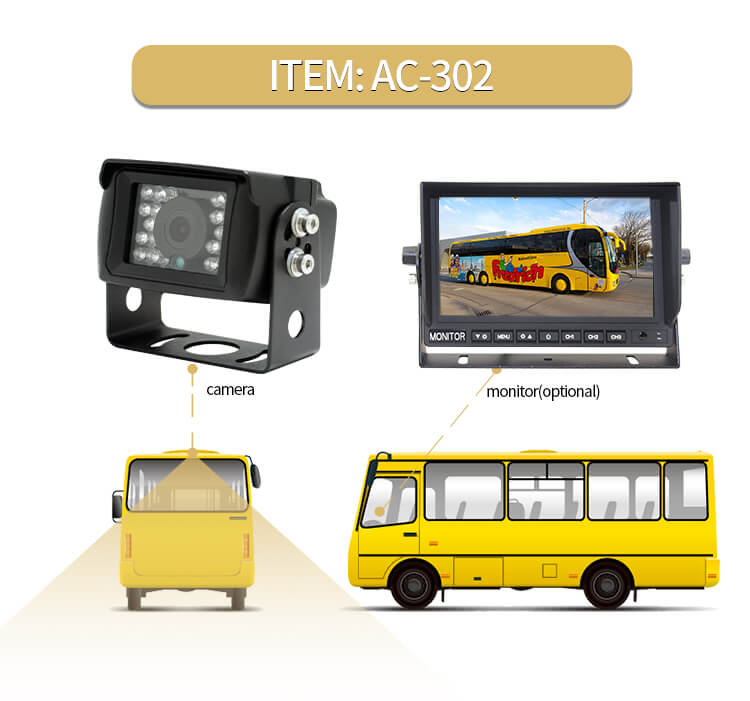

vehicle rearview camera solutions. Our HD 1080P AC-302 rear view reversing camera built-in SONY CCD image
sensor, can meet customers' requirements for high-quality vehicle rear view monitoring. With main functions such
as HD night vision, wide angle IP69K, etc. It is an ideal solution to improve the reversing safety of large vehicles. If
you are looking for reliable rear view camera, please contact sales@aotop.com!
| Image Sensor | SONY CCD |
| Effective Pixels | 1920(H) * 1080(V) |
| Resolution | 1080P |
| Night Vision | Top Starlight Night Vision Built-in 18pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 120° |

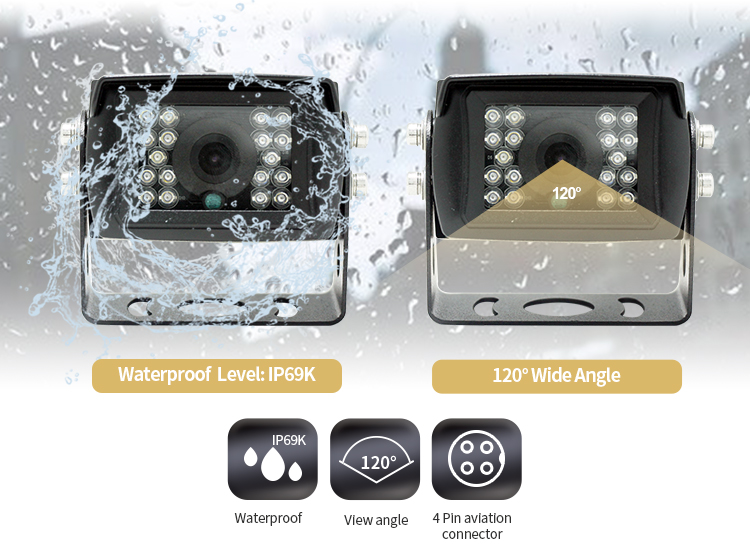

| Waterproof Level | IP69K |
| Shockproof level | 4G |

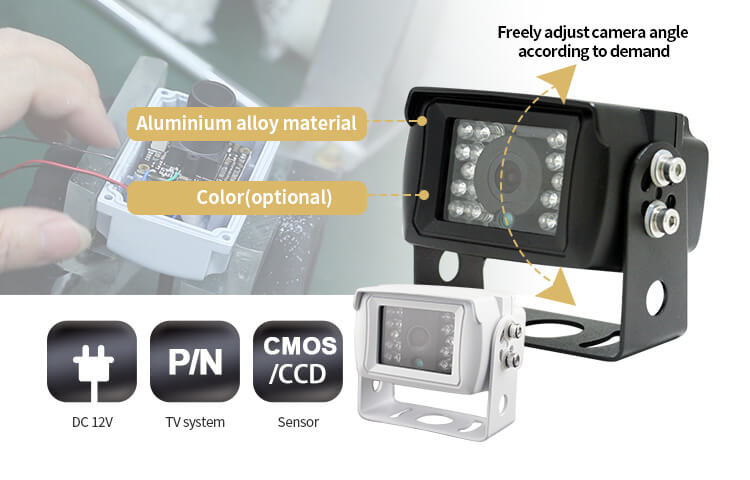

| Housing Material | Aluminium Alloy |

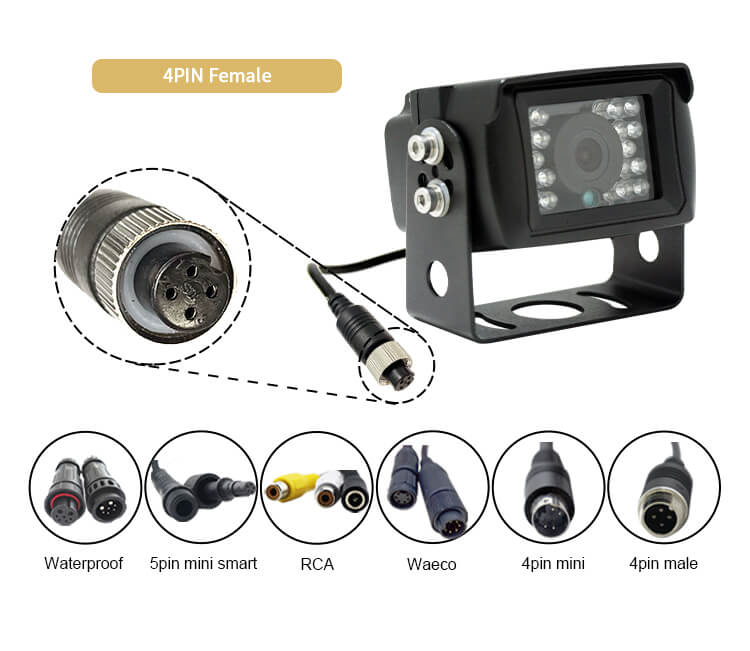

| Connection Plug(Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Microphone | Available |
| Heating Function | Optional |
| Customisable | Color/Bracket/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
