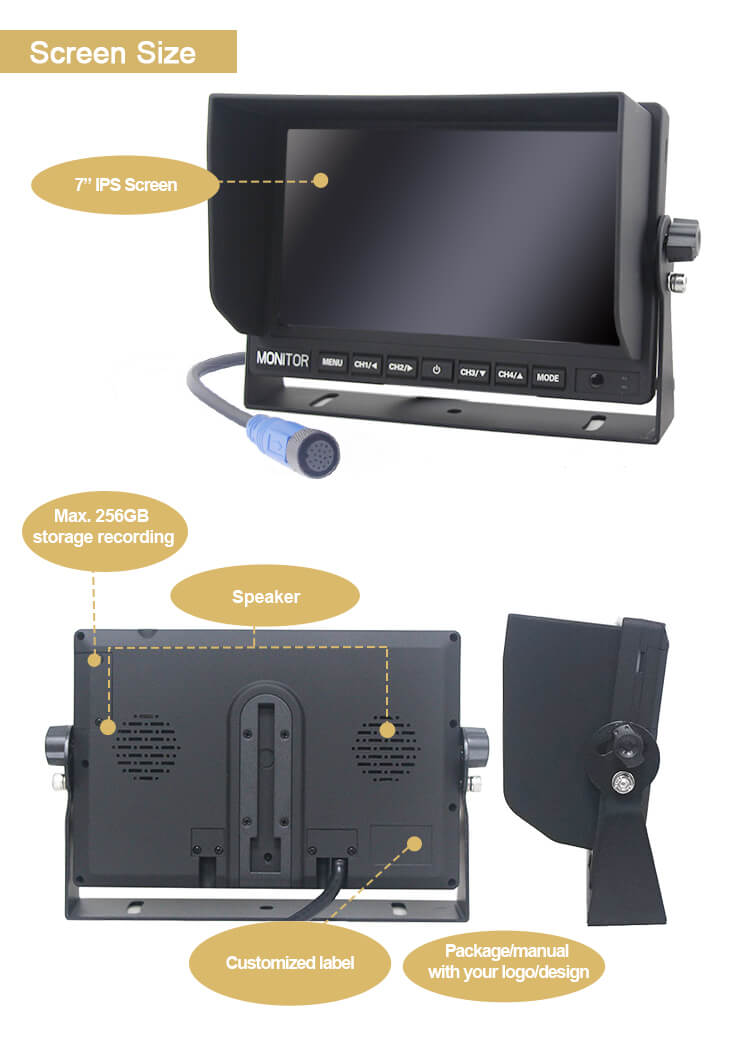

● 1024*RGB*600 HD resolution (IPS LCD screen)
● 4CH x cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;
● 1CH audio signal input (high quality speaker)

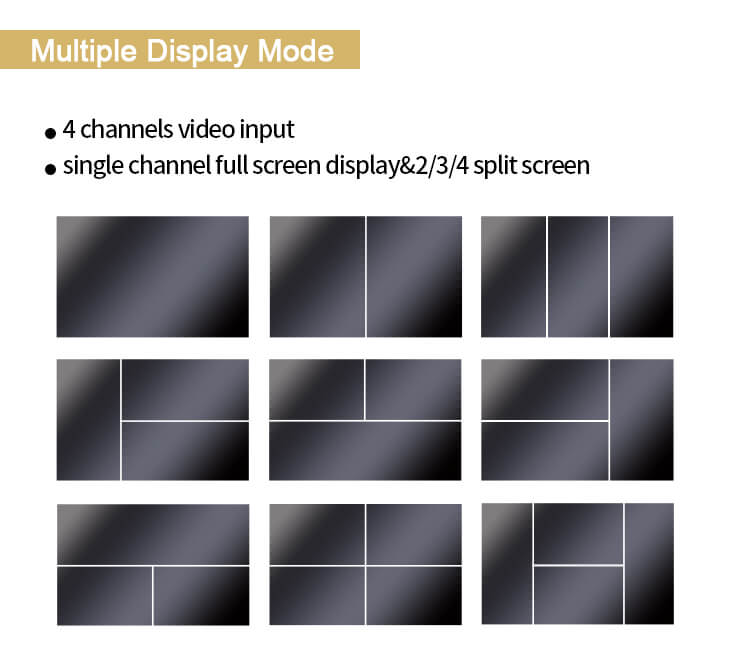

● Full display & 2/3/4 split view mode
● Built-in 256GB memory card (DVR recorder)

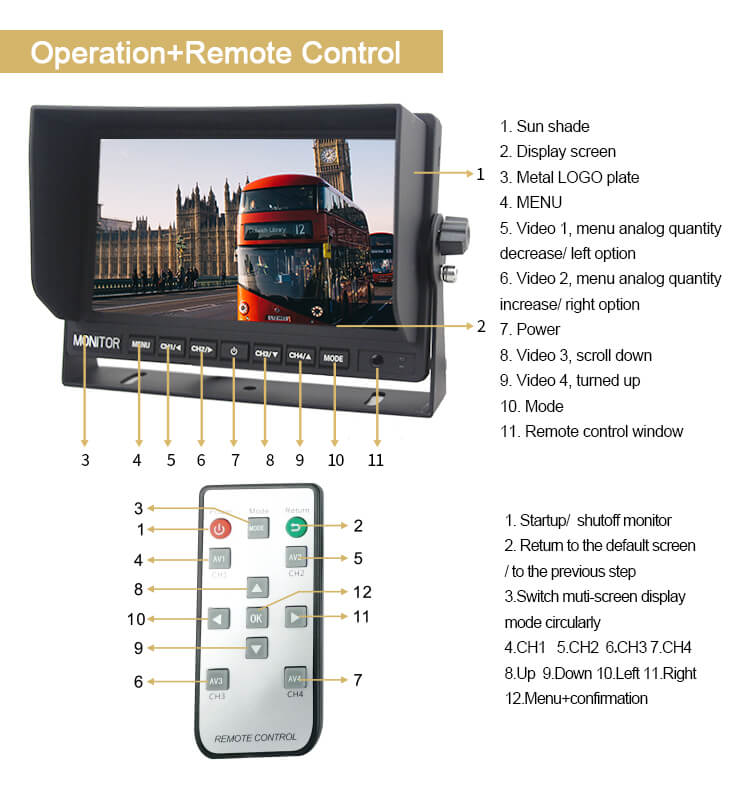

● Full-function remote control
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
● AUTO adaption PAL / NTSC system
PRODUCT FEATURES

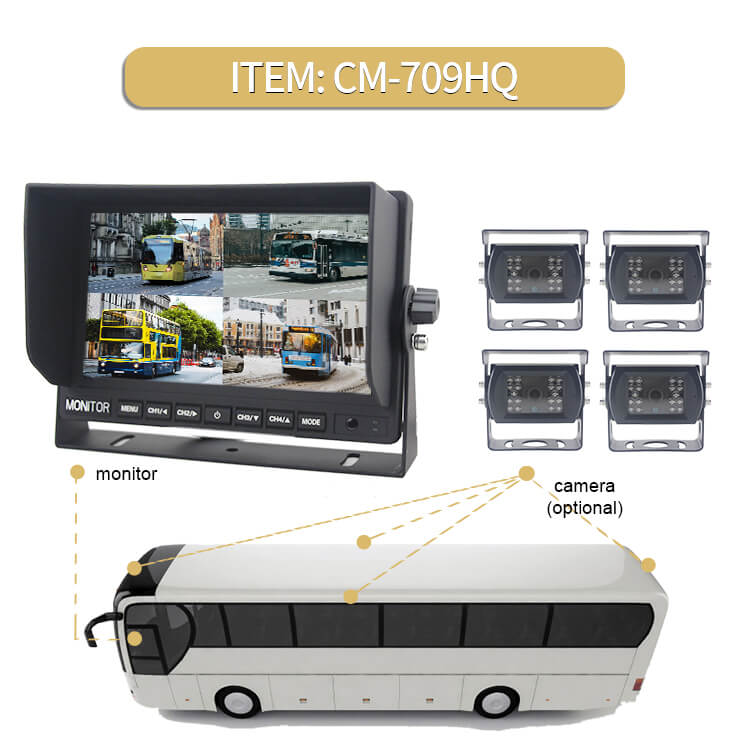

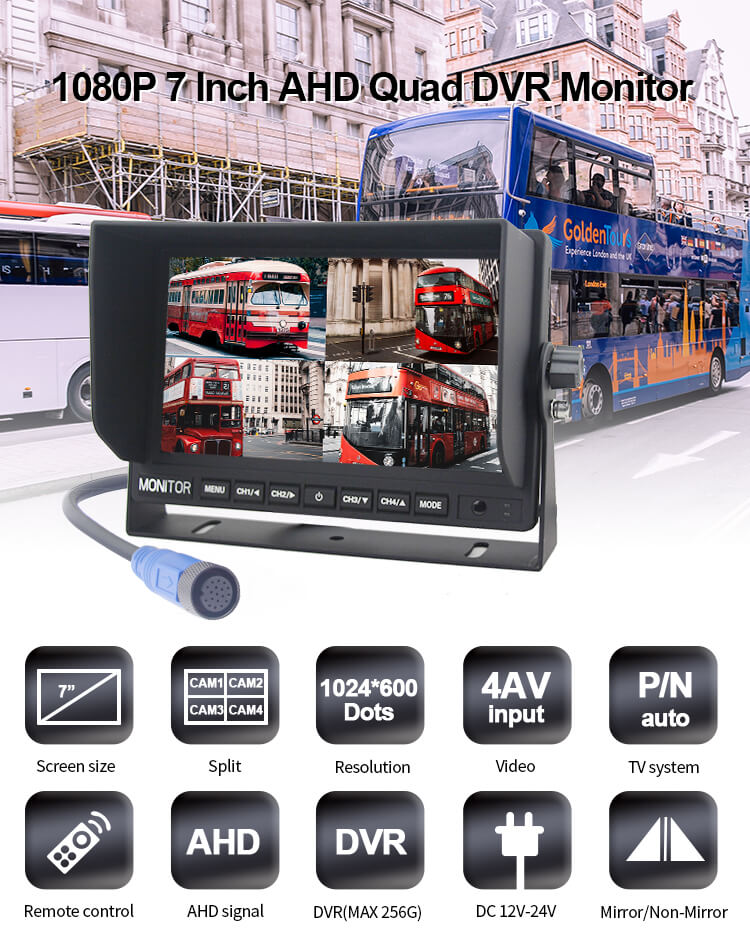

AOTOP 7 inch HD quad view vehicle trucks passenger cars reversing image monitor supports 4 CH HD cameras input,
multi channels spliting the screen and achieving 360° monitoring without blind angle. Drivers can intuitively monitor
the driving situation around the vehicle in the driving process, reducing the possibility of blind collision, scratching
and other accidents. Meanwhile, this HD vehicle monitor supports multi display modes, able to meet customers'
demands for convenient and clear video monitoring!
| Screen Type/Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 650cd/㎡ |
| Contrast | 800:1 |
| Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
| Video Input | Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Inpu |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu | Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Recording Settings, Parking Guide Line On/Off, Reset |
| DVR Function | Built-in 256GB Memory Card 4CH Camera Image HD Recording |
| Recording Replay | Support Single Image Real Time Replay (No Audio When Playback |
| Response Time | 20~40Ms |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Split View Mode | Single/Double/Triple/Quad View Image Display |

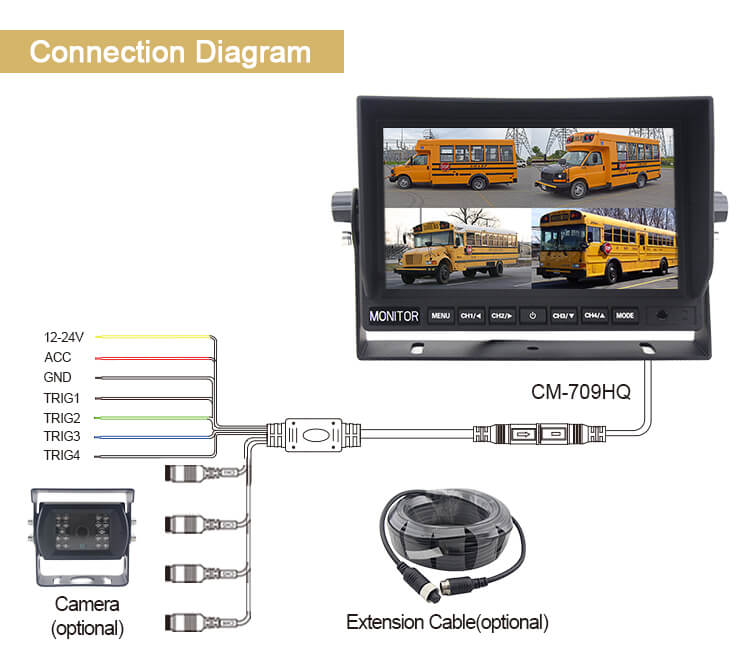

| Trigger | 4CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating Power | 13.2W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |

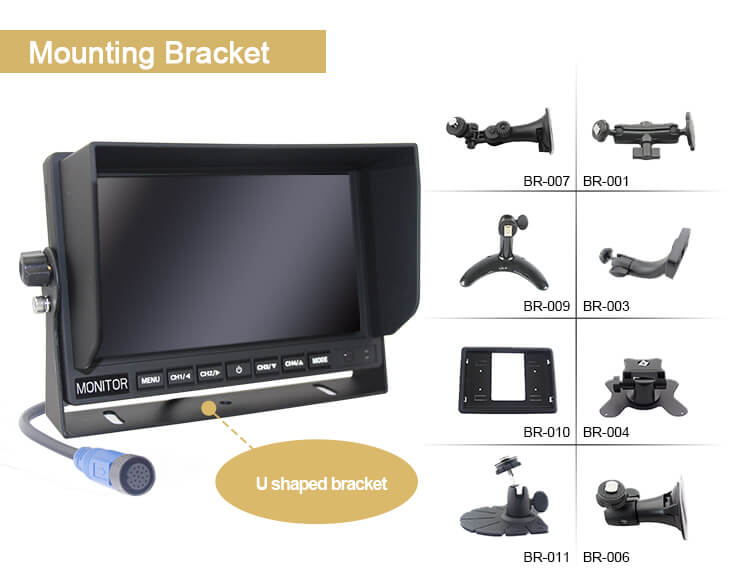

| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
