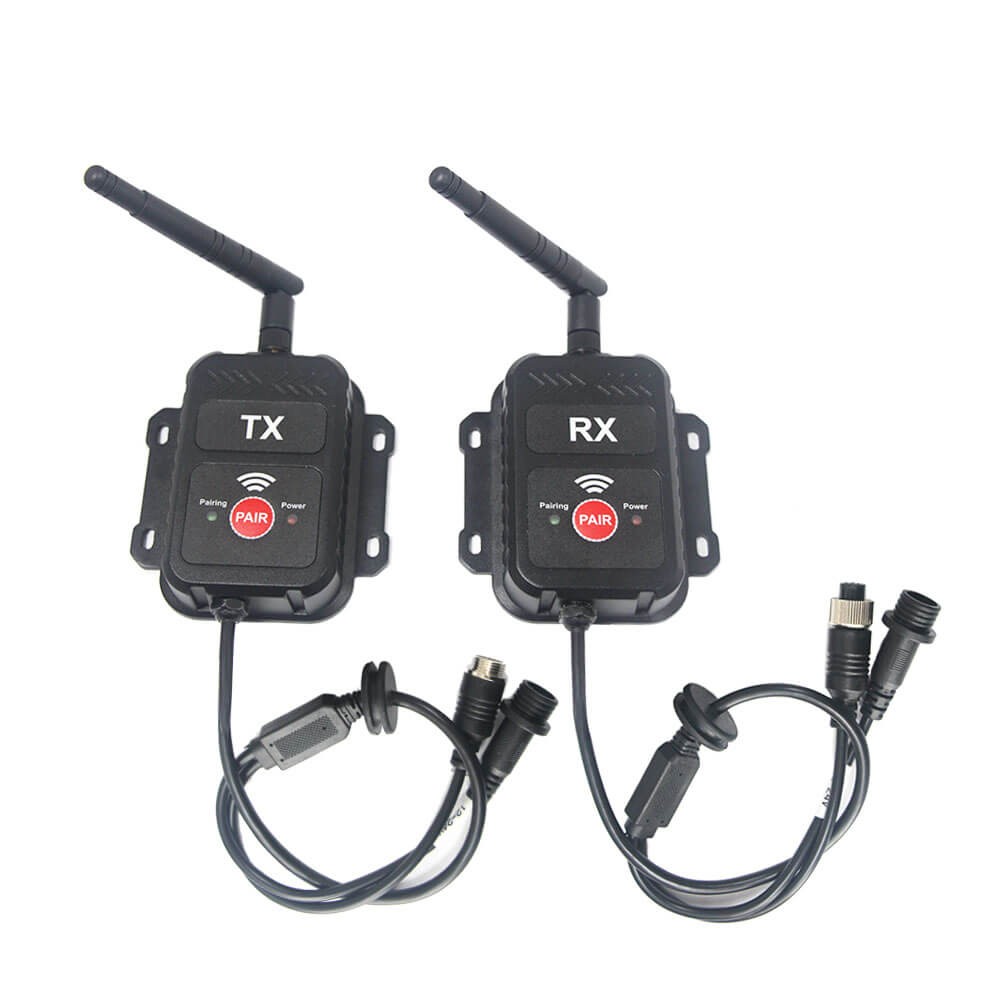

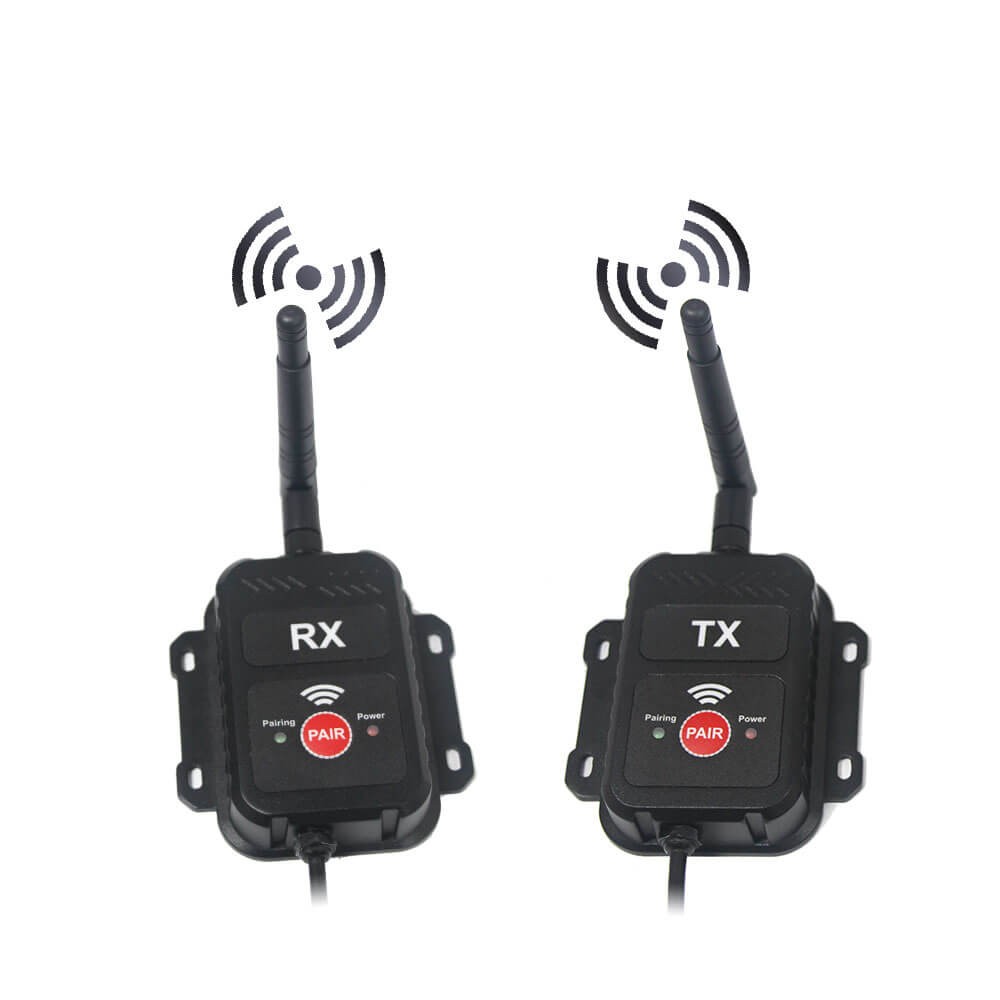

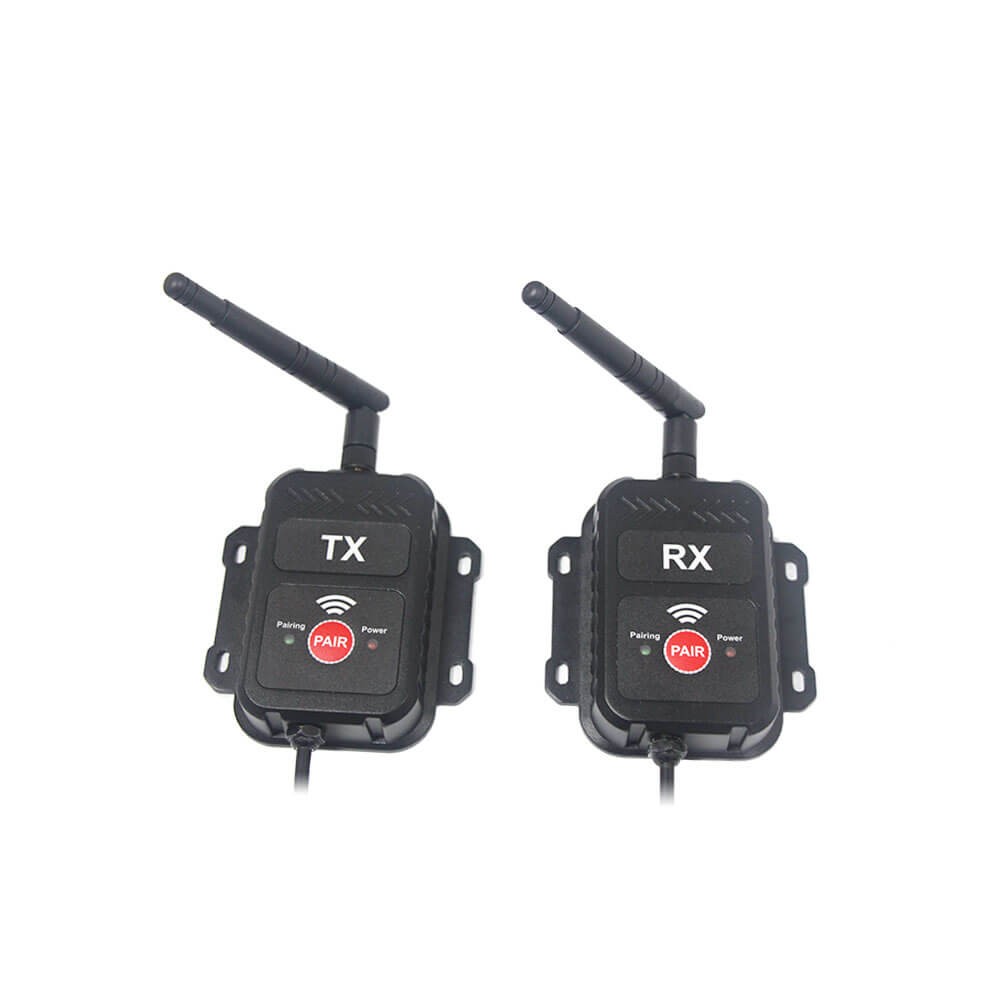

● TXRX box wireless video signal transmission receiver converts a wired in-vehicle camera system to a wireless connection. It consists of a transmitter (TX) and a receiver (RX).

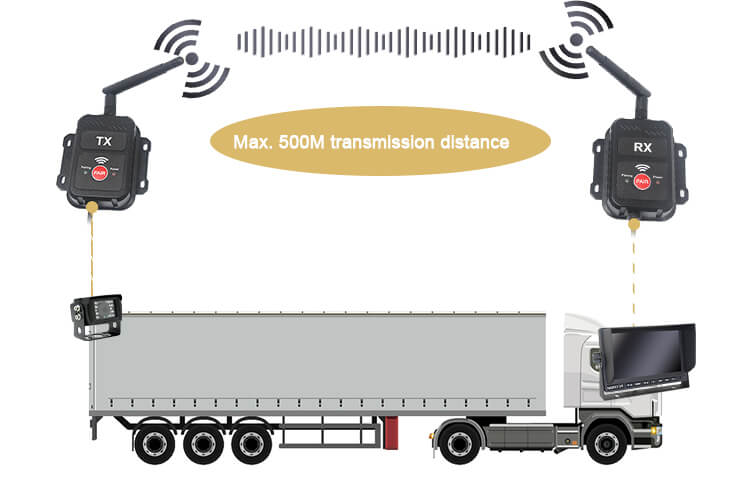

● (TX) transmitter receives video signals from the AHD / CVBS / TVI / CVI vehicle camera, 2.4Ghz wireless transmits the signals to the Receiver, and the (RX) Receiver outputs these video signals to the monitor. Transmission distance up to 500M.
PRODUCT FEATURES

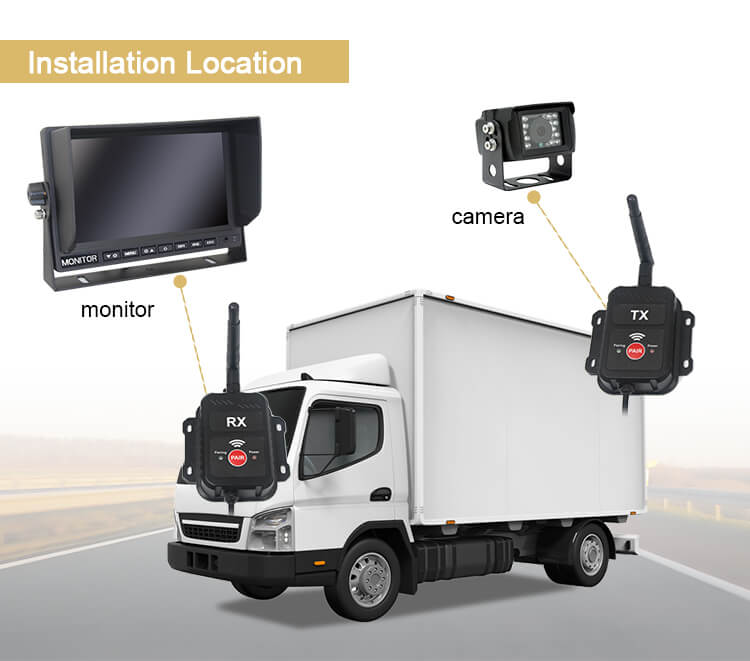

AOTOP wireless HD video signal transmitter and receiver kit is used in wired commercial in-vehicle rear
view camera monitor system. With it, you can upgrade your existing wired vehicle monitoring system to
wireless transmission, eliminating the need for wiring, save time & money. For more information, please
contact us at sales@aotop.com.
| TX (Transmitter) | RX (Receiver) |
| Power Supply: DC 12-24V | Power Supply: DC 12-24V |
| Transmitter Current: 200MA | Transmitter Current: 200MA |
| Tx Video Input: AHD/TVI/CVI/CVBS | Rx Video Output: 720P(AHD) |
| Operation Frequency: 2400-2483.5MHz | Operation Frequency: 2400-2483.5MHz |
| Transmission Distance: 500M | Transmission Distance: 500M |
| Boot Time: 2S | Boot Time: 2S |
| Transmission Power: 12Mbps | Transmission Power: 12Mbps |
| Pairing: Automatically | Pairing: Automatically |
| Without/With Audio: NO(Optional) | Without/With Audio: NO(Optional) |
| Waterproof: IP68 | Waterproof: IP68 |
| Time Of Delay: 90-120mS | Time Of Delay: 90-120mS |
| Operating Temperature: -20°C-70°C, RH95%MAX | Operating Temperature: -20°C-70°C, RH95%MAX |
| Storing Temperature: -30°C-85°C,RH95%MAX | Storing Temperature: -30°C-85°C, RH95%MAX |

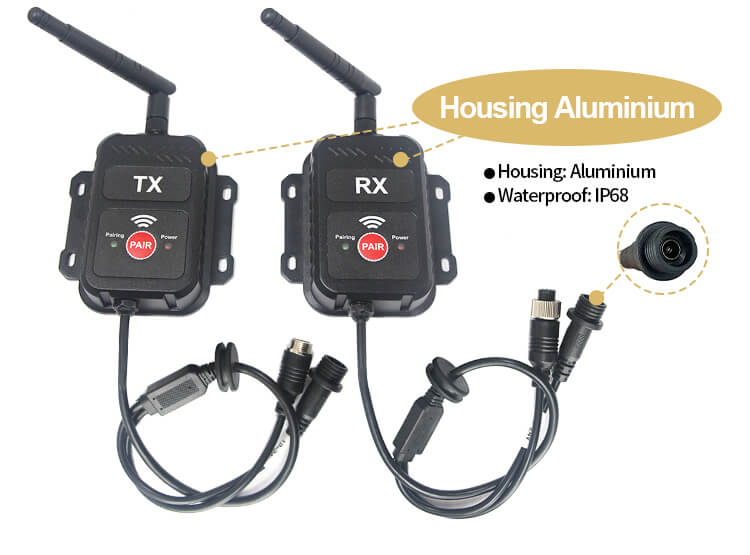

| Housing: Aluminum Alloy | Housing: Aluminum Alloy |

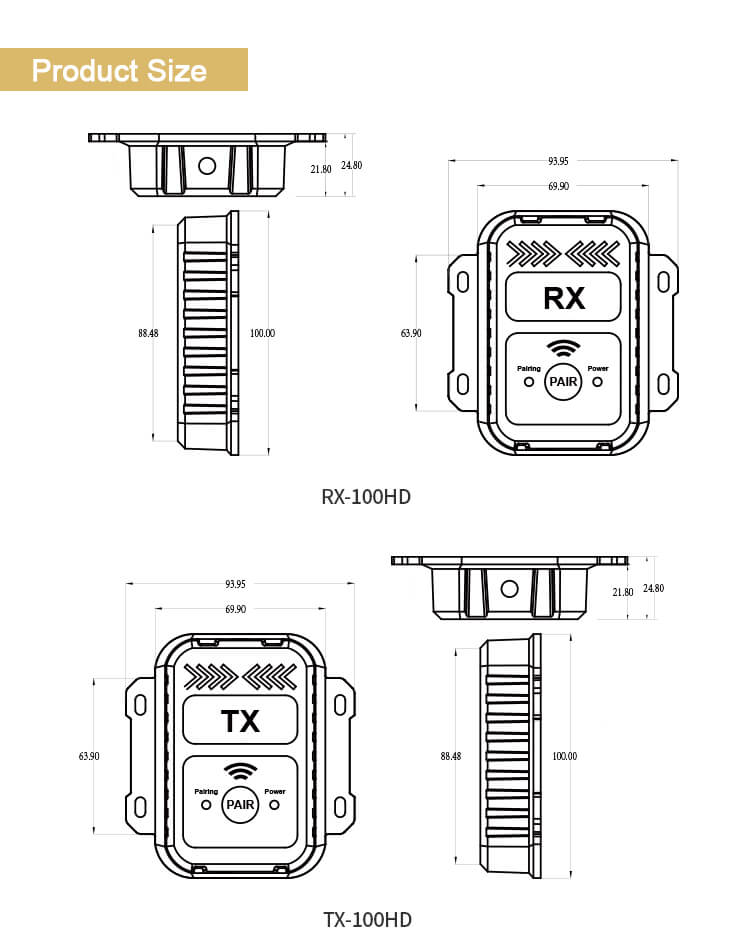

| Size: 98*86*25MM | Size: 98*86*25MM |
| Red Light ON/OFF : Power ON/OFF | Red Light ON/OFF : Power ON/OFF |
| Red Light Flashes: Pairing | Red Light Flashes: Pairing |
| Green Light ON: Connect Successsfully | Green Light ON: Connect Successsfully |
| Green Light OFF: Signal Lost | Green Light Off: Signal Lost |
