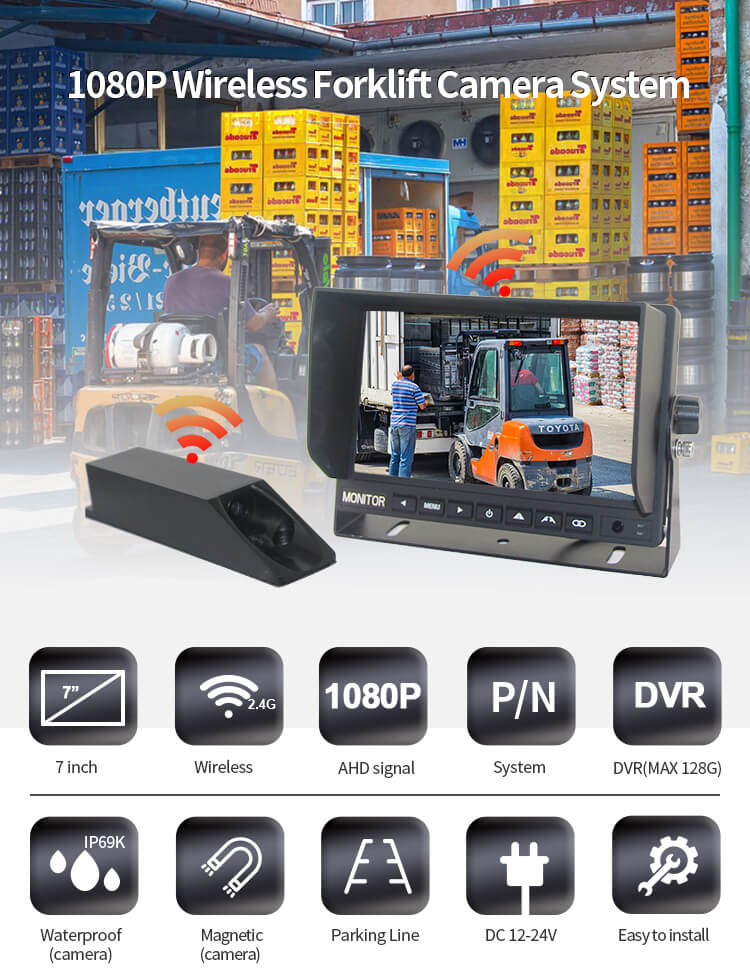

● Low power consumption
● DVR image recording
● 2.4g wireless transmission (50m, 164ft)
● HD IR night vision camera (IP69K), Magnetic base, built-in 3400mAh battery
● No drilling, easy to install
● Instant automatic pairing
PRODUCT FEATURES

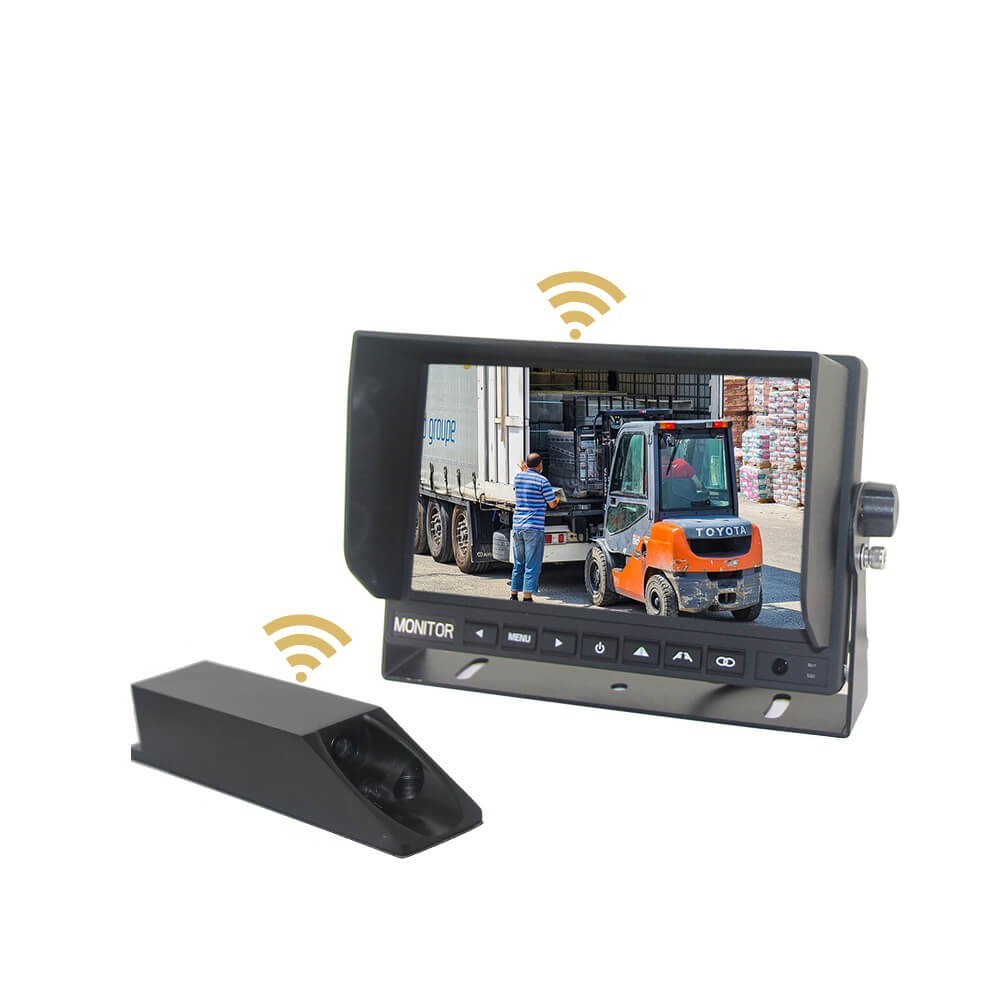

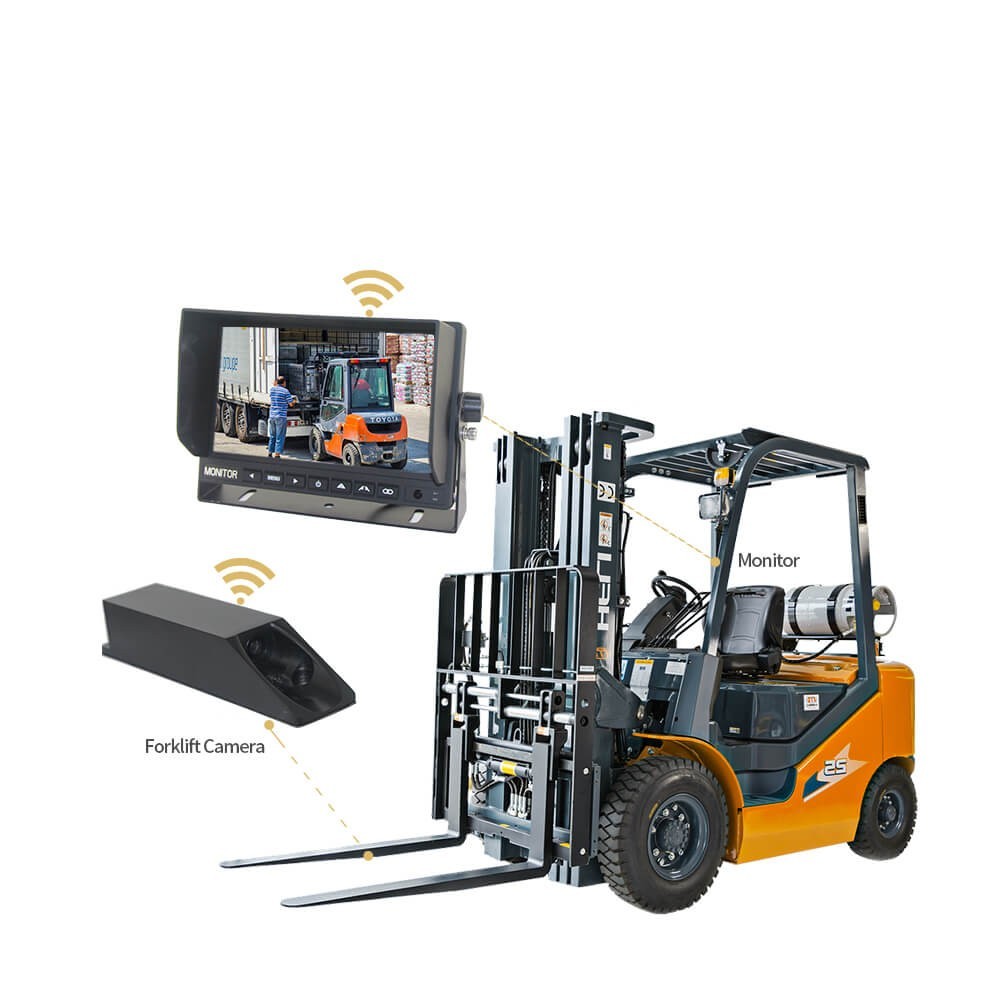

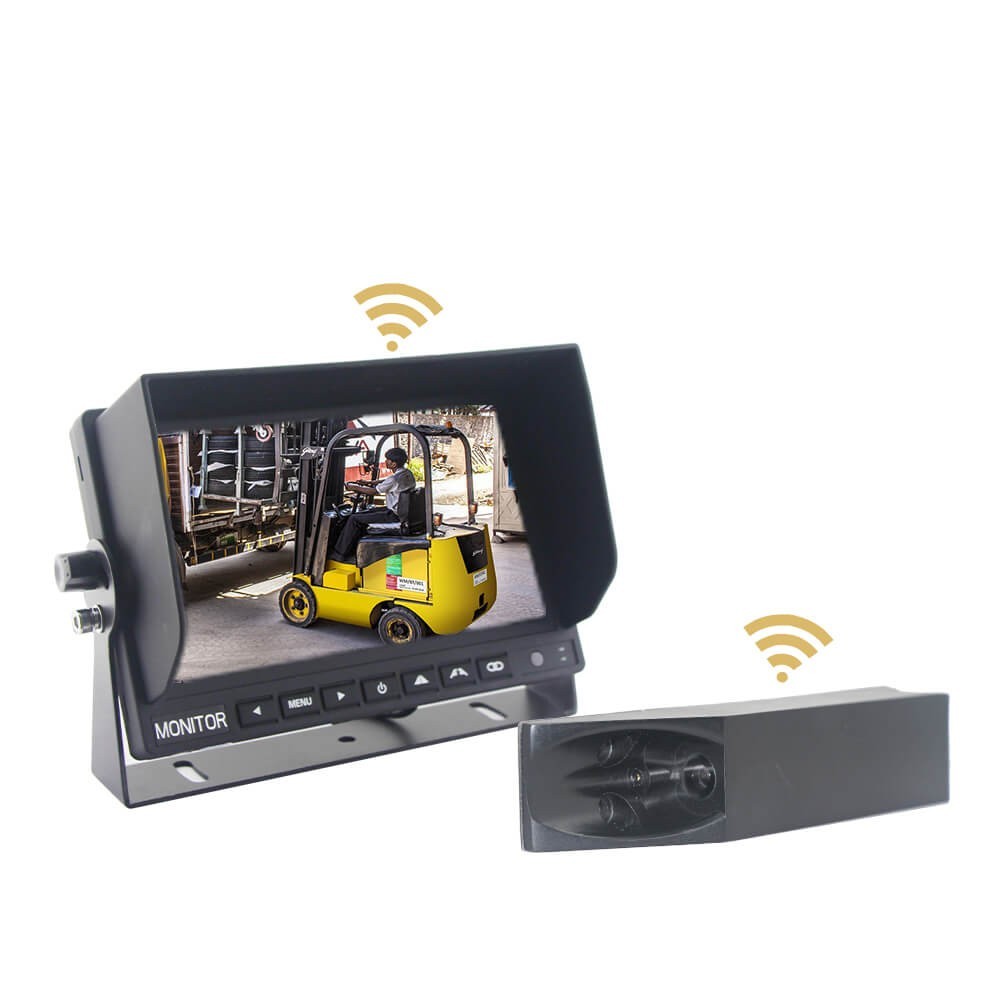

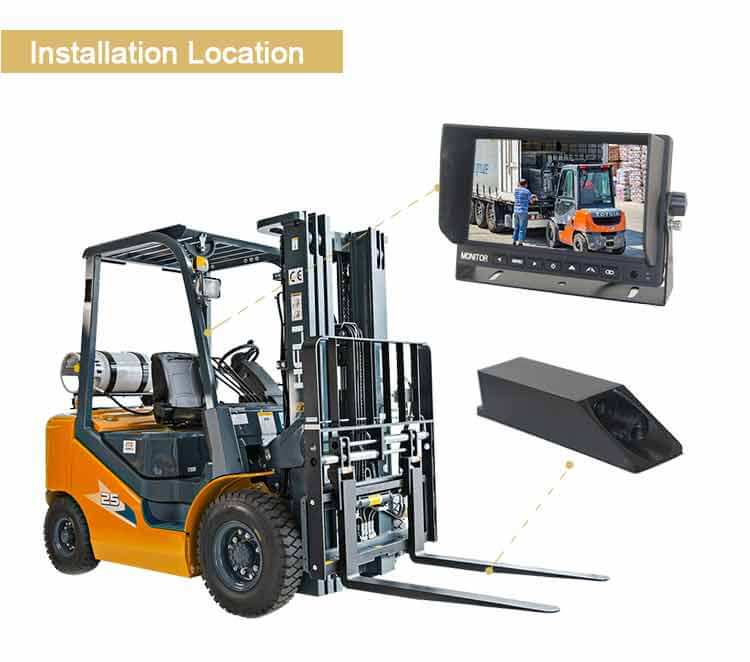

Forklift camera systems have become a standard aid to forklift driver operations, providing improved safety and range
of vision when maneuvering and storing loads, so drivers can work safer and more efficent. AOTOP 1080P HD wireless
forklift camera has stable signal and its transmission range of up to 50 meters. It horizontal more than 40°, will increase
the visibility range, solve front view goods blind spots problems and avoid accidents, and also improve operational
efficiency.

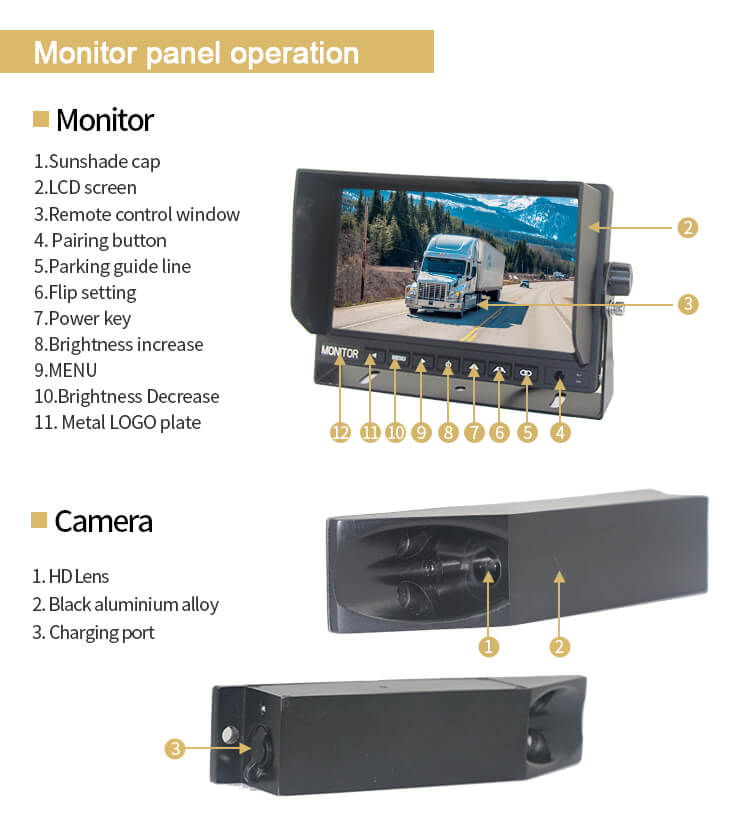

| Wireless Monitor | |
| Model | CM-709MDW-HD |
| Screen ratio | 16:9 / IPS |
| Resolution | 1024*R.G.B*600 |
| Back light | LED, brightness 500 cd/m2 |
| Recording | Yes |
| Storage | 16-128G |
| Wireless input | 4CH 1080P wireless input |
| File format | MP4 |
| Playback mode | Single image |
| File size | 3.3M/min |
| Working frequency | 2400 ~ 2483.5MHz * |
| Decompression format | H.264 |
| Receiving sensitivity | -89dBm@4MHZ |
| Image delay time | 120mS |
| Playback mode | Single image |
| Receiving distance | 50M in open area |
| Operating temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| Vibration rating | 4G |
| Image delay time | 120mS |
| Power consumption | ＜3.8W |
| Consumption current | 12V Standby:≤10mA, working.≤320mA |

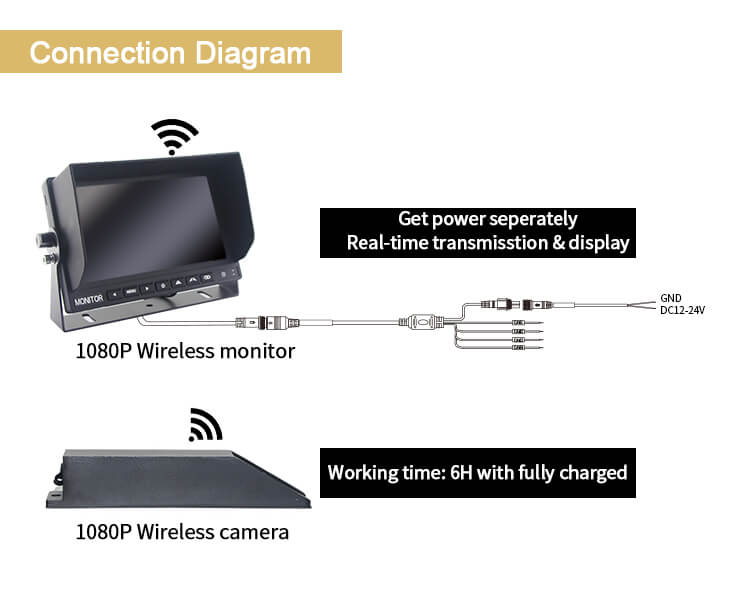

| Power Supply | DC12-24V |
| Shell materials | PC+ABS |

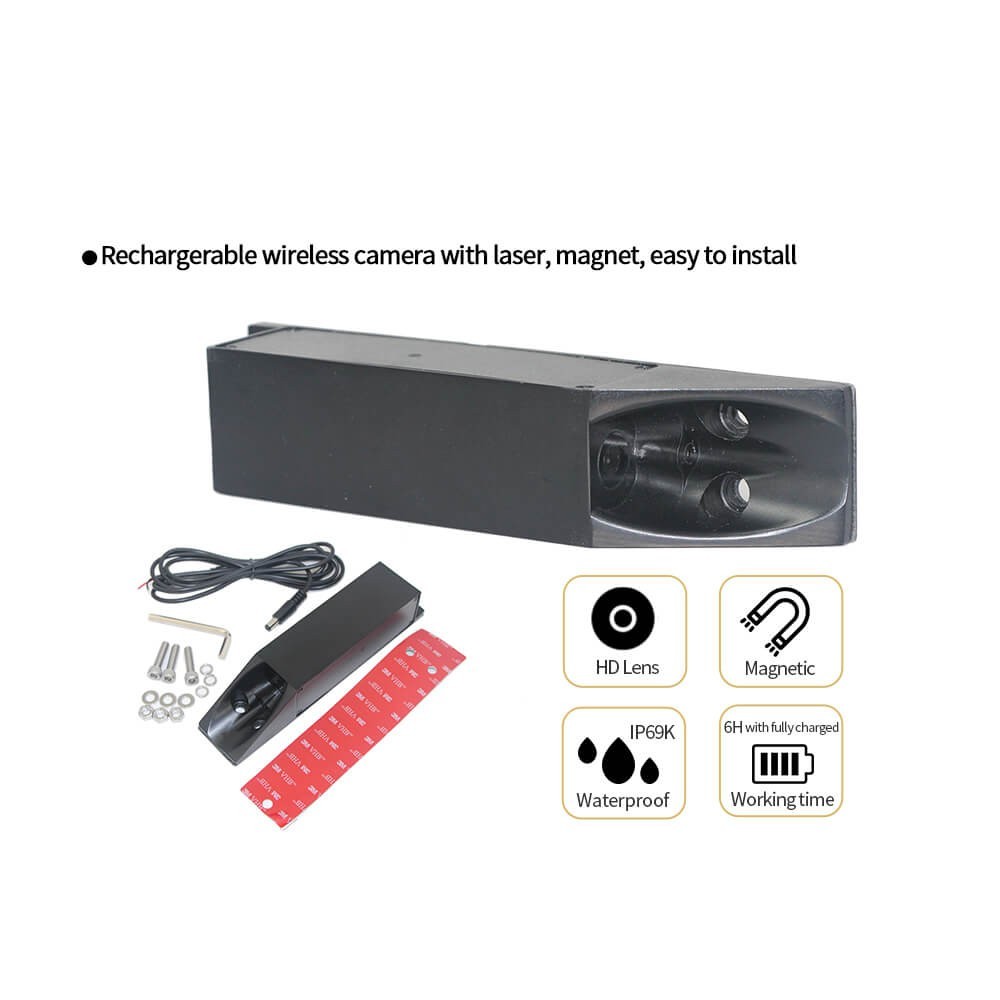

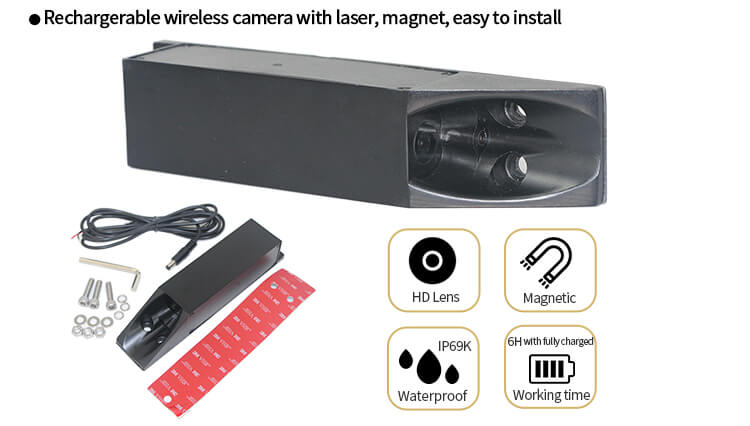

| Forklift Camera | |
| Model | AC-978MDW-HD |
| Image sensor | CMOS 1/2.7” |
| Effective pixels | 1920×1080 pixels |
| Transmission frequency | 2400-2483.5MHZ |
| Transmission distance | 50M in open area |
| System | N/P automatically |
| Night vision | Yes |
| Transmission bandwidth | 8MHz BER<1E-3 |
| Image | Mirror |
| Working time | 6H with fully charged |
| Charging voltage | DC 12-24V |
| Power saving mode | Automatically |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| SNR | 46.5dB |
| Waterproof level | IP69K |
| Viewing angle | Horizontal more than 40° |
| Transmission sensitivity | -89 dBm |
| Shell materials | Black aluminium alloy |
| Accessories | Power cable、5DB antenna |
