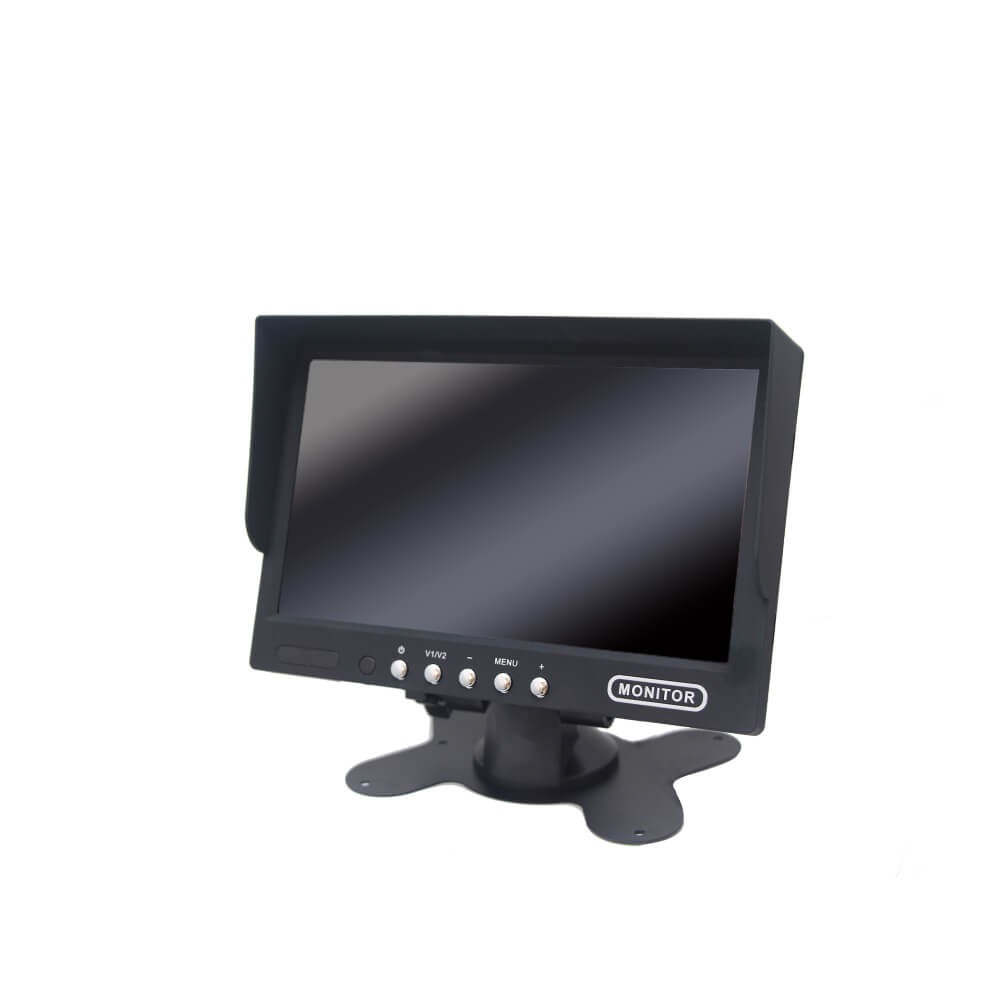

● With Sunshade Cover & Butterfly Bracket
● 1024*RGB*600 Resolution (IPS LCD Screen)
● 3CH x Cameras Video Signal Input
● Multiple Video Formats Available To Cameras: 720P / 1080P / AHD / Compatibility CVBS
● 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
● 1CH Audio Signal Input (High Quality Speaker)

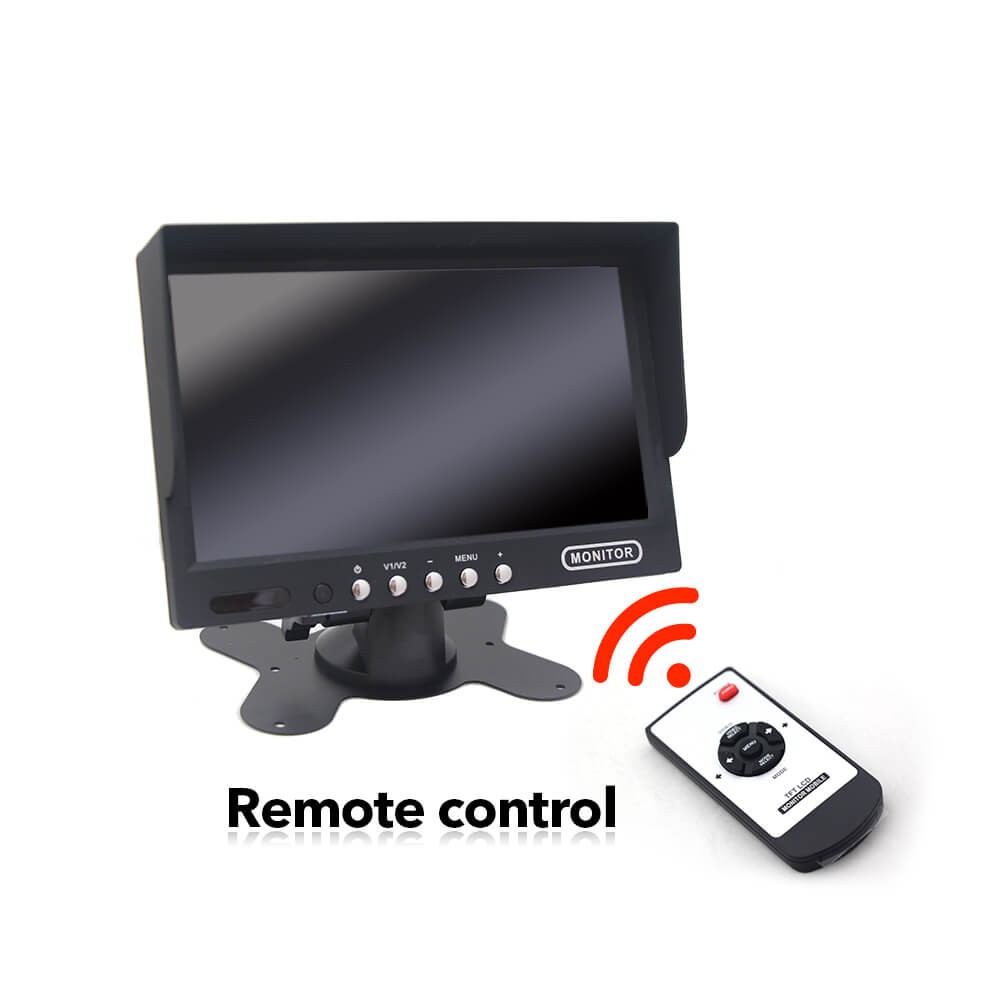

● Full-Function Remote Control
● Multi-Language Settings
● Horizontal Mirror Image Switching; Image Flip;
● DC 12-24V Wide Voltage
● AUTO Adaptation PAL / NTSC System
PRODUCT FEATURES

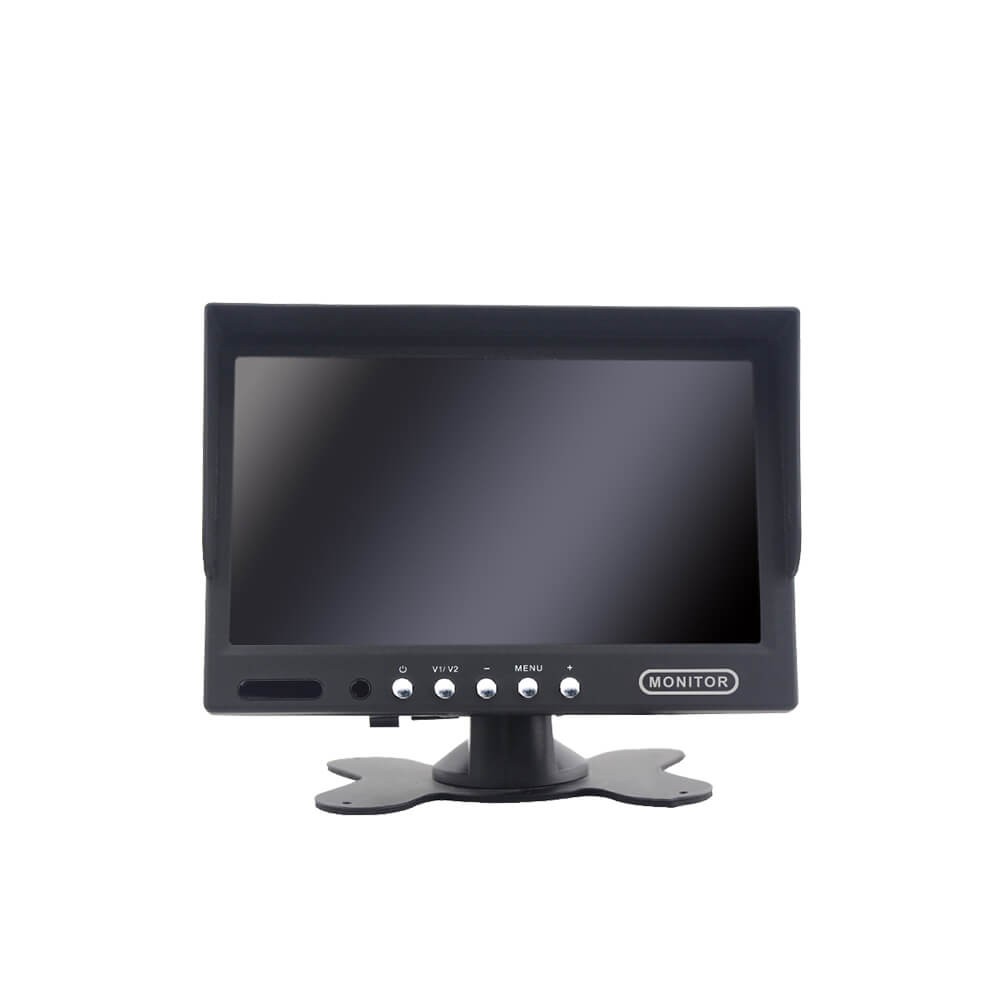

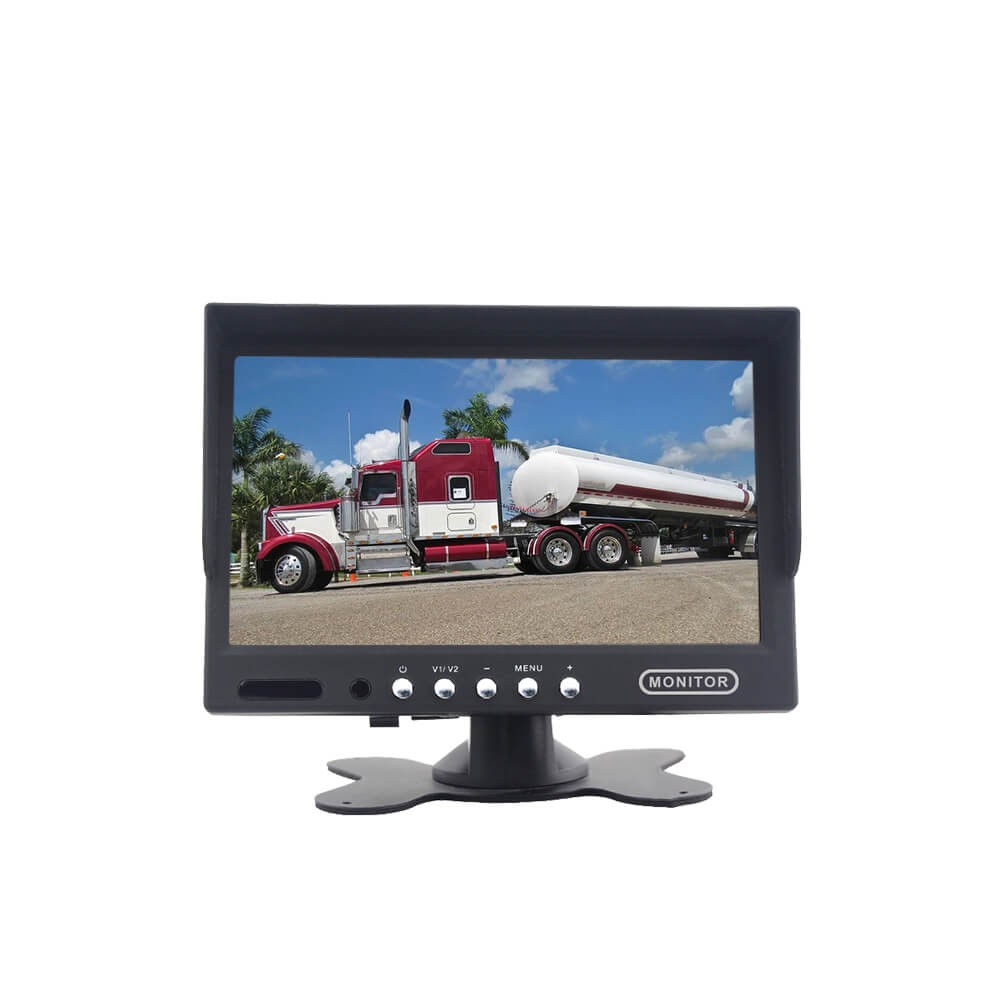

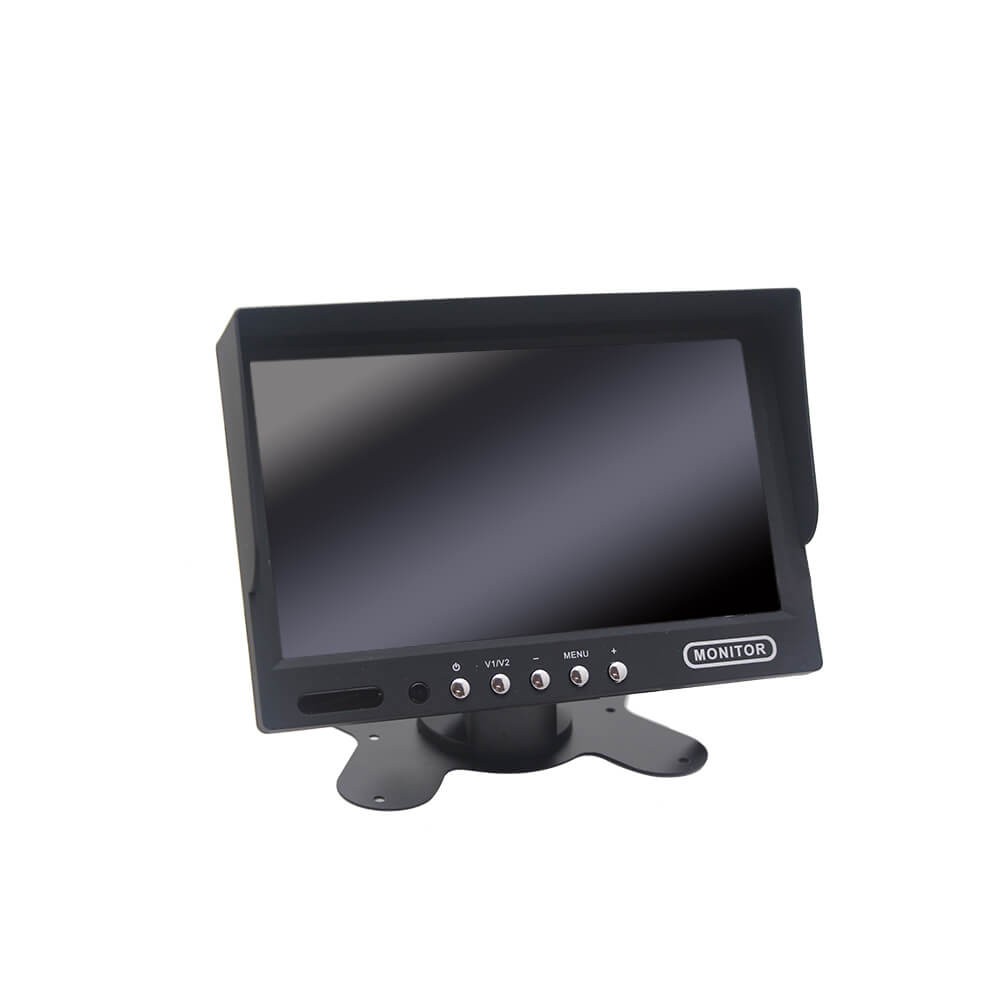

AOTOP 7 inch 3CH AHD vehicle rear view IPS digital monitor with butterfly bracket is good for truck van. It supports connect
3CH 1080P/720P AHD backup camera, providing HD monitoring of three areas around the vehicle, visualisation the blind
spots to reduce the risk of collisions. This AHD digital vehicle monitor meets customer needs for clear and convenient video
monitoring. For more information, please contact sales@aotop.com!
| Screen Type/Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
| Video Input | Support 3CH AHD 1080P/960P/720P/CVBS Mixed Video Signal Input |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu | Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Trigger | 3CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating Power | 13.2W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
