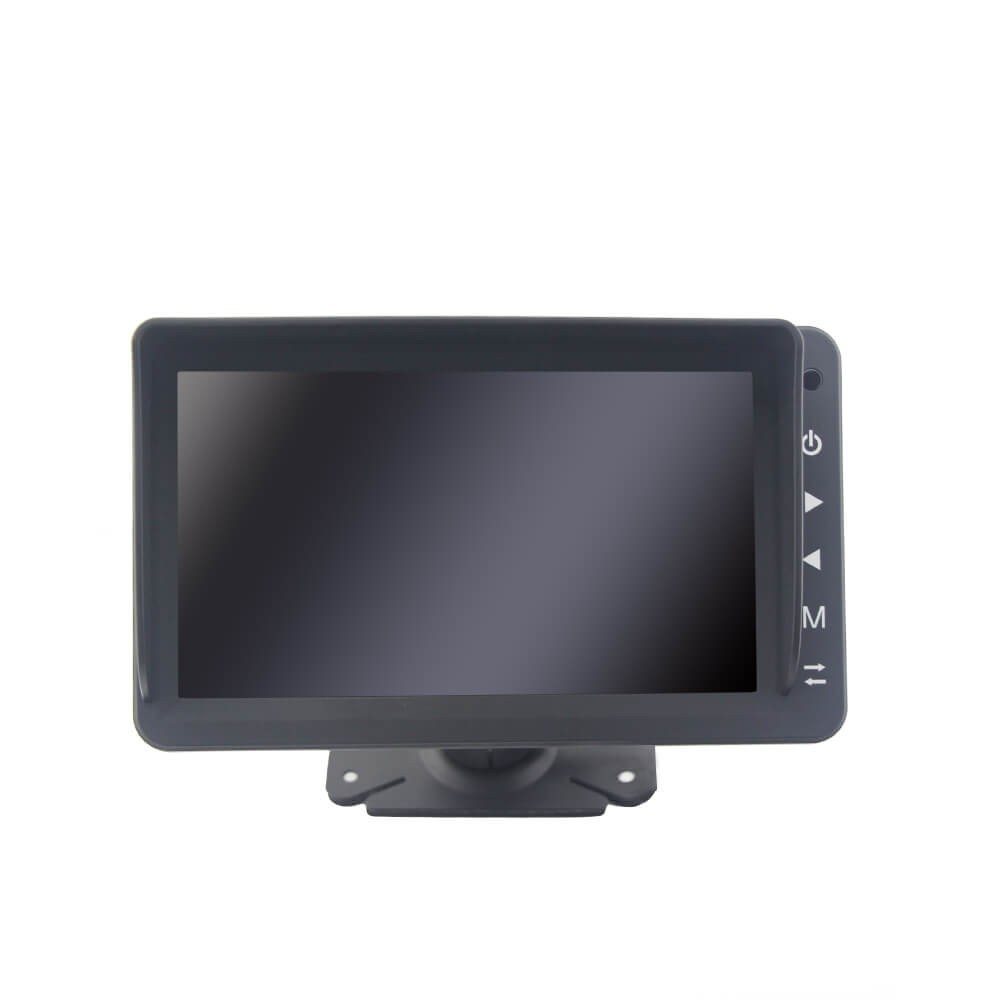

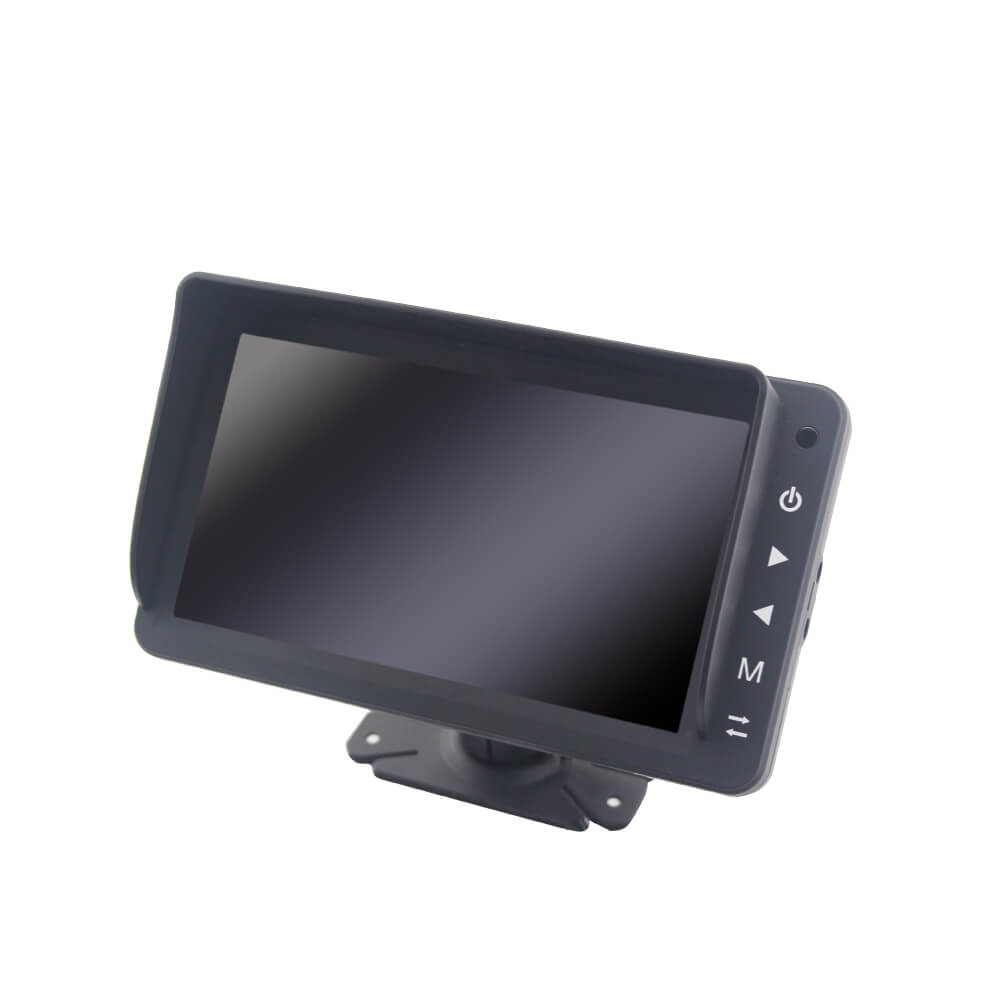

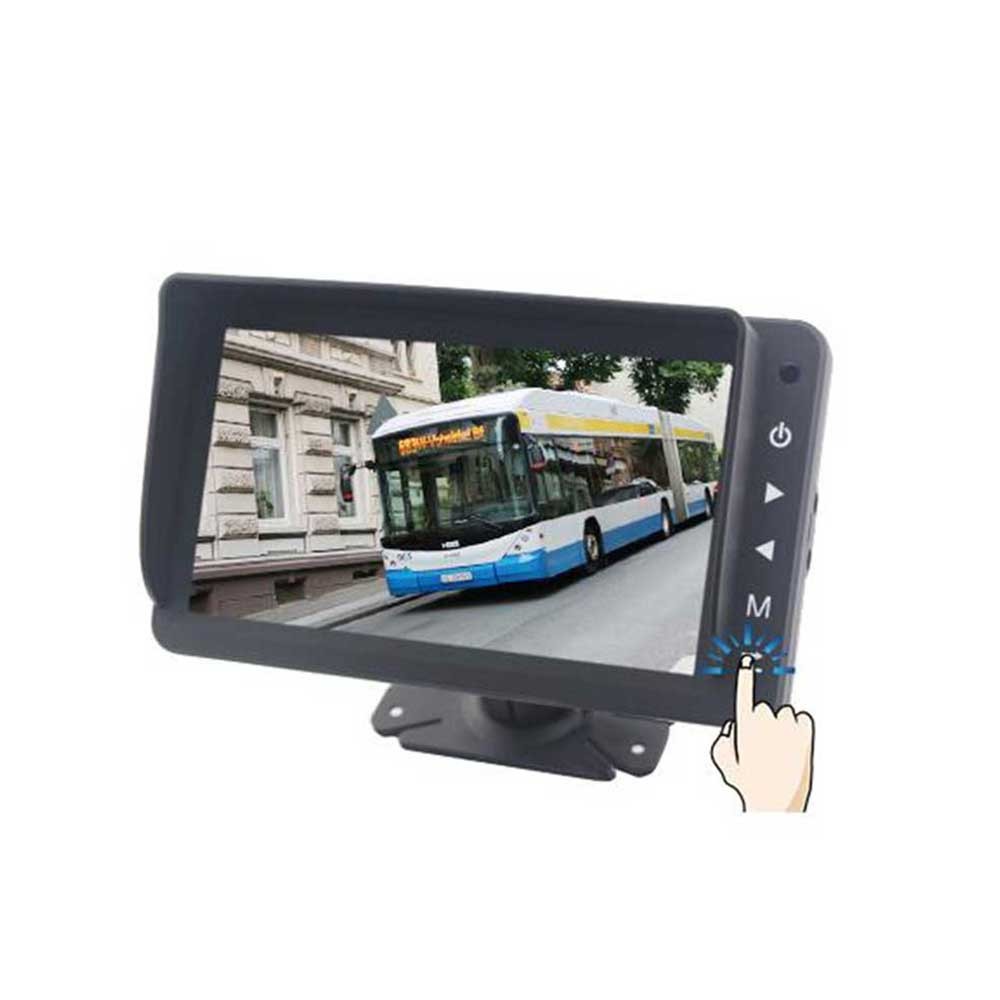

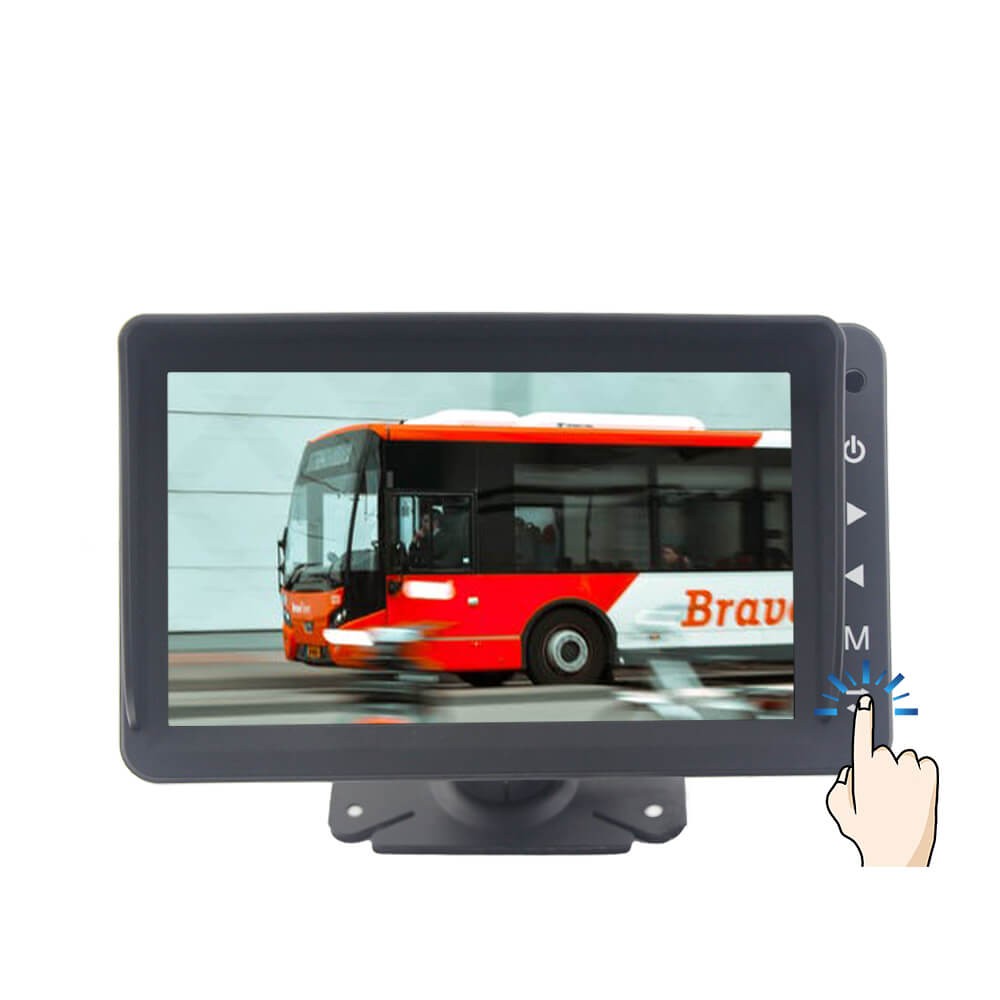

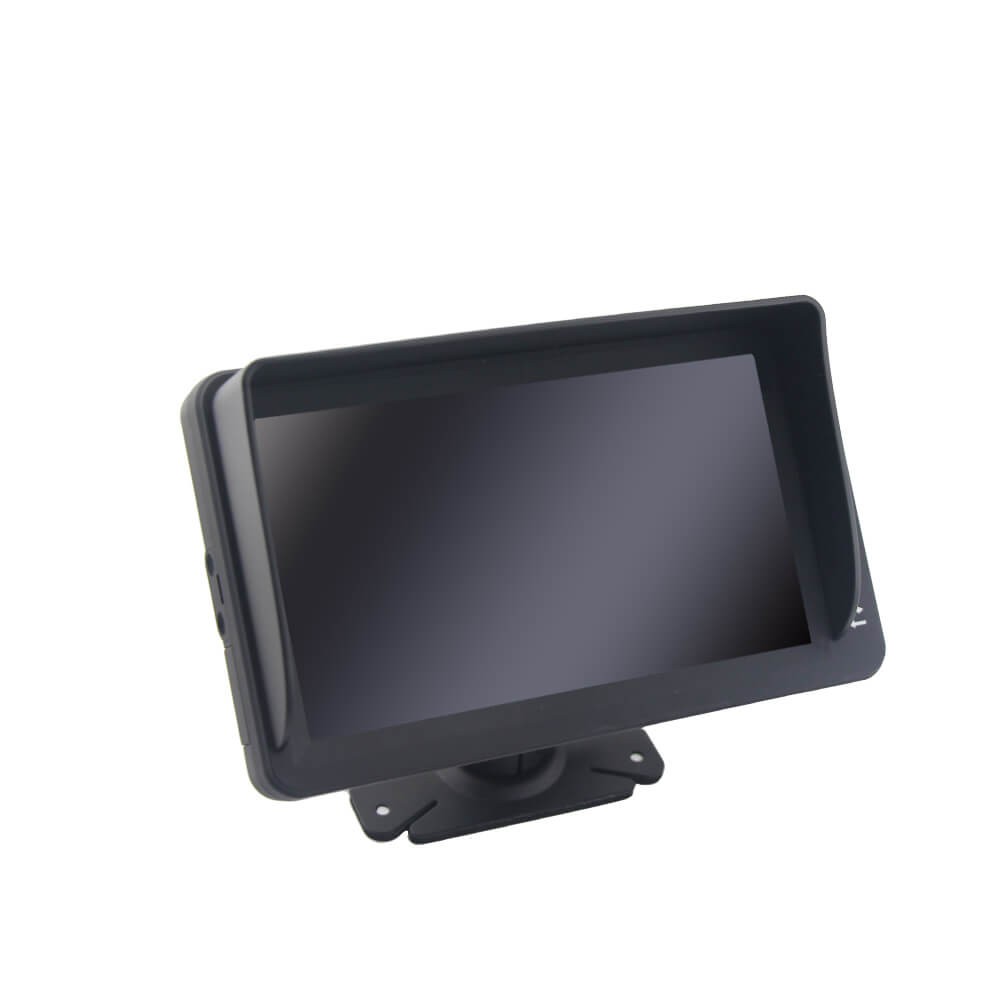

● With Sunshade Cover & Fan-Bracket & Touch Button
● 1024*RGB*600 Resolution (IPS LCD Screen)
● 3CH x Cameras Video Signal Input
● Multiple Video Formats Available To Cameras: 720P / 1080P / AHD / Compatibility CVBS
● 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
● 1CH Audio Signal Input (High Quality Speaker)
● Full-Function Remote Control
● Multi-Language Settings
● Horizontal Mirror Image Switching; Image Flip.
● DC 12-24V Wide Voltage
● AUTO Adaptation PAL / NTSC System
PRODUCT FEATURES
Aotop 7 inch HD IPS LCD vehicle monitor supports 3CH 1080P AHD camera inputs. It provides drivers with HD
views of 3 areas around the vehicle, reducing the risk of scratches. This monitor is easy to operation and delivers
excellent HD visuals for vehicle monitoring, making it an ideal choice for improving fleet safety. If you are looking
for the best vehicle monitors from China, please contact sales@aotop.com!
If you have any specific custom requirements regarding the product's performance or appearance, you can contact
us without hesitation. Aotop takes pride professional OEM (Original Equipment Manufacturer) and ODM (Original
Design Manufacturer) services, which are customized precisely to meet your individual needs.
| Screen Type & Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
| Video Input | Support 3CH AHD 1080P/960P/720P/CVBS Mixed Video Signal Inpu |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu | Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Trigger | 3CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
