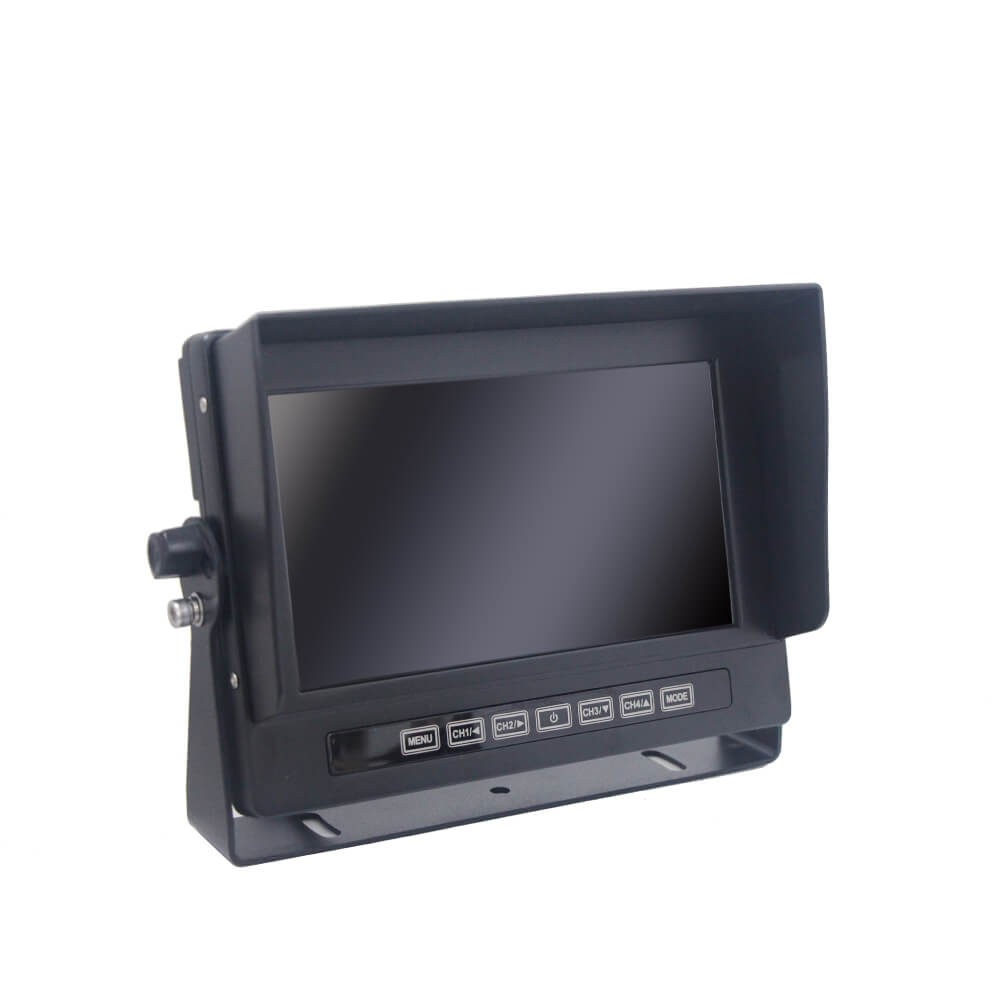

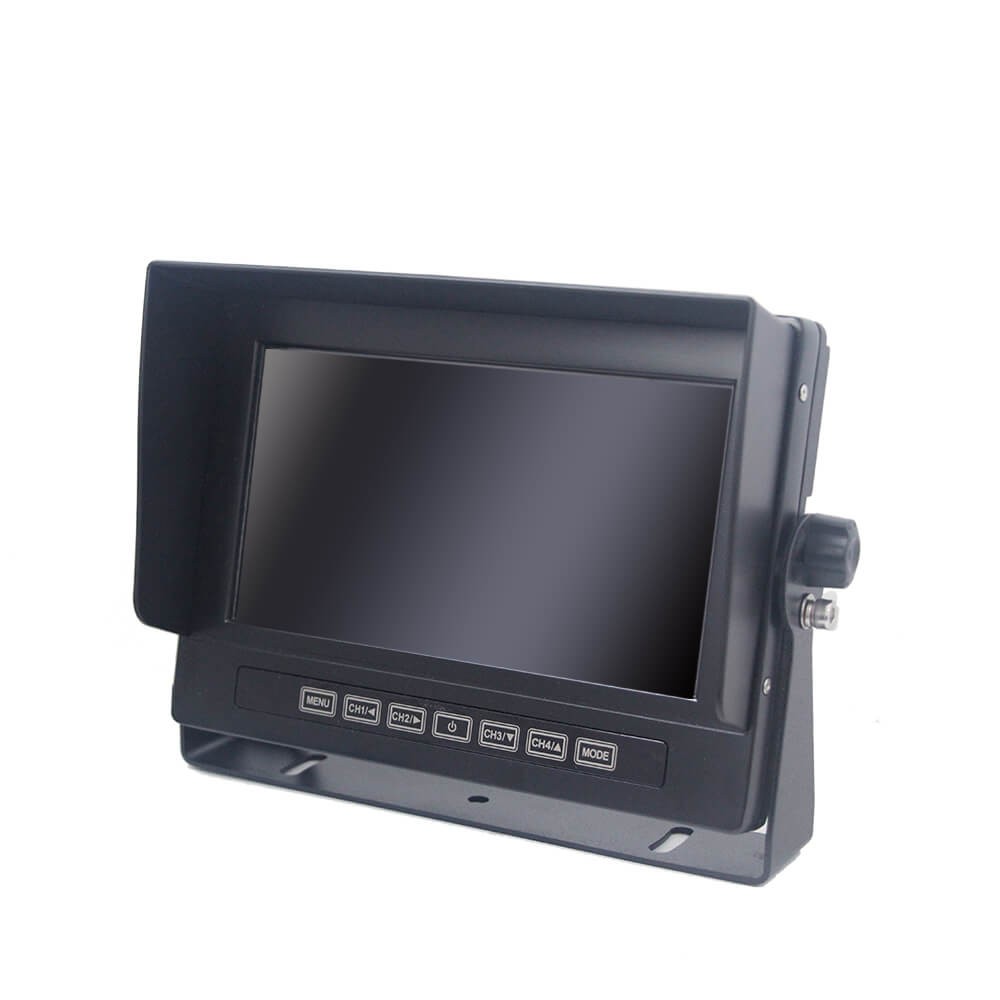

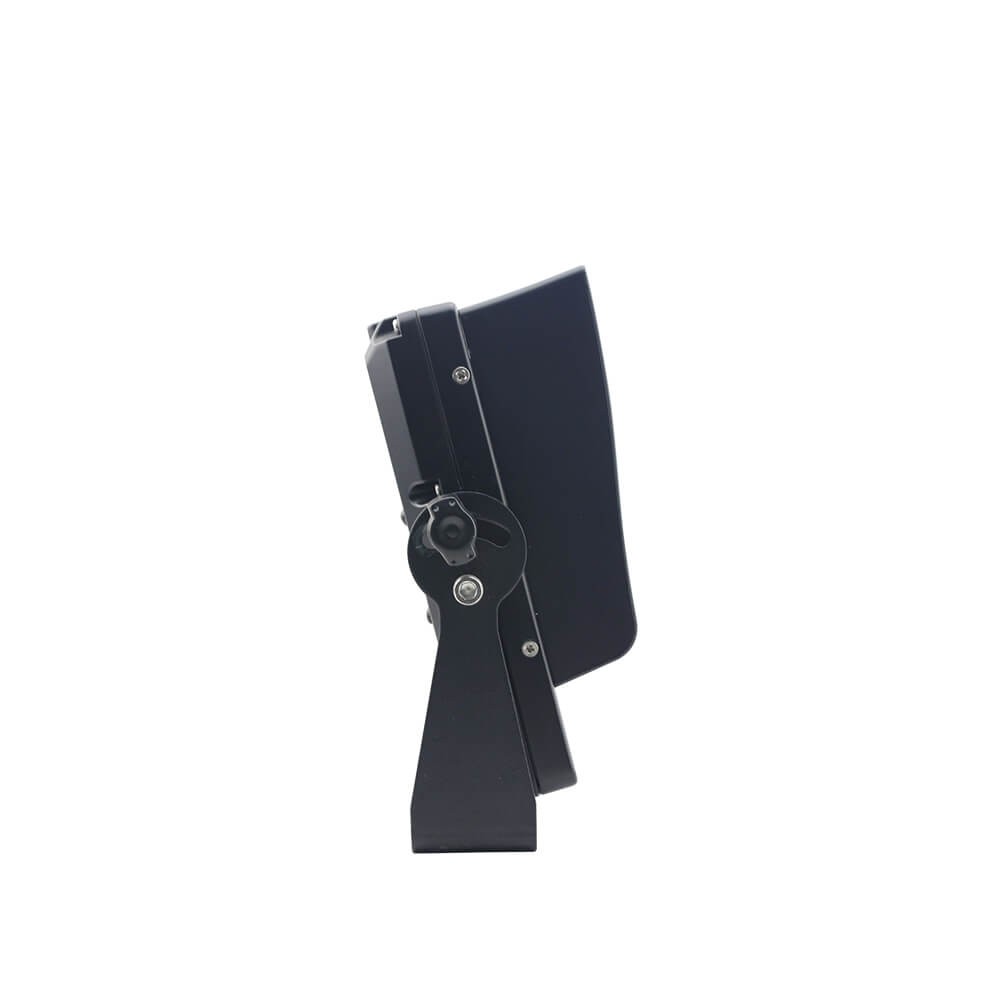

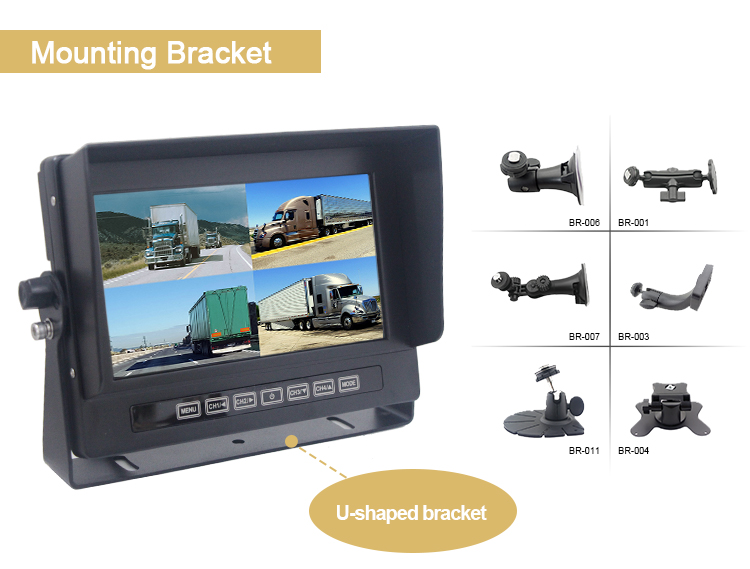

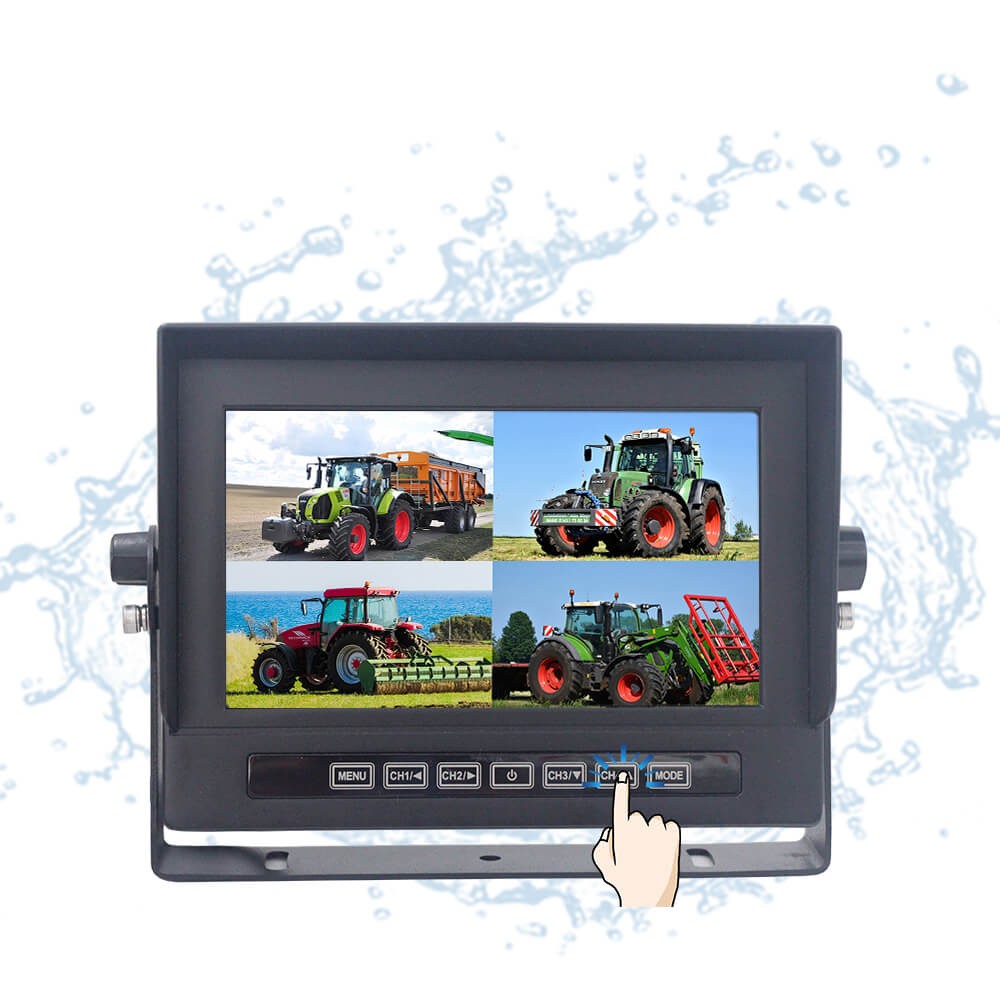

● With sunshade cover & U-bracket & touch button

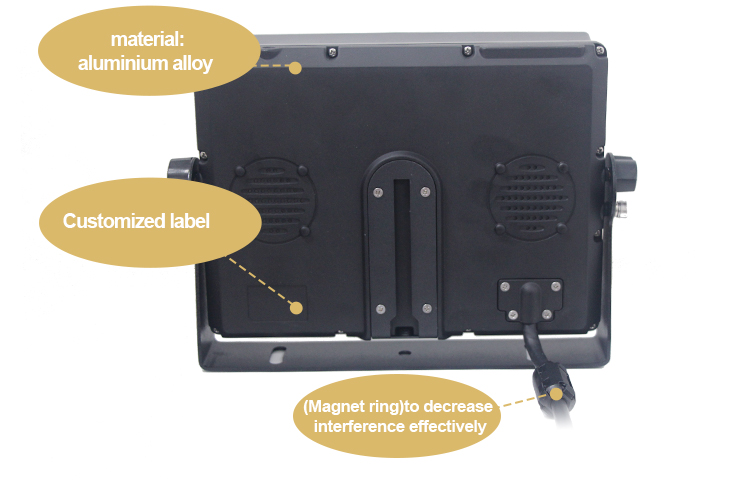

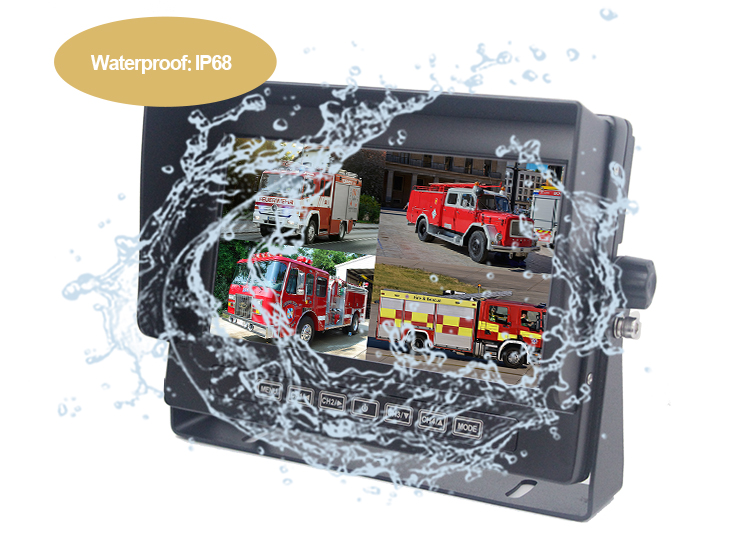

● IP68 waterproof & dustproof, aluminium alloy material shell

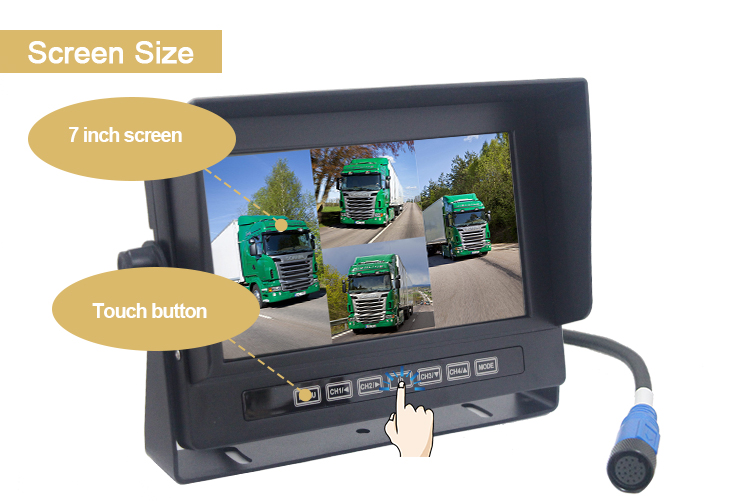

● 1024*RGB*600 IPS LCD screen, 16:9 ratio
● 4CH x cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

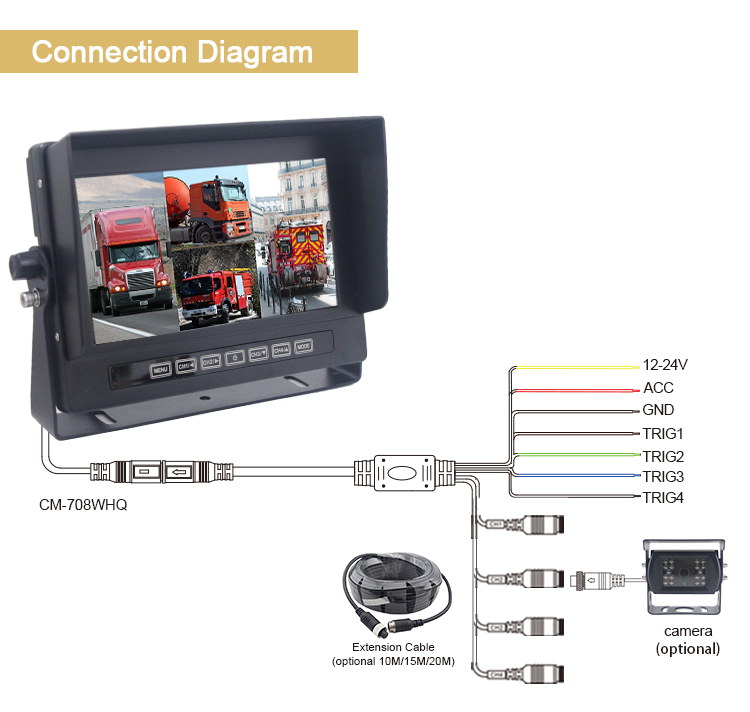

● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;
● Full display & dual/triples/quad split view mode

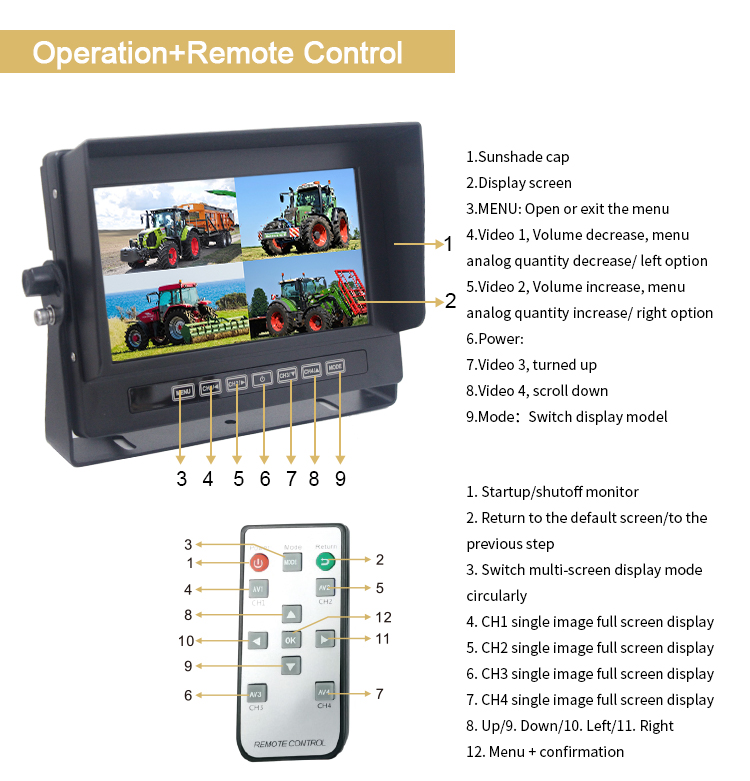

● Full-function remote control
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
● AUTO adaption PAL / NTSC system
PRODUCT FEATURES

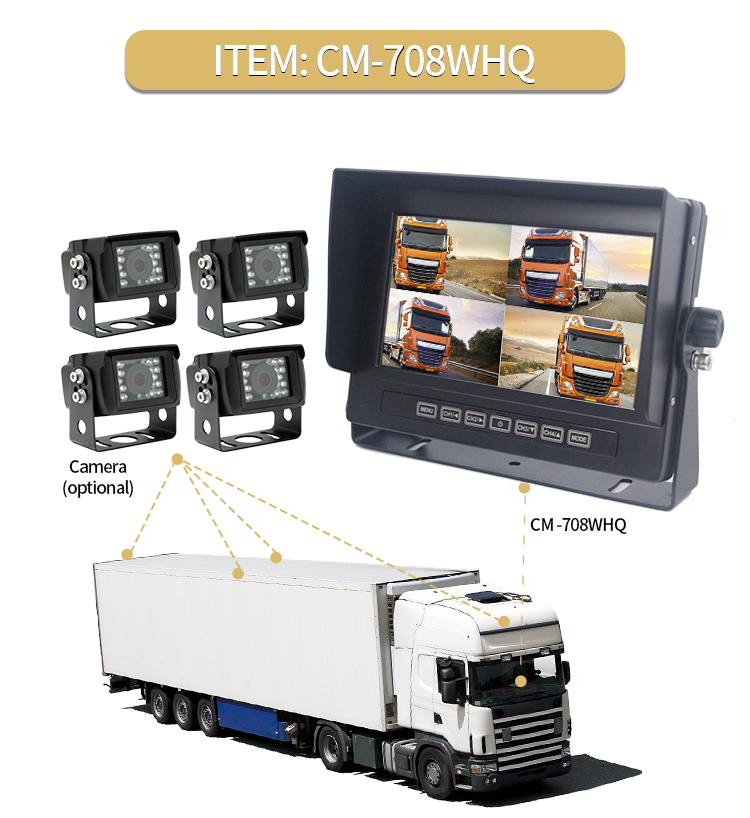

AOTOP IP68 waterproof quad vehicle AHD monitor uses a 7 inch 1024*600 IPS display, supports 4-way AHD video
input. It can help large agricultural machinery and special vehicle drivers fully understand the vehicle's surroundings,
visualize blind spots, and reduce the risk of accidents. It supports mirror switching and multiple languages to meet
the needs of global users. If you are looking for high-quality waterproof vehicle monitor in China, please contact
sales@aotop.com!
| Waterproof Rating | IP68 |

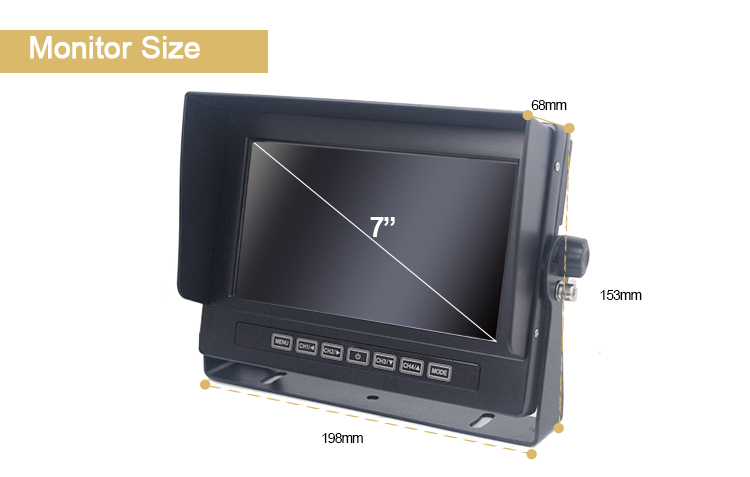

| Screen Type & Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
| Video Input | Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Inpu |
| OSD Menu | Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |
| Split View Mode | Single/Double/Triple/Quad View Image Display |
| Trigger | 4CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
