● 800*RGB*480 resolution (IPS LCD digital screen)
● 4CH x AHD cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS
● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;
● 1CH audio signal input (high quality speaker)

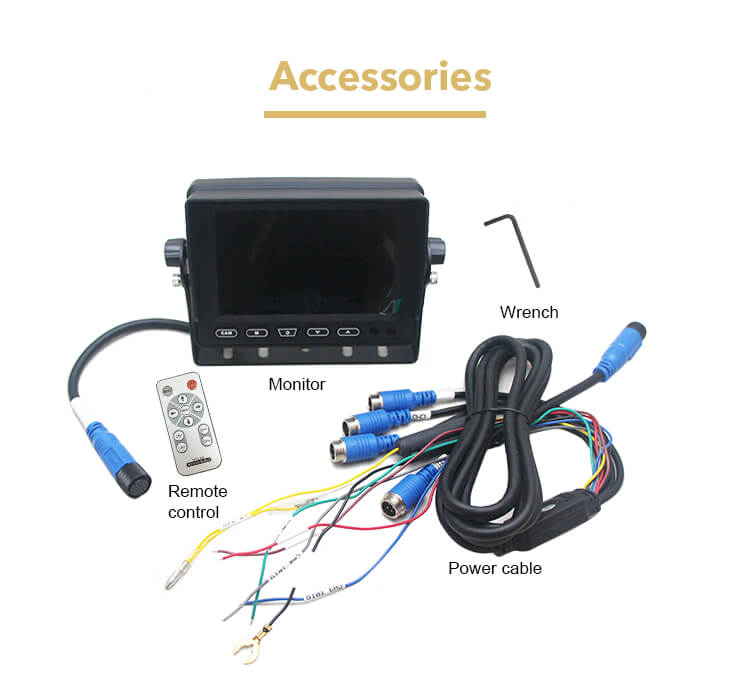

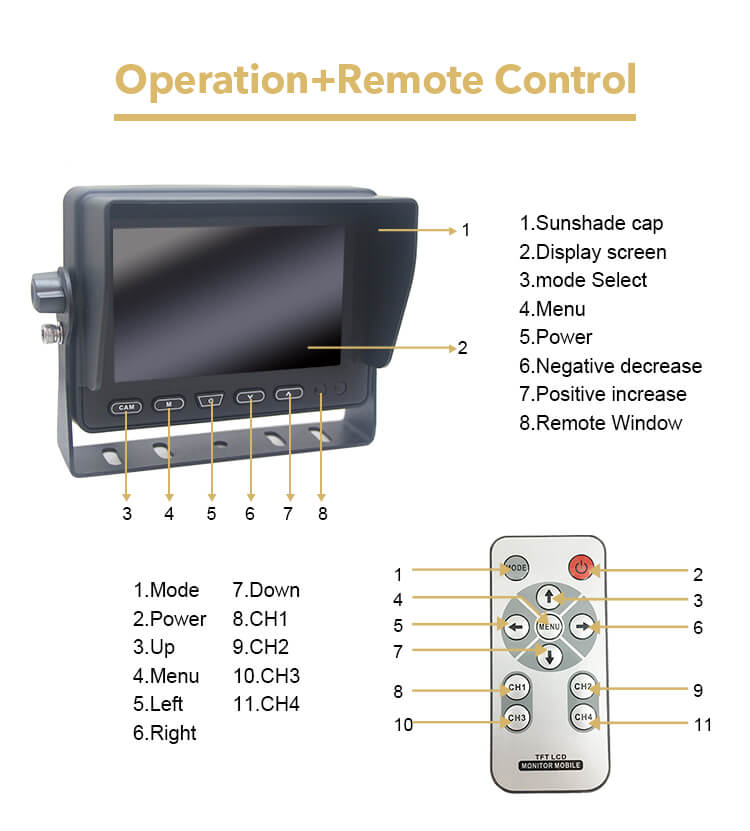

● Full-function remote control
● Multi-language settings
● Horizontal mirror image switching; Image flip;
● DC 12-24V wide voltage
● AUTO adaptation PAL / NTSC system
PRODUCT FEATURES

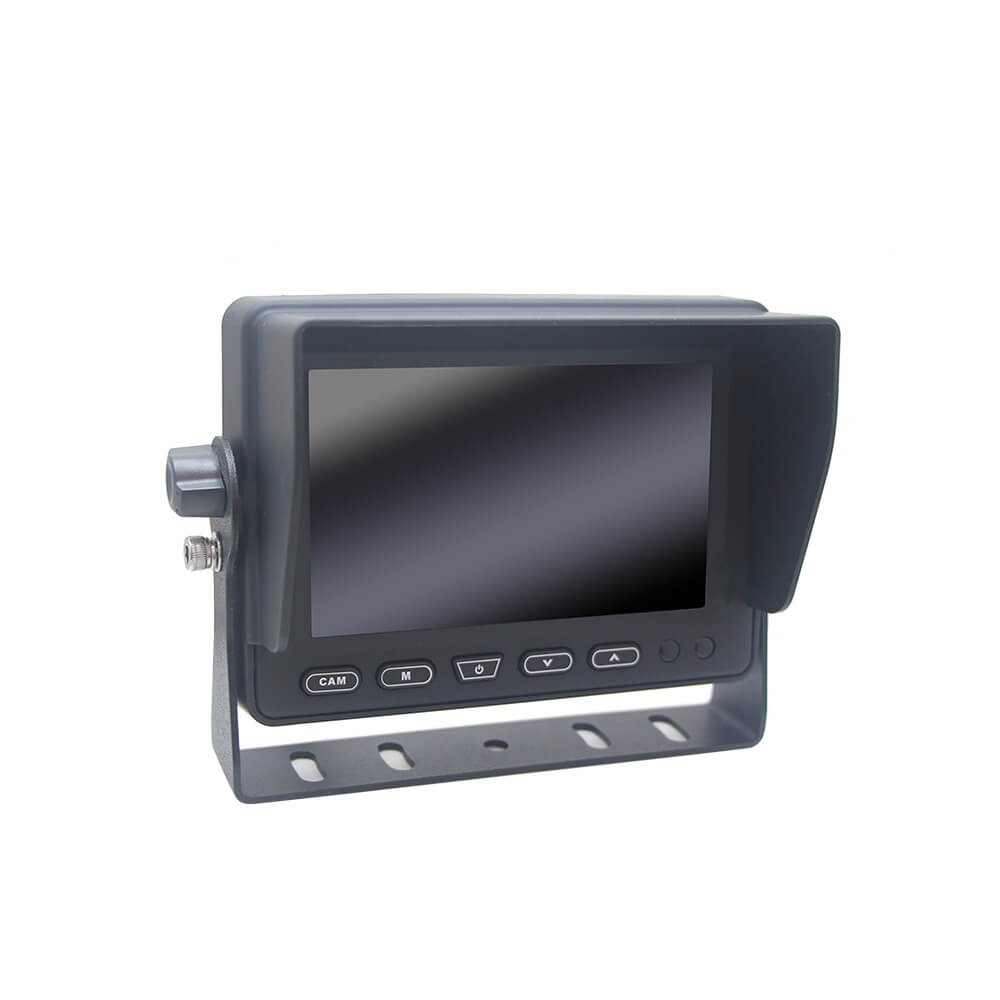

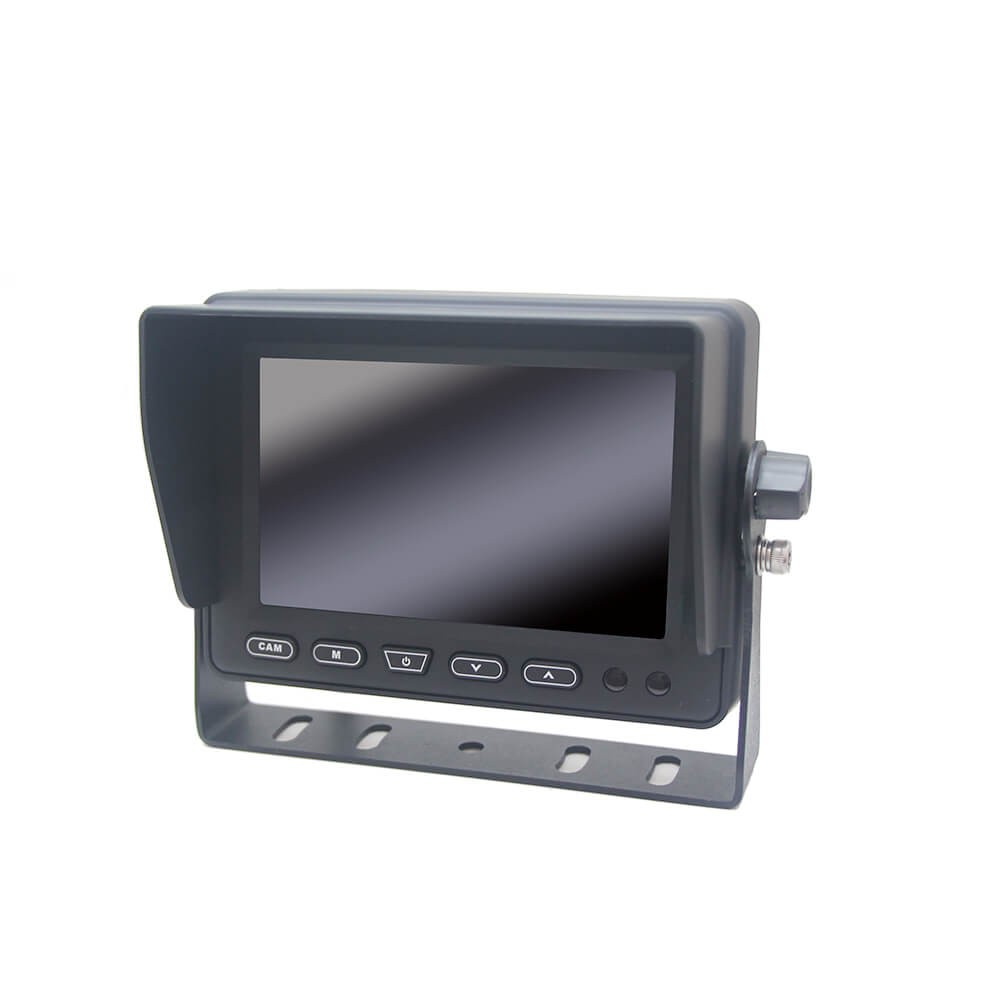

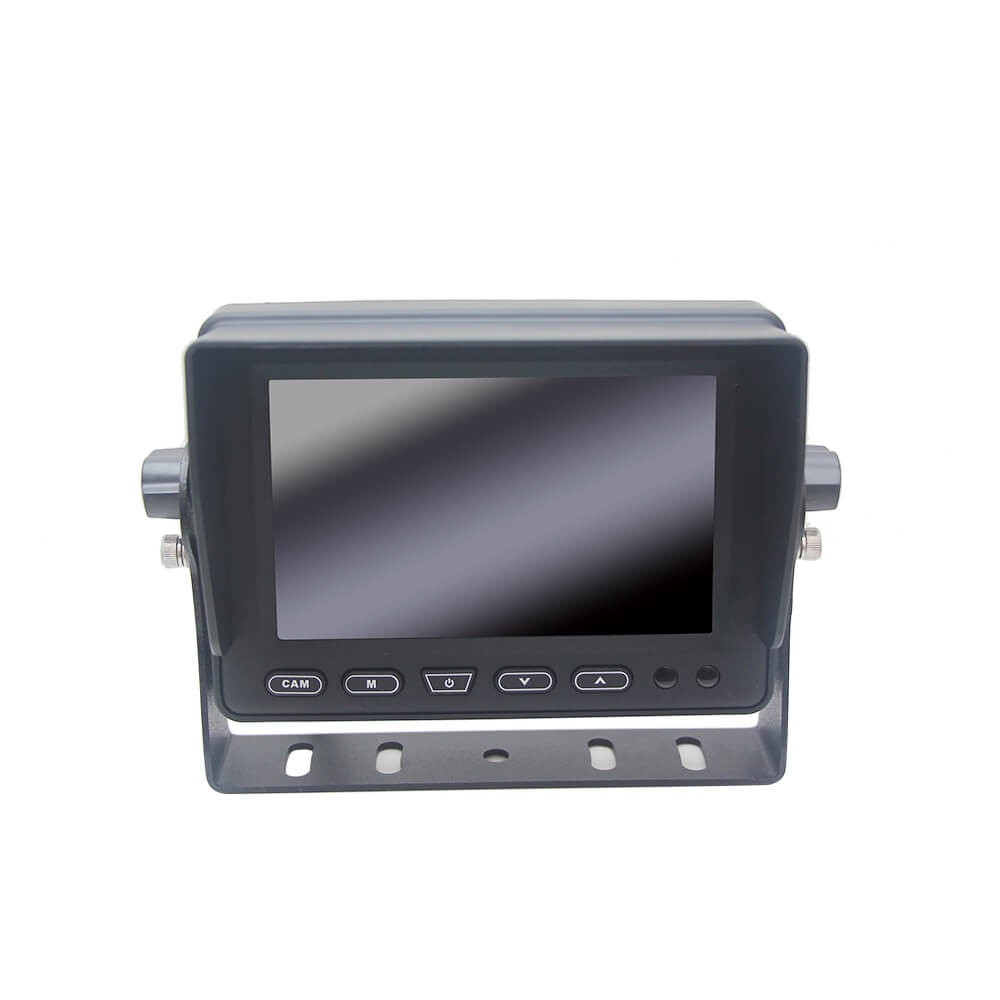

AOTOP 5 inch AHD IPS LCD quad view vehicle monitor, supports 4CH AHD camera video signal input. It helps
drivers see their surroundings clearly and effectively reduces the risk of scratches and accidents. Featuring
multi-language setting, PAL / NTSC system, ideal for global customers to improve road safety! If you are
looking for reliable 5 inch car monitor in China, please contact sales@aotop.com.

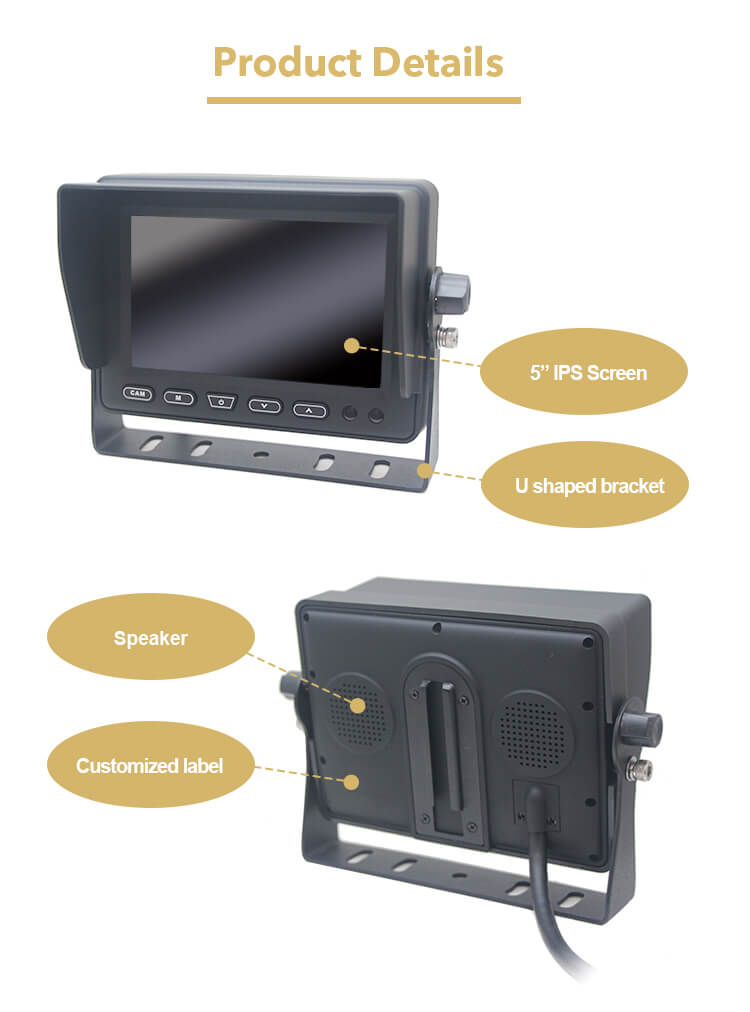

| Screen Type & Size | 5 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 800*R.G.B*480 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up-85°, Down-85°, Left/Right-85° |
| Video Input | Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Input |

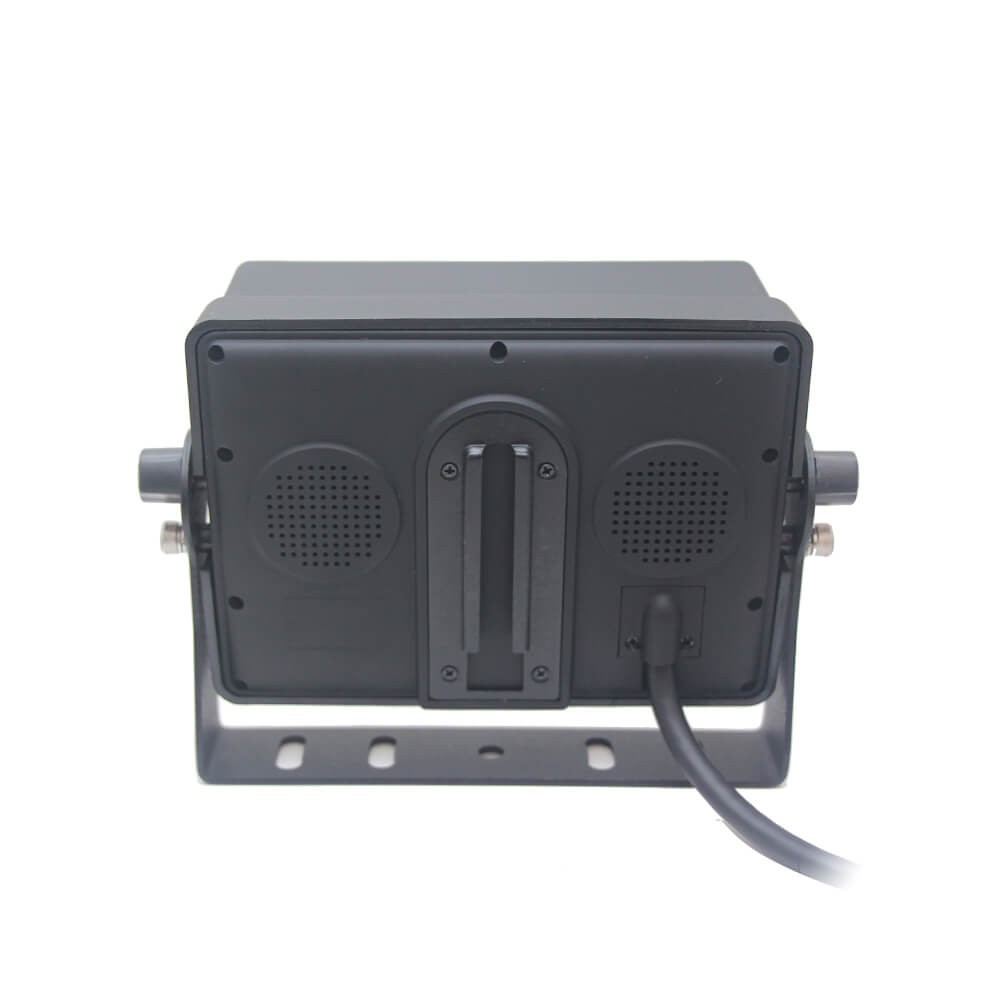

| Audio Input | 1CH, Available High Quality Speaker |
| OSD Menu | Image Setting, Image signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting |
| Parking Guide Line | Each Channel Is Controlled Separately, Off As Default |
| Mirror / Normal Image | Each Channel Is Controlled Separately, Mirror As Default |

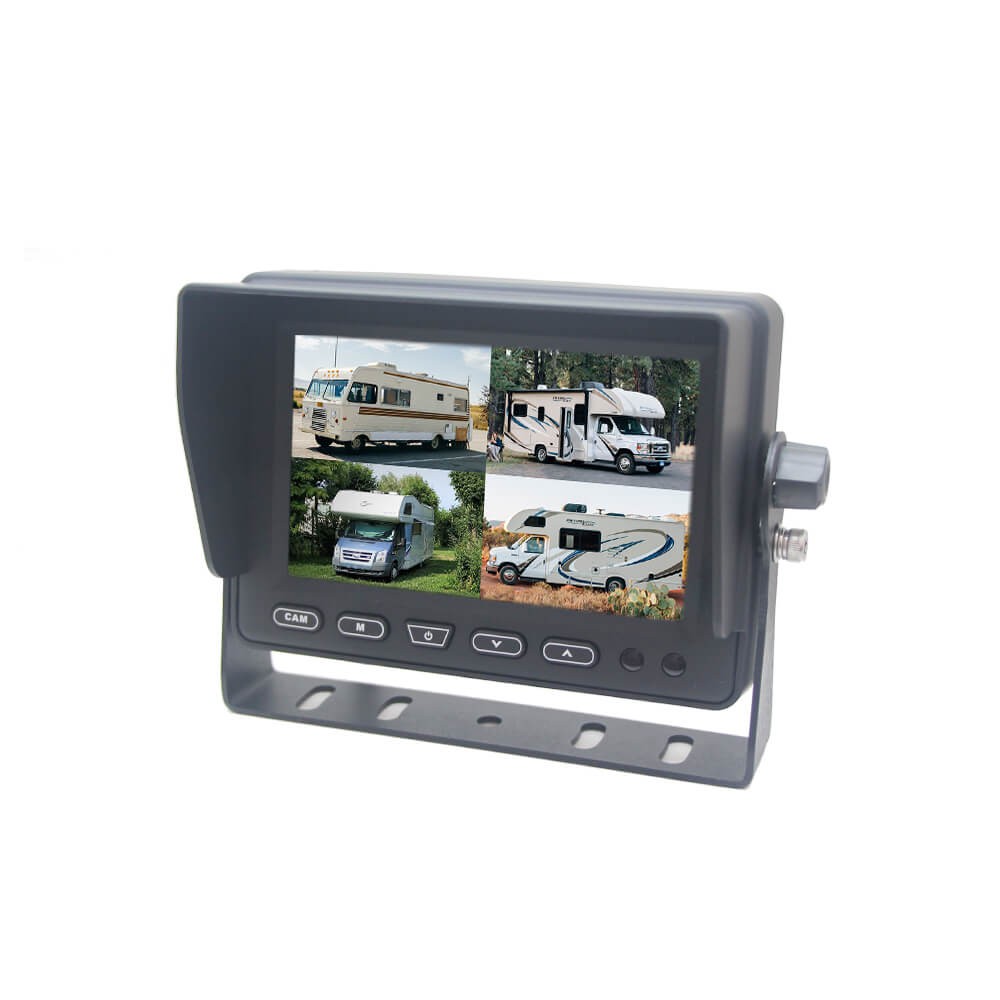

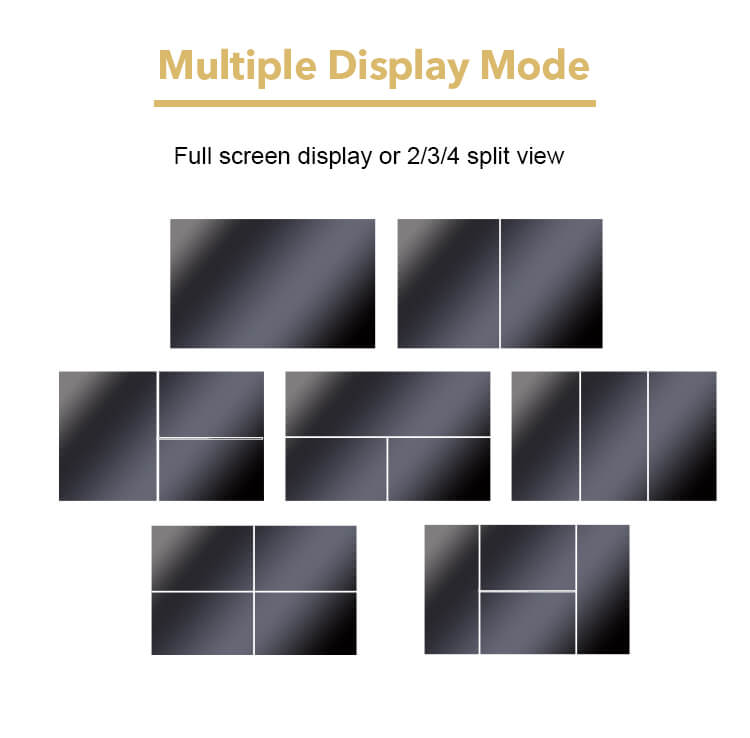

| Split View Mode | Single/Double/Triple/Quad View Image Display |

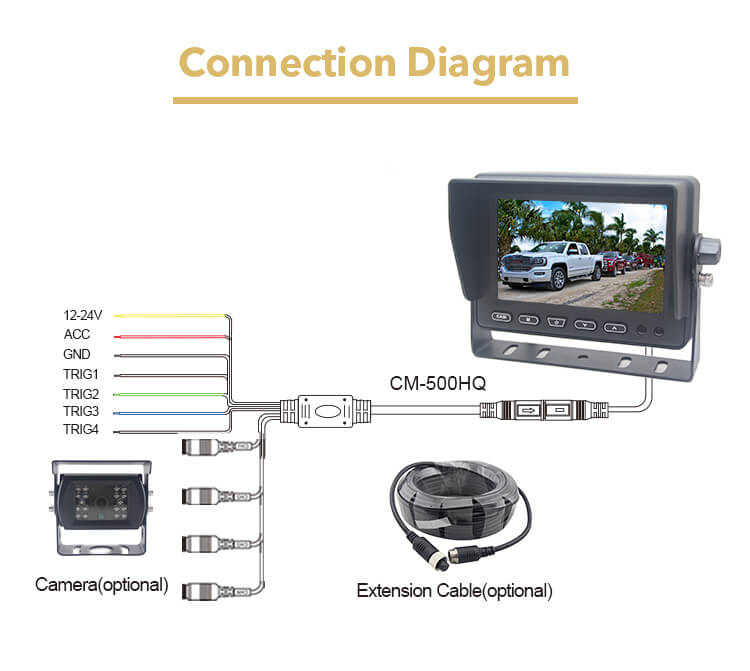

| Trigger | 4CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Operating Temperature | -20°c~+70°c(RH0%-RH90%) |
| Storage Temperature | -30°c~+80°c(RH0%-RH90%) |
| OEM&ODM Customization | Bracket/LOGO Plate & Label/Graphic Carton |
| Warranty | 2 Years |
| Certification | E-Mark、E24、CE、FCC、UKCA |
