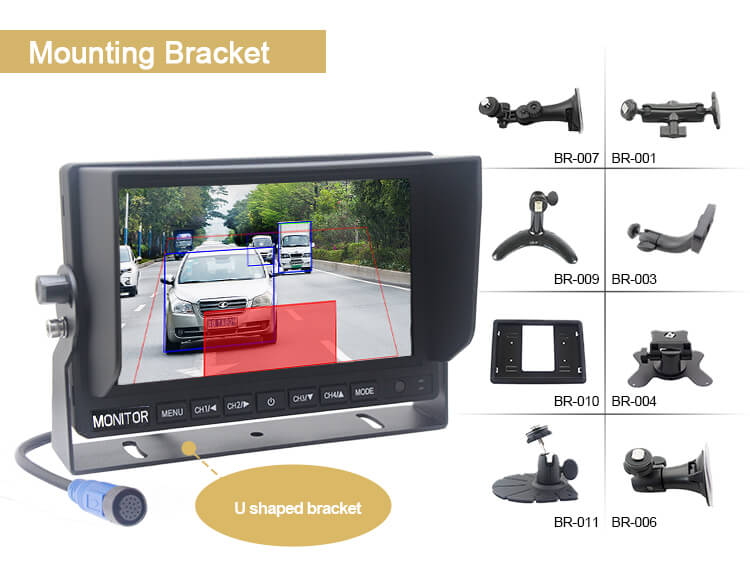

● Sunshade cover & U-bracket

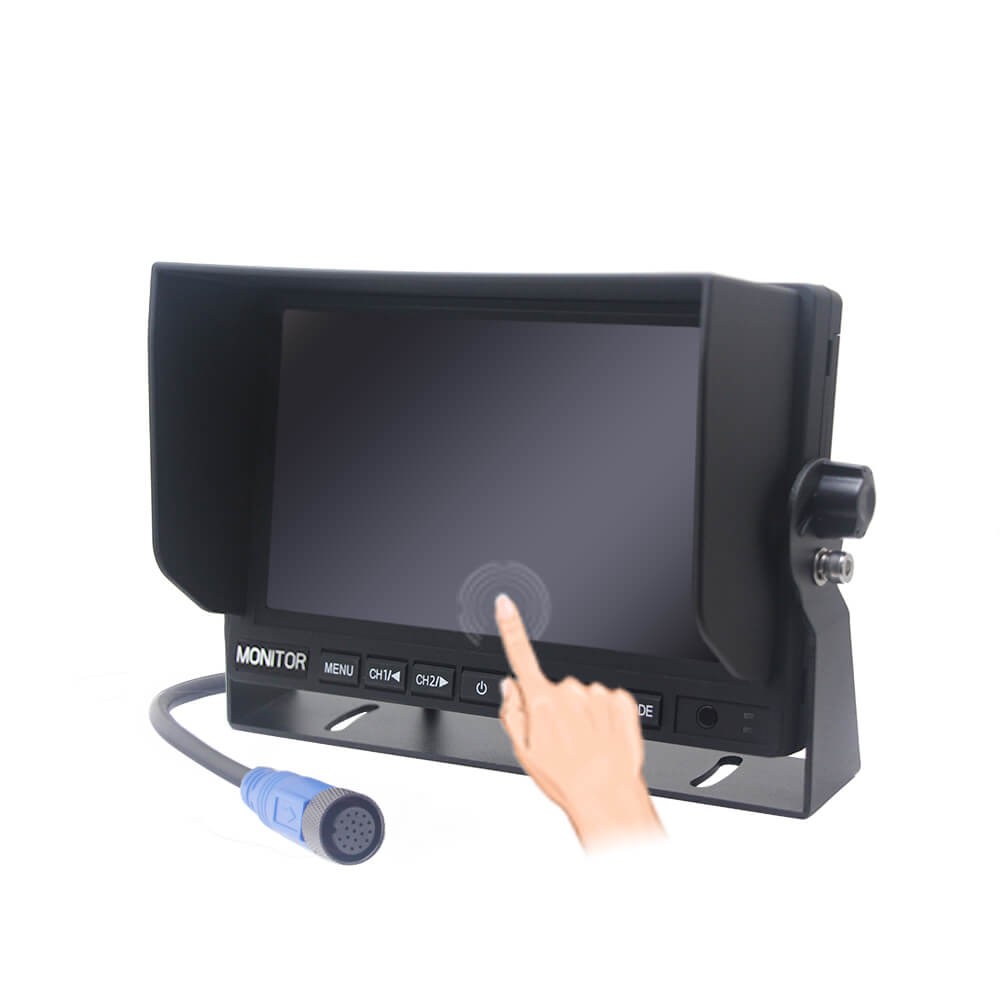

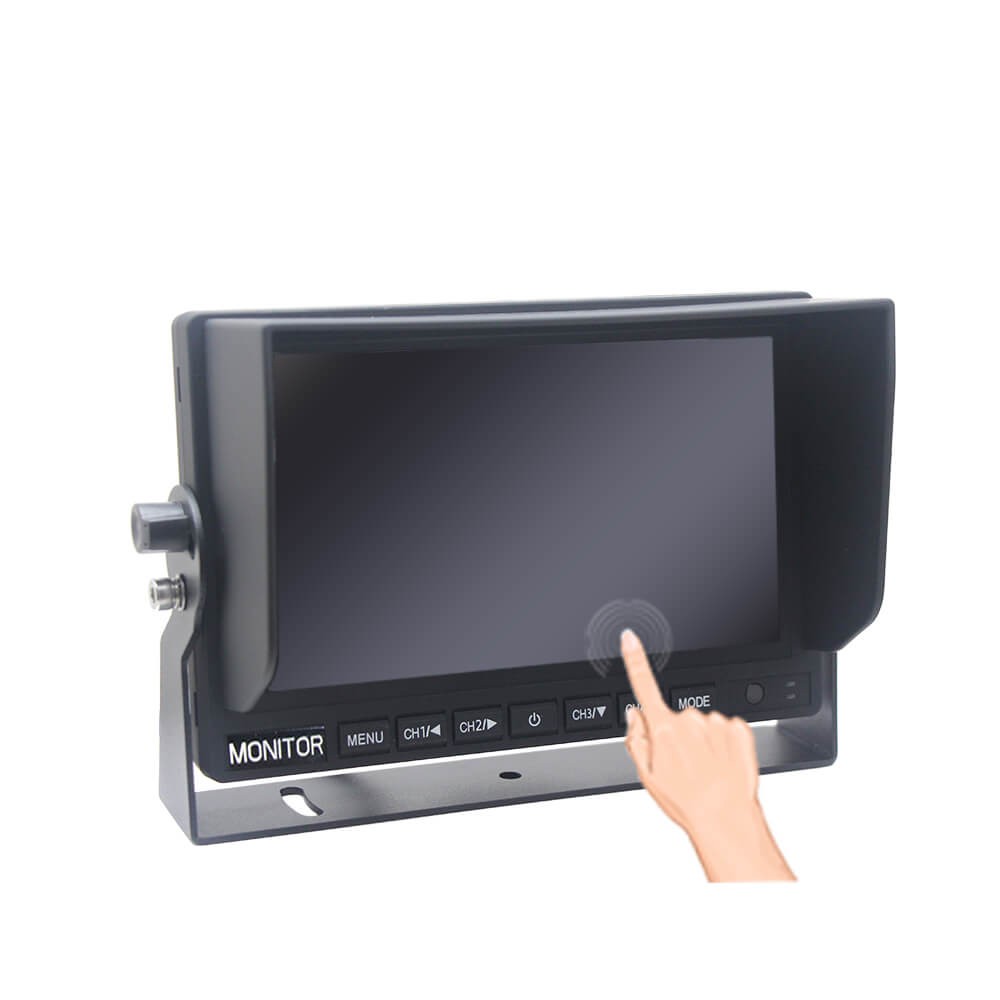

● 1024*RGB*600 IPS LCD screen (full touch)
● 4CH x AHD cameras video signal input
● Multiple video formats available to cameras: 720P / 1080P / AHD / PAL / NTSC

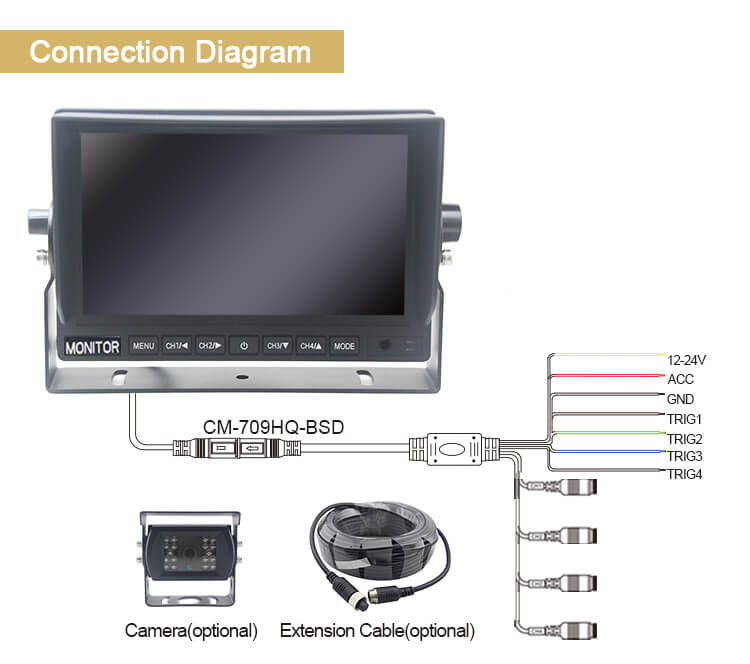

● 4 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;
● Built-in intelligent algorithm chip supported 3CH (left/right/back) image blind spot detection; Pedestrian vehicle obstacle detection;
● Available speaker BSD hazardous area approach audible warning

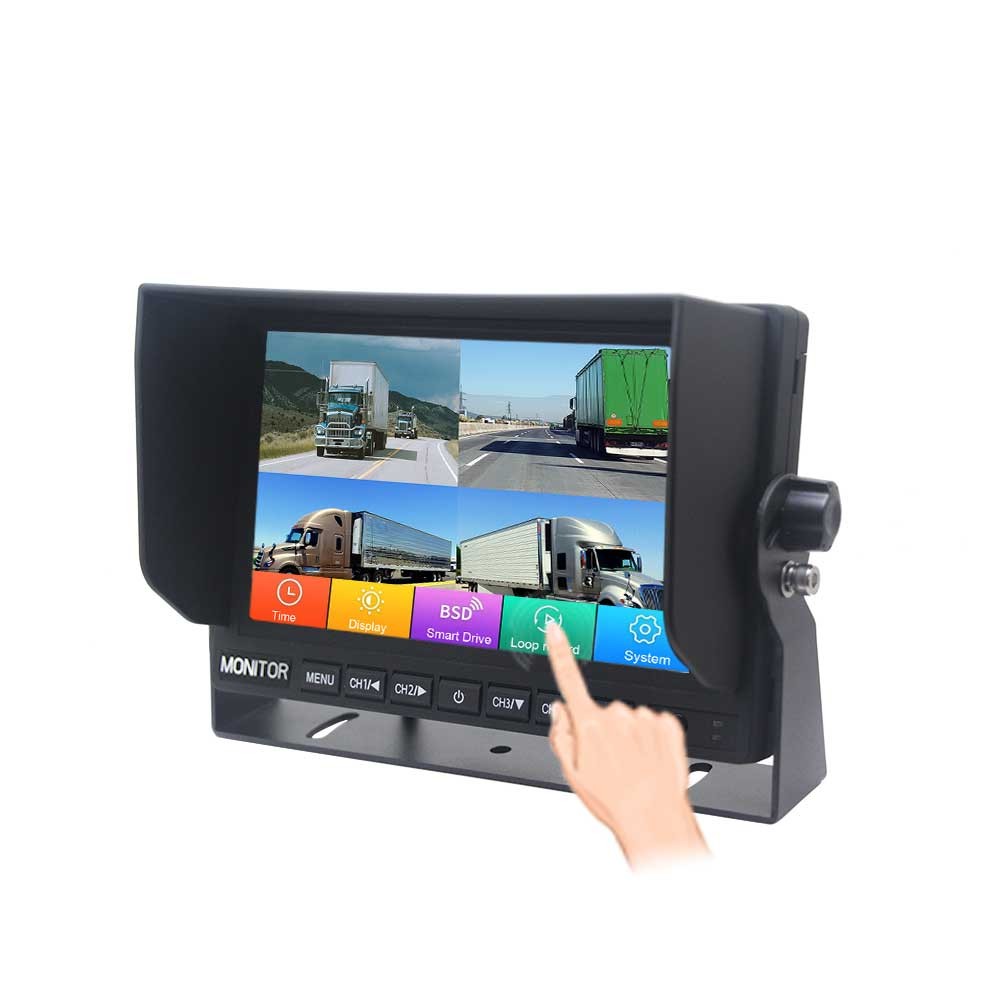

● Full display & dual/triples/quad split view mode

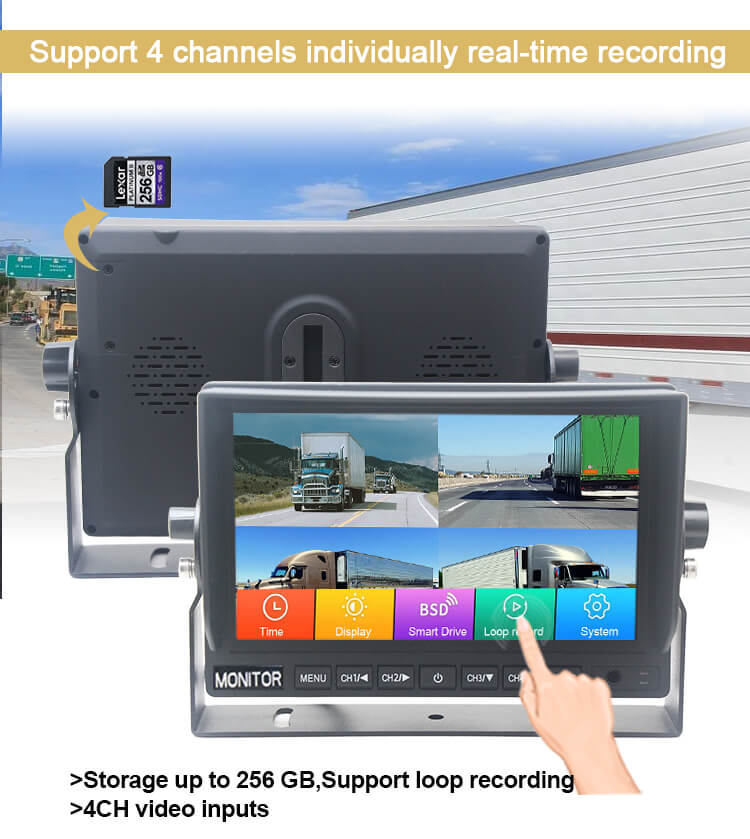

● Max. 256GB memory card (4CH DVR loop recorder)
● Multi-language settings
● Horizontal mirror image switching
● DC 12-24V wide voltage
PRODUCT FEATURES

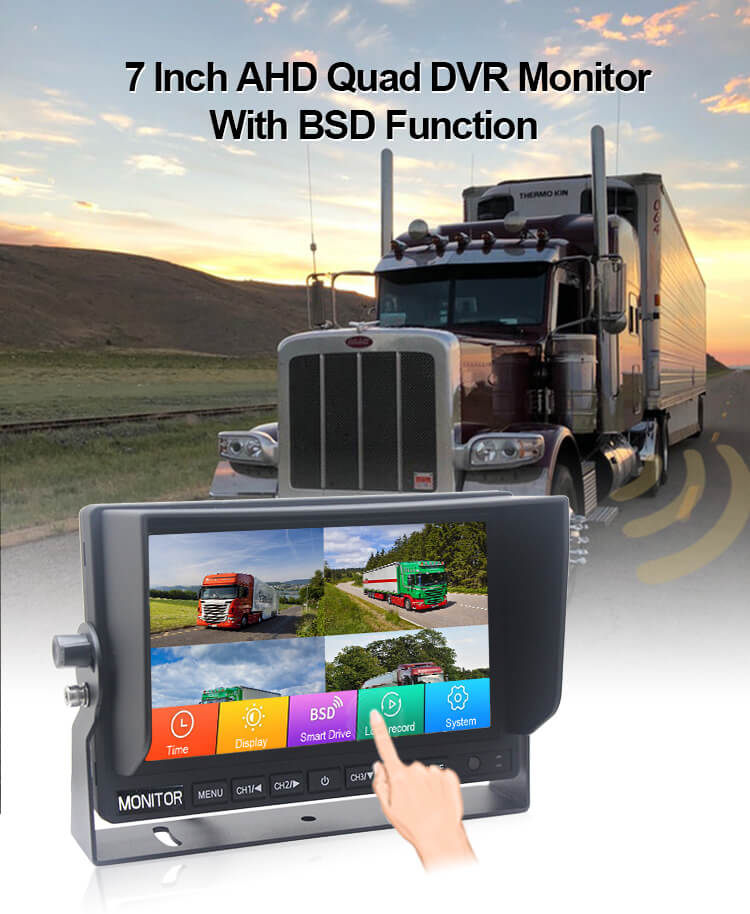

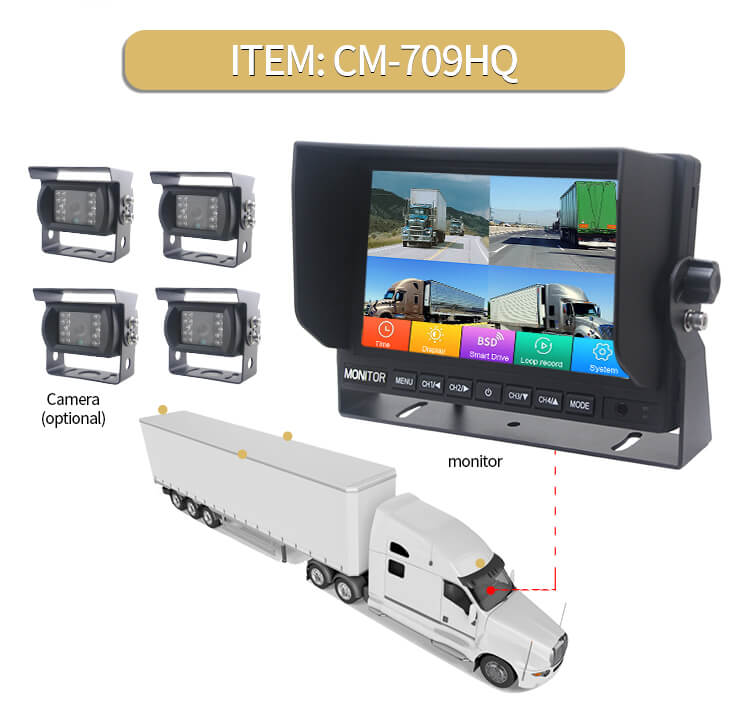

CM-709HQ-BSD vehicle rear view monitor supports 4CH HD camera video signal input, connecting 4 cameras to achieve
all-round monitoring around the vehicle, effectively reducing the risk of collision or scraping caused by blind spots.
Built-in 3CH AI algorithms to detect and identify pedestrians & vehicles, and collision avoidance alerts to remind drivers
of potential risks. For more AI BSD monitor details, please contact us sales@aotop.com.
If you have any specific custom requirements regarding the product's performance or appearance, you can contact us
without hesitation. Aotop takes pride professional OEM (Original Equipment Manufacturer) and ODM (Original Design
Manufacturer) services, which are customized precisely to meet your individual needs.
| Screen ratio | 16:9 |
| Resolution | 1024*R.G.B*600 BOE |
| Backlight | LED, brightness 500 cd/m2 |
| Contrast | 500:1 |
| Viewing angle | Up—85°, Down—85°, Left—85°, Right—85° |

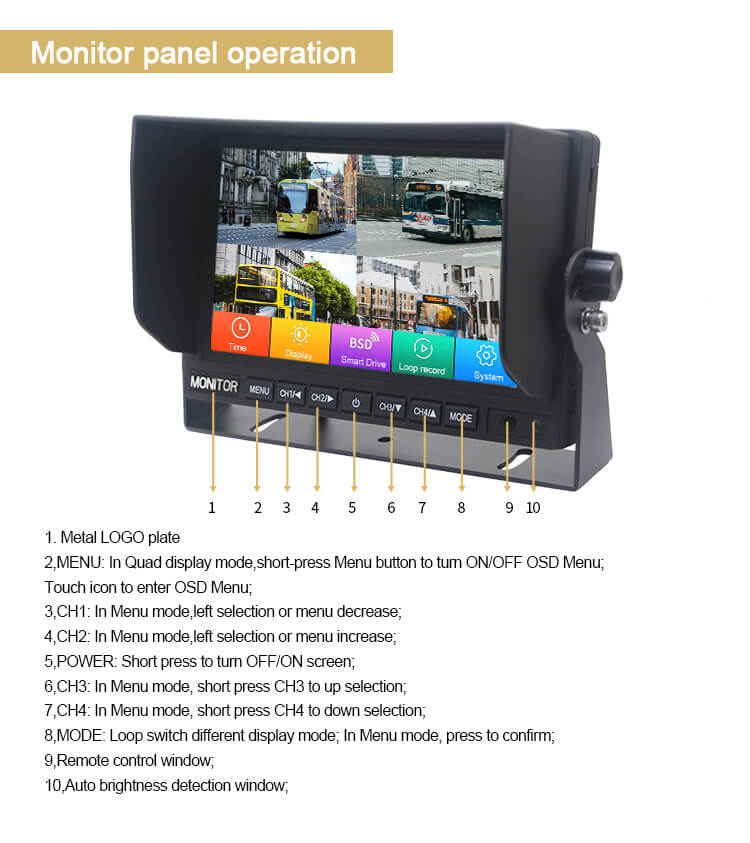

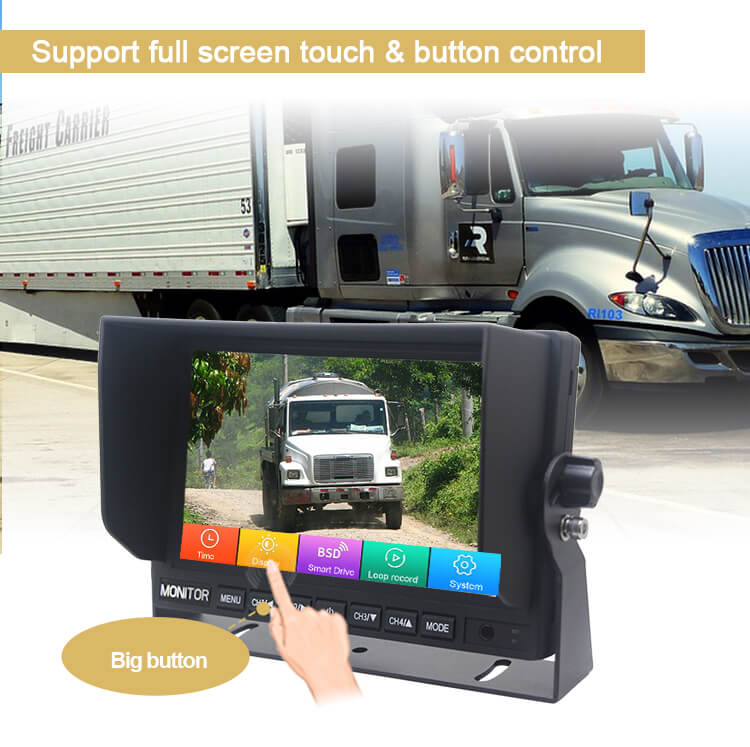

| Operation method | Full screen touch/button control |
| OSD control | Time Setting, Brightness Adjustment, Intelligent Driving, Loop Recording, System Setting |
| Power consumption | Normal working condition＜11.4W |
| Signal input | AHD 720P video input |
| Recording | Support |
| SD card storage | Support 8-256G , high-speed card |
| Video compression format | H.264 compression mode |
| Video playback | Single channel playback |
| File format | TS |
| File size | About 7.24M/min |
| System language | Chinese, English, Japanese, Korean |
| Display image switch | double-tap touch screen, button switch |
| Trigger | 4CH, with guideline function |
| Blind Spot Detection | Support 3 channel Left、right、back |
| Shockproof level | 4G |
| Audio | Front view recording(CH1) |
| Working temperature | -20~+70 ºC |
| Storage temperature | -30~+80 ºC |
| Working humidity | 85%RH |
| Power supply | 12-24V |
| Booting time | 5S |
| Current consumption | TYPE:12V/900MA (4 channel) |
| Speaker | With speaker |
