- Why 360 Vehicle Camera Systems? -

All vehicles have blind spots—areas that are obscured from the driver's view due to the vehicle's
body structure or equipment.

These blind spots pose significant safety risks, especially during low-speed maneuvers, lane
changes, or reversing, as drivers may struggle to detect nearby obstacles or pedestrians in time.
While mirrors and single-view cameras provide some assistance, their limited field of view requires
drivers to constantly shift their attention between different angles. Research shows that by the time
a driver scans multiple mirrors, assesses their surroundings, and reacts, a vehicle traveling at just
5 km/h could have already moved 10 meters, increasing the risk of collisions.

To solution this challenge, achieving 360° environmental awareness is crucial. A 360° AVM (Around
View Monitor) system offers a comprehensive solution by providing a real-time, bird's-eye view of
the vehicle's surroundings, significantly improving situational awareness, particularly at low speeds.

AI 360° Surround View System Support 8CH Collision Warning
Pedestrian & Vehicle Detection

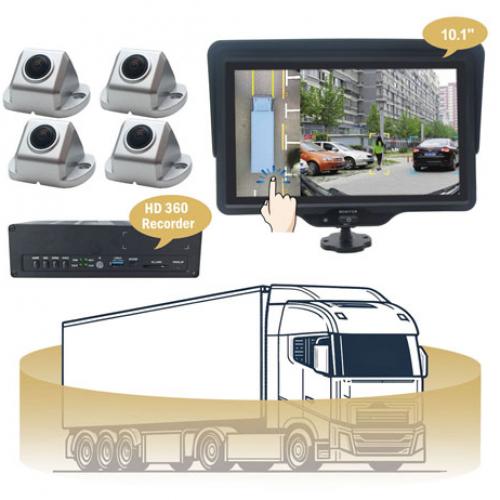

The 360 solution typically features 4 wide angle cameras, with each camera covering one side of
the vehicle. Expansive view, with a horizontal angle exceeding 210°. The calibrated cameras are
installed at the front, rear, and sides of the vehicle to capture all areas, including blind spots that
traditional mirrors cannot cover. The images from all cameras are then stitched together through
a surround view video control box to create a seamless 3D panoramic view, ensuring that drivers
can monitor the situation around the vehicle in real-time on the monitor screen. This results in
"multiple cameras, 1 image, 0 blind spot."

Aotop is a leading developer and manufacturer of in-vehicle visual safety system solutions in China.
The 360 system we developed built-in  advanced AI visual algorithms to support 360° blind spot
pedestrian and vehicle detection functions for the entire vehicle. The system provides drivers with
a trinity of reminders: [image + light + sound] through the in-car monitor (vision) + blind spot
(BSD - LED) indicator light (light) + intelligent voice broadcast horn (sound). At the same time, the
external sound and light alarm is linked to promptly remind pedestrians or non-motor vehicles
entering the blind spot, thereby improving driving safety in all aspects and further ensuring the
safety of other vulnerable road users.

Aotop, as a leading developer and manufacturer of vehicle vision safety systems in China, we offer
excellent 360° AVM system solutions. If you are looking for a suitable 360° surround view camera
system manufacturer and supplier, please contact sales@aotop.com for more information.
